FIG 246 FEMALE MALE SUPPLEMENT INOX 316
FIG 246 FEMALE MALE SUPPLEMENT INOX 316
FIG 246 FEMALE MALE SUPPLEMENT INOX 316
FIG 246 FEMALE MALE SUPPLEMENT INOX 316

FIG 246 FEMALE MALE SUPPLEMENT INOX 316

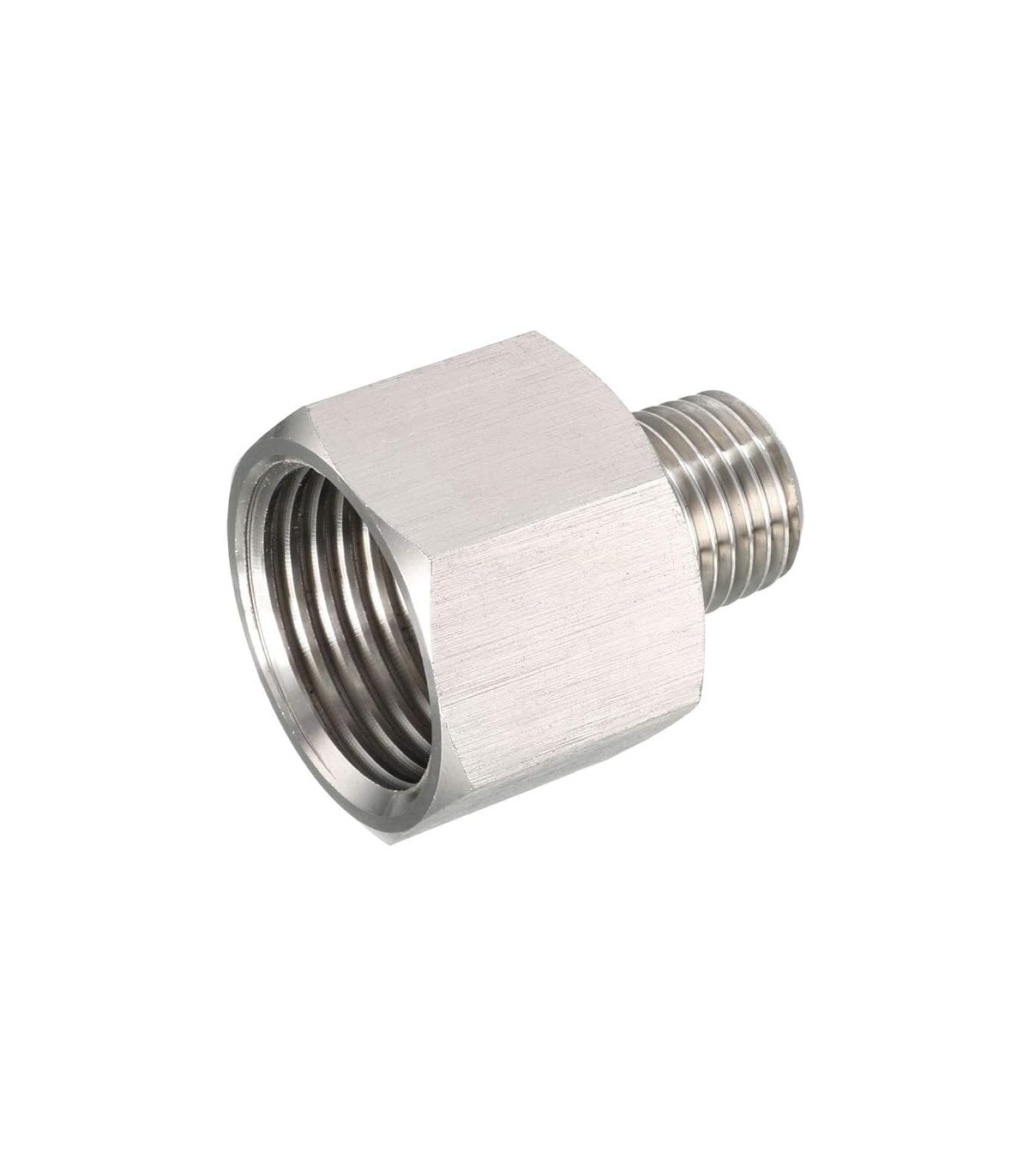

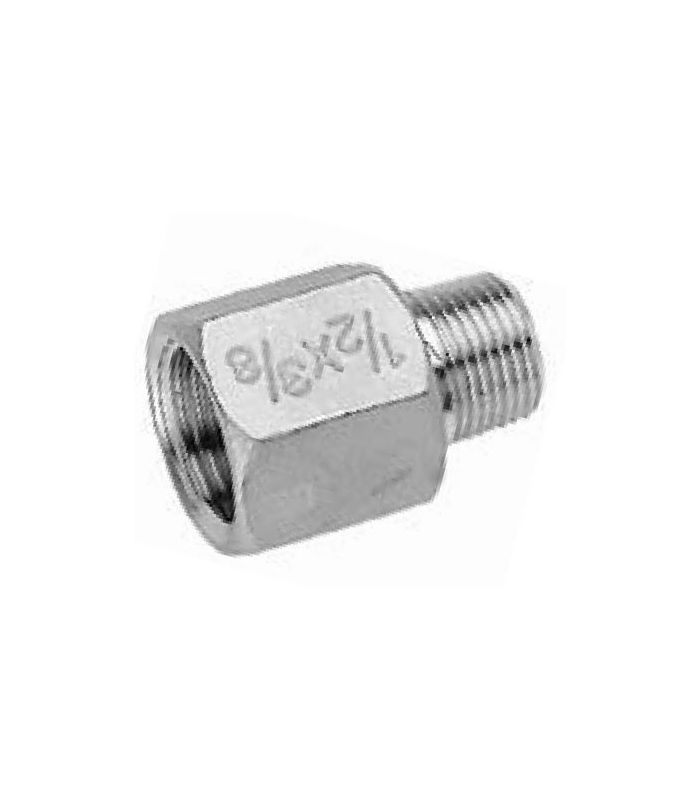

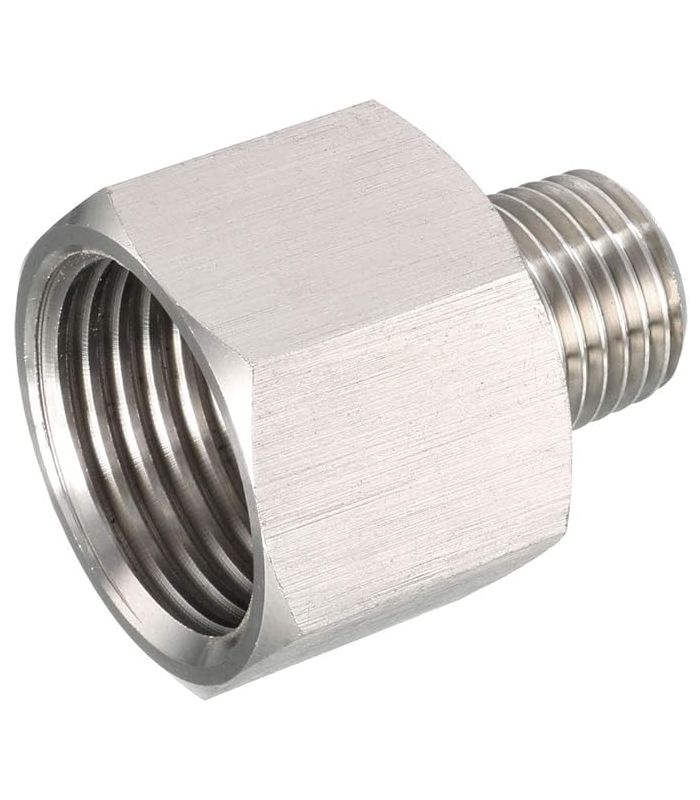

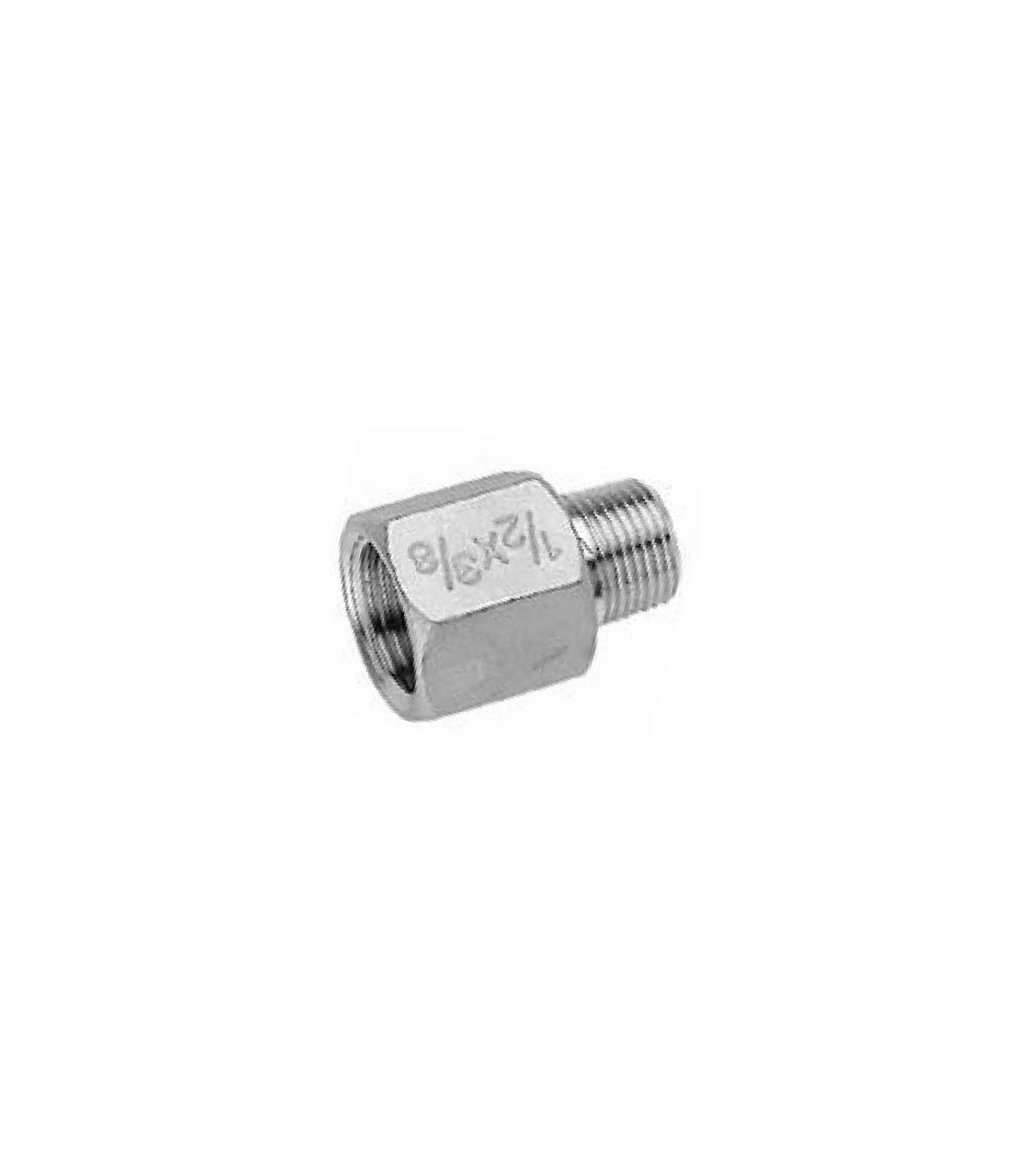

The Fig 246 female male stainless steel 316 adapter is used to join two pipes or tubes of the same diameter, but with different thread types.

Applications: food and pharmaceutical industry, chemical industry, oil and gas industry, water treatment.

Technical specifications:

  • Threaded fitting 150 psi - 10 bar.
  • Austenitic Stainless Steel A-316 DIN 1.4408
  • Tolerance: DIN 1.4408
  • Manufactured according to UNE EN 10213-4
  • DIN 2999 thread
€3.87 (tax included)
€3.20 (tax excl.)
SELECT THE THREAD
  • 1/4"-1/8"
  • 3/8"-3/8"
  • 3/8"-1/4"
  • 3/4"-1/2"
  • 3/4"-3/4"
  • 1/2"-3/8"
  • 1/2"-1/2"
  • 1"-3/4"
  • 1"-1"
  • 1-1/4"-1"
Reference:
12240005
Description

Fig 246 female male stainless steel 316 adapter

Technical data sheet for a Fig 246 female male stainless steel 316 adapter:

Reference D1 (mm) D2 (mm) L (mm) SW (mm)
12240005 1/4" 1/8" 26.0 18.0
12240015 3/8" 3/8" 31.0 21.0
12240009 3/8" 1/4" 28.5 21.0
12240017 3/4" 1/2" 46.0 30.0
12240027 3/4" 3/4" 49.0 30.0
12240013 1/2" 3/8" 37.5 26.0
12240021 1/2" 1/2" 37.5 26.0
12240022 1" 3/4" 51.0 35.0
12240030 1" 1" 57.0 37.0

Product Details
12240005
