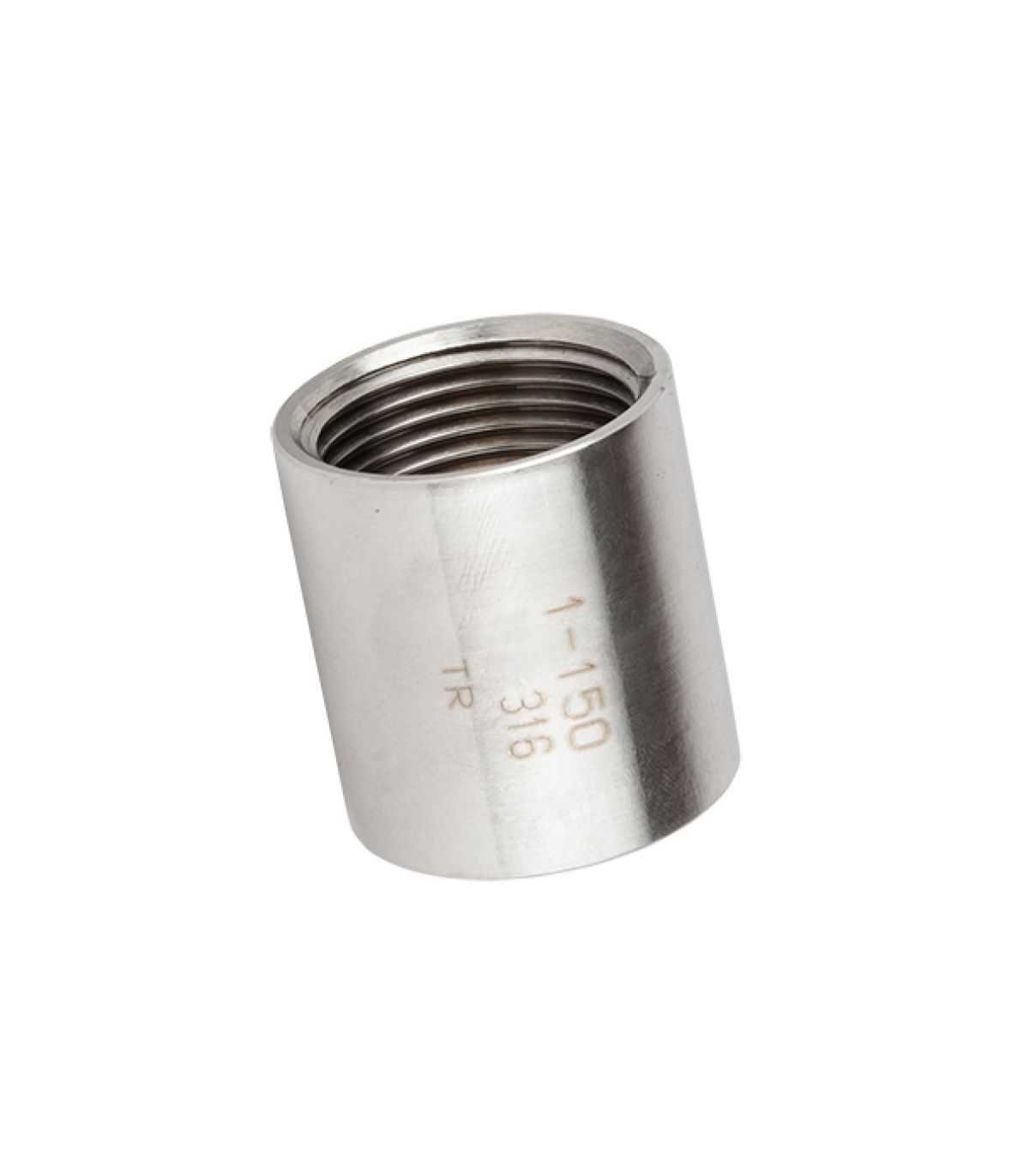

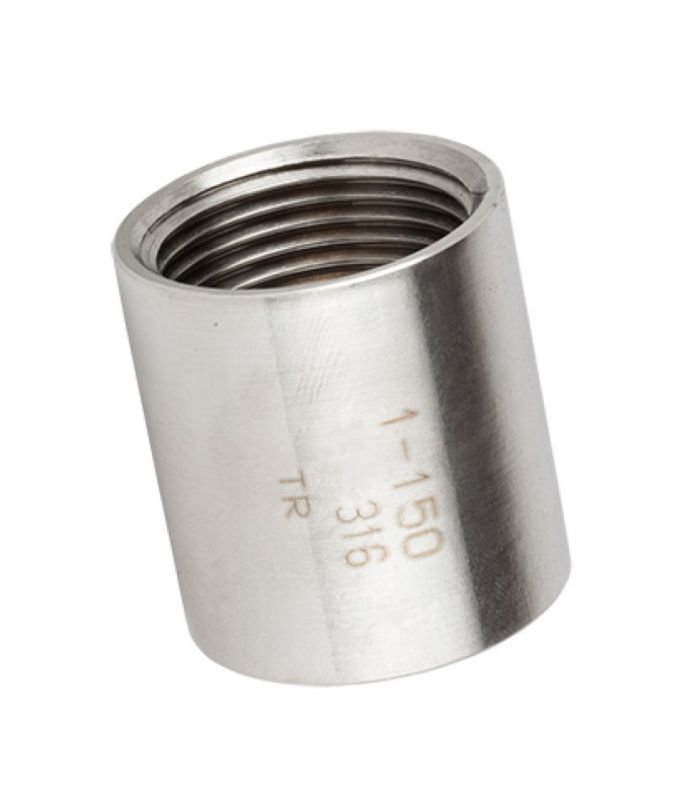

The Fig 270 stainless steel 316 plain sleeve is a threaded fitting used to join two pipes or tubes of the same material and diameter securely and leak-proof, allowing the flow of liquids or gases.
It is a cylindrical piece with female threads at both ends.
Applications: Food and pharmaceutical industry, Chemical industry, Oil and gas industry, Water treatment, Irrigation and sprinkler systems
Main features:
The Fig 270 stainless steel 316 smooth sleeve is a threaded fitting designed for the straight joining of two elements with male threads, guaranteeing a secure and leak-proof connection in fluid conduction systems.
It is a part widely used in industrial facilities where corrosion resistance and reliability under demanding conditions are required.
Technical sheet of Fig 270 smooth stainless steel 316 sleeve:
| Reference | Thread | Ø1 (mm) | L (mm) |
| 12010004 | 1/8" | 14.0 | 17.0 |
| 12010008 | 1/4" | 18.0 | 25.0 |
| 12010012 | 3/8" | 21.3 | 26.0 |
| 12010016 | 1/2" | 26.0 | 34.0 |
| 12010021 | 3/4" | 31.5 | 35.5 |
| 12010025 | 1" | 39.0 | 42.0 |
| 12010030 | 1-1/4" | 48.0 | 47.0 |
| 12010034 | 1-1/2" | 54.0 | 47.0 |
| 12010037 | 2" | 66.0 | 56.0 |
| 12010042 | 2-1/2" | 81.0 | 64.0 |
| 12010045 | 3" | 94.0 | 70.0 |
| 12010048 | 4" | 120.0 | 82.0 |
