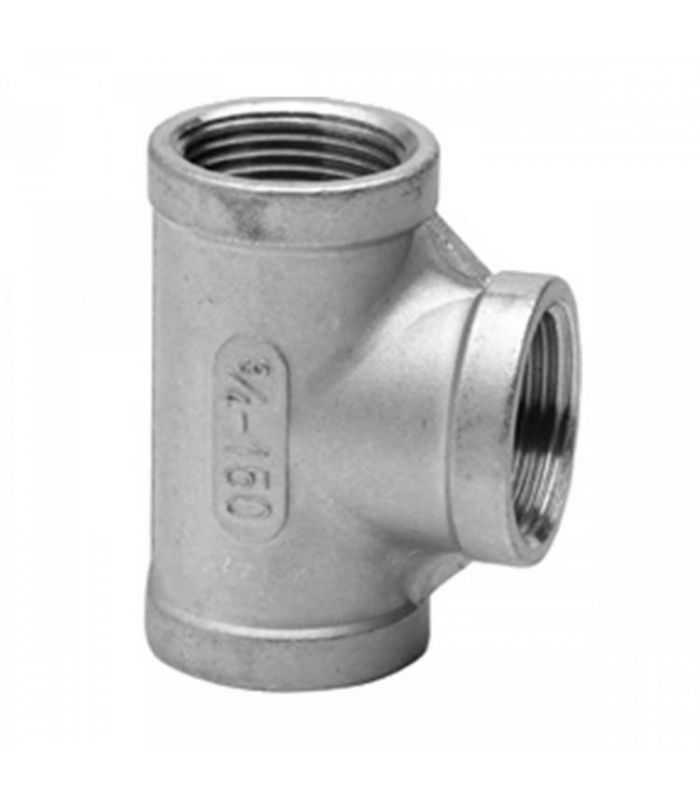

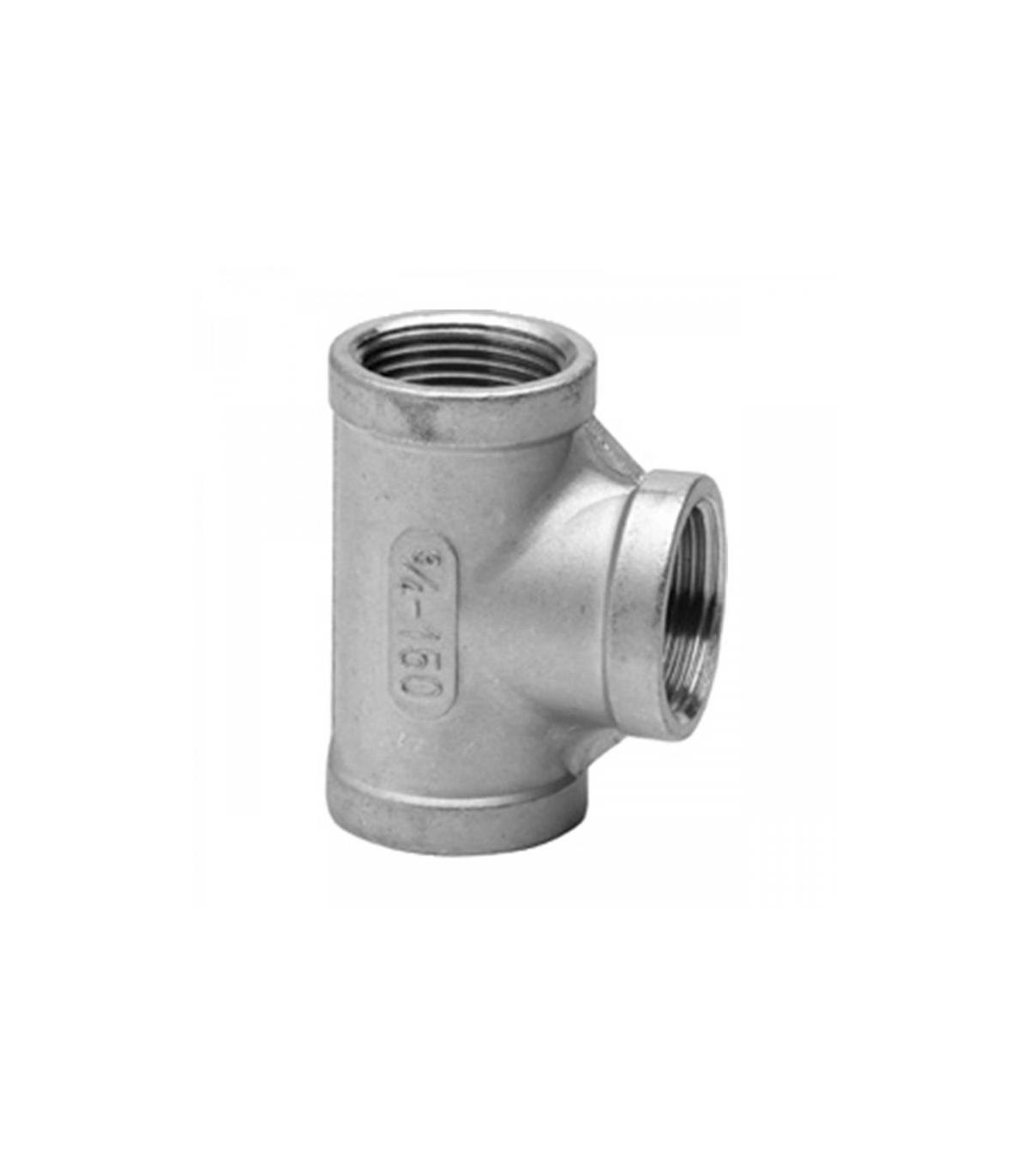

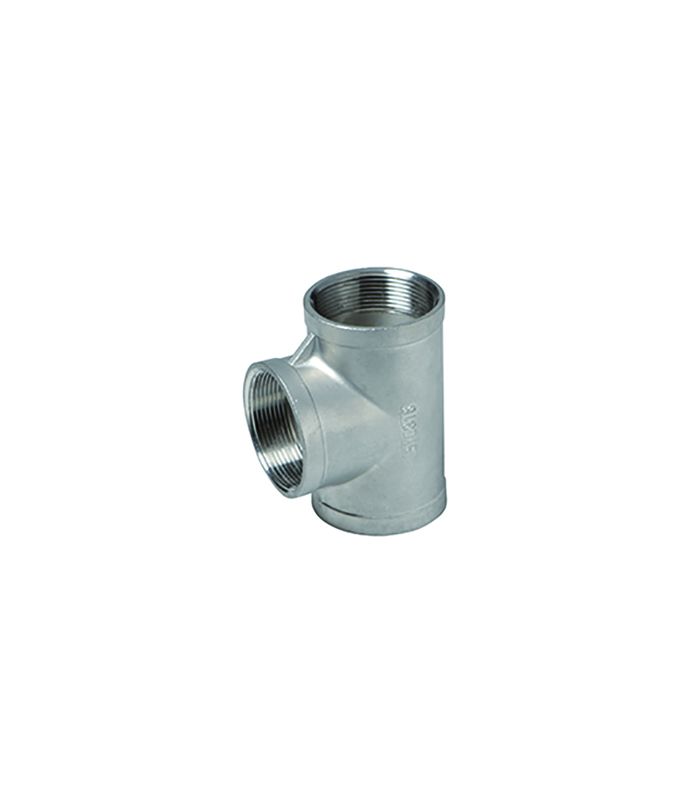

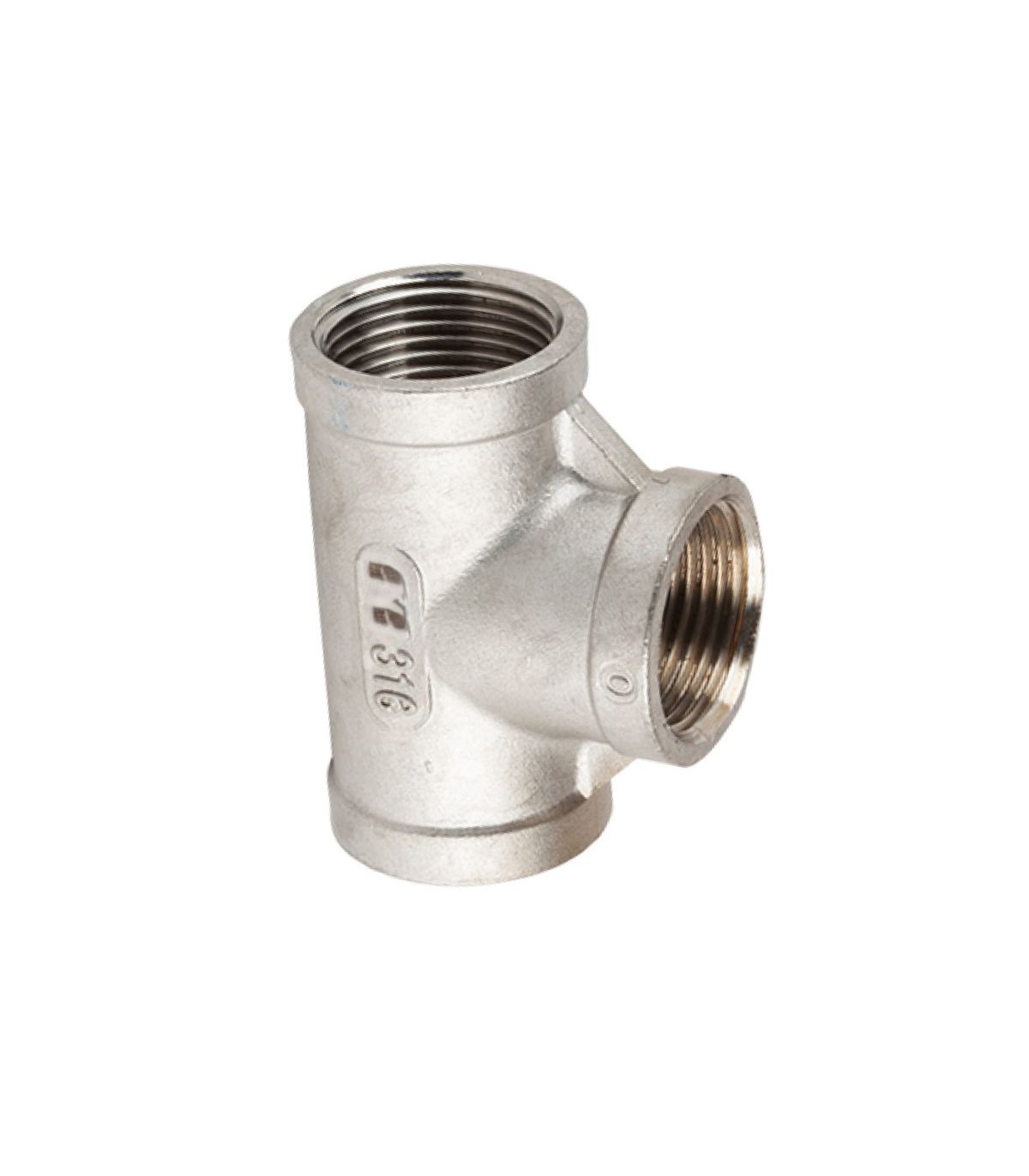

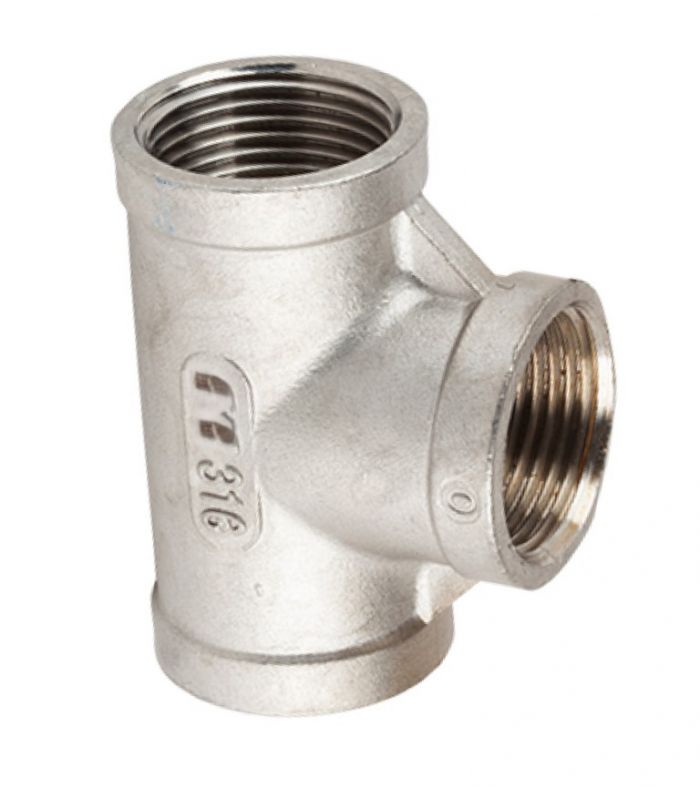

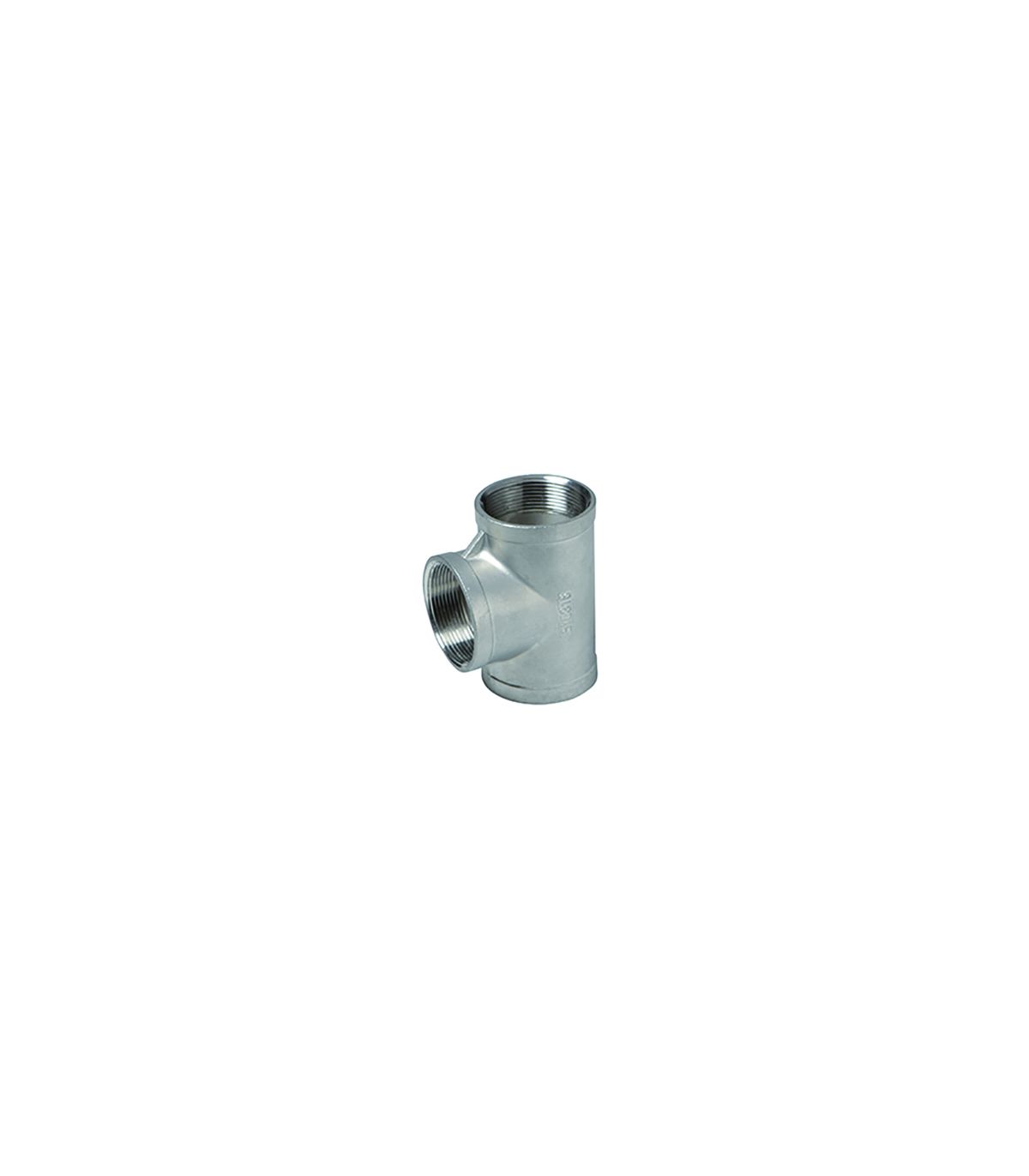

FIG 130 T FEMALE INOX 316
FIG 130 T FEMALE INOX 316
FIG 130 T FEMALE INOX 316
FIG 130 T FEMALE INOX 316
FIG 130 T FEMALE INOX 316
FIG 130 T FEMALE INOX 316

FIG 130 T FEMALE INOX 316

The Fig 130 female T stainless steel 316 is a threaded fitting in the shape of a "T" that is used to join three pipes or tubes of the same diameter at a 90-degree angle.

Applications: pharmaceutical and food industry, chemical industry, oil and gas industry, water treatment.

Main features:

  • Stainless Steel Threaded Fitting 150 PSI
  • Austenitic Stainless Steel A-316 DIN 1.4408
  • DIN 1.4408 tolerance
  • Working pressure -20ºC to 220ºC
  • Maximum operating pressure: PN 20
  • Manufactured according to UNE EN 10213-4
  • DIN 2999 thread
€2.78 (tax included)
€2.30 (tax excl.)
SELECT THE THREAD
  • 1/8"
  • 1/4"
  • 3/8"
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"
  • 2-1/2"
  • 3"
  • 4"
Reference:
12060004
Description

Fig 130 Female T stainless steel 316

Technical data sheet for a Fig 130 T female stainless steel 316:

Reference Thread L (mm) d (mm)
12060004 1/8" 17.0 14.6
12060008 1/4" 19.0 17.5
12060012 3/8" 22.0 22.0
12060016 1/2" 27.0 27.0
12060021 3/4" 32.0 32.0
12060025 1" 38.0 39.5
12060030 1-1/4" 45.0 49.0
12060034 1-1/2" 48.0 55.0
12060037 2" 57.0 67.0
12060042 2-1/2" 69.0 84.0
12060045 3" 78.0 98.5
12060048 4" 96.0 123.5
Product Details
12060004
