FIG 90 FEMALE ELBOW INOX 316
FIG 90 FEMALE ELBOW INOX 316
FIG 90 FEMALE ELBOW INOX 316
FIG 90 FEMALE ELBOW INOX 316
FIG 90 FEMALE ELBOW INOX 316
FIG 90 FEMALE ELBOW INOX 316
FIG 90 FEMALE ELBOW INOX 316
FIG 90 FEMALE ELBOW INOX 316

FIG 90 FEMALE ELBOW INOX 316

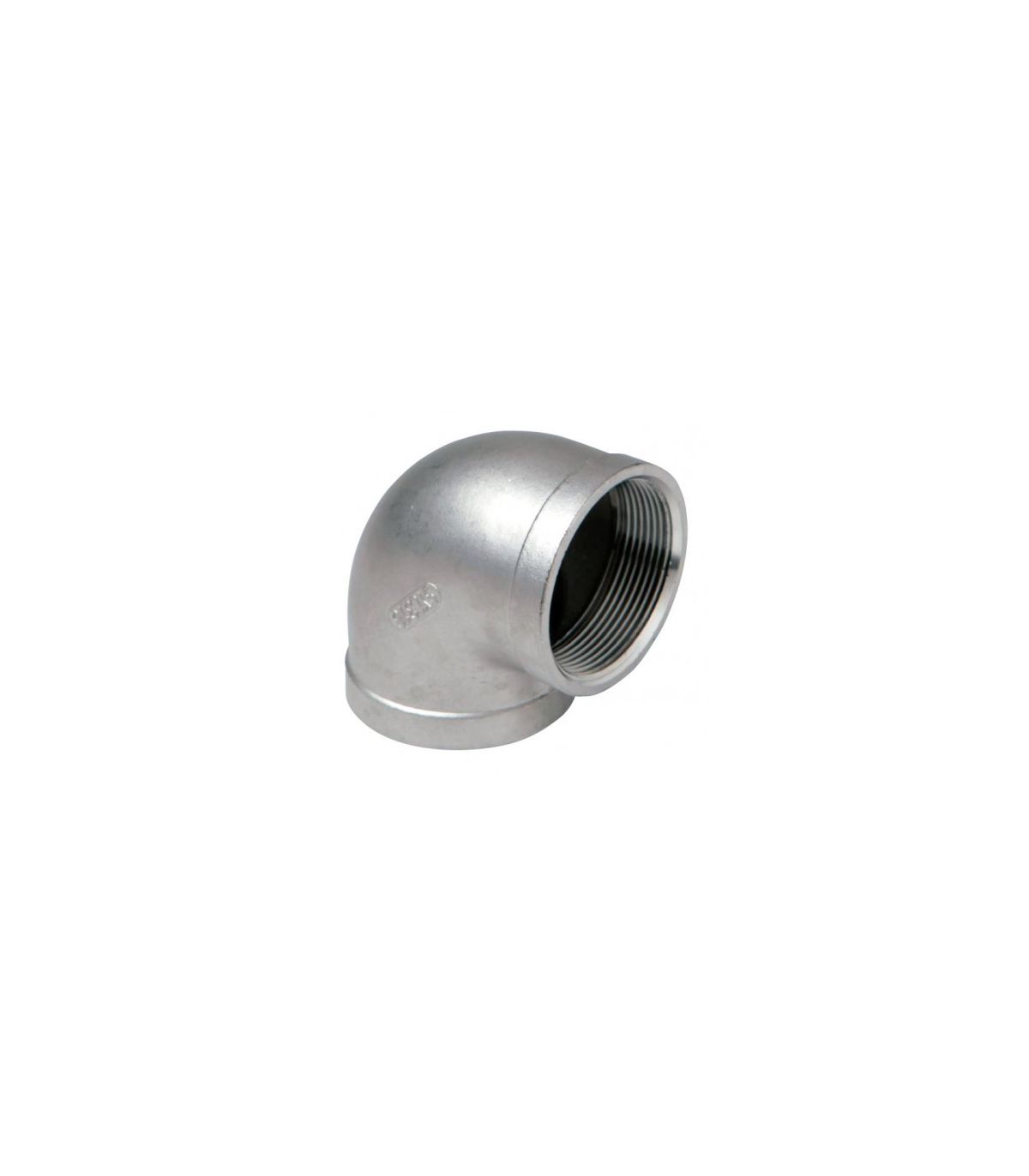

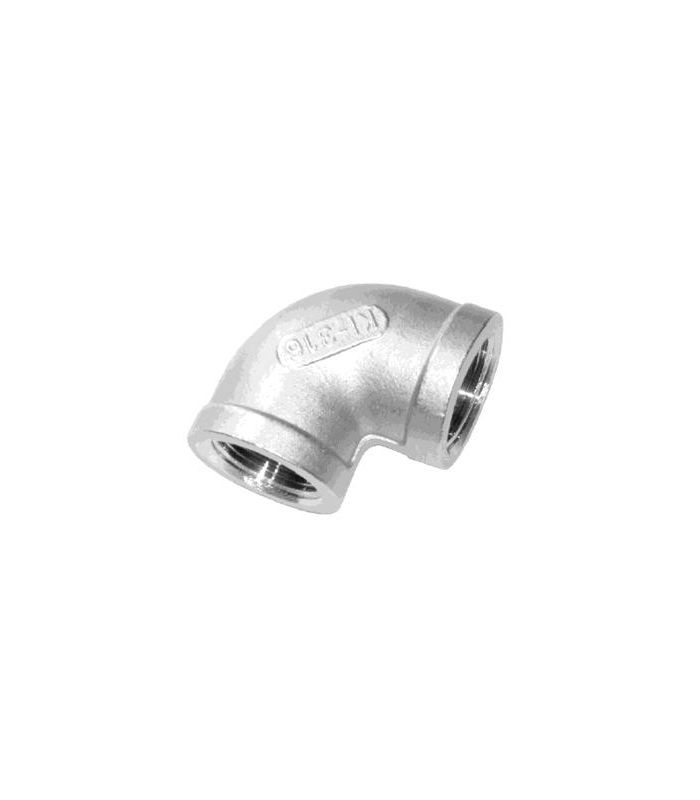

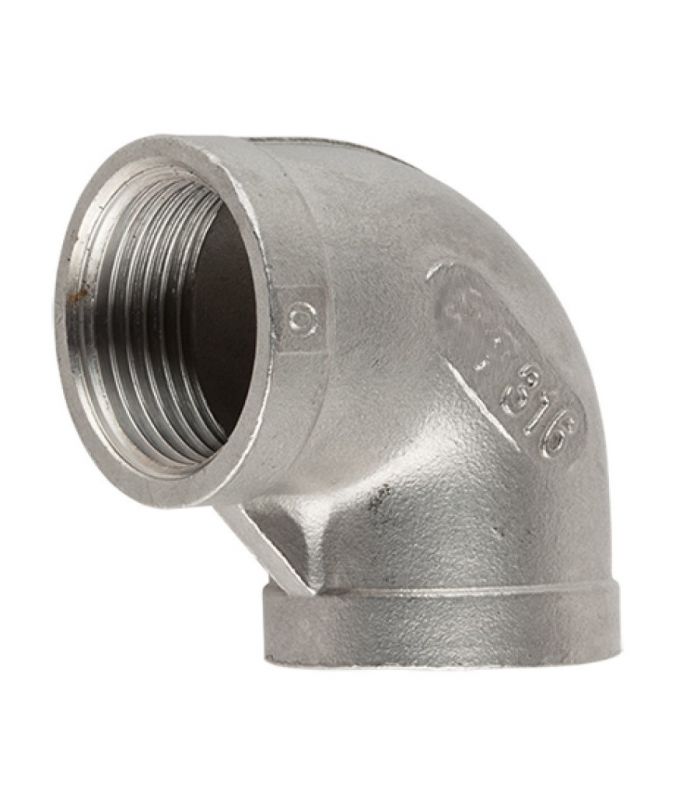

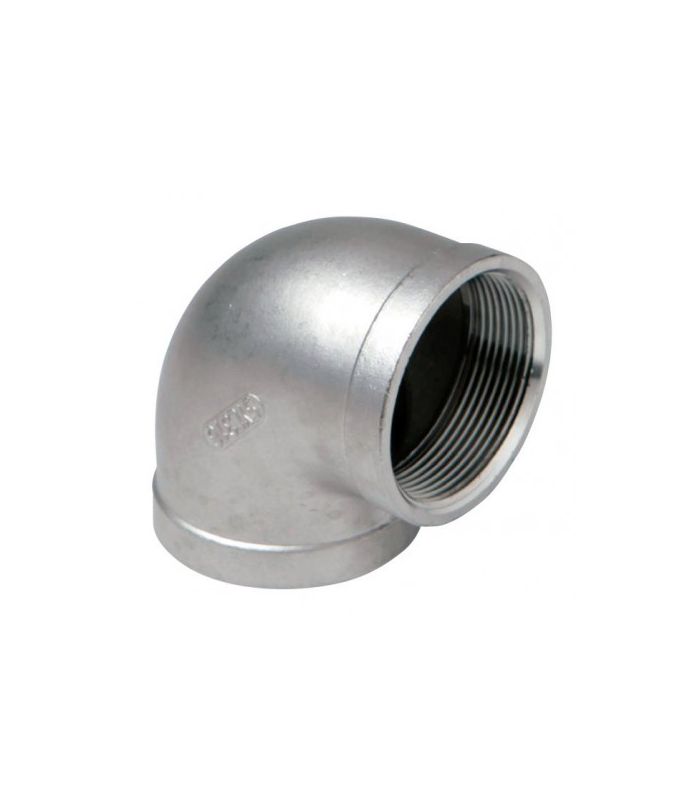

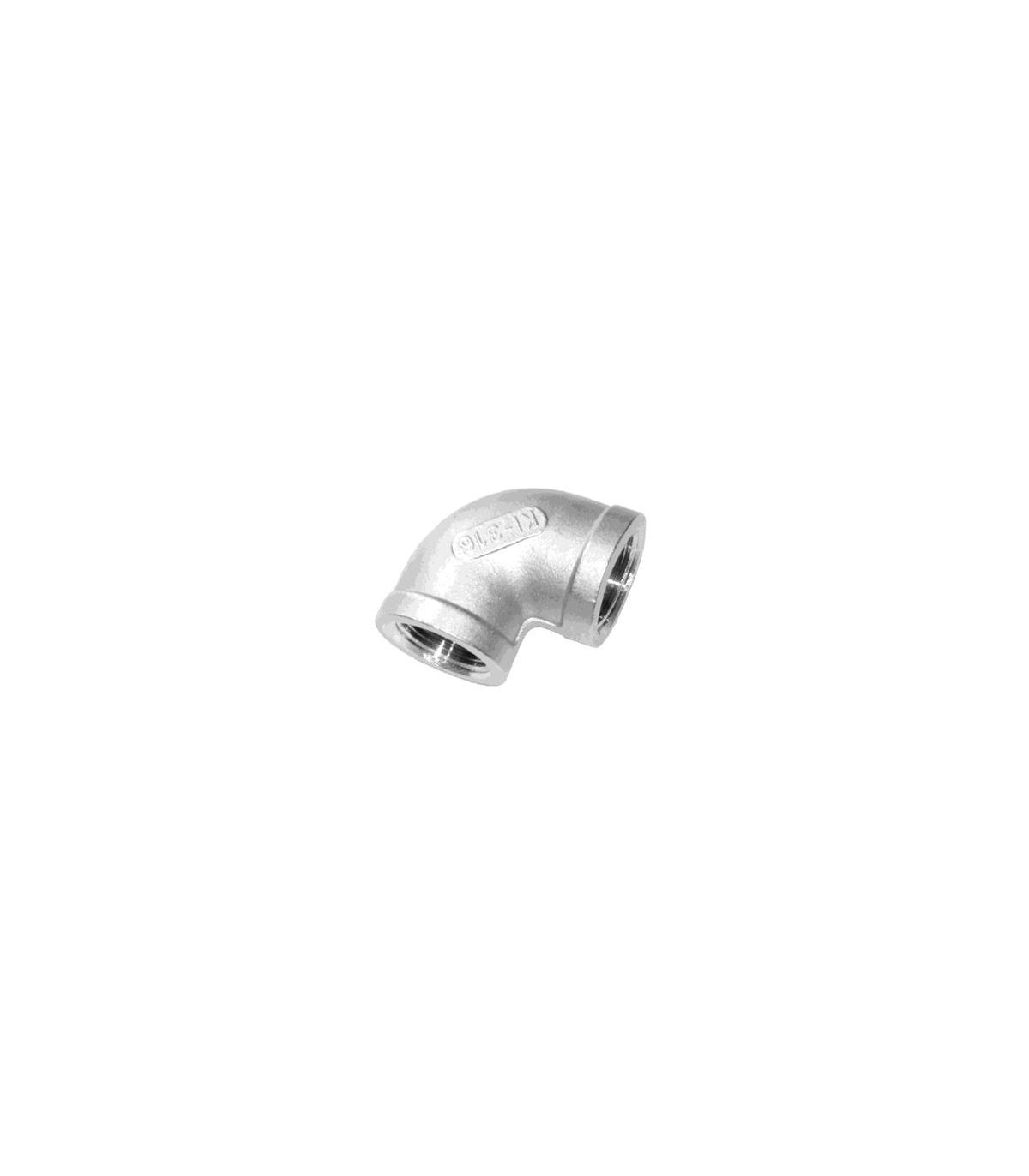

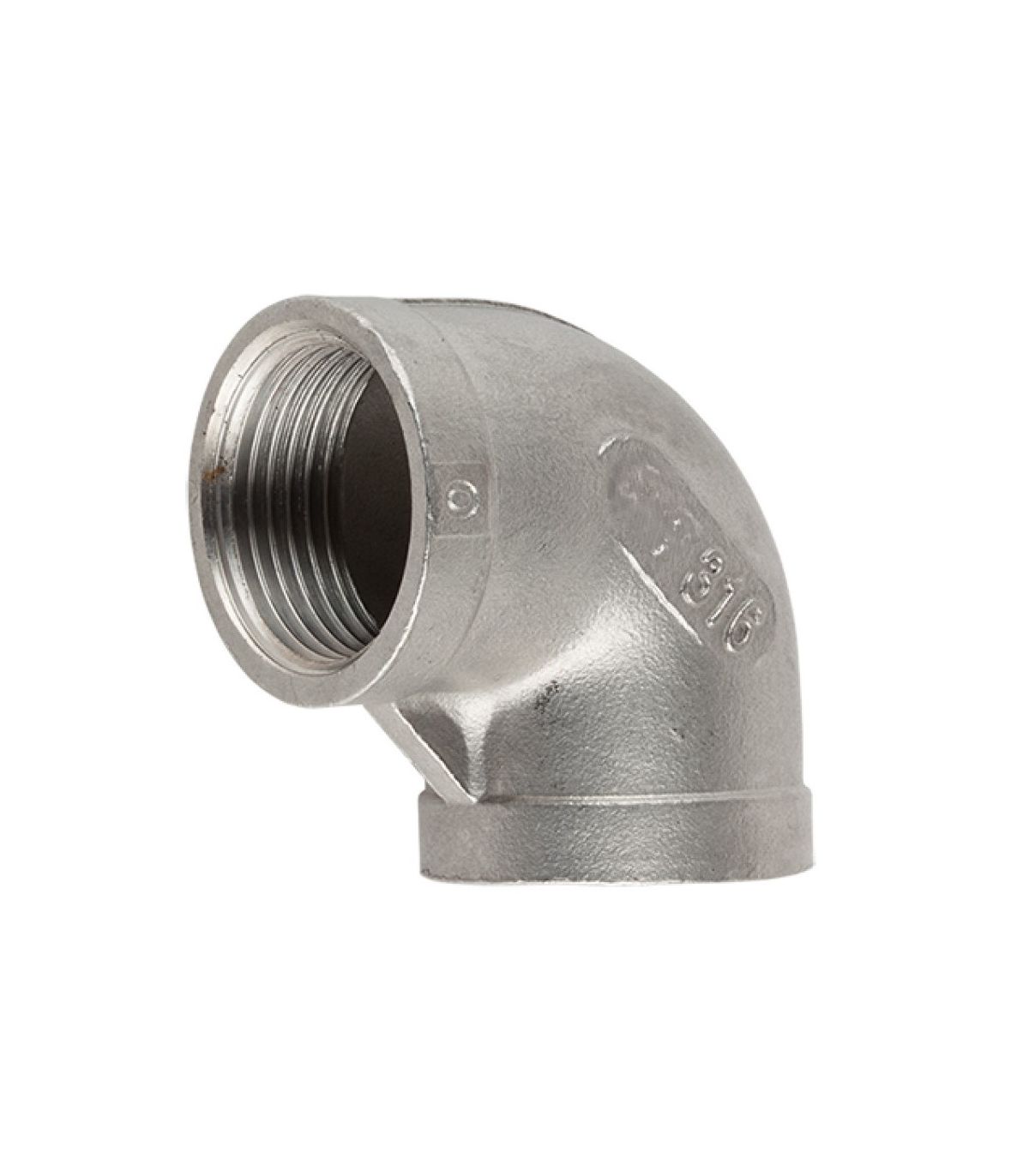

The Fig 90 female stainless steel 316 elbow is a threaded fitting used to change the flow direction by 90 degrees in pipes. It is made of 316 stainless steel, a high-quality, corrosion-resistant material.

Applications: food and pharmaceutical industry, chemical industry, oil and gas industry, water treatment.

Main features:

  • Stainless Steel Threaded Fitting 150 PSI
  • Zero Austenitic Stainless Steel A-316 DIN 1.4408
  • Tolerance: DIN 1.4408
  • Manufactured according to UNE EN 10213-4
  • DIN 2999 thread
€2.01 (tax included)
€1.66 (tax excl.)
SELECT THE THREAD
  • 1/8"
  • 1/4"
  • 3/8"
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"
  • 2-1/2"
  • 3"
  • 4"
Reference:
12030004
Description

Fig 90 female stainless steel elbow 316

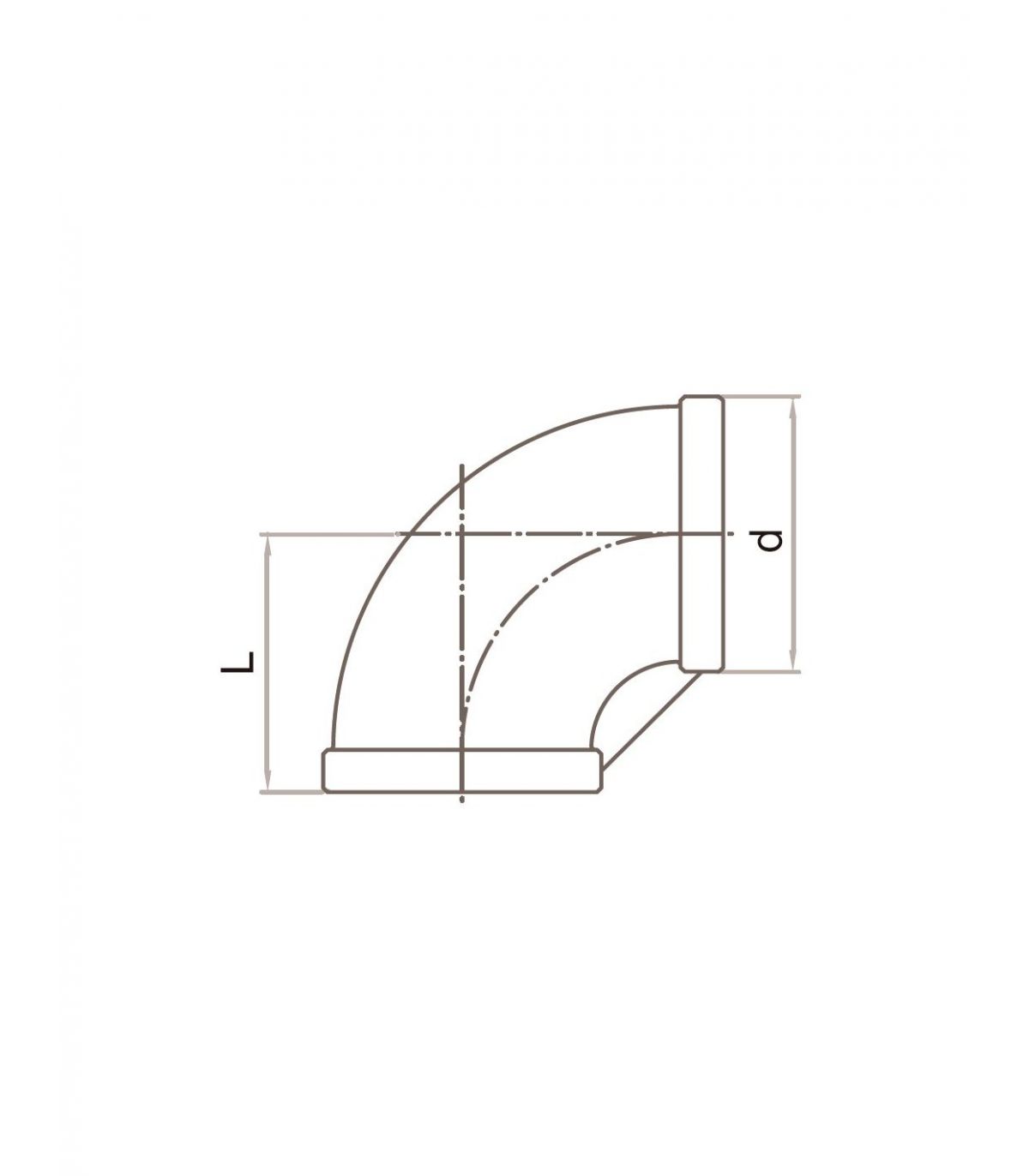

Technical data sheet for fig 90 stainless steel 316 female elbow:

Reference Thread L (mm) d (mm)
12030004 1/8" 17.0 14.6
12030008 1/4" 19.0 17.5
12030012 3/8" 23.0 22.0
12030016 1/2" 27.0 27.0
12030021 3/4" 32.0 32.0
12030025 1" 38.0 39.5
12030030 1-1/4" 45.0 49.0
12030034 1-1/2" 48.0 55.0
12030037 2" 57.0 67.0
12030042 2-1/2" 69.0 84.0
12030045 3" 78.0 98.5
12030048 4" 96.0 123.5

Product Details
12030004
