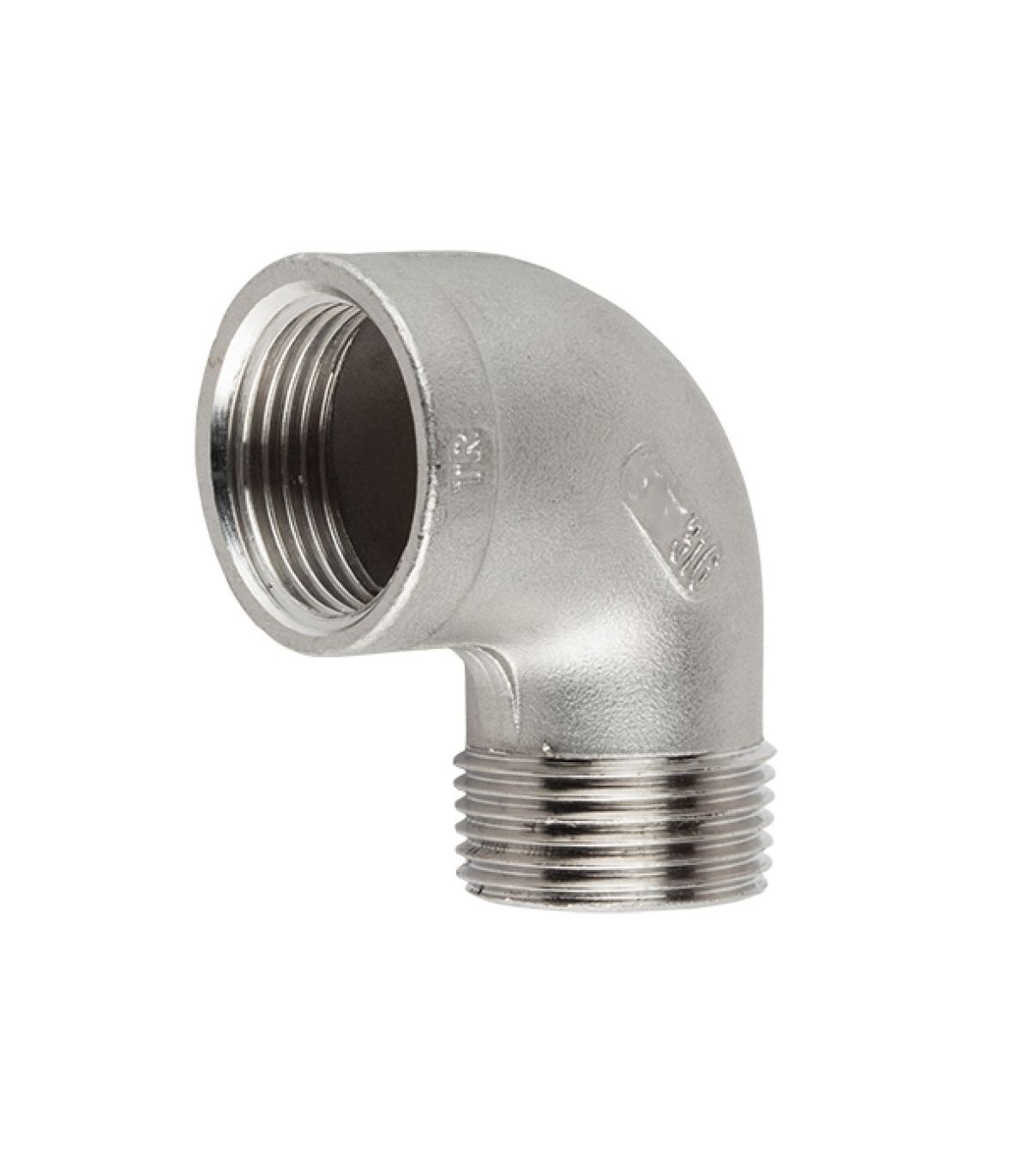

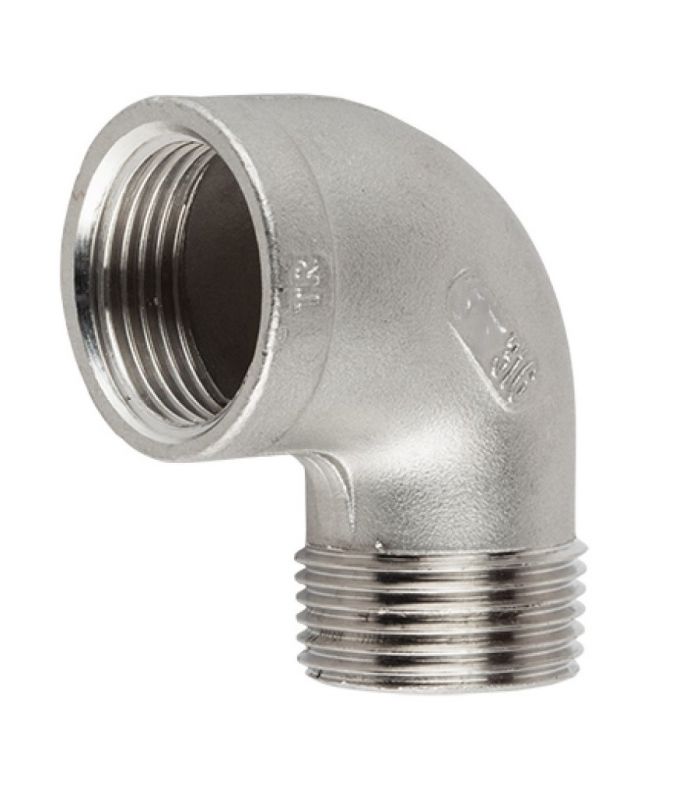

The Fig 92 stainless steel 316 male-female elbow is a pipe fitting used to join two sections of pipe at a 90° angle. It has a male threaded connection on one end and a female threaded connection on the other.
Applications: piping systems for water, gas, compressed air, hydraulic and pneumatic systems, and in the food and pharmaceutical industries.
Main features:

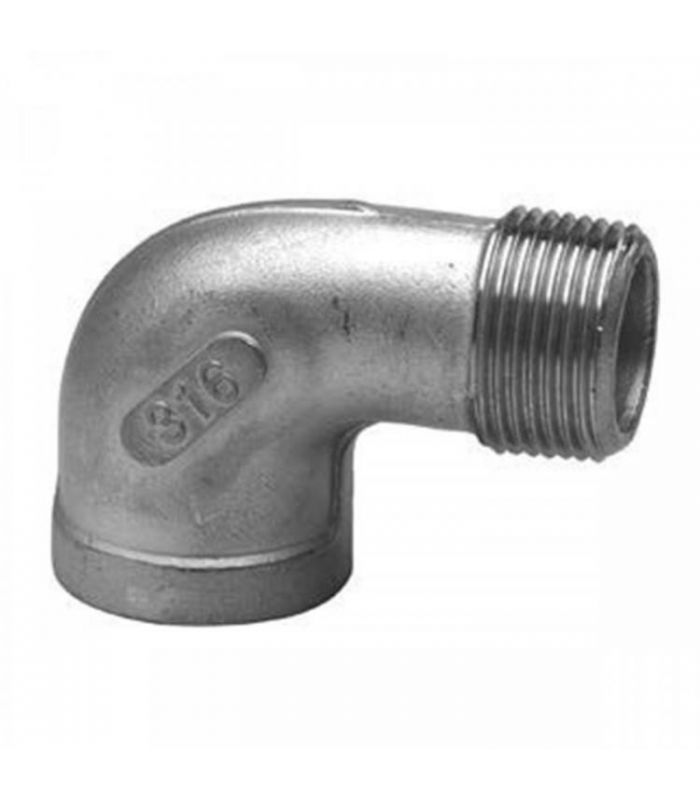

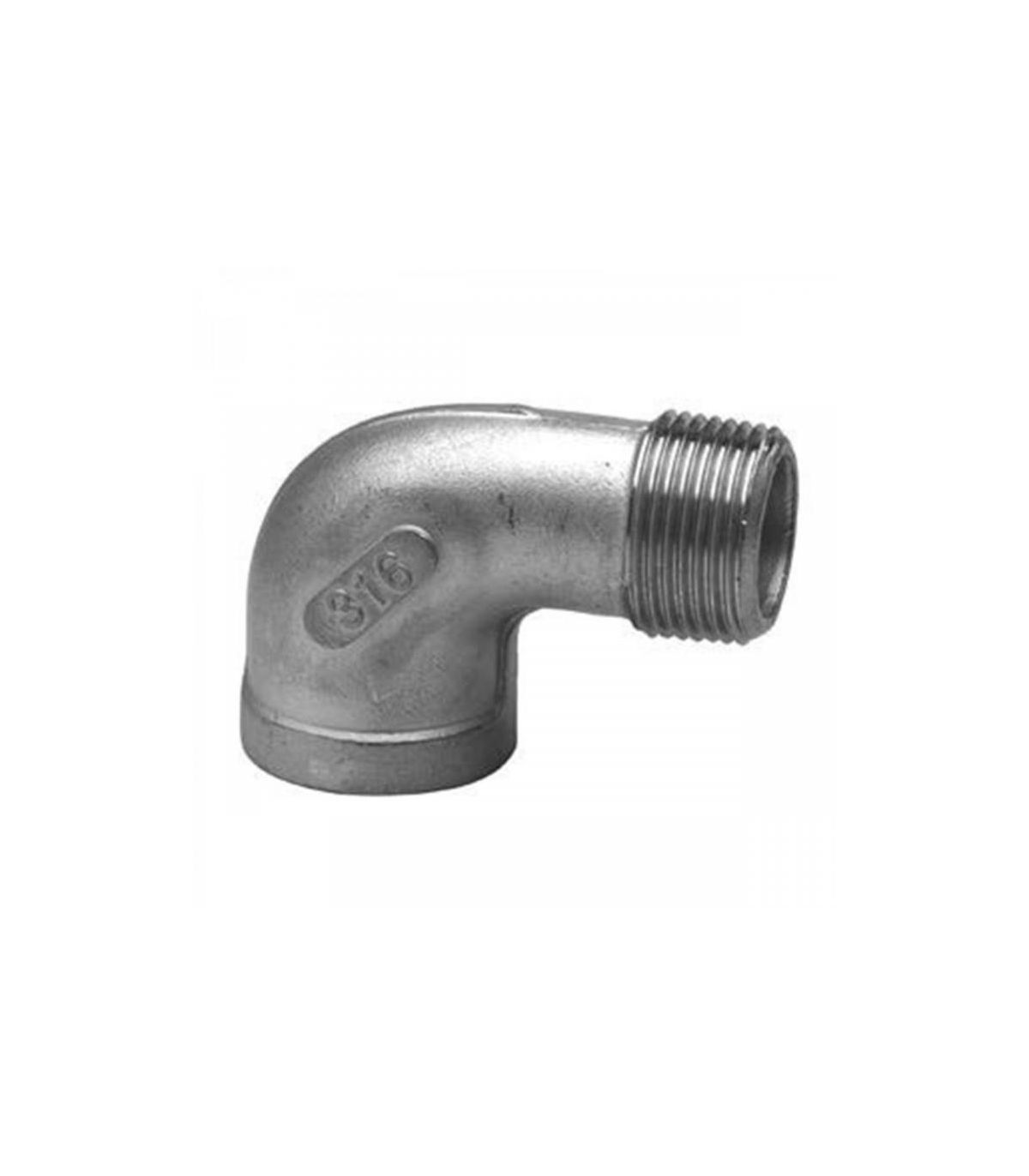

Fig 92 male female elbow stainless steel 316
Technical data sheet for a Fig 92 male female stainless steel 316 elbow:
| Reference | Thread | L1 (mm) | L (mm) | d (mm) |
| 12050004 | 1/8" | 17.0 | 26.0 | 14.6 |
| 12050008 | 1/4" | 19.0 | 28.0 | 17.5 |
| 12050012 | 3/8" | 23.0 | 32.0 | 22.0 |
| 12050016 | 1/2" | 27.0 | 36.0 | 27.0 |
| 12050021 | 3/4" | 32.0 | 42.0 | 32.0 |
| 12050025 | 1" | 38.0 | 53.0 | 39.5 |
| 12050030 | 1-1/4" | 45.0 | 59.0 | 49.0 |
| 12050034 | 1-1/2" | 48.0 | 64.0 | 55.0 |
| 12050037 | 2" | 57.0 | 72.0 | 67.0 |
| 12050042 | 2-1/2" | 69.0 | 87.0 | 84.0 |
| 12050045 | 3" | 78.0 | 102.0 | 98.5 |
| 12050048 | 4" | 97.0 | 125.0 | 123.5 |
