The Fig 340 female stainless steel 316 fitting is a threaded accessory used to join two pipes or tubes of the same diameter quickly and easily, allowing disassembly without welding or cutting.
Applications: food and pharmaceutical industry, chemical industry, oil and gas industry, water treatment.
Main features:

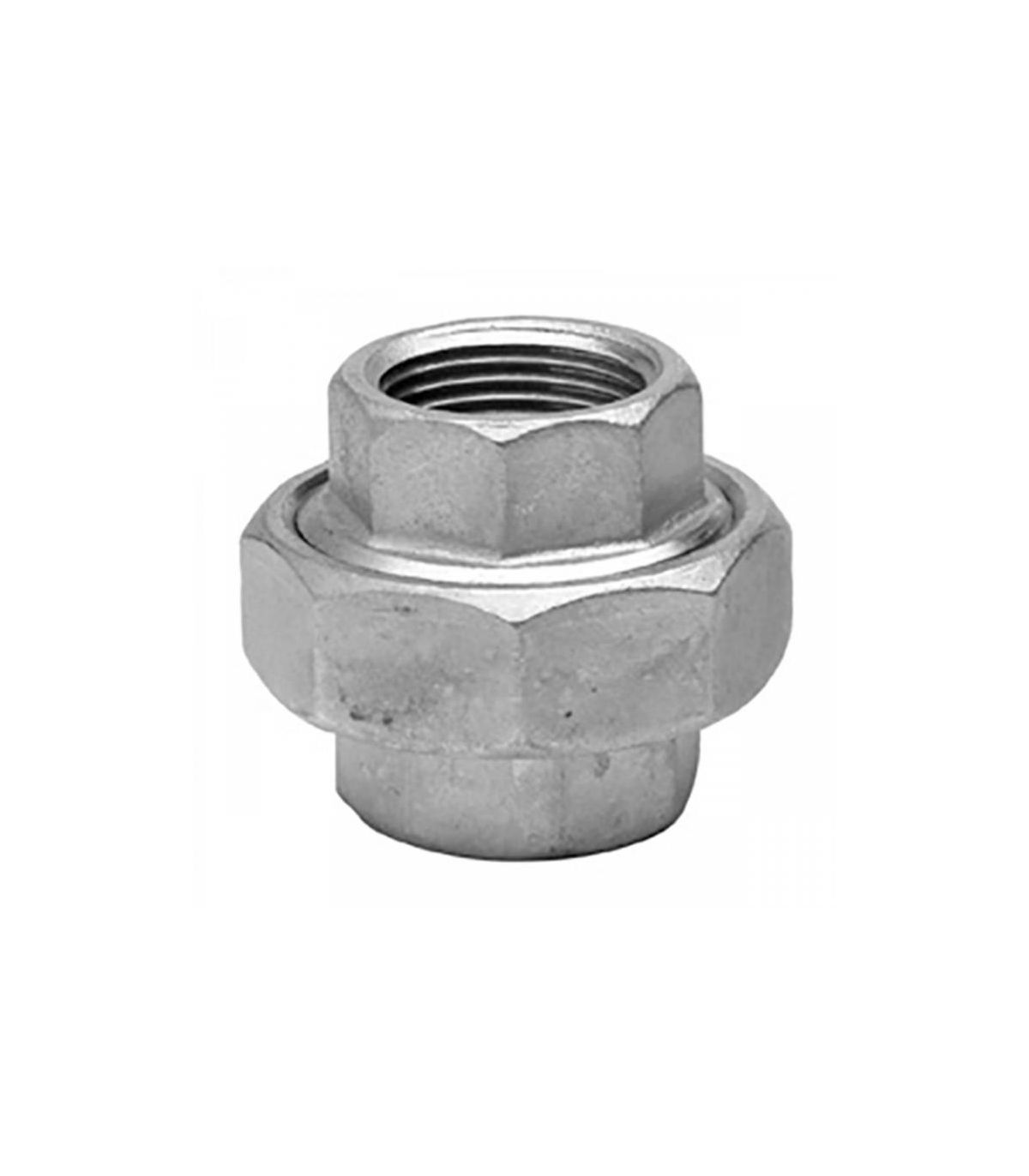

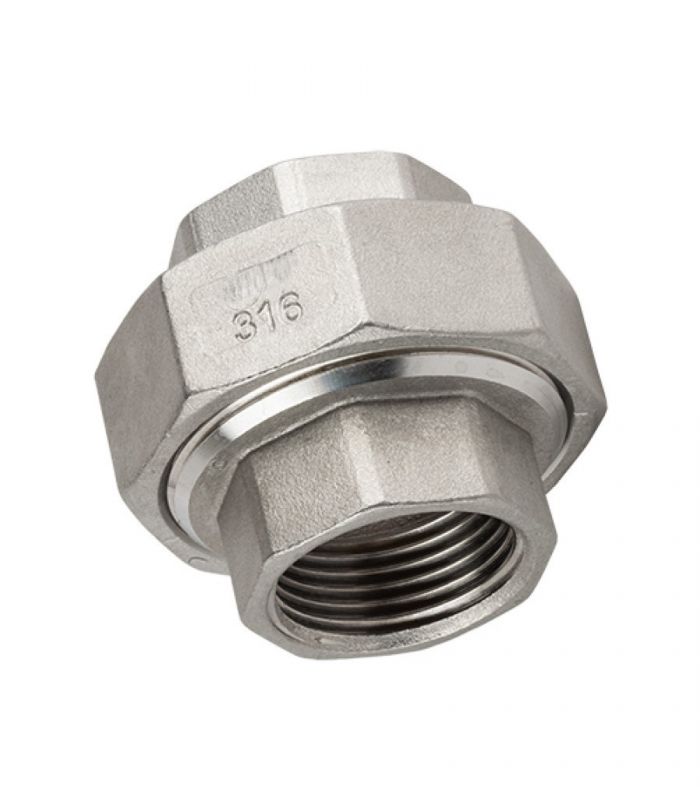

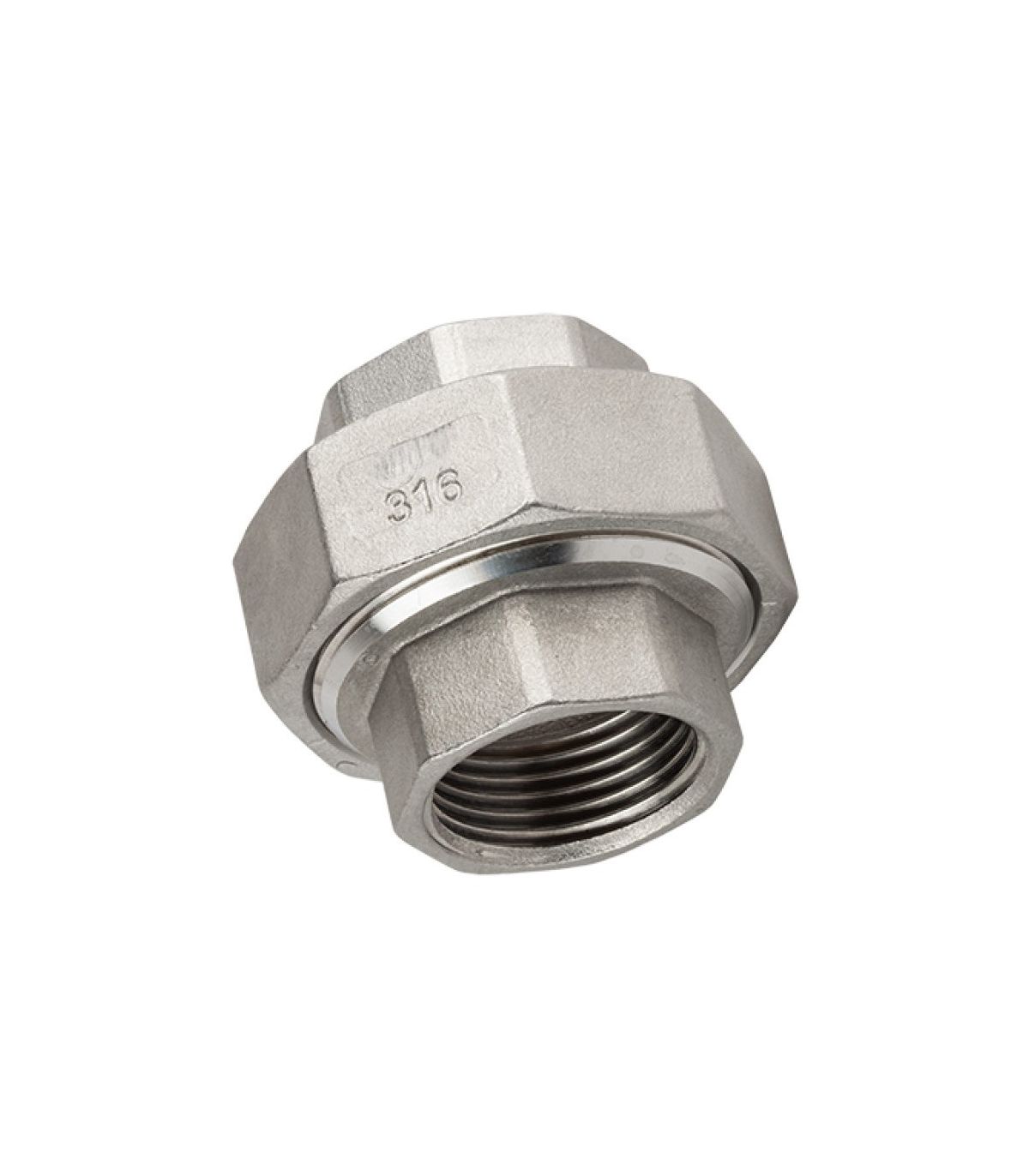

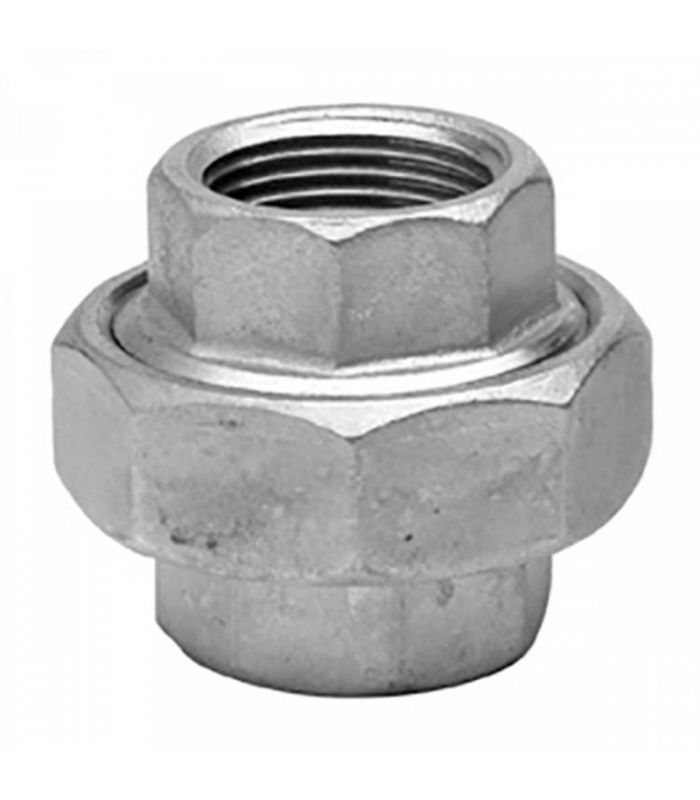

Fig 340 3-piece female stainless steel 316 connector
Technical data sheet for a Fig 340 3-piece female stainless steel 316 connector:
.png)
| Reference | Thread | L (mm) | S (mm) |
| 12160008 | 1/4" | 33.5 | 29.0 |
| 12160012 | 3/8" | 36.5 | 34.0 |
| 12160016 | 1/2" | 39.5 | 38.0 |
| 12160021 | 3/4" | 42.5 | 46.0 |
| 12160025 | 1" | 50.0 | 53.0 |
| 12160030 | 1-1/4" | 54.0 | 66.0 |
| 12160034 | 1-1/2" | 58.0 | 72.0 |
| 12160037 | 2" | 65.0 | 88.0 |
| 12160042 | 2-1/2" | 75.0 | 108.0 |
| 12160045 | 3" | 83.0 | 123.5 |
| 12160048 | 4" | 110.0 | 148.0 |
