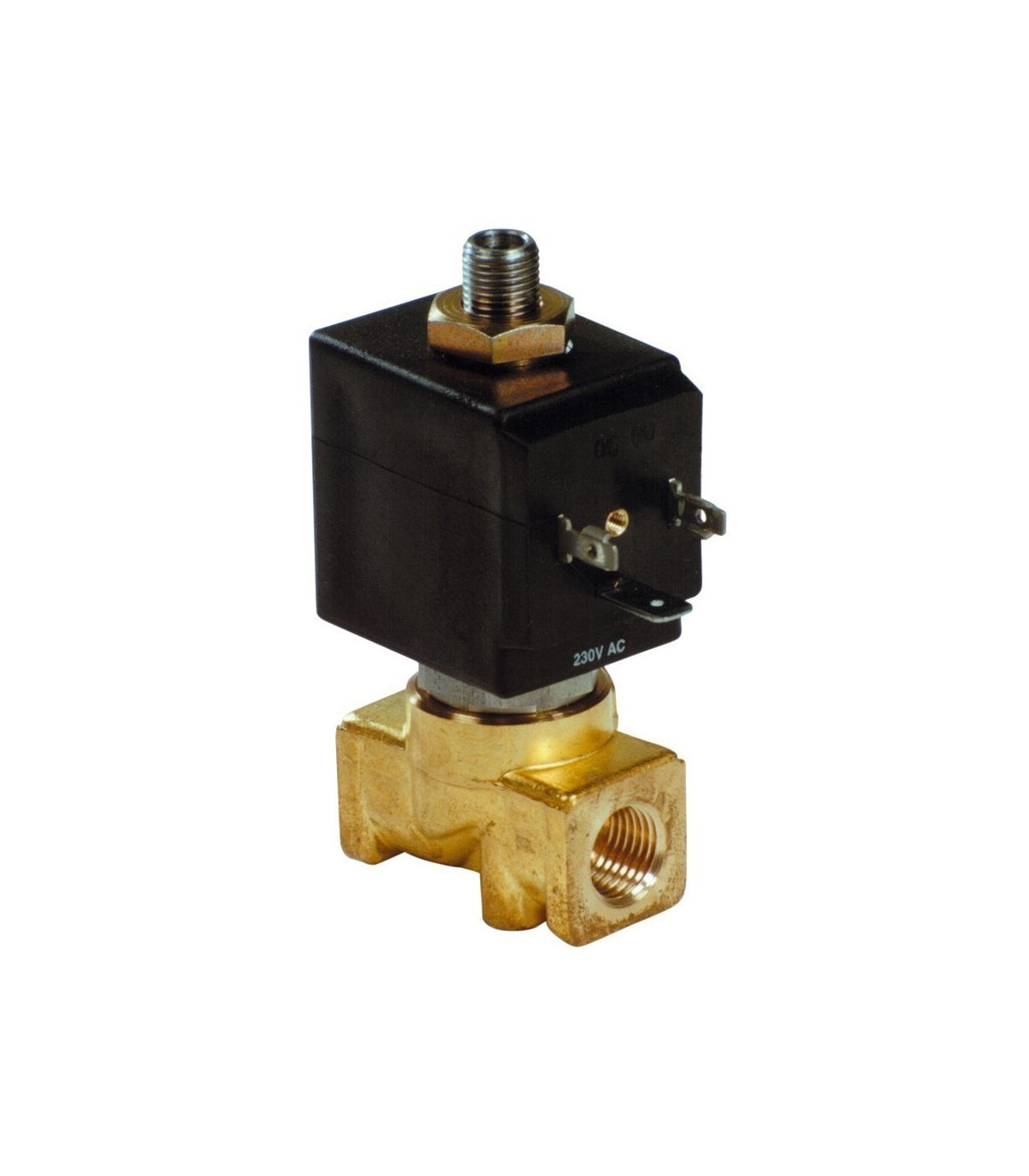

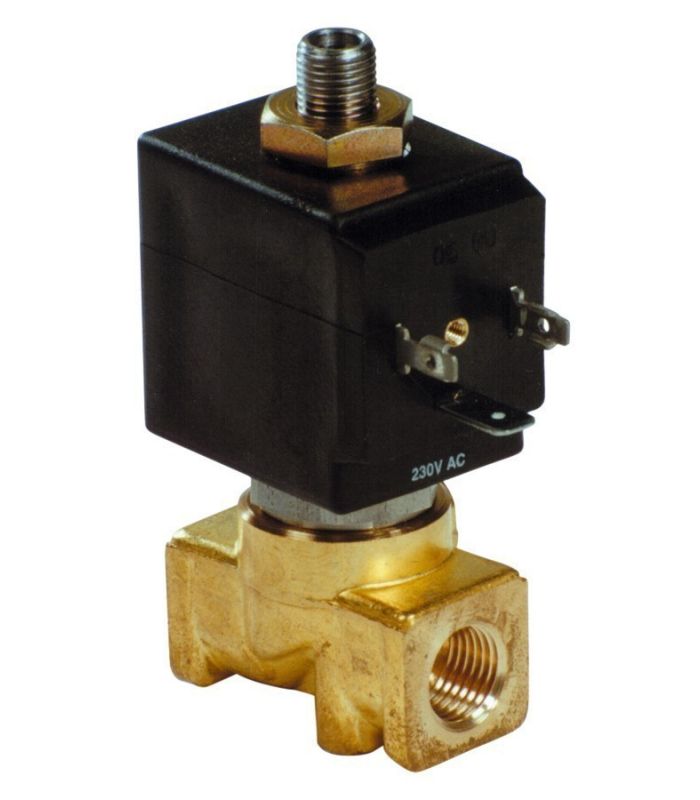

3/2 NO. OPEN SOLENOID VALVE 1/4" AC02

The AC02 3/2 N. open solenoid valve (1/4") allows you to control the flow of compressed air, permitting or blocking its passage through three ports, one of which is 1/4" in diameter. It has 3 ports and 2 positions. The valve is normally open, meaning the outlet port is connected to the inlet until an electrical signal is applied to block it.

Technical specifications:

Direct acting solenoid valve 1/4".
Differential pressure is not required for its proper functioning.
Mounting position is irrelevant.
It is possible to change the coil without removing the valve.
Various sealing gaskets depending on the fluid used.
Applications: Compressed air, inert gases, diesel, steam, vacuum and in general all fluids compatible with the available sealing gaskets.
Maximum permissible viscosity: 5º Engler.
C3 type mounting coil NOT INCLUDED

€37.50 (tax included)

€30.99 (tax excl.)

Reference:

6030

Description
Comments

Description

Solenoid valve 3/2 N. open 1/4" AC02

ELEC.VALVULA 32 N.ABIERTA 14 AC02

Product Details

Reference 6030
