Reduced straight union for installations

This is a plumbing and piping system accessory designed to connect two sections of pipe with different diameters. Its function is to join these two sections in a secure and hermetically sealed manner, allowing the passage of fluid from a larger diameter to a smaller one.

Applications: plumbing, heating systems, industry, pneumatics

Technical data sheet:

  • Made of technopolymer
  • Suitable for compressed air, inert gases, vacuum.
  • Temperature -30ºC / 80ºC

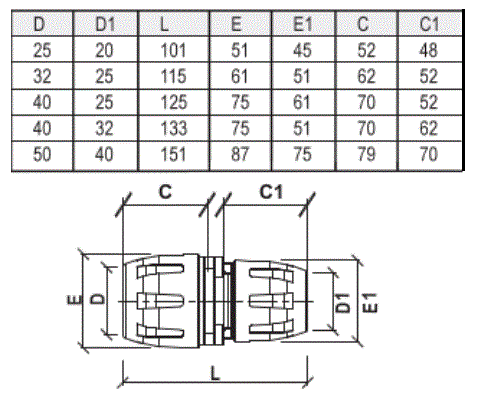

  • Available diameters 16-20-25-32-40-50-63
  • Reaction to fire: EN 13501-1:2007+A1:2009 EN ISO13823:2010
  • Ease of assembly.

DEMO VIDEO

€10.19 (tax included)
€8.42 (tax excl.)
DIAMETERS
  • Ø25-Ø20
  • Ø32-Ø25
  • Ø40-Ø32
  • Ø50-Ø40
Reference:
14120040
Description

Reduced straight union for installations

Product Details
14120040
