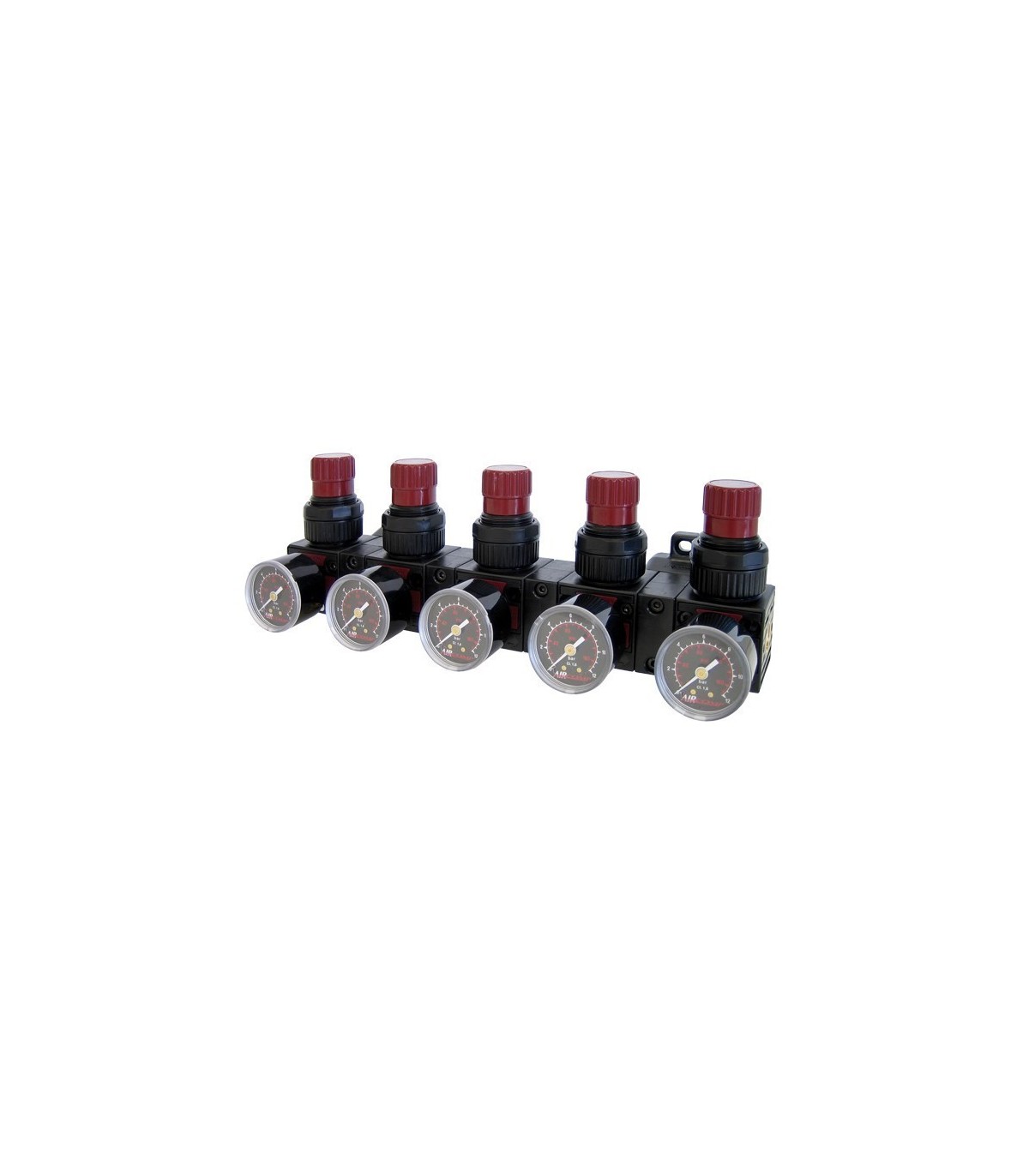

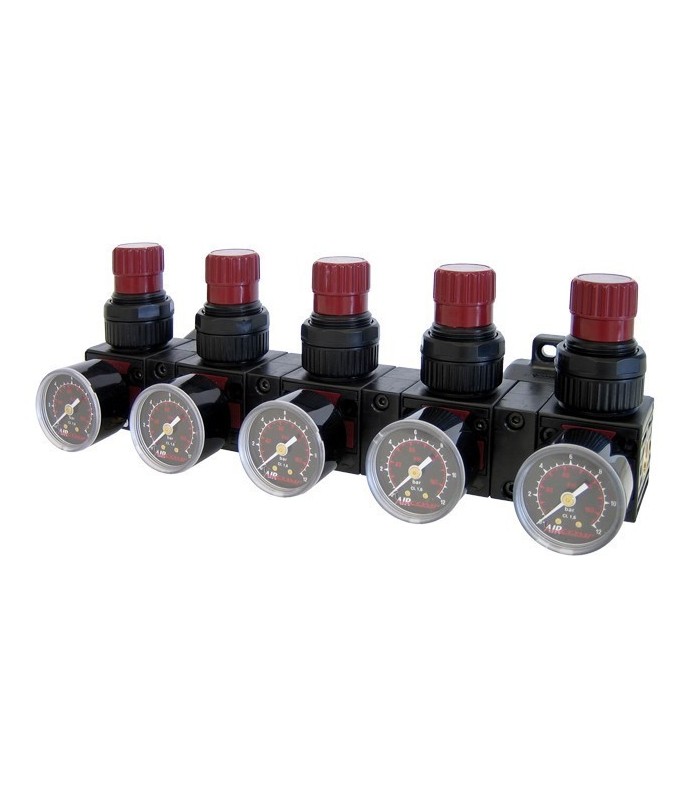

1/4" BATTERY PRESSURE REGULATOR

A 1/4" battery pressure regulator is a device that controls and adjusts the compressed air pressure in a pneumatic system, especially in applications where several tools or equipment are used that require a constant and specific air pressure.

Applications: Compressed air systems in workshops and factories, pneumatic tools requiring constant pressure, industrial automation systems, paint spraying equipment.

Technical specifications:

• The main feature of this type of regulator is its ability to be mounted on a battery with common power supply.
• At a constant inlet pressure, it is possible to regulate the pressure independently in each module.
• Intermediate air outlets in the line can be used with the corresponding device. Ref.: KITREP1/4BAT.
• The unit can be mounted using the traditional wall bracket (S1/8-1/4) or the T-bracket (Ref.: S1/4T). The latter allows the battery to be positioned further from the wall, enabling the fitting to be located at the rear for mounting the pressure gauge at the front.
• Knob with regulation locking device.
• Built-in overpressure relief.
• Inlet pressure 16 bar.
• 0/8 bar regulation.

It is supplied without a pressure gauge or supports.
