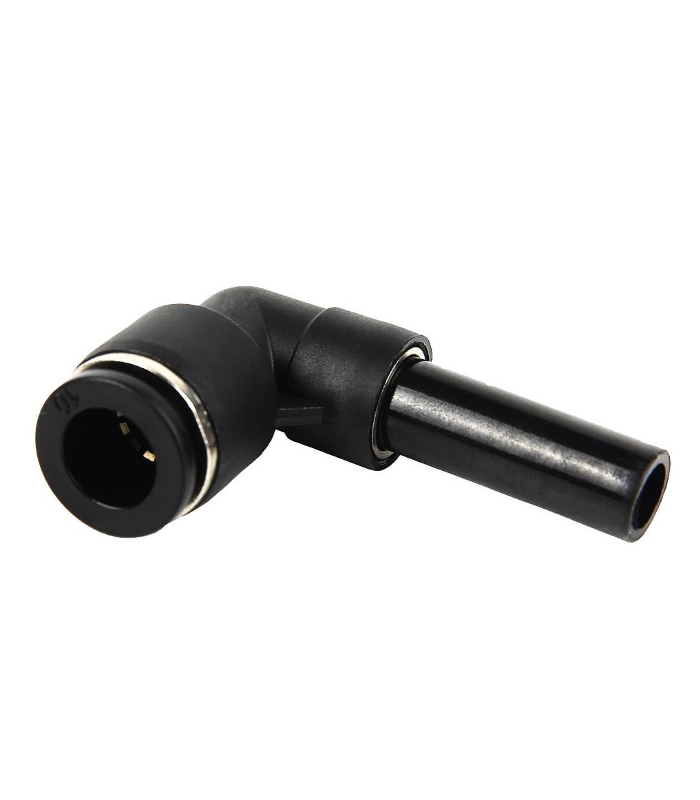

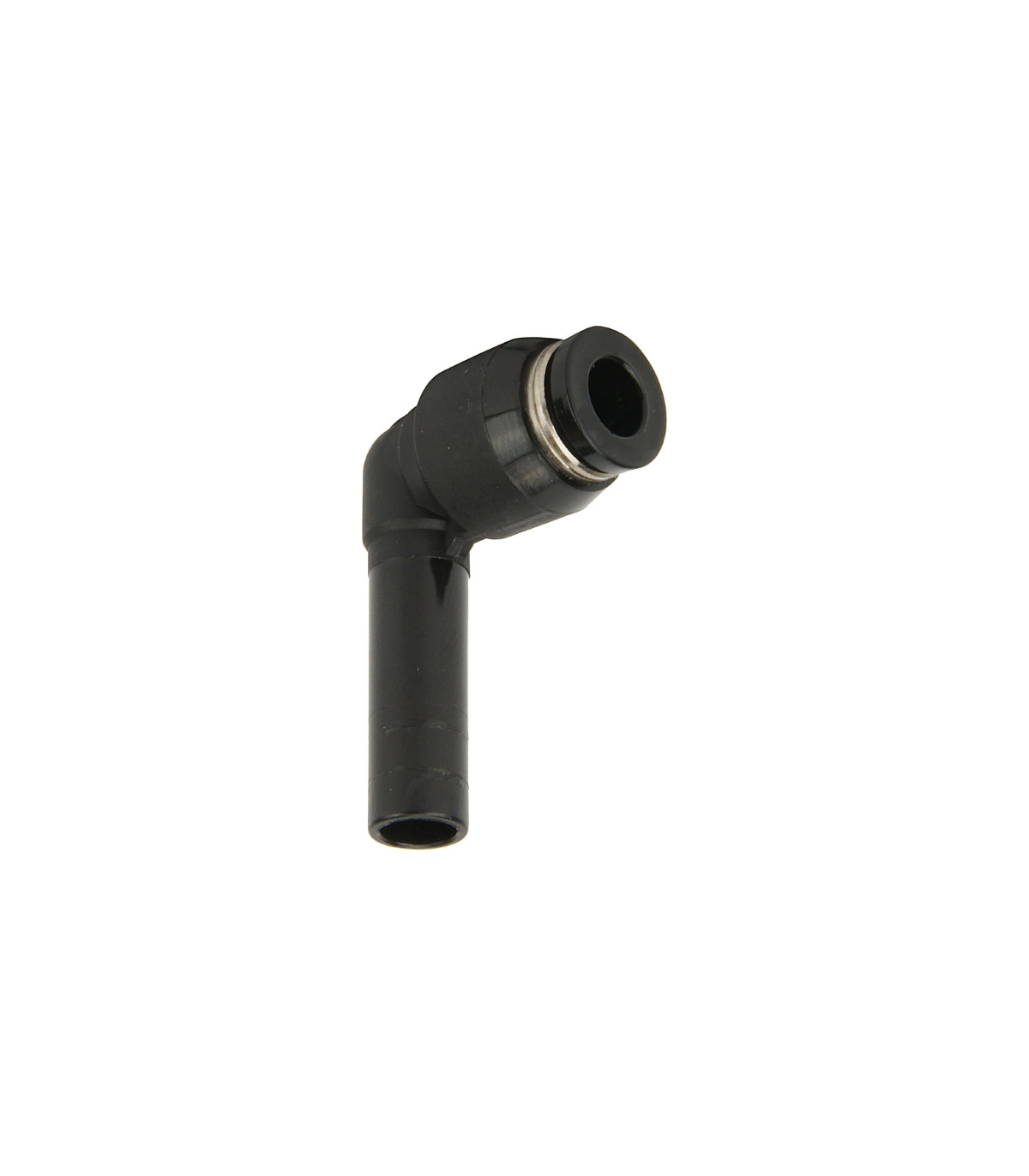

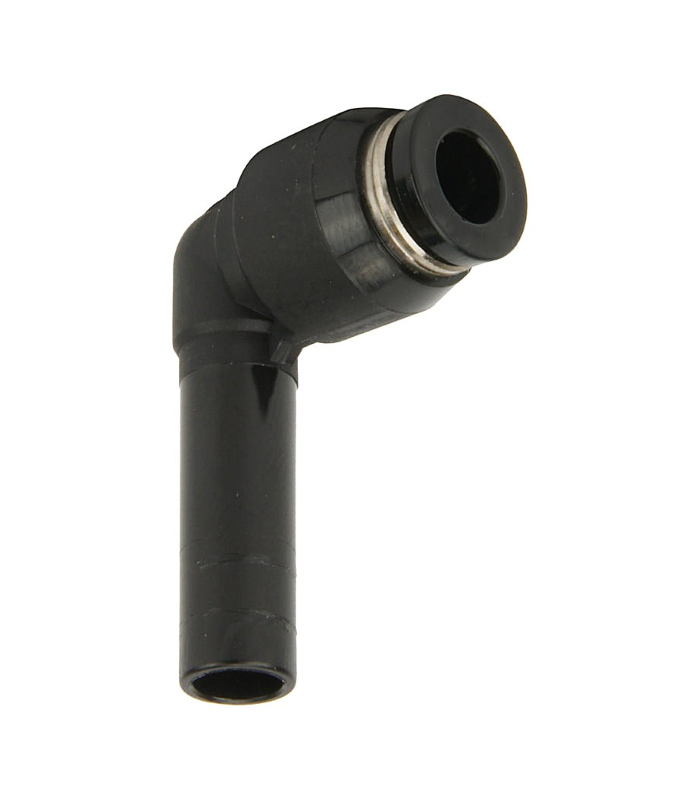

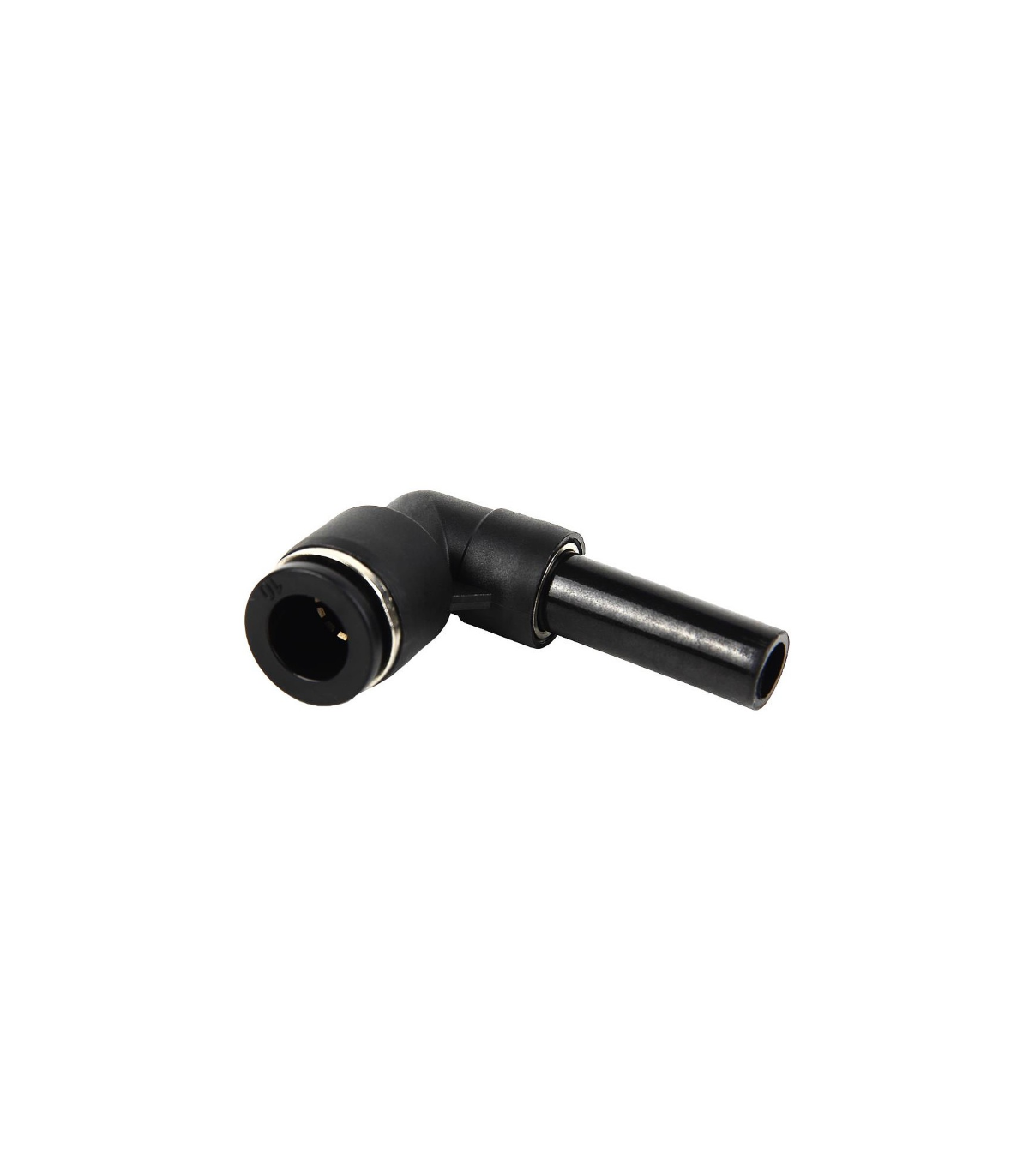

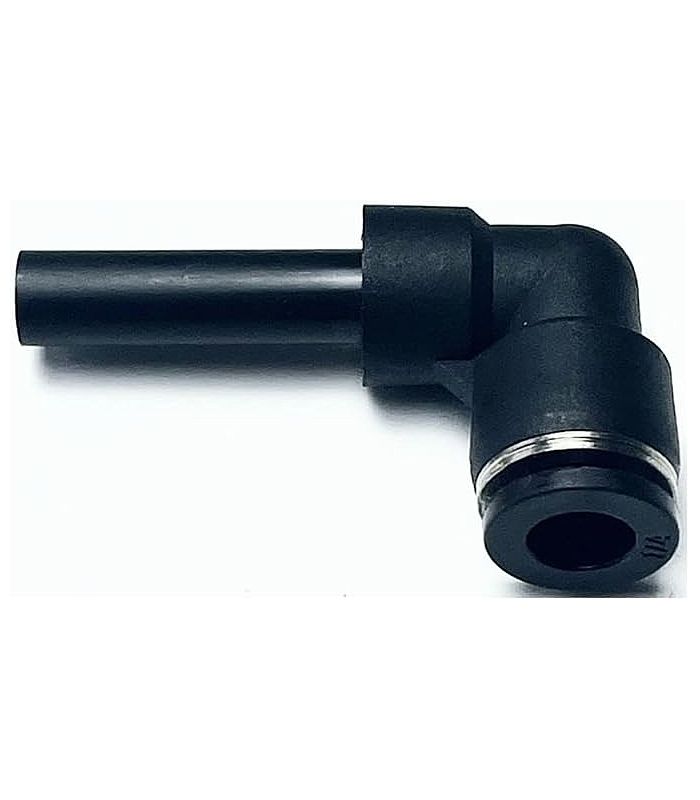

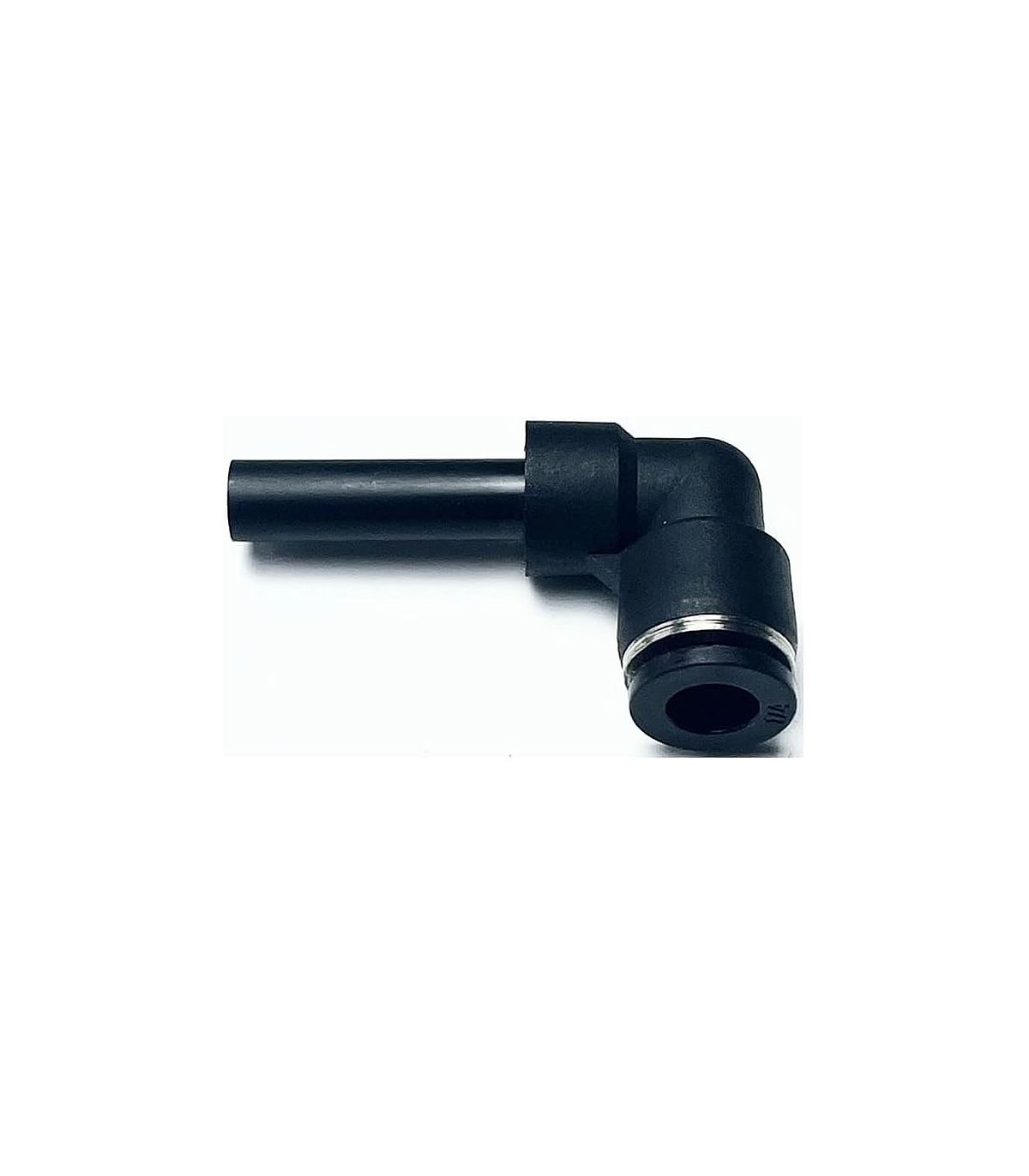

INSERTABLE ELBOW FITTING

An instant fitting insertable elbow coupling is used to quickly join a flexible or semi-rigid pipe and change its direction at a 90-degree angle.

Applications: Pneumatic manifold blocks, Integrated pneumatic valves, Pneumatic cylinders, Compact grippers and actuators, Packaging and packing machinery.

Technical specifications:

  • Working pressure -0.99 / 10 bar.
  • Temperature 0 /- 60ºC.
  • Wide range of Ø 4-16
  • Ease of connection
  • Cylindrical or tapered thread
  • Nickel-plated brass and PBT body.
  • Stainless steel gripping clamp (301)
  • POM resin push ring
Read moreShow less
€1.59 (tax incl.)
€1.31 (tax excl.)
DIAMETERS
  • Ø 4
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 16
Reference:
30310001
Description

Instant fitting, insertable elbow splice

An instant fitting insertable elbow coupling is a pneumatic connector designed to join two tubes by means of a quick connection by making a 90° change of direction within the pneumatic circuit.

This type of fitting allows tubes to be connected easily and safely without the need for tools, facilitating assembly in confined spaces and optimizing the path of compressed air lines.

Main features

  • Instant connection for quick tube insertion
  • 90° elbow design to redirect airflow
  • Insertable splice for joining two pneumatic tubes
  • High sealing, preventing compressed air leaks
  • Quick assembly and disassembly

Common applications

  • Industrial automation systems
  • Pneumatic circuits in machinery
  • Facilities with limited space
  • Compressed air lines with changes of direction
  • Pneumatic control and distribution equipment

Technical specifications of an instant insertable elbow fitting:

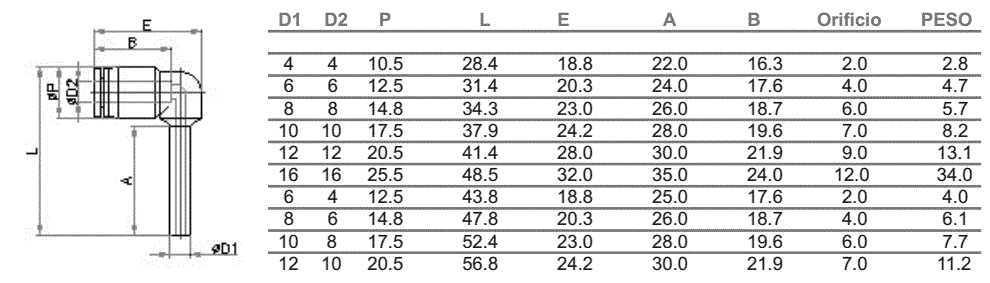

EMPALME INSERTABLE CODO

Read moreShow less
