ATEX BLOWING SOLENOID VALVE COIL
ATEX BLOWING SOLENOID VALVE COIL
ATEX BLOWING SOLENOID VALVE COIL
ATEX BLOWING SOLENOID VALVE COIL
ATEX BLOWING SOLENOID VALVE COIL
ATEX BLOWING SOLENOID VALVE COIL

ATEX BLOWING SOLENOID VALVE COIL

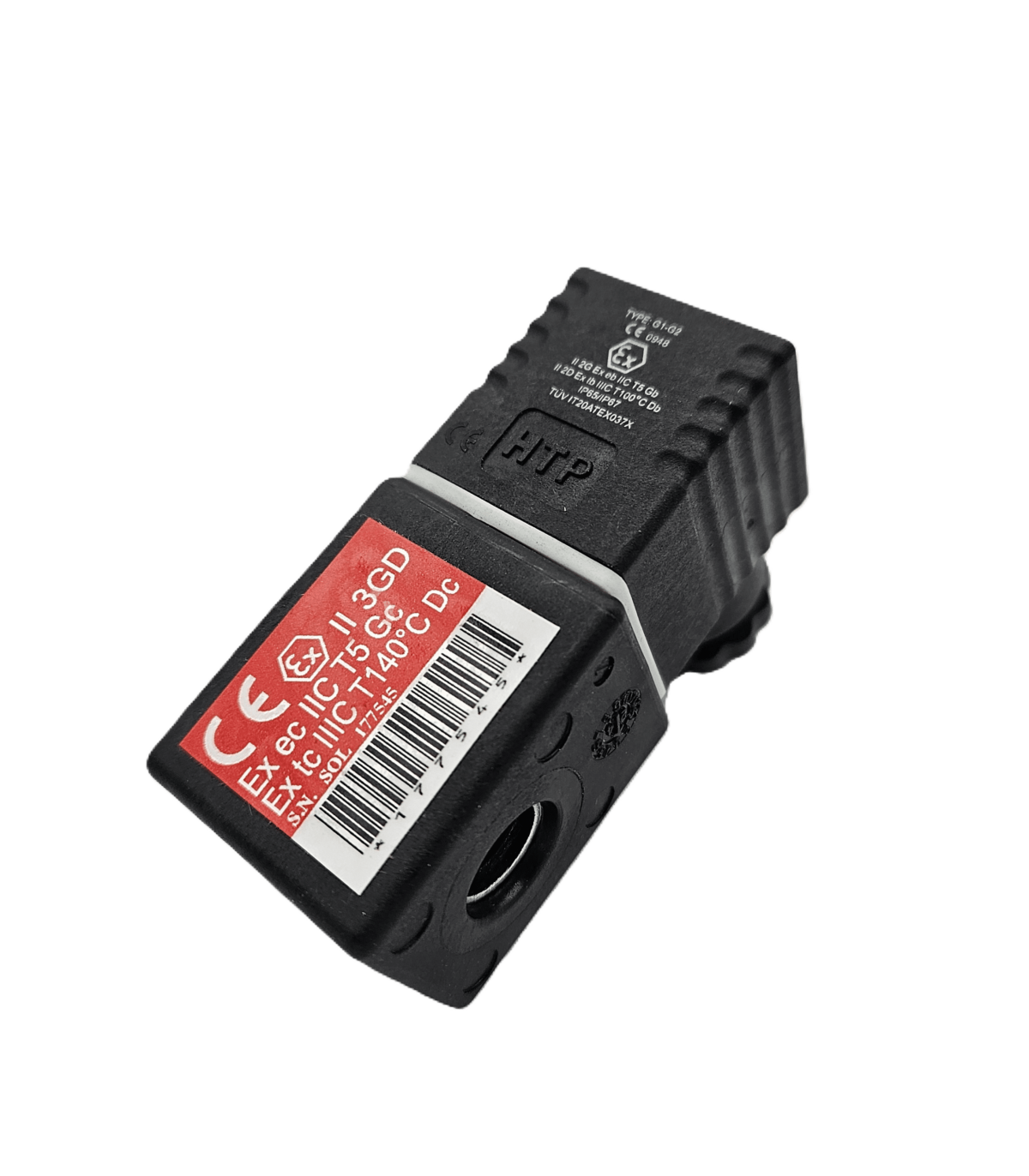

An ATEX blow-off solenoid valve coil . It is used to operate a blow-off solenoid valve in industrial cleaning systems, mainly in dust collectors with bag or cartridge filters in places or environments with a risk of explosion.

Applications: Dust collectors, Food industry, Pharmaceutical industry, Cement industry.

Technical data sheet:

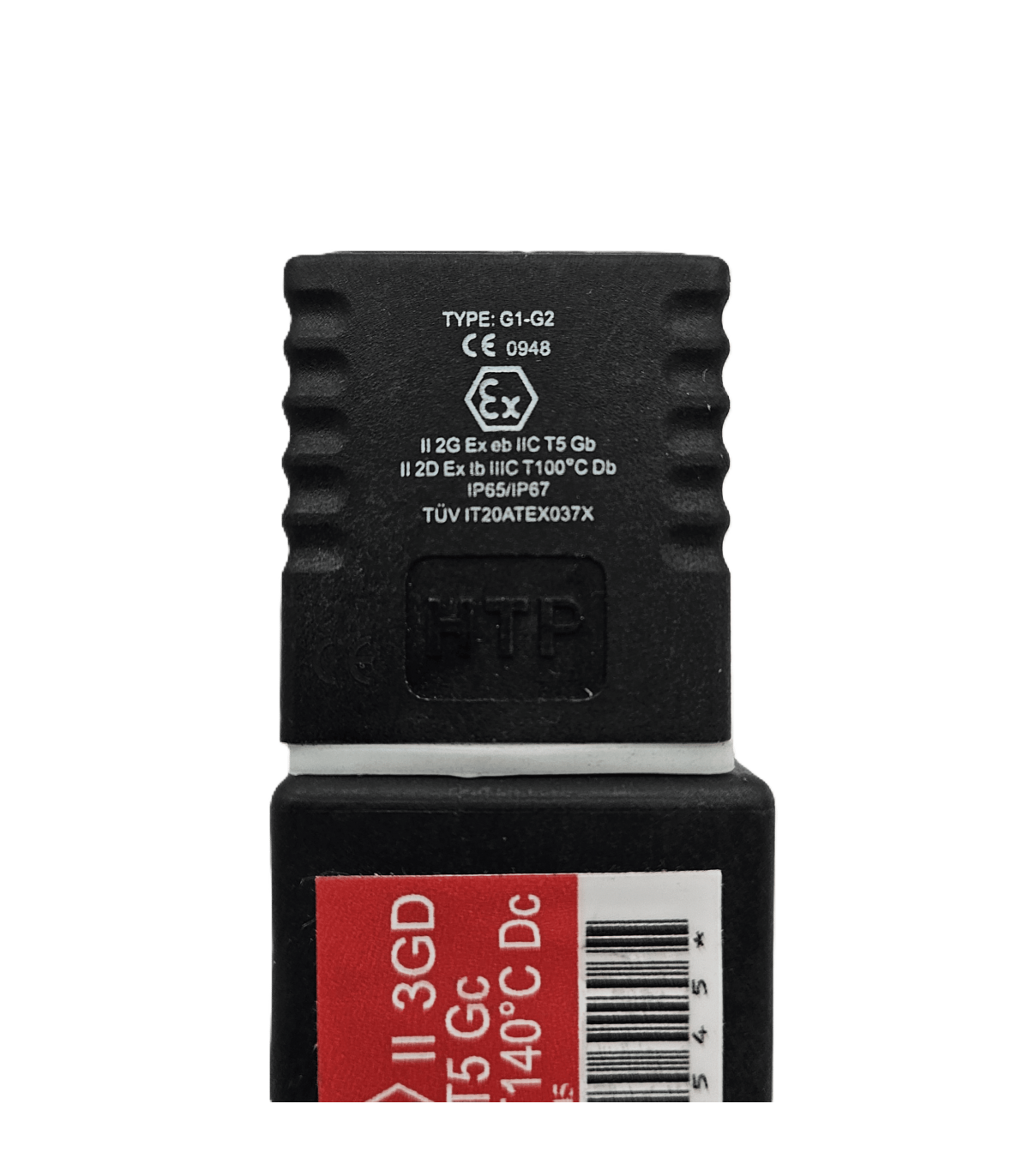

  • Product classification: II 3 GD (equipment group II, category 3 for gas zone 2, and dust zone 22)
  • Gas group: IIB or IIC
  • Dust group: IIIB or IIIC
  • Temperature class (gas): T5
  • Max surface temperature (dust): T140ºC
  • EPL protection level: Gc (gas), Dc (dust)
€24.20 (tax included)
€20.00 (tax excl.)
POWER
  • 24VAC
  • 24V DC
  • 110V AC
  • 220VAC
Reference:
603114
Description

ATEX blow-off solenoid valve coil

Harmonized standards for use:

  • EN IEC 60079-0:2018. Explosive atmospheres - Part 0 = Equipment - General requirements
  • IEC 60079-15:2017. Explosive atmospheres - Part 15 = protection of equipment by type of protection "n"
  • EN 60079-31:2014. Explosive atmospheres - Part 31 = Protection against ignition of equipment dust by means of a "t" enclosure.
Product Details
603114
