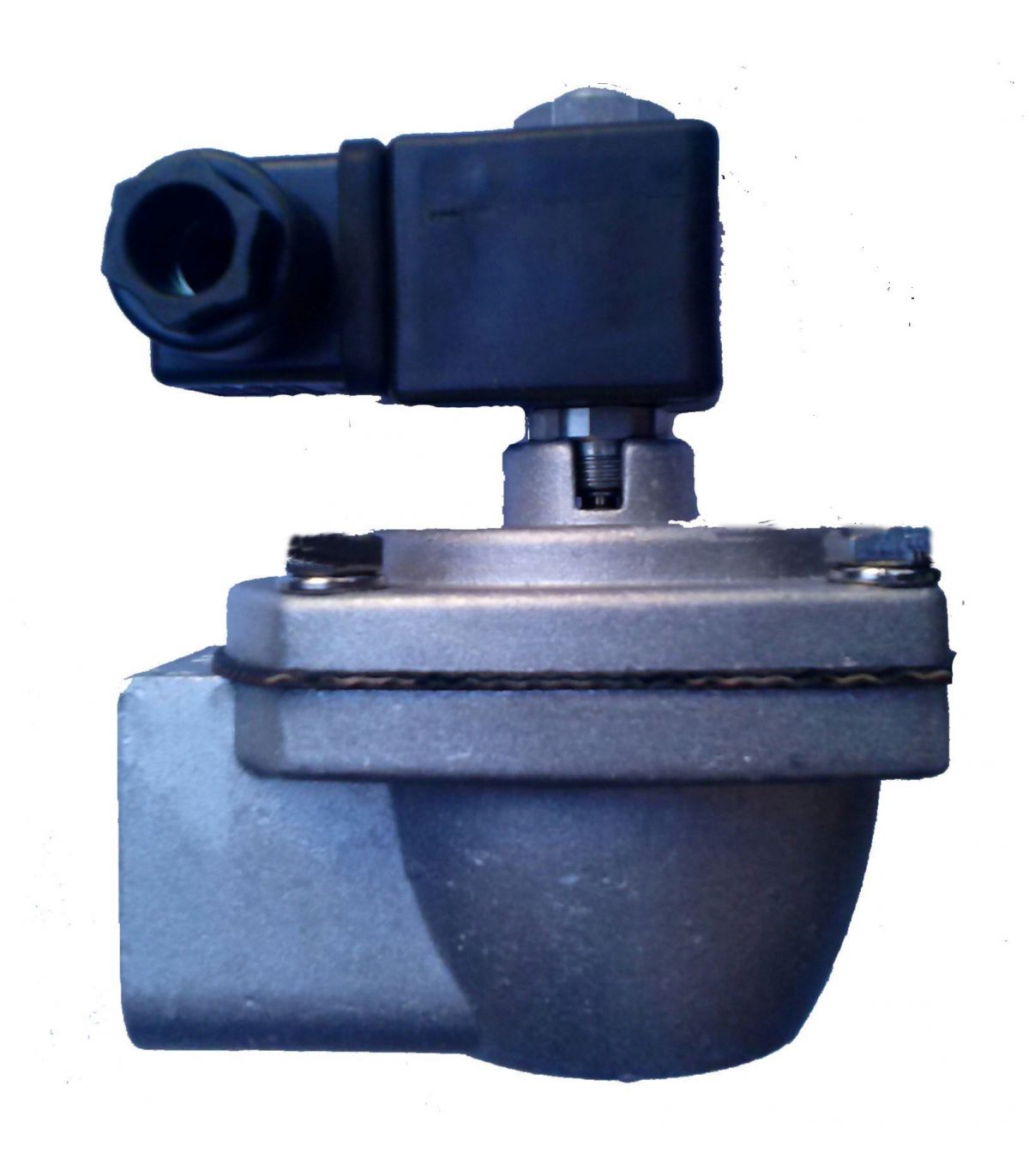

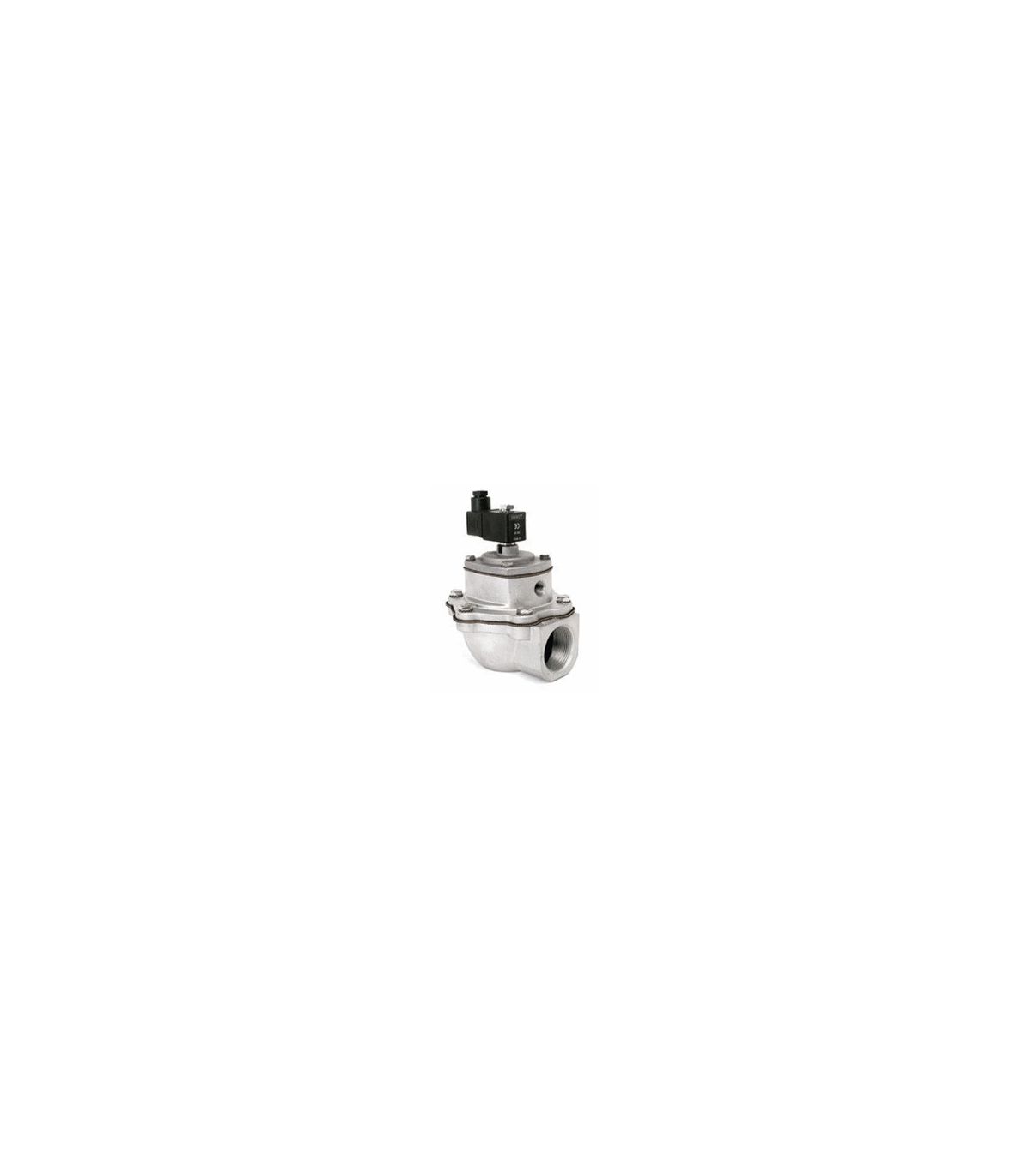

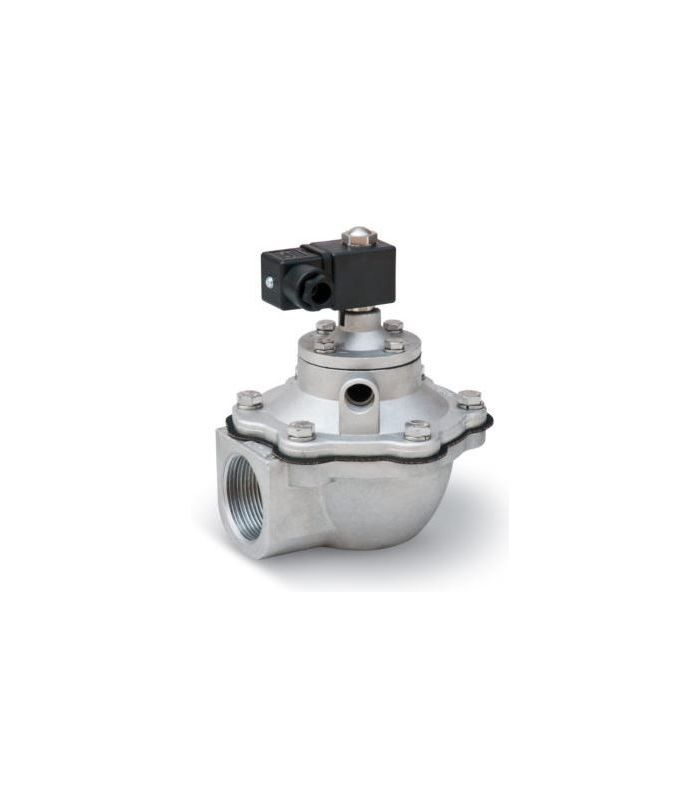

SOLENOID VALVE FOR BLOW FILTERS
SOLENOID VALVE FOR BLOW FILTERS
SOLENOID VALVE FOR BLOW FILTERS
SOLENOID VALVE FOR BLOW FILTERS
SOLENOID VALVE FOR BLOW FILTERS
SOLENOID VALVE FOR BLOW FILTERS

SOLENOID VALVE FOR BLOW FILTERS

A bag filter blow solenoid valve is an electromechanical device used in compressed air cleaning systems for bag filters.

Applications: Industrial bag filters, Emission control systems, Cement plants, mining, steel, food processing, etc.

Main features:

  • Valves designed for bag filter blowing installations.
  • Speed and high flow rate.
  • Membrane closure.
  • Working pressure 0.5 - 8 bar.
  • Temperature -40 / 80ºC.
  • Aluminum body.
  • Possibility of mounting a Viton membrane.
  • It comes with a connector.
  • ATEX II 2 GD (zone 1 - 21)
  • ATEX II 3 GD (zone 2 - 22)

SERVED WITHOUT COIL

Voltages to choose from: 24DC-24AC-230AC-110AC

€48.70 (tax included)
€40.25 (tax excl.)
SELECT THE THREAD
  • 3/4"
  • 1"
  • 1-1/2"
  • 2"
  • 2-1/2"
Reference:
60320035
Description

Solenoid valve for bag filters

A bag filter blower solenoid valve is an electrically operated valve that controls the rapid discharge of compressed air into the blow tubes or venturis, generating a high-pressure air pulse that cleans the filter bags, dislodging the dust accumulated on their surface.

Its function is to produce short, intense pulses of air, dislodge particulate matter adhering to the bags, maintain filtration efficiency, and prevent excessive pressure loss.

Applications

  • Industrial bag filters
  • Emission control systems
  • Cement plants, mining plants, steel plants, food processing plants, etc.

Technical data sheet for the solenoid valve for bag filters

ELECTROVALVULA SOPLADO FILTROS

Code ØL (nom) TO B C D AND Weight (kg)
60320072 3/4" 52 90 20.5 74 125 0.6
60320035 1" 52 90 20.5 74 125 0.5
60320036 1-1/2" 71.3 135 31 140 188 1.6
60320037 2" 114 203 40 194 225 3.5
60320038 2-1/2" 114 203 48 194 225 3.4

Product Details
60320035
