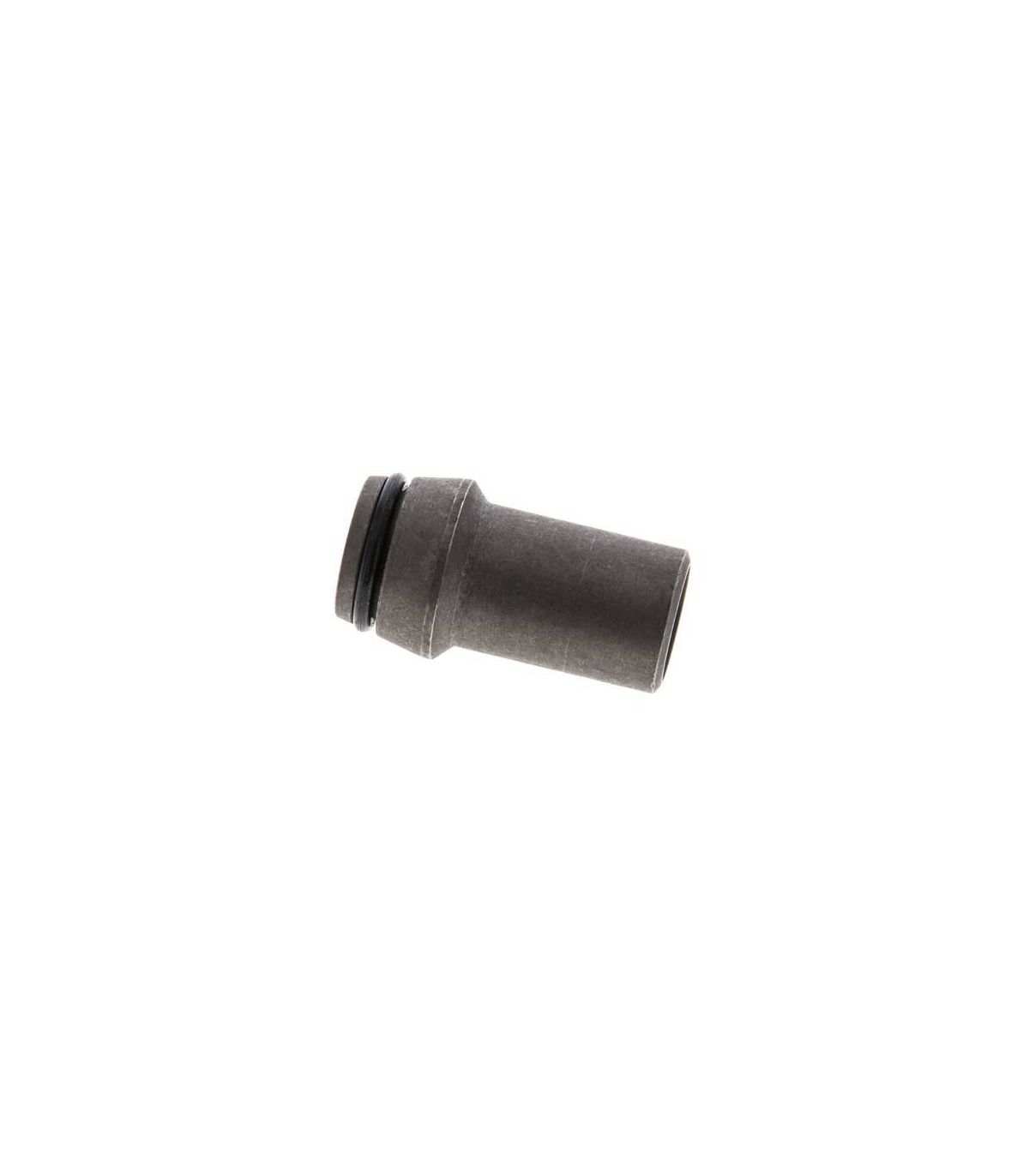

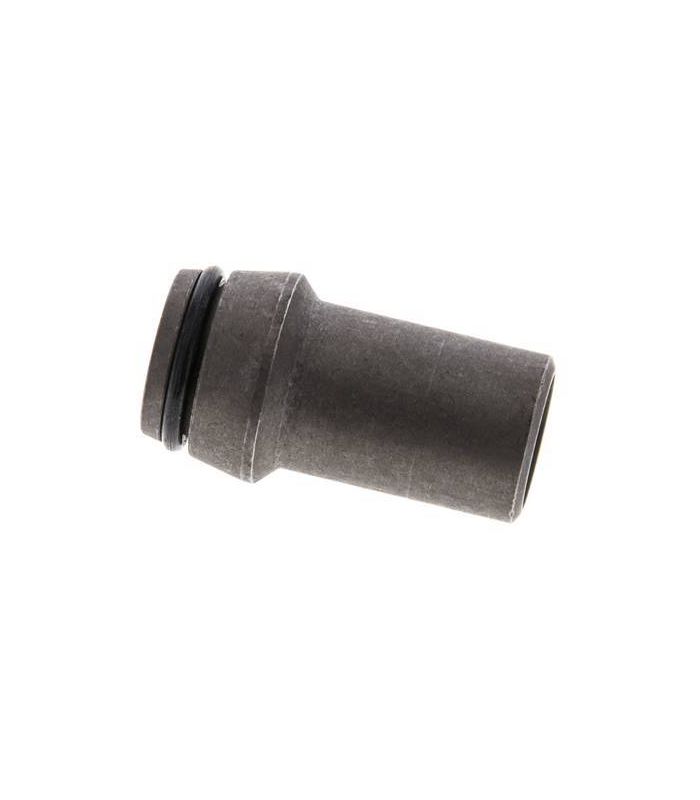

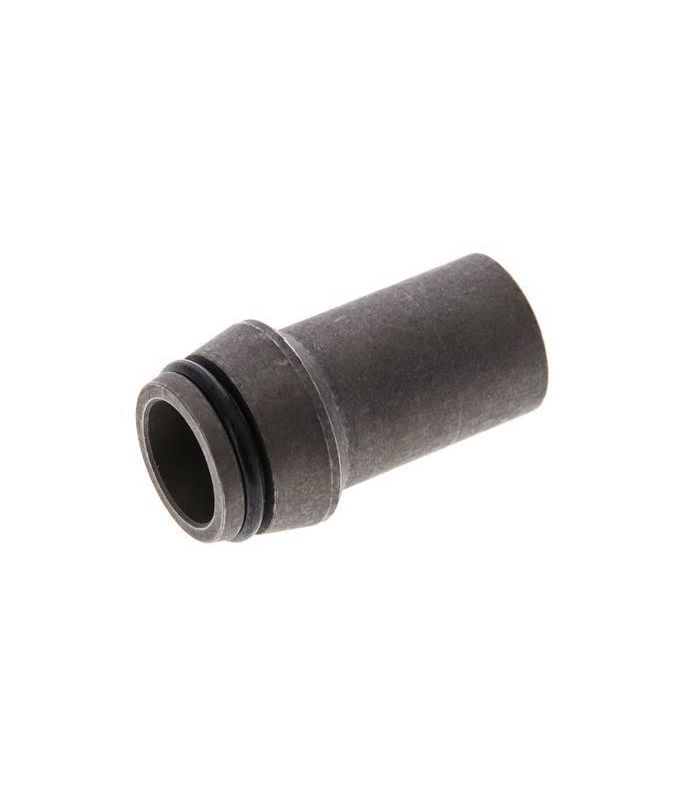

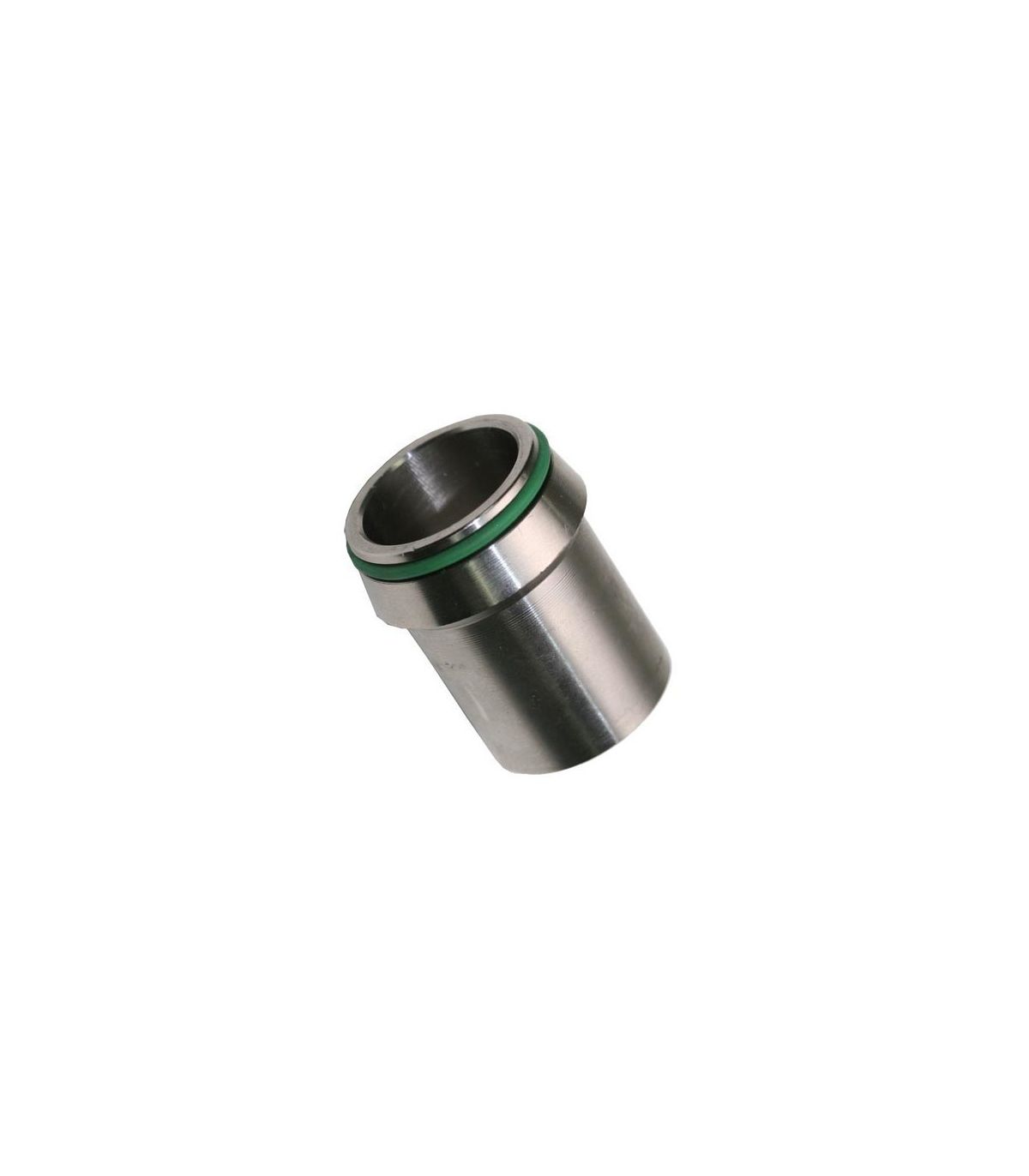

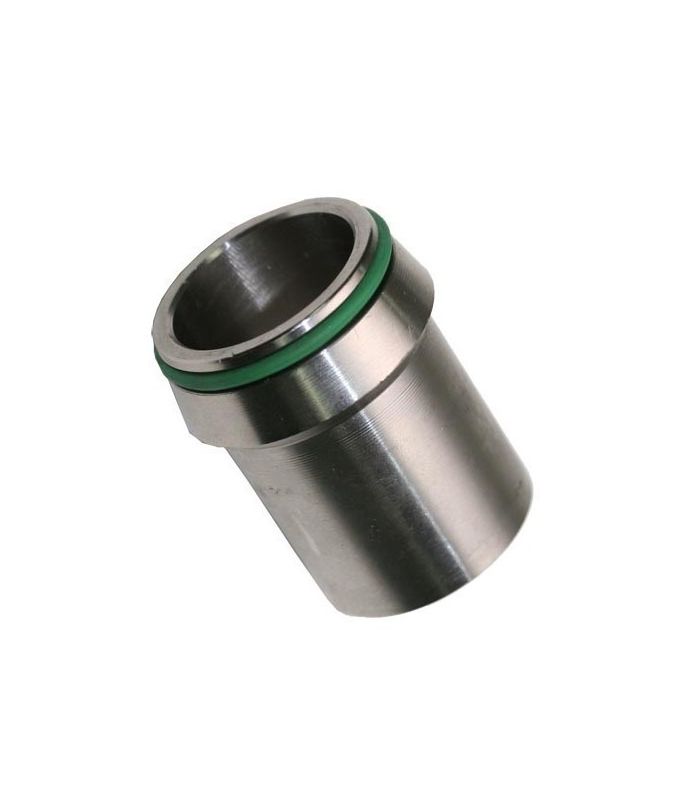

WELDABLE BICONE DIN 2353 L
WELDABLE BICONE DIN 2353 L
WELDABLE BICONE DIN 2353 L
WELDABLE BICONE DIN 2353 L
WELDABLE BICONE DIN 2353 L
WELDABLE BICONE DIN 2353 L

WELDABLE BICONE DIN 2353 L

A DIN 2353 L weldable bicone is used in hydraulic piping systems that comply with DIN 2353, specifically the L (lightweight) series, and is designed to be welded to a pipe.

Applications: hydraulic systems, medium pressure lines or connections in systems where resistance to vibrations and pressure pulsations is required.

Technical specifications:

  • Operating temperature -20 / 120ºC.
  • Made of drawn steel DIN3859-1.
  • Bichromated coating ISO 4042.
  • Corrosion resistance.
  • Working pressures:
    • Ø 6-8-10-12-15 250 bar
    • Ø 18-22 160 Bar
    • Ø 28-35-42 100 Bar

Assembly instructions

€4.33 (tax included)
€3.58 (tax excl.)
DIAMETERS
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 15
  • Ø 18
  • Ø 22
  • Ø 28
  • Ø 35
  • Ø 42
Reference:
33290004
Description

weldable bicone DIN 2353 L

BICONO SOLDABLE

Product Details
33290004
