ONE-WAY PINEAPPLE FLOW REGULATOR
ONE-WAY PINEAPPLE FLOW REGULATOR
ONE-WAY PINEAPPLE FLOW REGULATOR
ONE-WAY PINEAPPLE FLOW REGULATOR
ONE-WAY PINEAPPLE FLOW REGULATOR
ONE-WAY PINEAPPLE FLOW REGULATOR

ONE-WAY PINEAPPLE FLOW REGULATOR

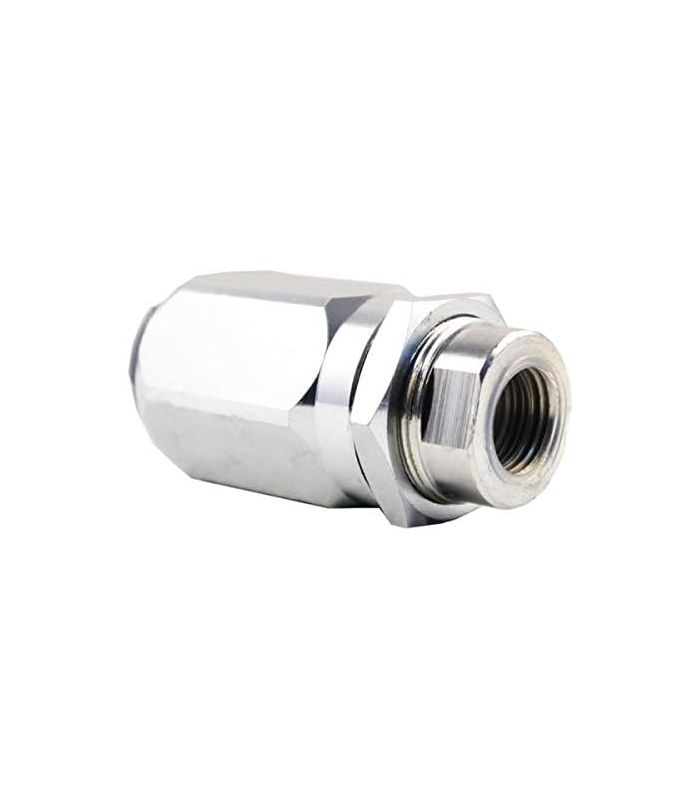

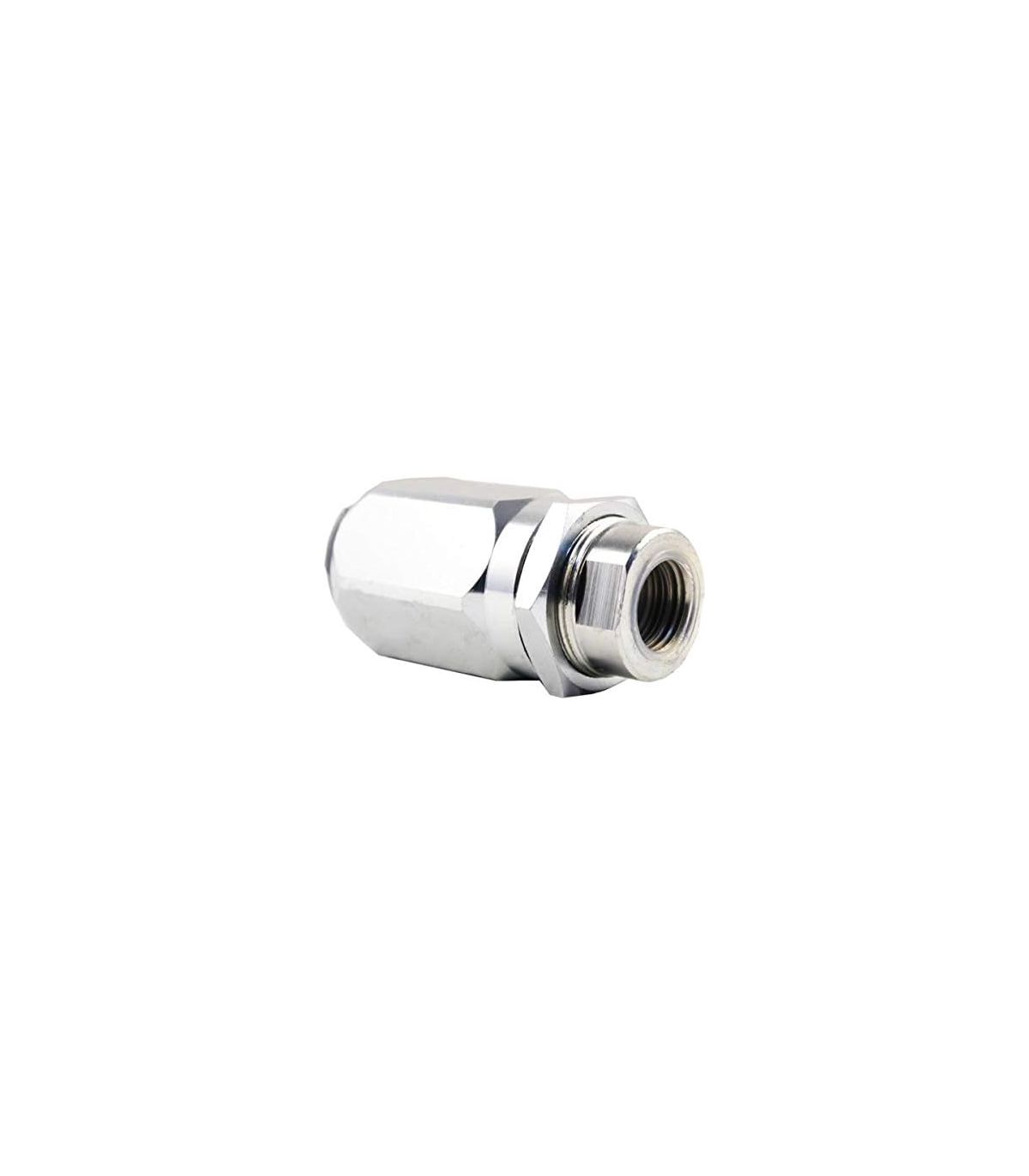

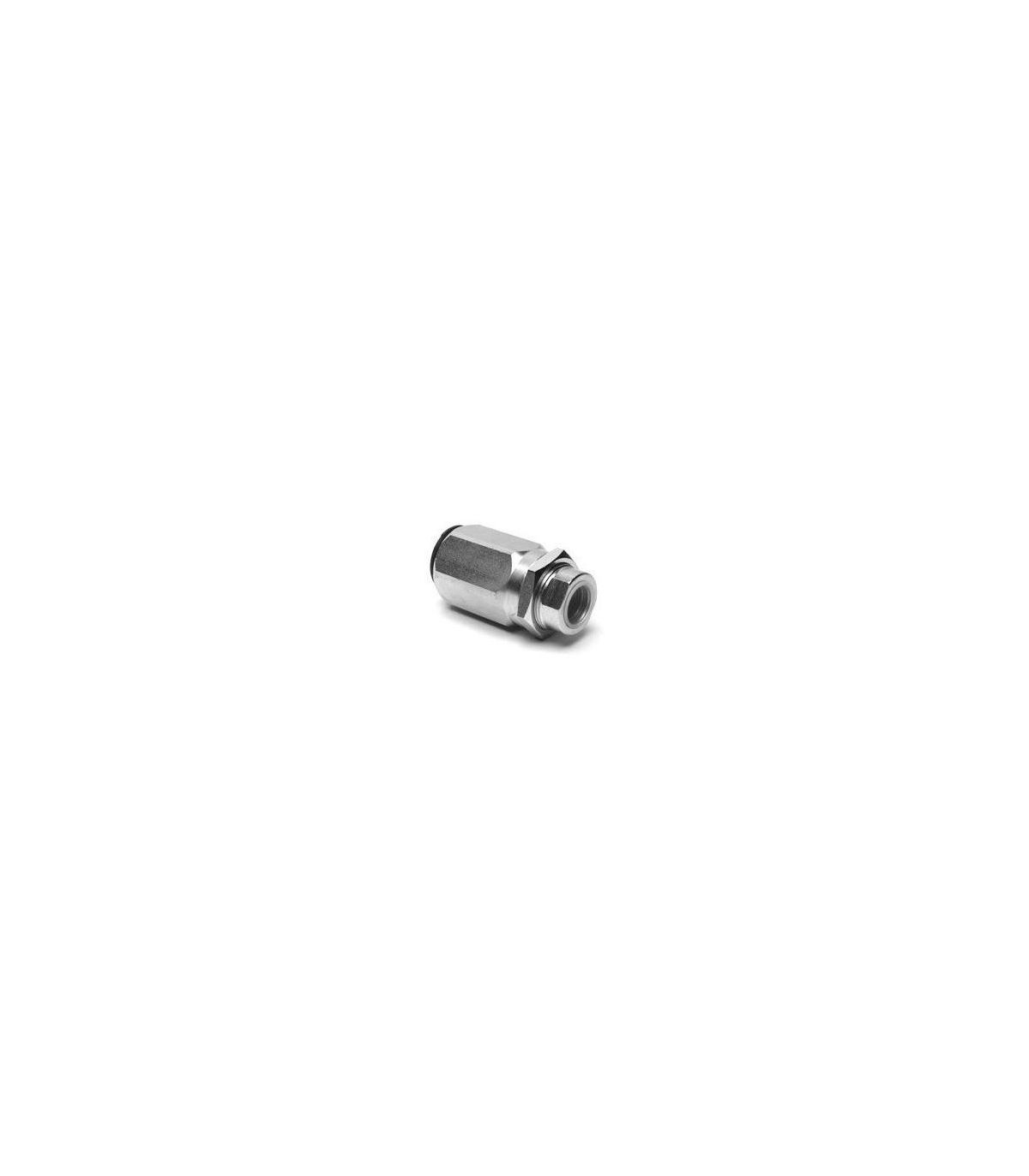

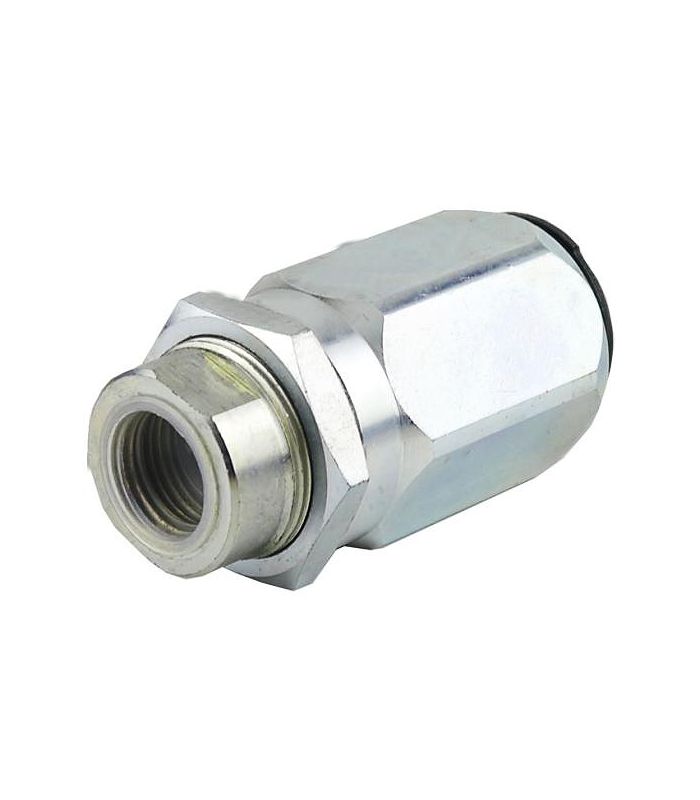

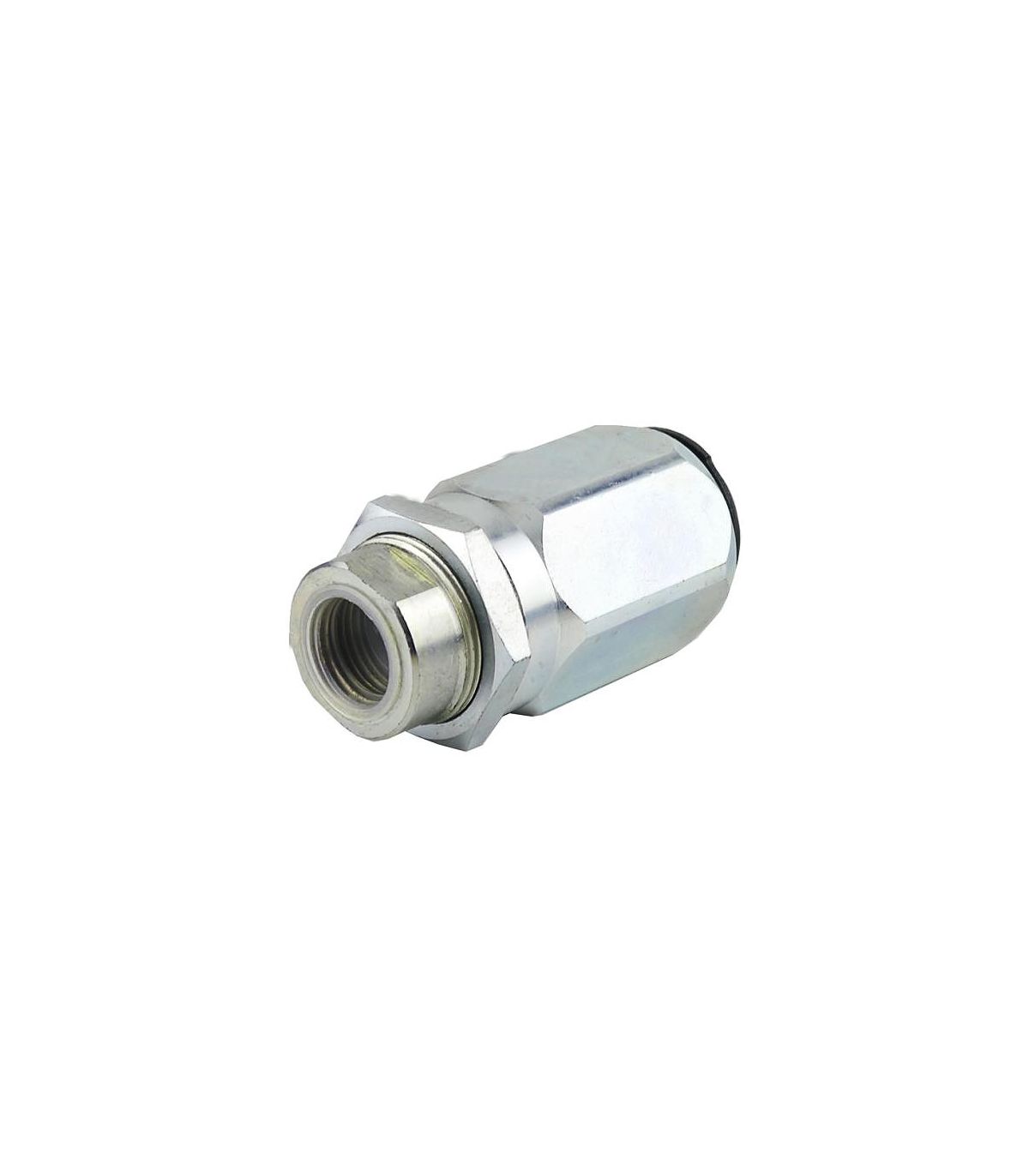

The one-way pineapple flow regulator is designed to regulate the forward or reverse speed of hydraulic cylinders, controlling the oil flow in a single direction of circulation and allowing free passage in the opposite direction.

Application: Industrial hydraulic systems, agricultural machinery, public works, automation and mobile hydraulic equipment.

Main features:

  • Made of steel.
  • Locking nut.
  • Temperature -20º / 80ºC
  • Maximum pressure 350 bar.
€22.16 (tax included)
€18.31 (tax excl.)
SELECT THE THREAD
  • 1/4"
  • 3/8"
  • 1/2"
  • 3/4"
Reference:
49290009
Description

One-way pineapple flow regulator

The one-way flow regulator allows for precise control of hydraulic cylinder speed, optimizing system performance and reducing component wear. Its simple adjustment and robust design make it a reliable solution for industrial and mobile machinery applications where efficient motion control is required.

Its pine cone-type control system allows for precise flow adjustment, adapting to the needs of each application. Thanks to its compact and robust design, it is an effective solution for optimizing the movement of hydraulic actuators, reducing impacts, improving precision, and increasing system lifespan.

Applications

  • Double-acting hydraulic cylinders.
  • Agricultural machinery.
  • Construction and public works machinery.
  • Industrial equipment.
  • Lifting platforms.
  • Hydraulic automation systems.
  • Presses and production machinery.
  • Handling equipment.

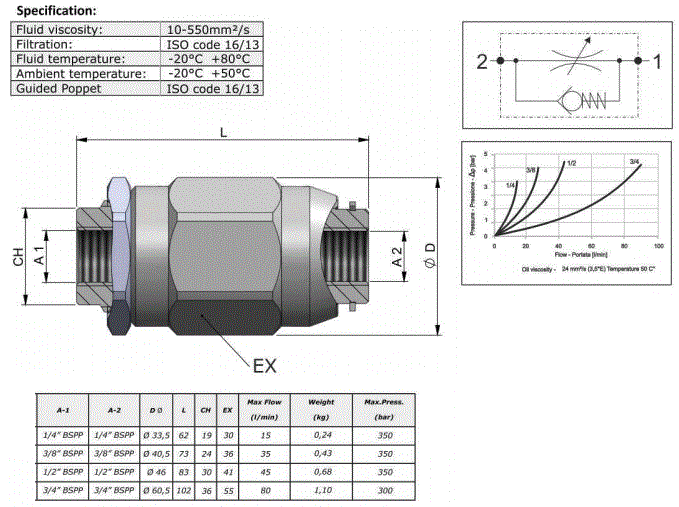

Technical specifications of a one-way pineapple flow regulator:

Product Details
49290009
