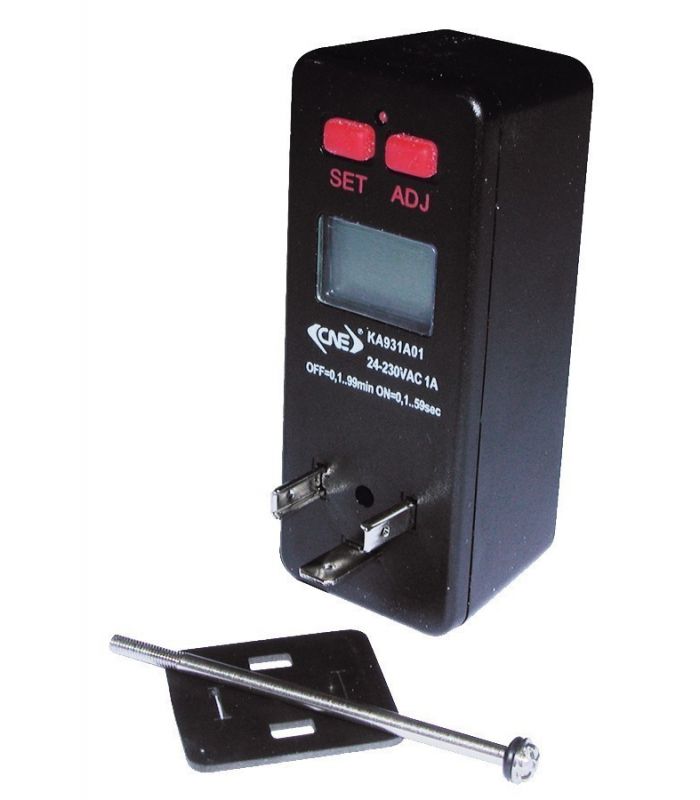

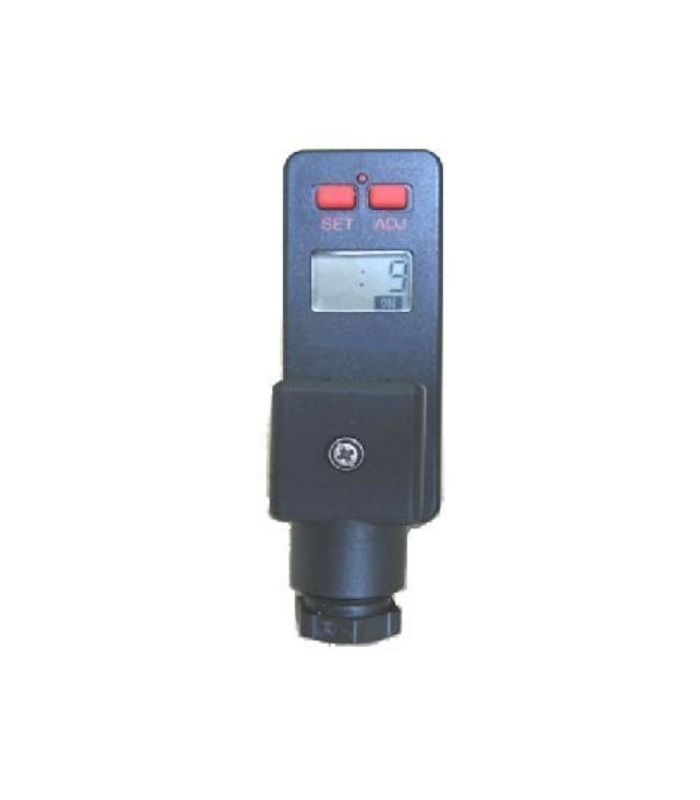

ELECTRONIC TIMER T-30
DIGITAL ELECTRONIC TIMER.
Battery life 5 years
Valve connection: DIN 43650-A ISO-4400/6952.
ON setting time: 0.1 - 59 sec.
OFF setting time: 0.1 - 99.59 min.
Supply voltage: 24-240 Vac 50/60 Hz.
I switching: 1A.
I consumption: 4 mA.
Operating temperature: -10ºCa + 50ºC.
Protection degree: IP 65.
Insulation: VDE 01101/89 Class C.

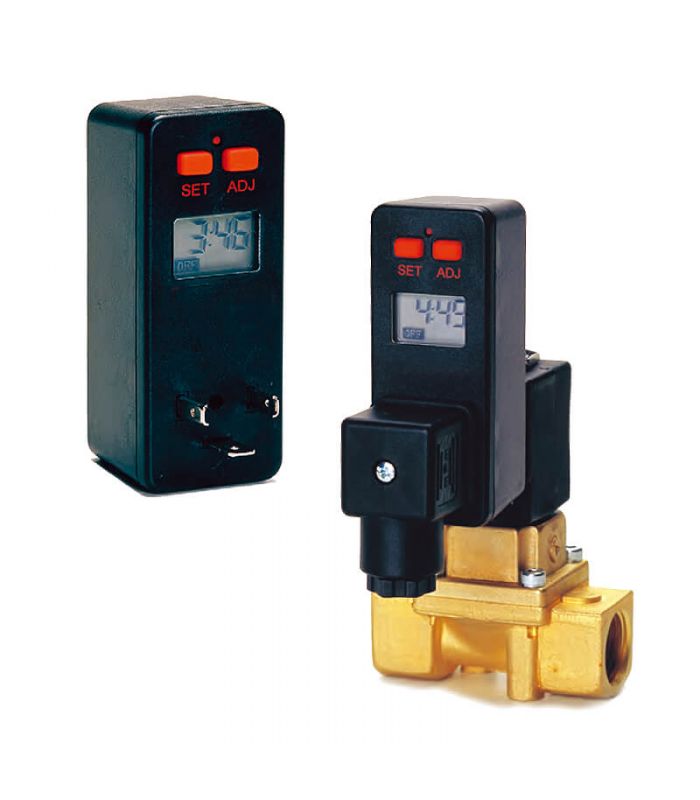

Programmable electronic timer for joint use with elements that have a DIN 43650 A or B type connection. It has a manual operation or “test” button, as well as selectors to adjust the desired operating or stopping time. This type of device is applied with solenoid valves for the drainage of compressor tanks such as air transport lines, pneumatic vibration transport systems (e.g. agricultural silos, aggregate silos) or automatic lubrication systems.
