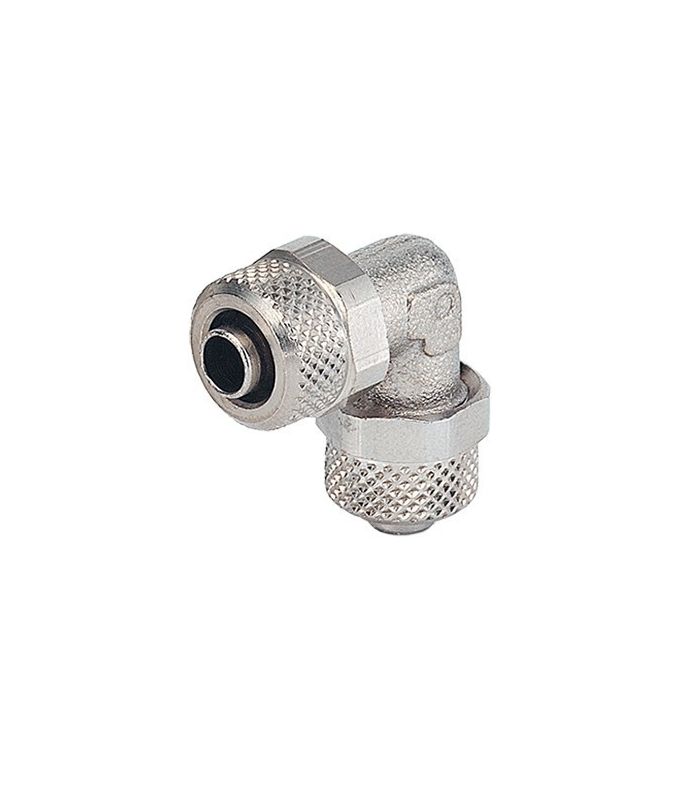

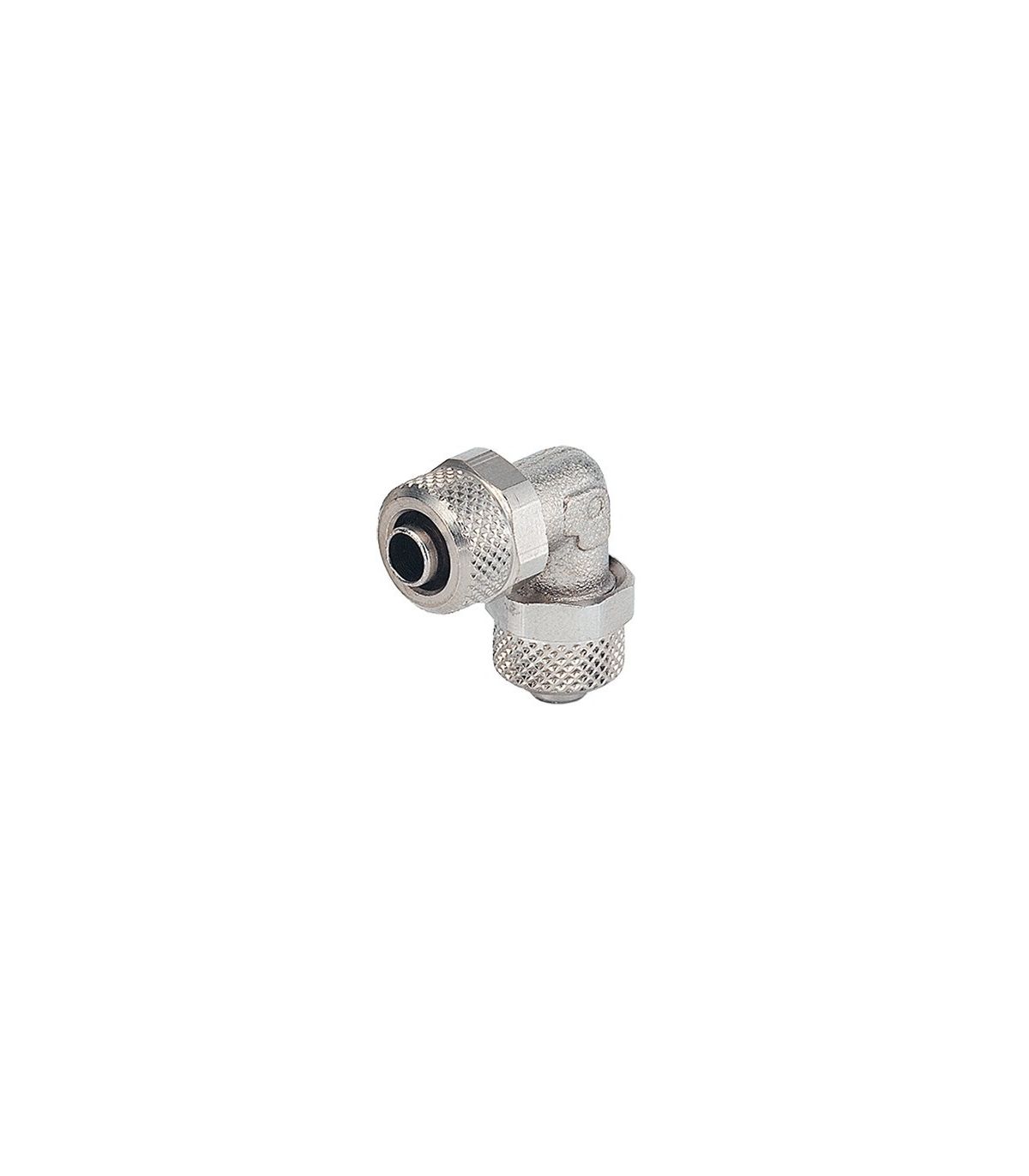

UNION TUBE ELBOW

UNION TUBE ELBOW

A pipe elbow union is a type of connector used in piping systems that allows for a relatively quick and easy connection and disconnection of one pipe to another component at a 90º angle.

Applications: Pneumatic systems, Low pressure fluid systems and Control and automation systems.

Technical sheet:

  • Maximum pressure: 15 bar (1.5 MPa)
  • Minimum temperature: -20° C
  • Maximum temperature: +80° C
  • Fittings are available for the following sizes:
  • Tubes: from 4/2.7 to 15/12.5
  • Threads: 1/8 to 1/2.
€2.84 (tax included)
€2.35 (tax excl.)
DIAMETERS
  • Ø 4
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 15
Reference:
11110001
Description

elbow tube union

Product Details
11110001
Comments
