OPERATING CYLINDRICAL THREADED ELBOW UNION
OPERATING CYLINDRICAL THREADED ELBOW UNION
OPERATING CYLINDRICAL THREADED ELBOW UNION
OPERATING CYLINDRICAL THREADED ELBOW UNION

OPERATING CYLINDRICAL THREADED ELBOW UNION

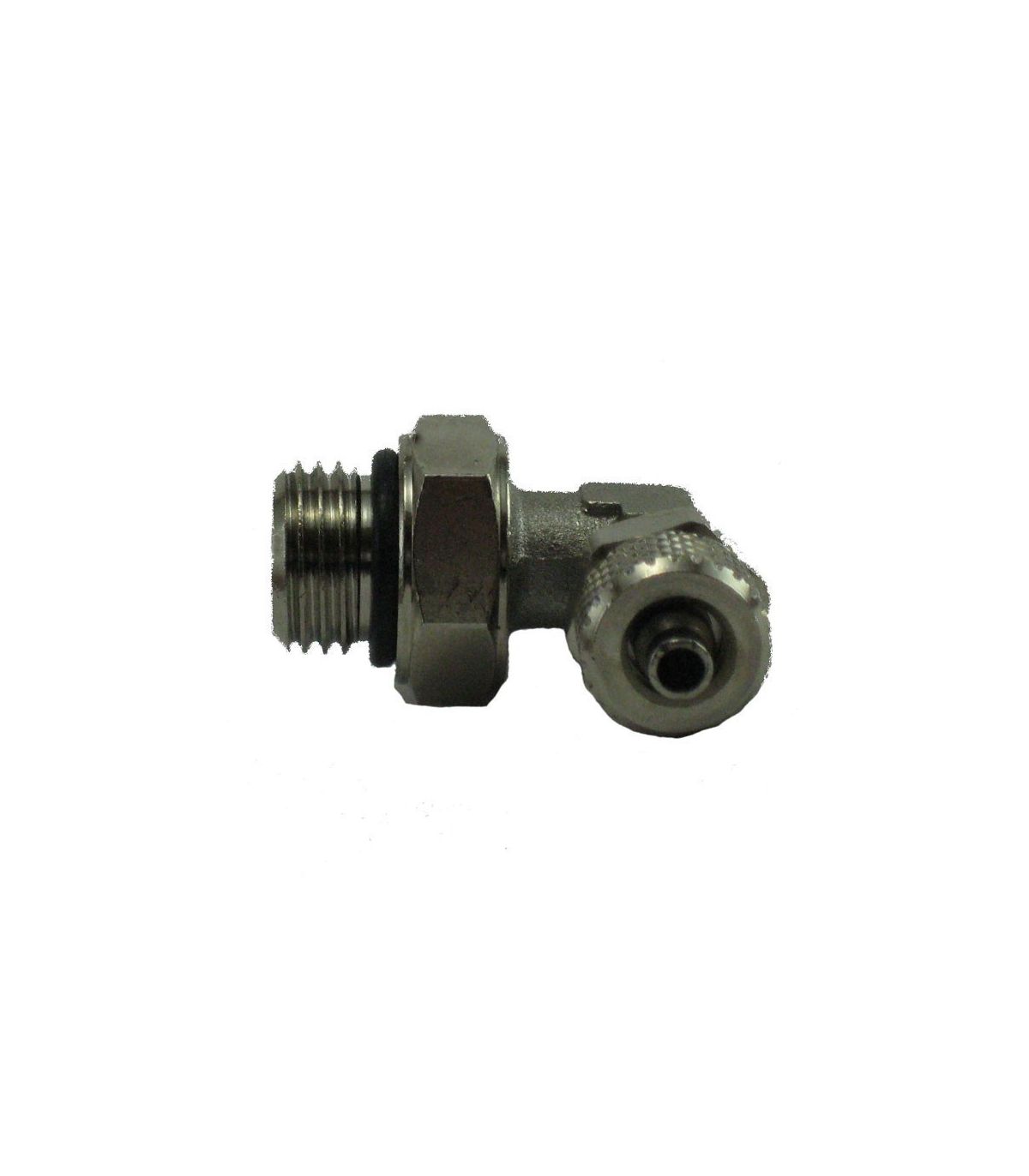

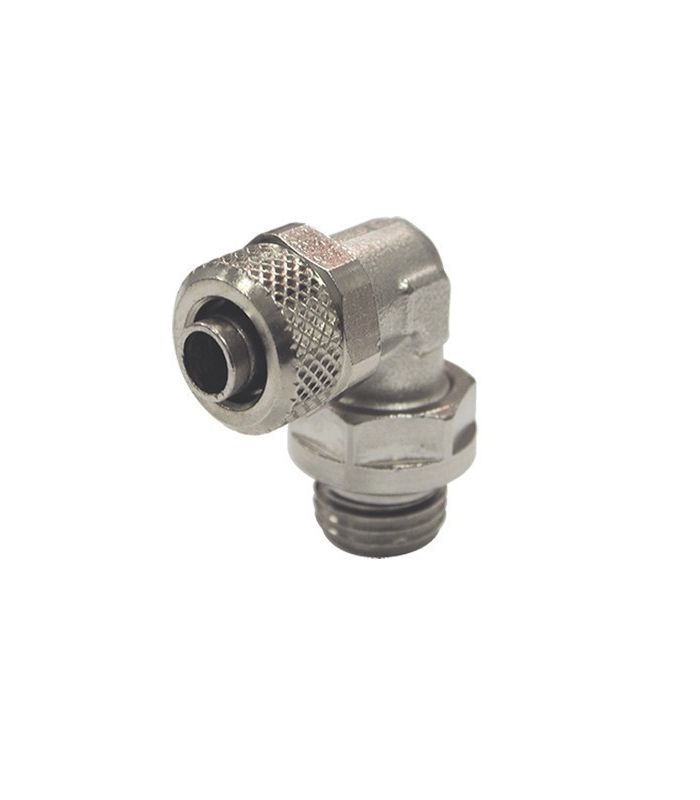

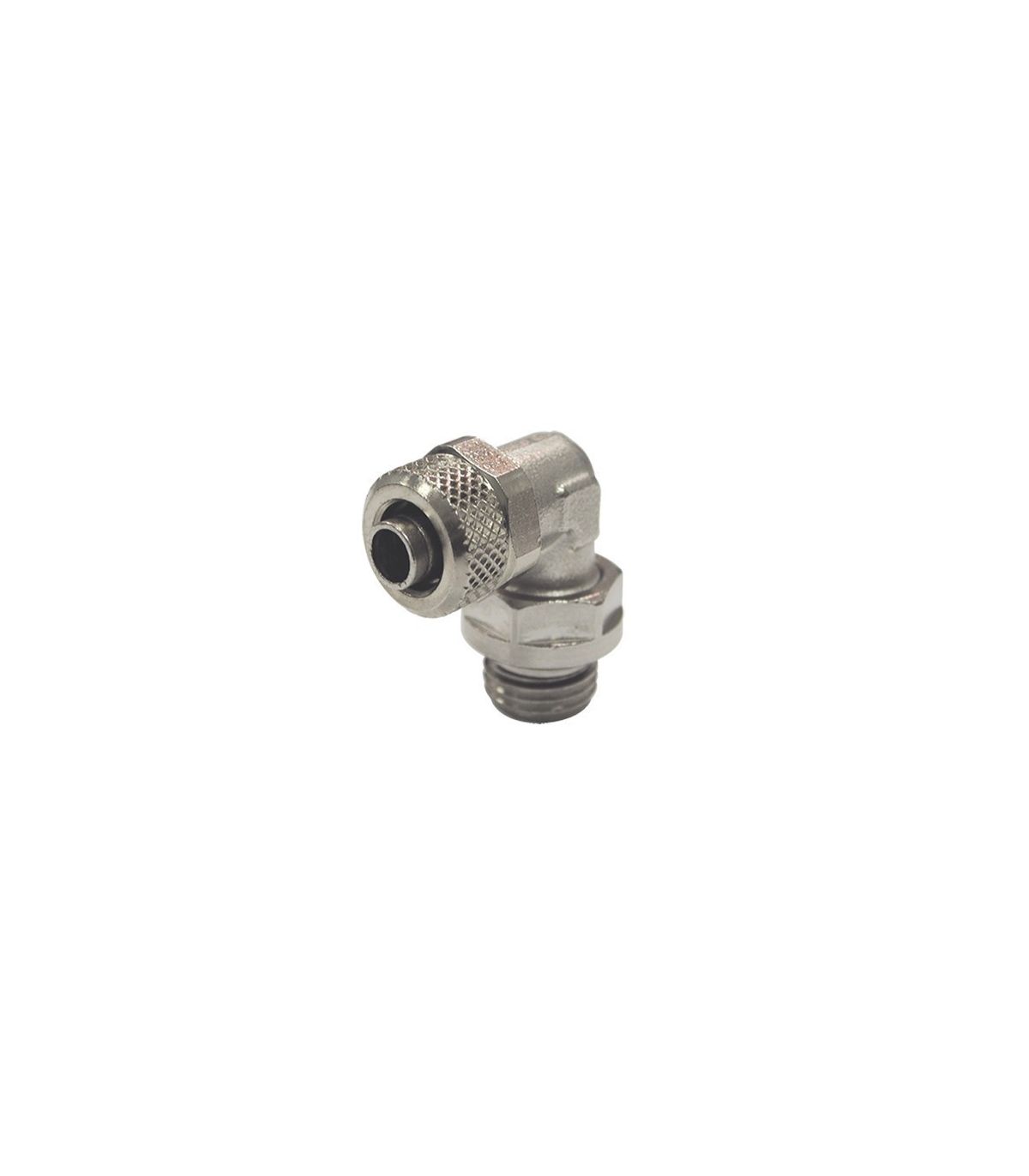

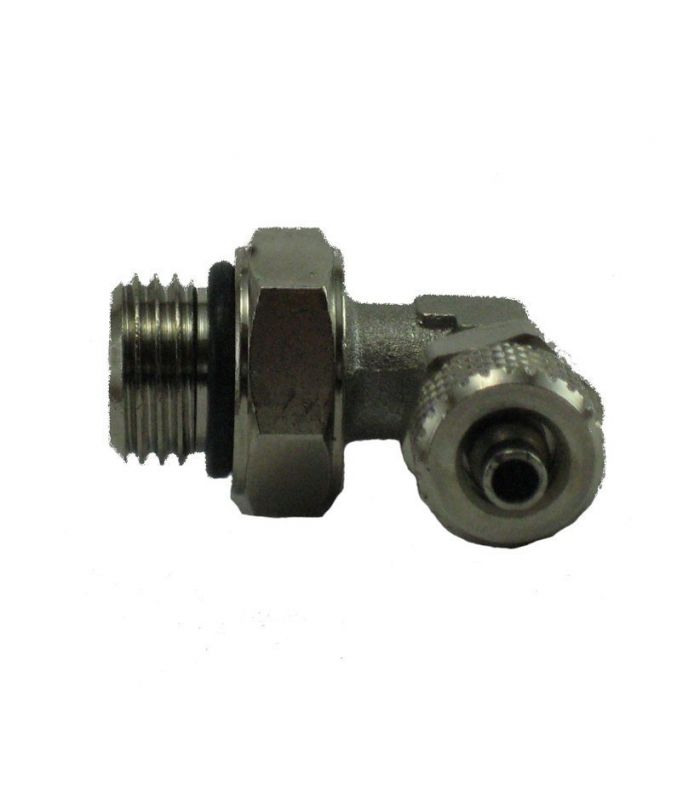

Adjustable cylindrical threaded elbow joint

A swivelable cylindrical threaded elbow fitting is designed to join a pipe or hose to a threaded component, allowing the direction of flow to be changed (usually 90°) and the orientation of the assembly to be adjusted during assembly.

Main features :

  • Maximum pressure: 15 bar (1.5 MPa)
  • Minimum temperature: -20° C
  • Maximum temperature: +80° C
  • The fittings are available in the following sizes:
  • Tubes: from 4/2.7 to 15/12.5;
  • Threads: from 1/8 to 1/2.
€2.61 (tax included)
€2.16 (tax excl.)
Tube diameter - Thread
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 10-1/4
Reference:
11060007
Description

Adjustable cylindrical threaded elbow joint

A swivelable cylindrical threaded elbow fitting is a connection fitting designed to join two threaded components or a pipe and a threaded component, allowing a change of direction (usually 90°) and adjustable orientation of the connection.

Main features

  • 90° elbow configuration
  • Parallel cylindrical thread
  • Adjustable system for position adjustment
  • Sealed using an O-ring or toroidal gasket
  • Made of nickel-plated brass

Common applications

  • Pneumatic systems
  • Compressed air circuits
  • Industrial automation
  • Machinery and equipment with space limitations
Product Details
11060007
