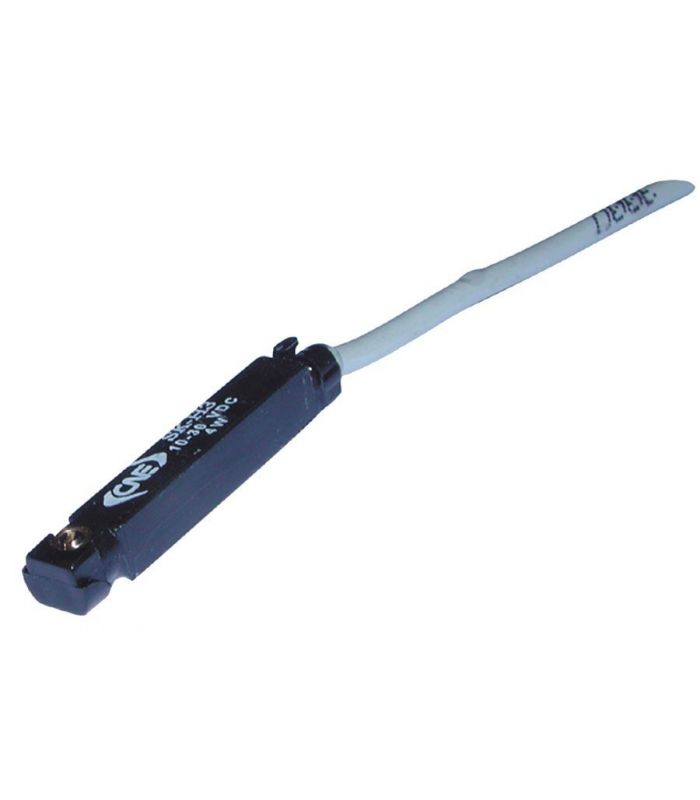

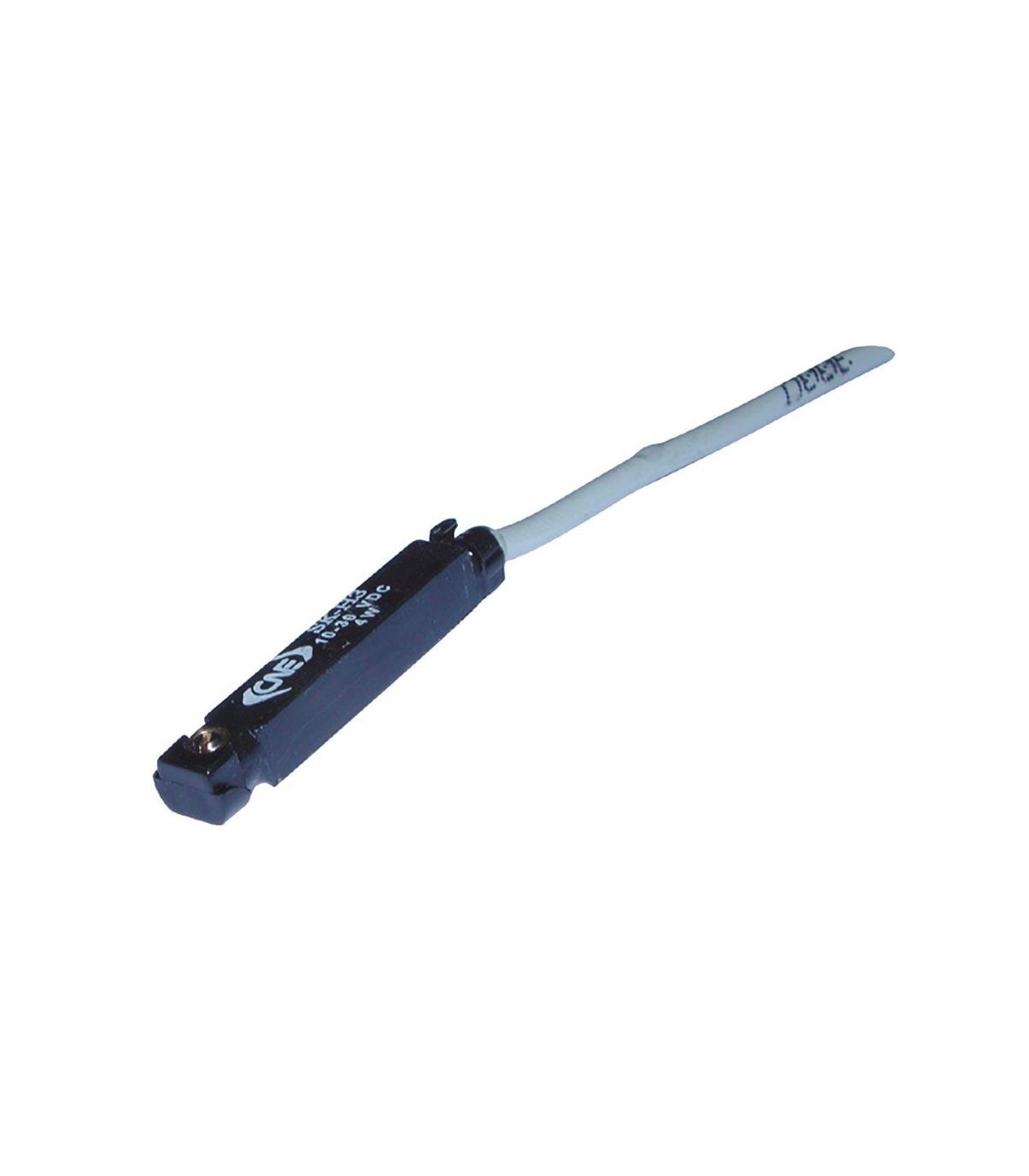

REED SENSOR CABLE 2mt

The 2m reed switch is a type of magnetic switch used to detect the presence or absence of a magnetic field. It is a passive device that does not require a power supply to function as a sensor and is activated by bringing a magnet close to it.

Applications: Industrial automation, Security systems, Accountants and Robotics.

Technical sheet:

Electrical input: Direct 2-wire output. Normally open (The circuit is open when there is no magnet and closes when the magnet is brought close)
Voltage 5-240V DC/AC
Charging current: 5 to 50 mA. Max. 100 mA
Response time 0.1 ms
Operating temperature -10ºC - 70ºC
2-meter PUR cable resistant to cutting oils.
Signal by red LED diode.

€18.50 (tax included)

€15.29 (tax excl.)

Reference:

5200

Description
Comments

Description

Reed sensor cable 2mt

SENSOR REED 2mt. CABLE

Product Details

Reference 5200
