A simple screw is the hollow bolt used to attach a single banjo-type terminal to a pressure port.

Applications: automotive, agricultural machinery, industrial hydraulics.

Main features:

  • 60° conical closure fitting with BSP thread.
  • Made of carbon steel.
  • White zinc plating.
  • Operating temperature -40 / 150ºC.
  • Working pressure 250 bar.
€0.82 (tax included)
€0.68 (tax excl.)
SELECT THE THREAD
  • 1/8"
  • 1/4"
  • 3/8"
  • 1/2"
  • 3/4"
  • 1"
Reference:
44070005
Description

Single screw

The simple screw is a hydraulic connection element designed to allow fluid to pass through its interior, combining fastening and flow functions in a single piece. It features an axial bore and a single lateral hole, facilitating the entry or exit of fluid to or from a connected component.

Main features

  • External thread for fixing
  • Hex head for tightening
  • Through-hole drill
  • A lateral perforation for fluid passage

Applications

  • Hydraulic systems
  • Lubrication circuits
  • Automotive (brakes, fuel)
  • Industrial and agricultural machinery

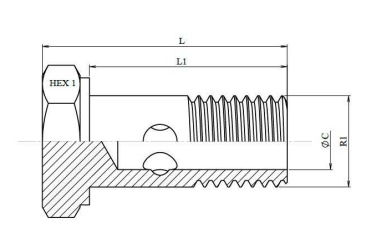

TORNILLO SIMPLE

Technical specifications of a simple screw:

Reference R1 HEX1 ØC L L1
44070005 1/8" 14 6 26 21
44070009 1/4" 19 6 34 27.6
44070013 3/8" 22 9 39.0 32
44070019 1/2" 27 13 47.5 38.5
44070025 3/4" 32 16 59 49
44070029 1" 27 22 69 58
