FIG 150 DOUBLE CONNECTION STAINLESS STEEL 316
FIG 150 DOUBLE CONNECTION STAINLESS STEEL 316
FIG 150 DOUBLE CONNECTION STAINLESS STEEL 316
FIG 150 DOUBLE CONNECTION STAINLESS STEEL 316

FIG 150 DOUBLE CONNECTION STAINLESS STEEL 316

A Fig 150 double stainless steel 316 fitting is a threaded accessory used to join two pipes or tubes of the same diameter at a 90-degree angle, allowing a change in flow direction. It is a fitting with two male threads at its ends, perpendicular to each other.

Applications: food and pharmaceutical industry, chemical industry, water treatment, heating and cooling systems.

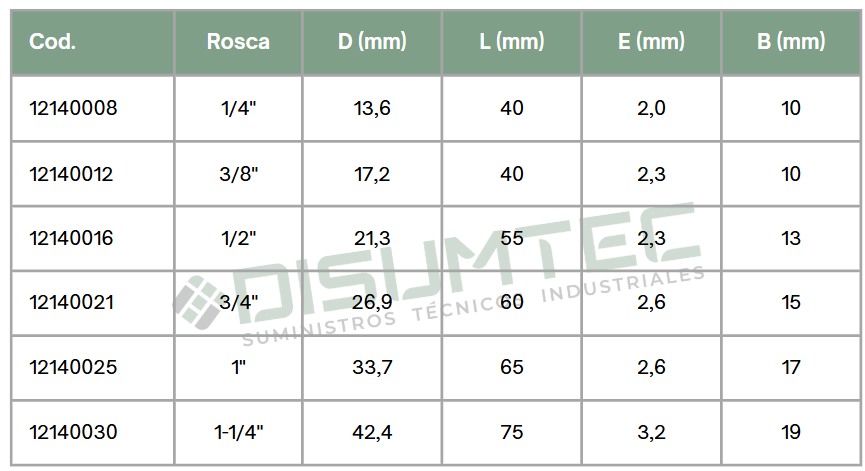

Technical specifications:

  • Threaded fitting 150 psi - 10 bar.
  • Austenitic Stainless Steel A-316 DIN 1.4408
  • Tolerance: DIN 1.4408
  • Manufactured according to UNE EN 10213-4
  • DIN 2999 thread
€0.83 (tax included)
€0.69 (tax excl.)
SELECT THE THREAD
  • 1/4"
  • 3/8"
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"
Reference:
12140008
Description

Fig 150 double stainless steel 316 connection

Product Details
12140008
