BRANCH FITTING DRILLED INTO PIPE
BRANCH FITTING DRILLED INTO PIPE
BRANCH FITTING DRILLED INTO PIPE
BRANCH FITTING DRILLED INTO PIPE
BRANCH FITTING DRILLED INTO PIPE
BRANCH FITTING DRILLED INTO PIPE

BRANCH FITTING DRILLED INTO PIPE

A drill-to-pipe branch fitting is a pneumatic or hydraulic connector that allows an air or fluid intake to be taken directly from a drilled hole made in a main pipe.

Applications: Compressed air networks, Pneumatic automation, Extensions of existing lines.

Main features :

  • Made of technopolymer.
  • Suitable for: Compressed air, inert gases, vacuum.
  • Temperature -30ºC / 80ºC
  • Available diameters 16-20-25-32-40-50-63
  • Reaction to fire: EN 13501-1:2007+A1:2009 EN ISO13823:2010
  • Easy assembly.

DEMO VIDEO

€17.85 (tax included)
€14.75 (tax excl.)
DIAMETERS
  • Ø25-Ø20
  • Ø32-Ø20
  • Ø40-Ø20
  • Ø40-Ø25
  • Ø50-Ø20
  • Ø50-Ø25
Reference:
14110040
Description

Drill to pipe branch fitting

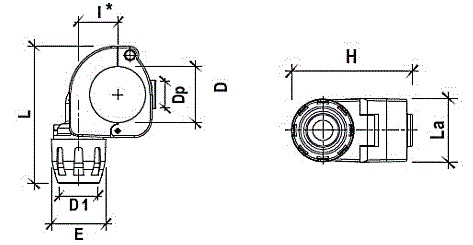

Code D D1 L AND The Dp
14110040 25 20 113 45 52 16
14110041 32 20 113 45 52 16
14110043 40 20 125 45 52 20
14110044 40 25 125 51 52 20
14110046 50 20 145 45 60 20
14110047 50 25 145 51 60 20

Product Details
14110040
