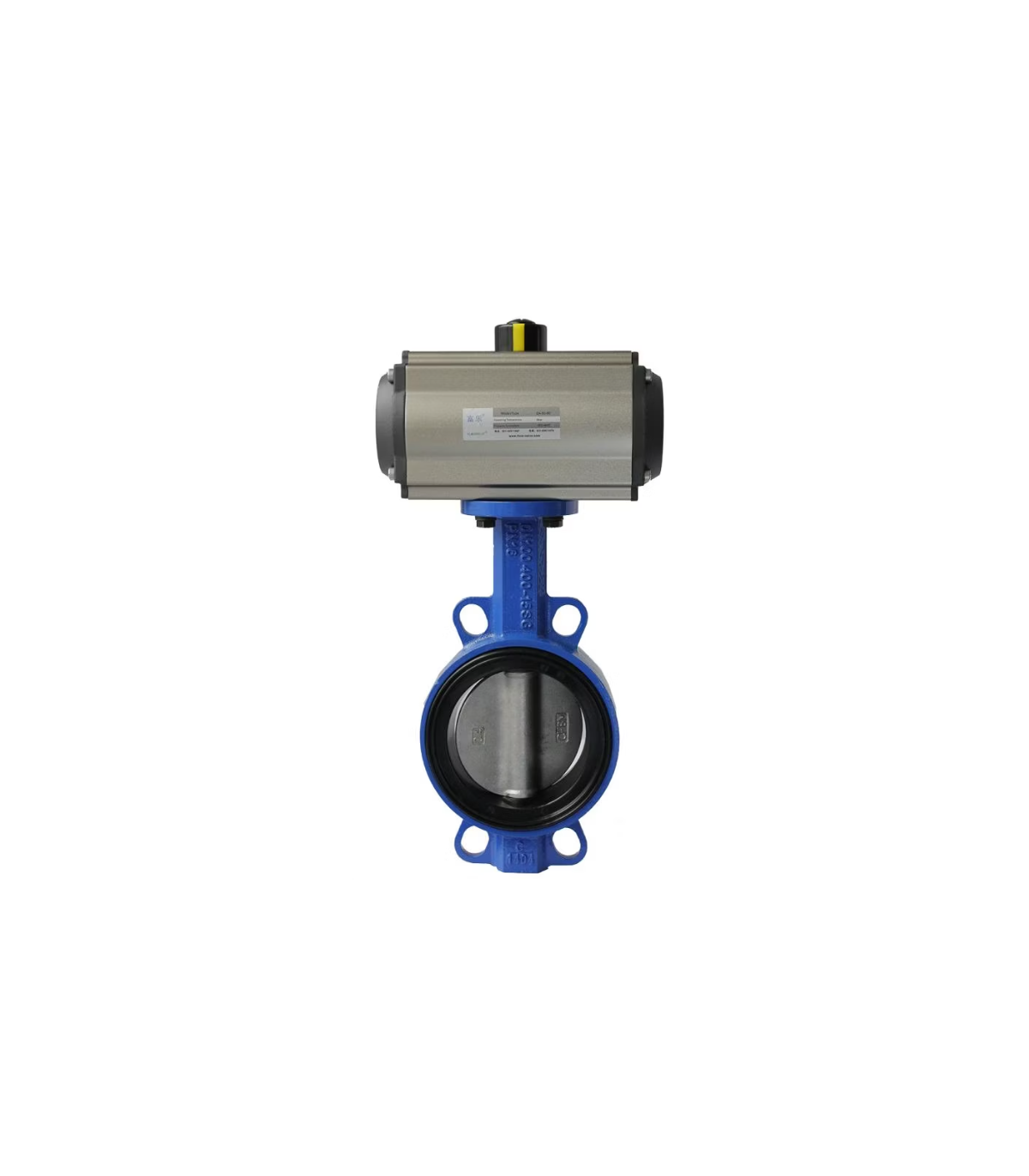

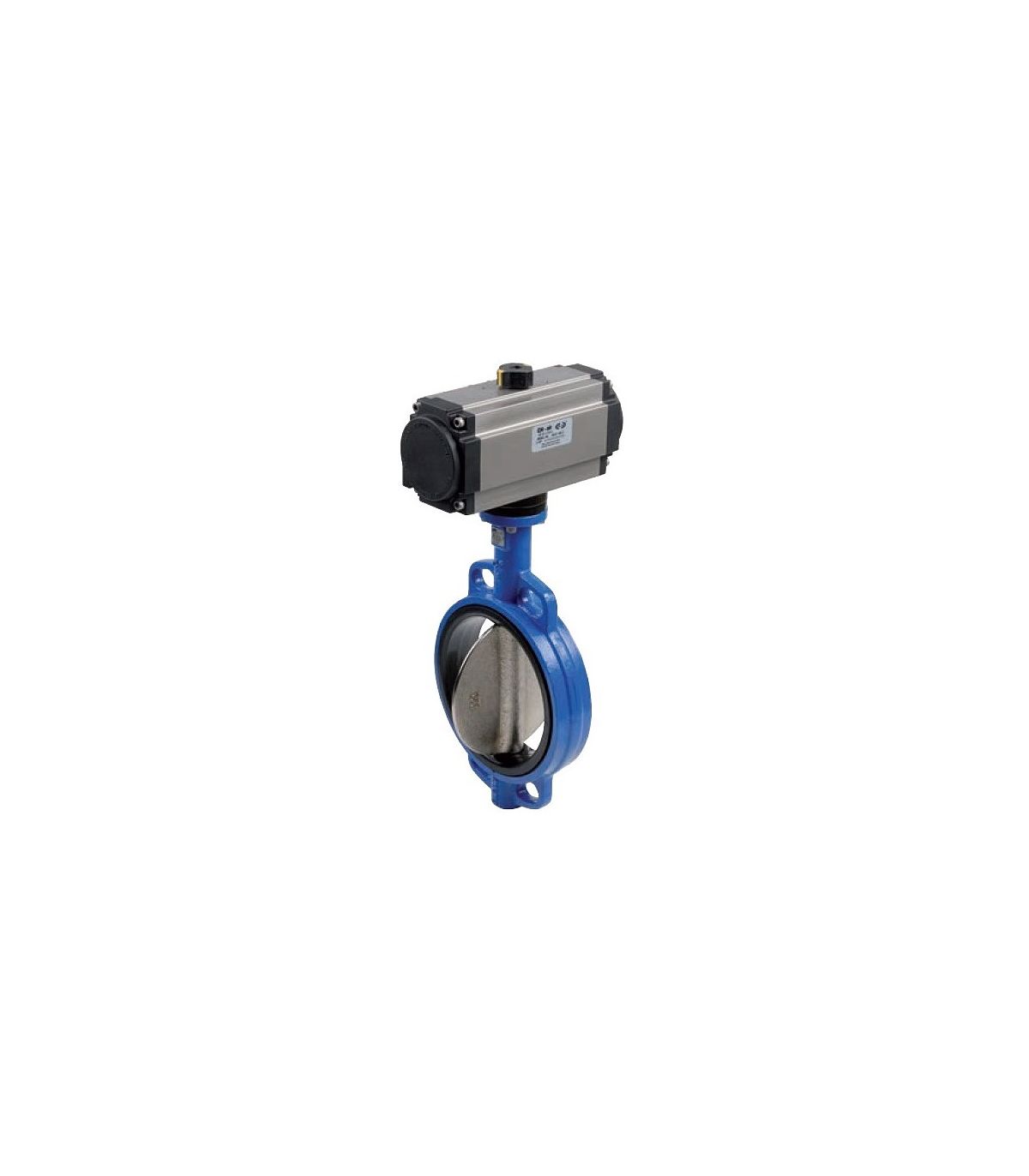

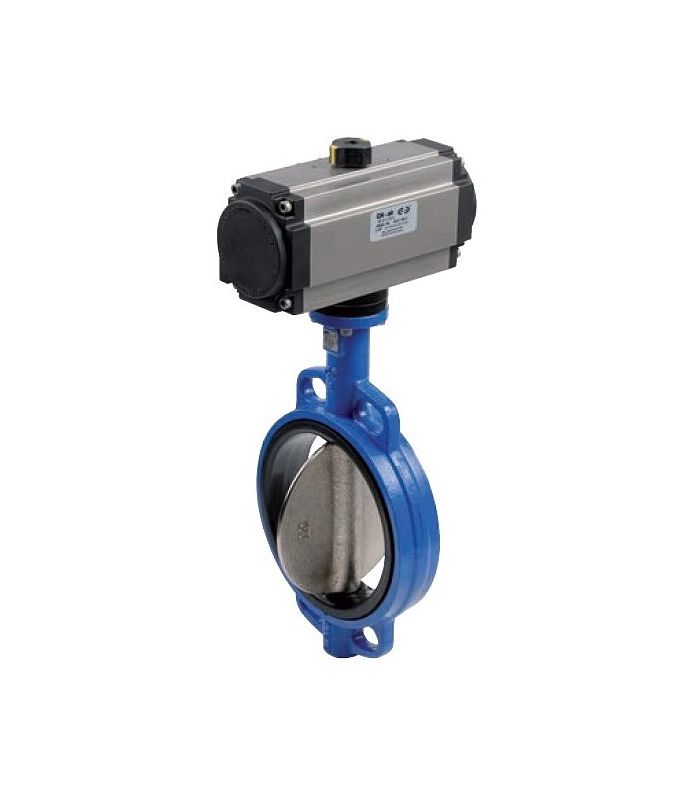

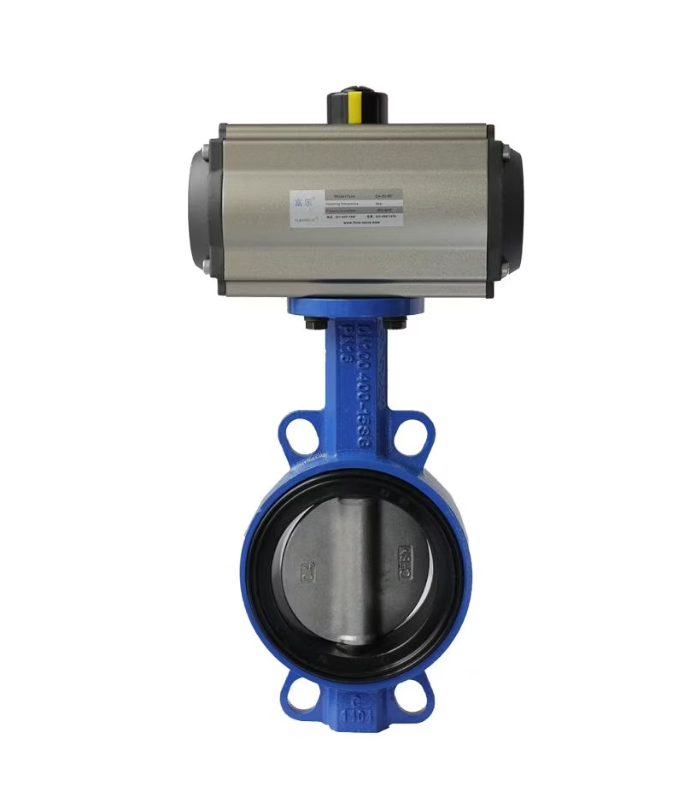

WAFER BUTTERFLY VALVE DOUBLE ACTING STAINLESS STEEL DISC
WAFER BUTTERFLY VALVE DOUBLE ACTING STAINLESS STEEL DISC
WAFER BUTTERFLY VALVE DOUBLE ACTING STAINLESS STEEL DISC
WAFER BUTTERFLY VALVE DOUBLE ACTING STAINLESS STEEL DISC

WAFER BUTTERFLY VALVE DOUBLE ACTING STAINLESS STEEL DISC

A double-acting stainless steel wafer disc butterfly valve is used in piping systems to control the flow of liquids or gases. The closing element is a flat disc that rotates around an axis.

Applications: Water treatment, Food industry, Chemical industry and Energy

Technical sheet:

  • Disc in Inox-316, EPDM seals
  • Body in grey cast iron GG25, nodular cast iron GGG40-GGG50
  • Manufacturing standards: DIN 1691/1 UNE EN 1561, DIN 1693 / UNE EN 1563.
  • Connection between DIN 2501 PN10/16 and ASME B16.5 flanges
  • Class 150
  • Temperature Range -15ºC to +150ºC
  • Dimensions of GB/T9119-2000 PN 1.0 MPa flanges
  • Double-acting actuator model 5104
€136.75 (tax included)
€113.02 (tax excl.)
SELECT THE THREAD
  • 2"
  • 2-1/2"
  • 3"
  • 4"
  • 5"
  • 6"
  • 8"
  • 10"
  • 12"
Reference:
51060041
Description

Double-acting stainless steel wafer disc butterfly valve VAL.MARIPOSA WAFER DISCO INOX D EFECTO

Product Details
51060041
