KINETROL 034 DOUBLE-ACTING PNEUMATIC ACTUATOR
KINETROL 034 DOUBLE-ACTING PNEUMATIC ACTUATOR
KINETROL 034 DOUBLE-ACTING PNEUMATIC ACTUATOR
KINETROL 034 DOUBLE-ACTING PNEUMATIC ACTUATOR
KINETROL 034 DOUBLE-ACTING PNEUMATIC ACTUATOR
KINETROL 034 DOUBLE-ACTING PNEUMATIC ACTUATOR
KINETROL 034 DOUBLE-ACTING PNEUMATIC ACTUATOR
KINETROL 034 DOUBLE-ACTING PNEUMATIC ACTUATOR

KINETROL 034 DOUBLE-ACTING PNEUMATIC ACTUATOR

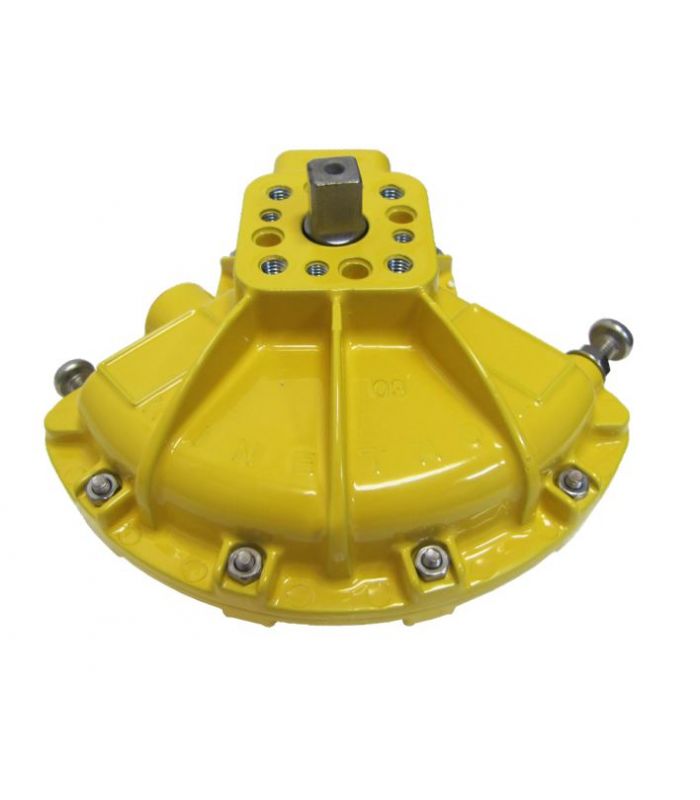

A kinetrol 034-100 double-acting pneumatic actuator is a mechanical device that uses the energy of compressed air to generate rotary motion and operate a quarter-turn valve (such as a ball or butterfly valve).

Applications: Petrochemical and chemical industry, Water and wastewater treatment, Fluid transport and distribution systems.

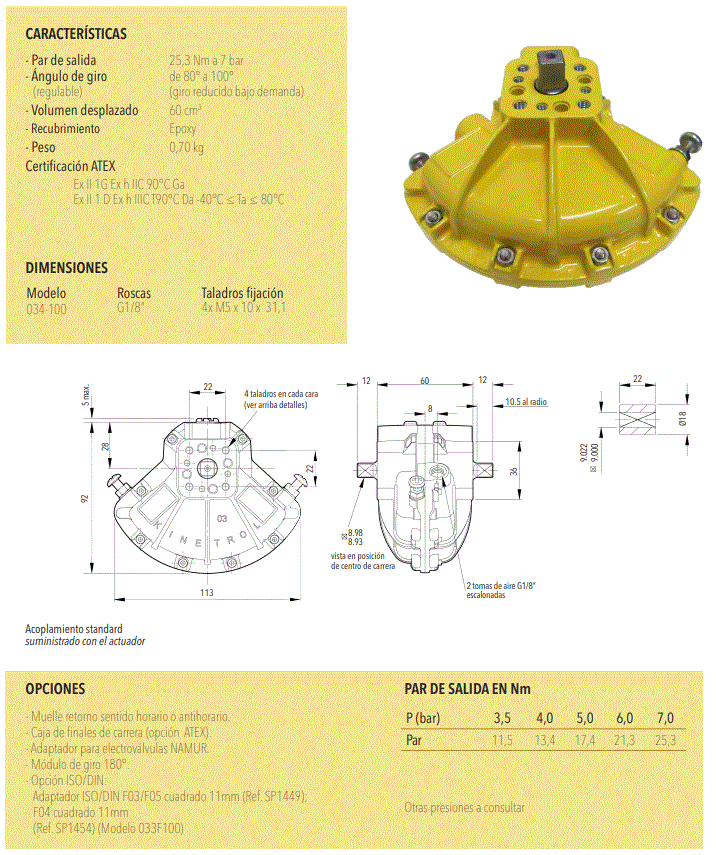

Technical specifications:

  • Output torque 25 Nm at 7 bar
  • Adjustable turning angle 80º to 100º
  • ATEX certification.
  • Ex II 1G Ex h IIC 90ºC Ga
  • Ex II 1 D Ex h IIIC T90ºC Da -40ºC ≤ Ta ≤ 80ºC

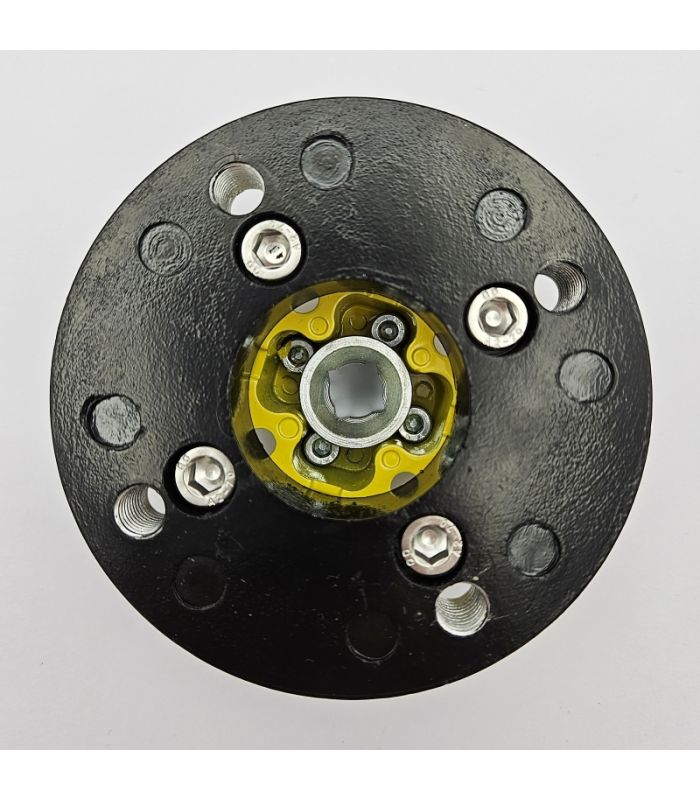

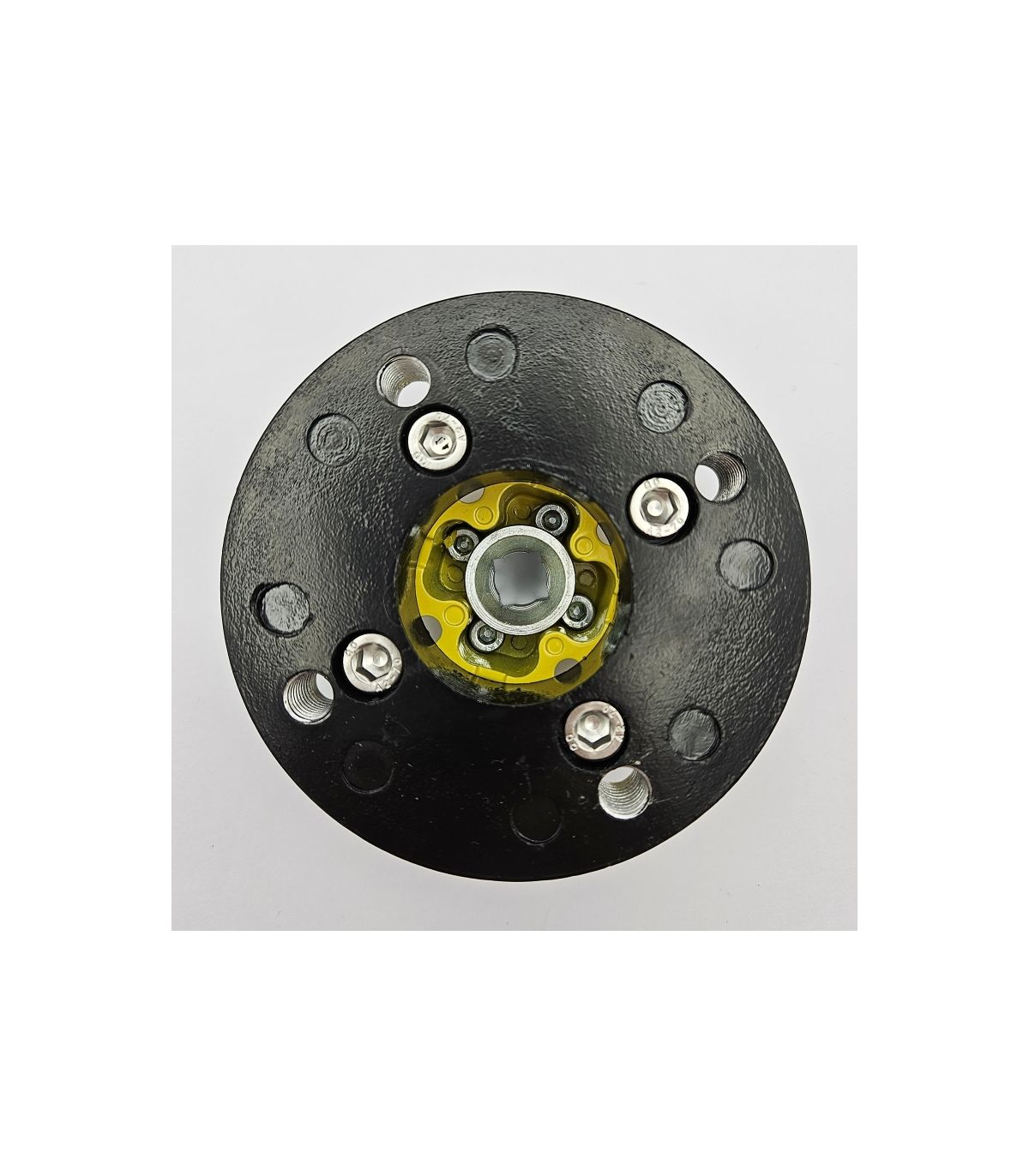

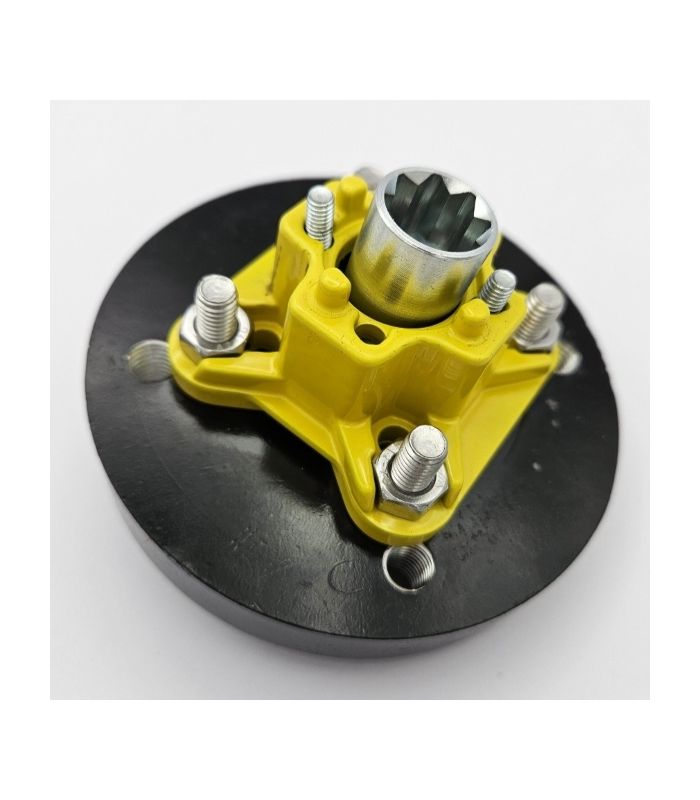

  • It can be supplied with the ISO adapter (please inquire)
€327.18 (tax included)
€270.40 (tax excl.)
Reference:
5125
Description

Kinetrol 034-100 double-acting pneumatic actuator

Product Details
5125
Comments
