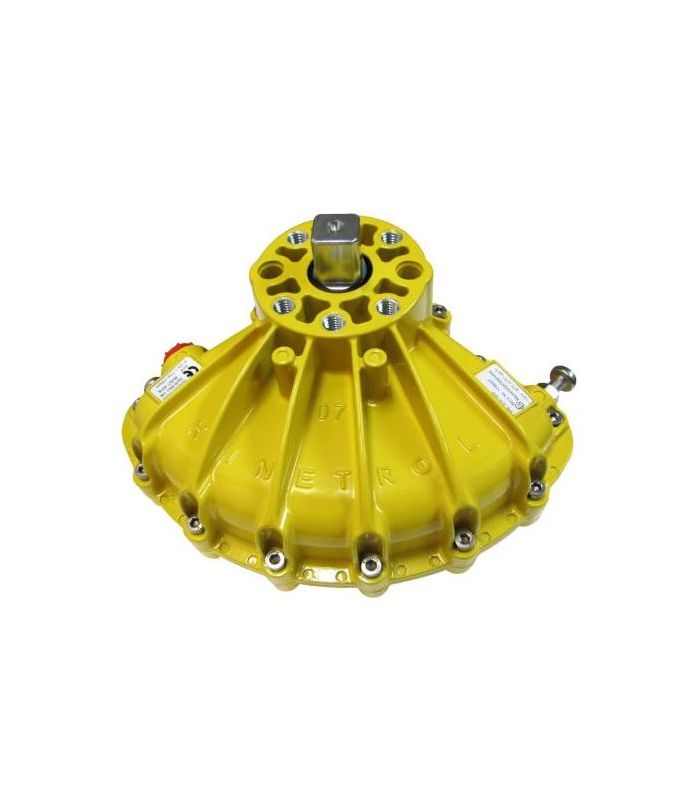

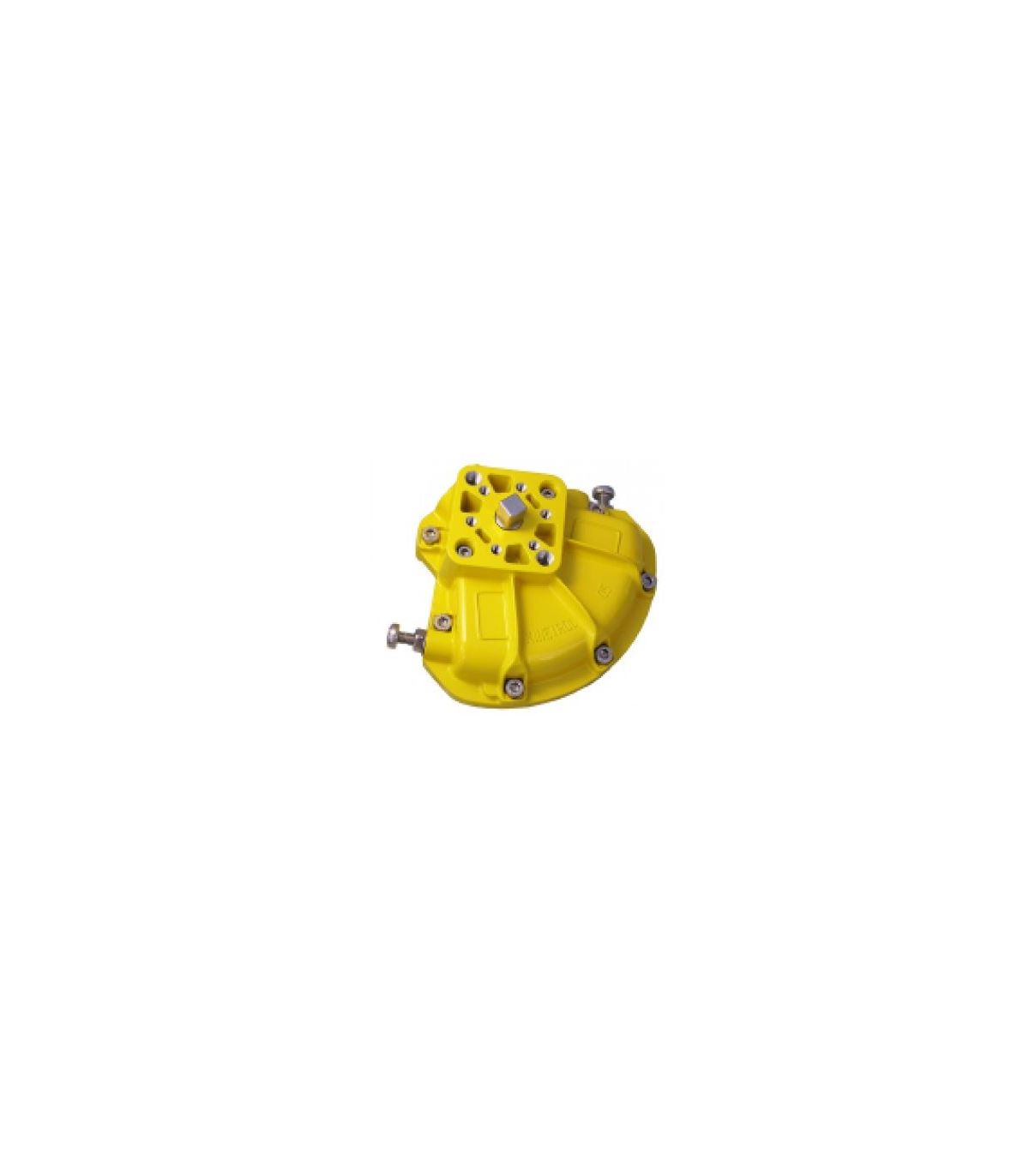

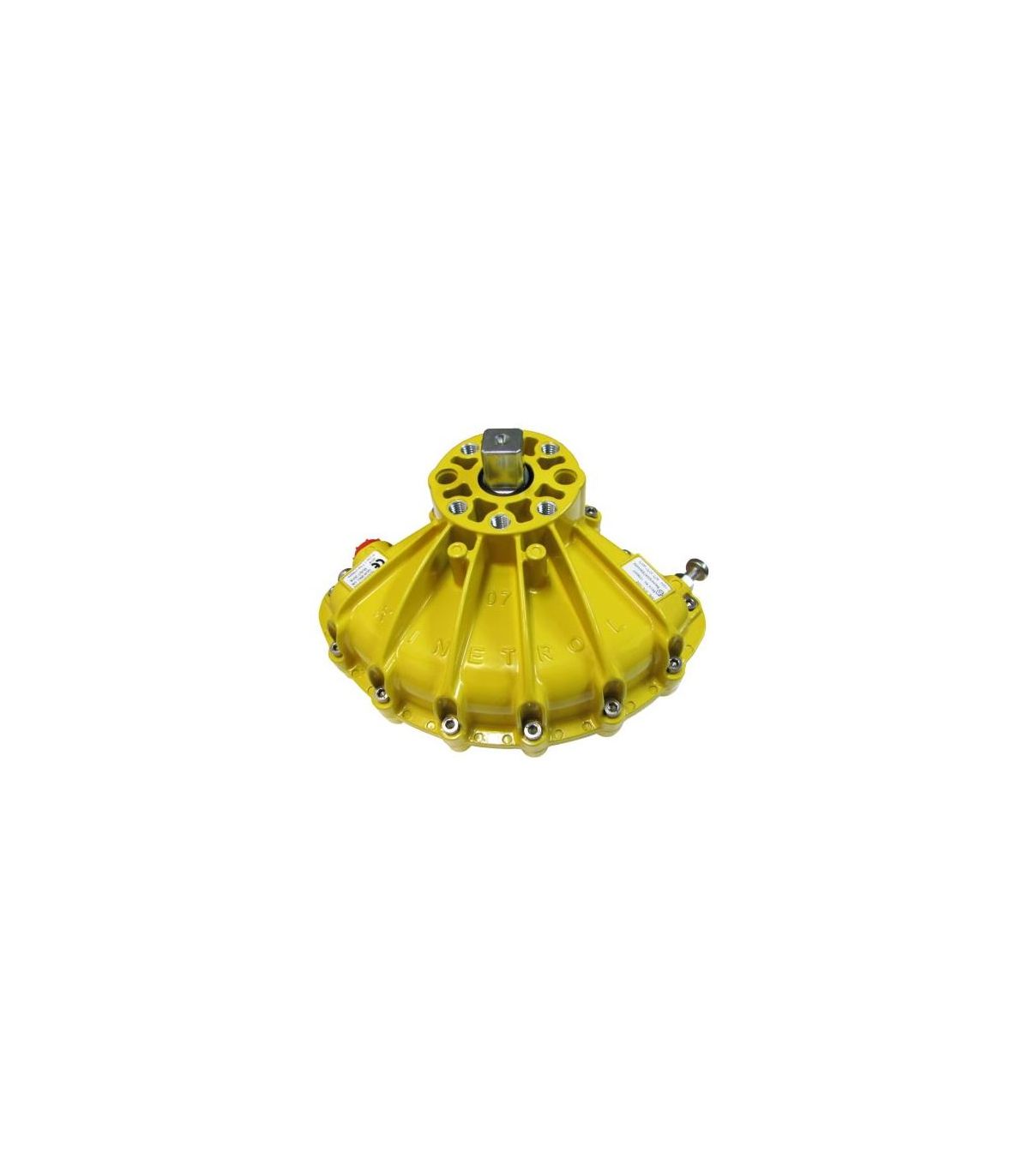

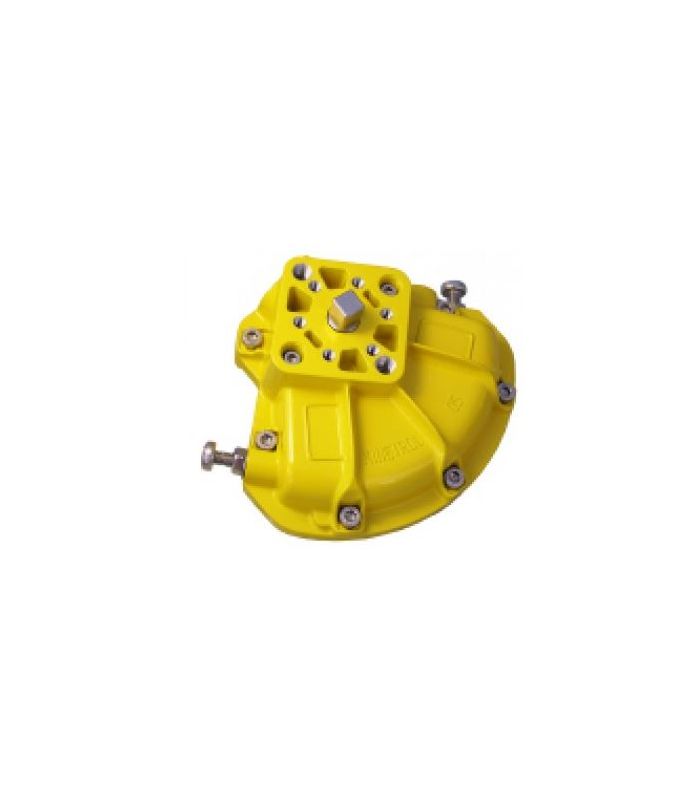

KINETROL 074-100 DOUBLE-ACTING PNEUMATIC ACTUATOR

A kinetrol 074-100 double-acting pneumatic actuator is a mechanical device that uses the energy of compressed air to generate rotary motion and operate a quarter-turn valve (such as a ball or butterfly valve).

Applications: Petrochemical and chemical industry, Water and wastewater treatment, Fluid transport and distribution systems.

• Aluminum casing
• Stainless Steel Shaft
• Bronze and PTFE bushings
• Polyurethane gaskets.

Technical specifications:

• Output torque 57 Nm to 124 Nm depending on the pressure.
• Adjustable turning angle 74º to 100º
• Temperature -40 / 80ºC
• ATEX certification.
• Ex II 1G Ex h IIC 90ºC Ga
• Ex II 1 D Ex h IIIC T90ºC Da -40ºC ≤ Ta ≤ 80ºC
• It can be supplied with the ISO adapter (please inquire)

ATEX DECLARATION OF CONFORMITY
