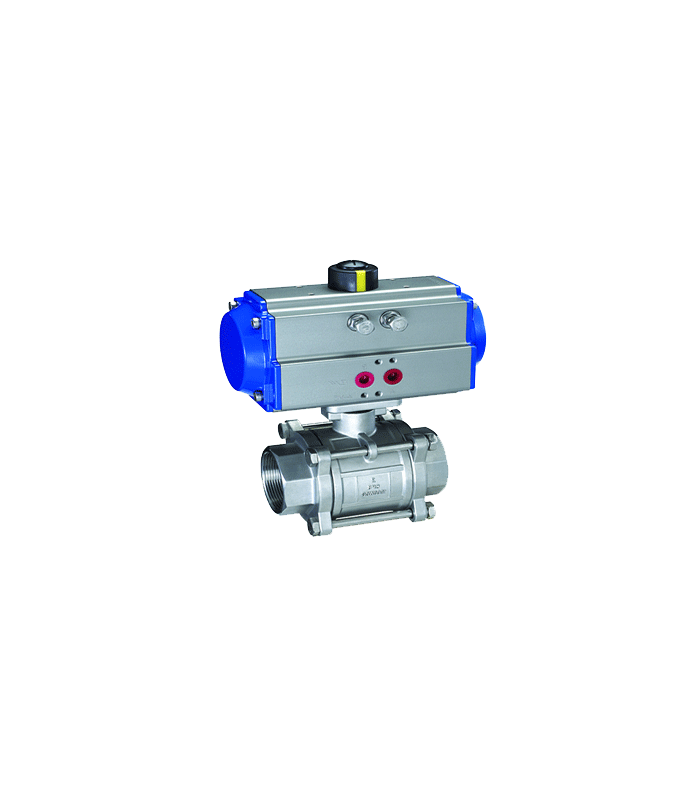

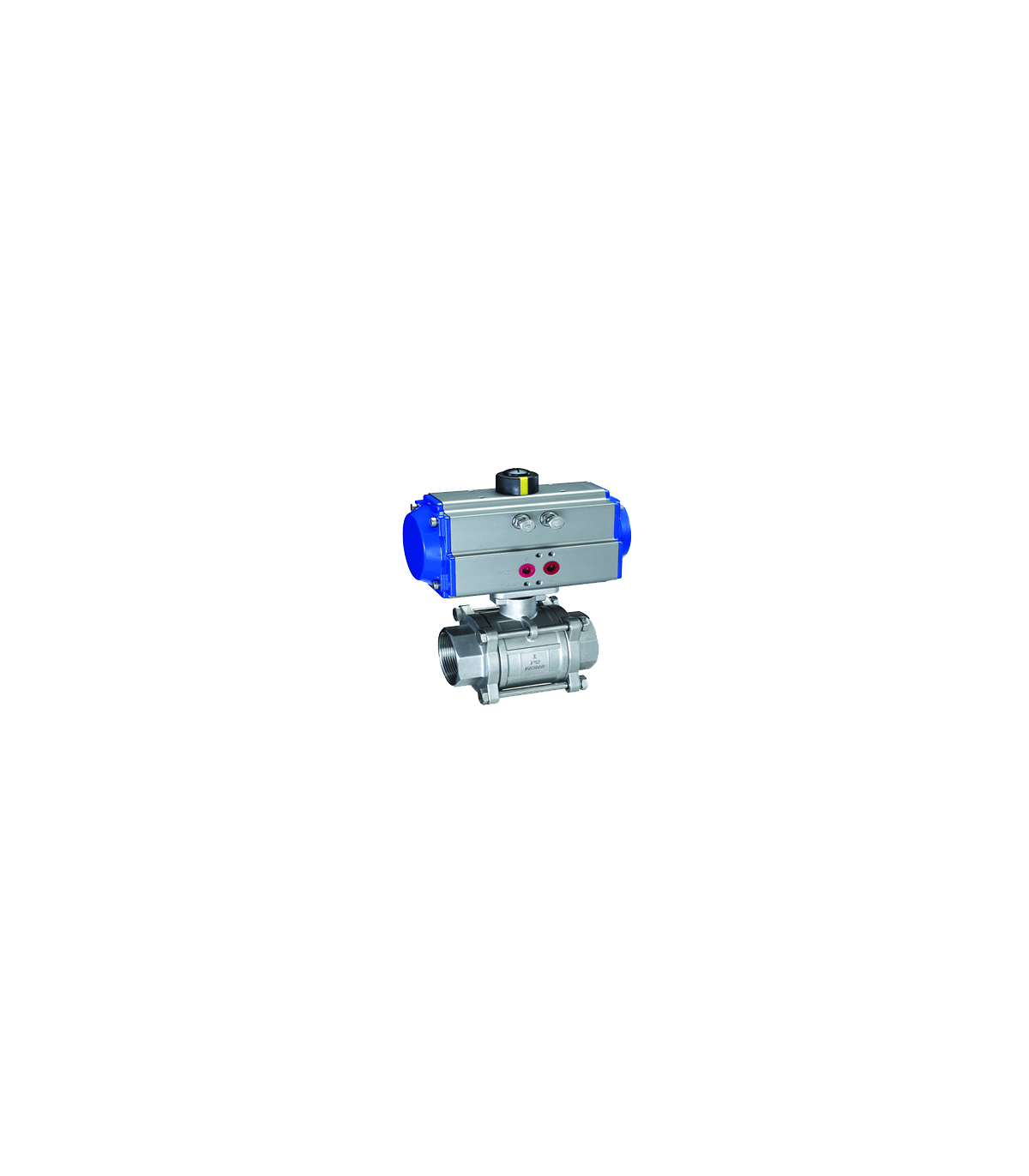

DOUBLE ACTING ACTUATOR WITH 3 PIECE FULL BORE STAINLESS STEEL VALVE

DOUBLE ACTING ACTUATOR WITH 3 PIECE FULL BORE STAINLESS STEEL VALVE

A double acting actuator with a 3-piece stainless steel full bore valve is used to control the flow of a fluid in a pipe. When compressed air is applied to the actuator, it moves the stem, which in turn opens or closes the valve.

Wide range of applications: pharmaceutical industry, food industry, chemical industry, energy industry and mining industry.

Technical data sheet:

  • 3-piece full bore ball valve.
  • Removable
  • Built in INOX-316
  • PTFE gasket
  • Gas-Din 2999 threaded ends
  • Pressure 63 bar.
  • Temperature -25 / 180ºC
  • Direct mounting ISO 5211
  • Double acting actuator mod. 5104
€107.45 (tax included)
€88.80 (tax excl.)
SELECT THE THREAD
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"
  • 2-1/2"
  • 3"
Reference:
511500171
Description

Double acting actuator with 3-piece full bore stainless steel valve

ACTUADOR D.EFECTO + VALVULA PASO TOTAL

Product Details
511500171
