KINETROL 054-100 DOUBLE-ACTING PNEUMATIC ACTUATOR
KINETROL 054-100 DOUBLE-ACTING PNEUMATIC ACTUATOR
KINETROL 054-100 DOUBLE-ACTING PNEUMATIC ACTUATOR
KINETROL 054-100 DOUBLE-ACTING PNEUMATIC ACTUATOR
KINETROL 054-100 DOUBLE-ACTING PNEUMATIC ACTUATOR
KINETROL 054-100 DOUBLE-ACTING PNEUMATIC ACTUATOR

KINETROL 054-100 DOUBLE-ACTING PNEUMATIC ACTUATOR

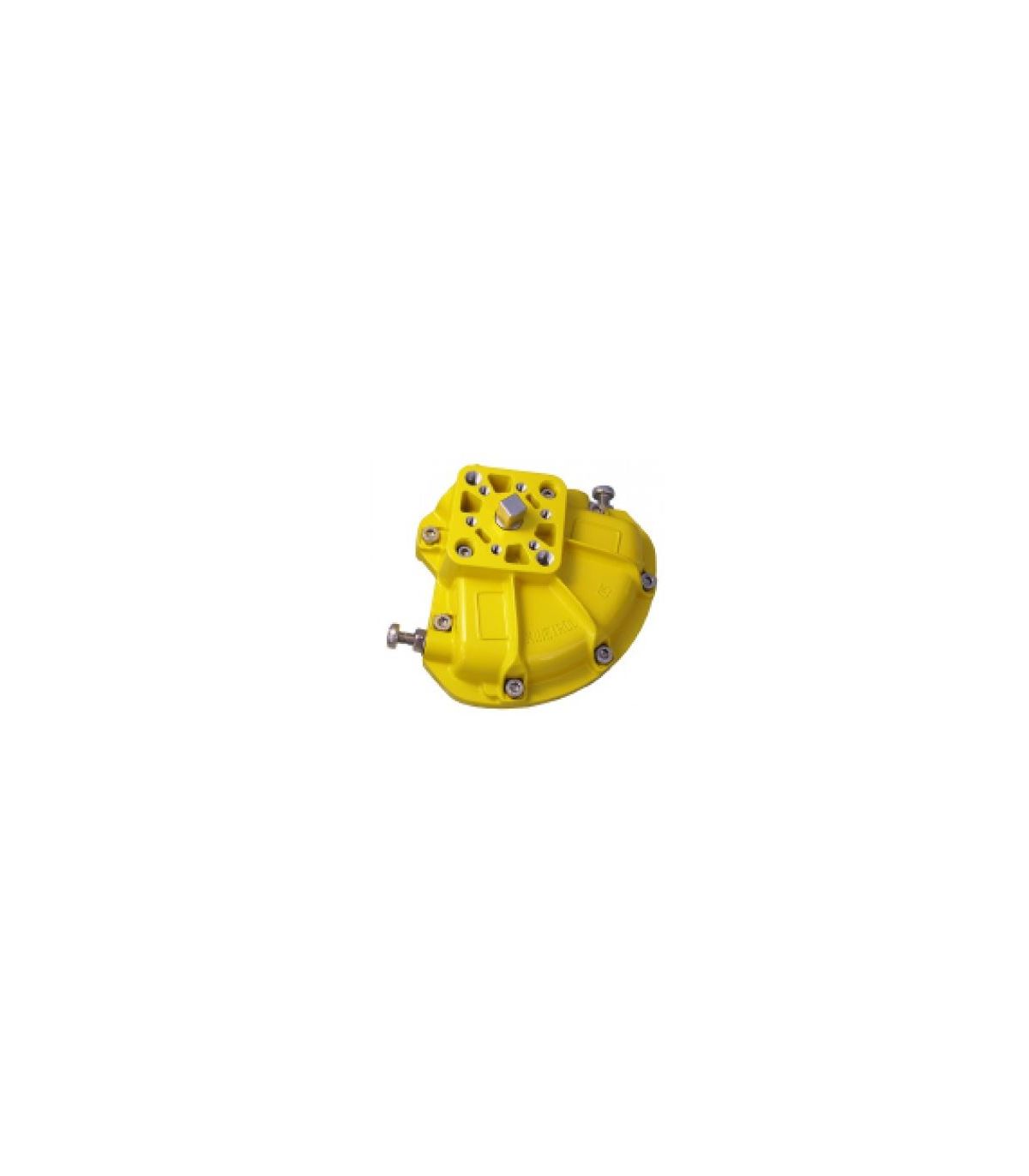

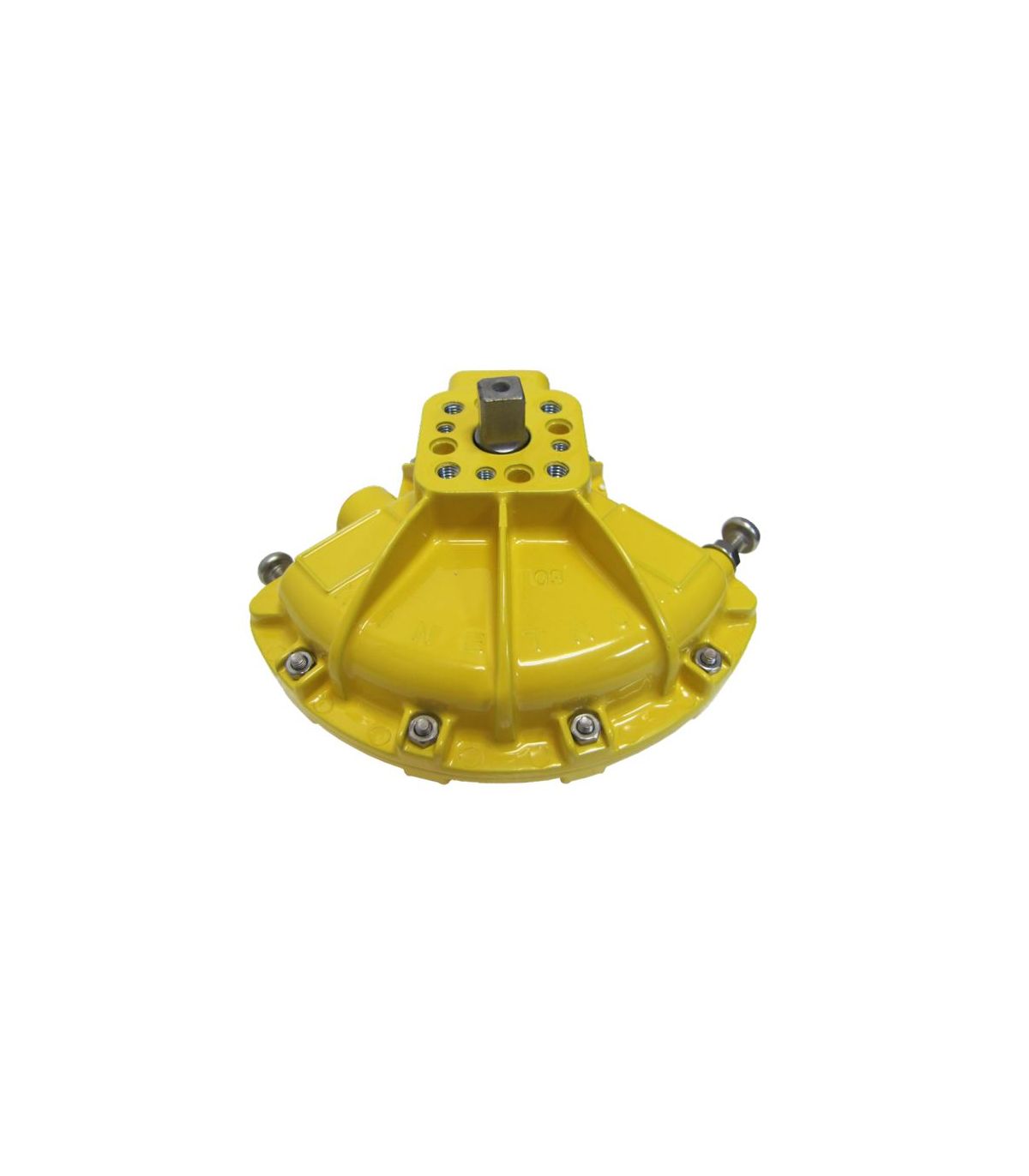

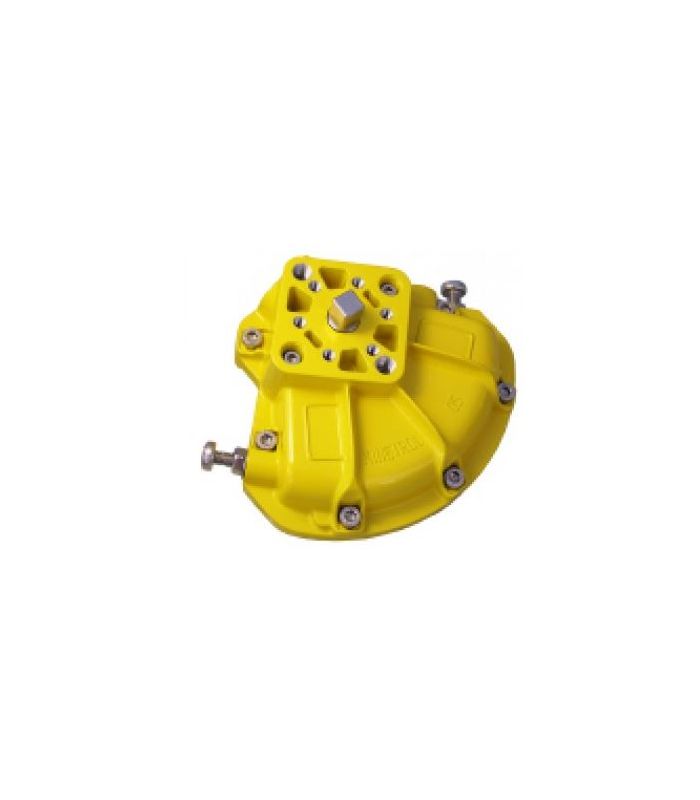

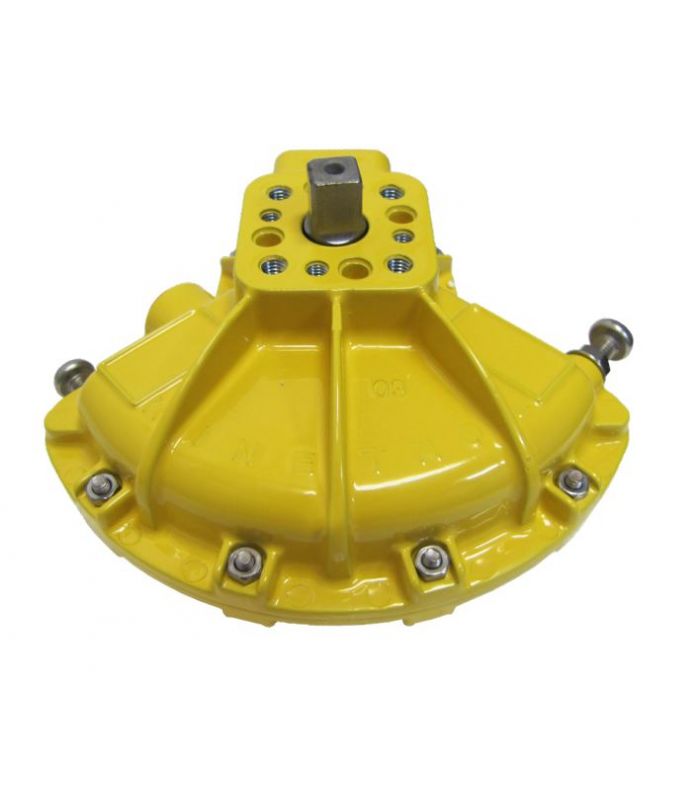

A kinetrol 054-100 double-acting pneumatic actuator is a mechanical device that uses the energy of compressed air to generate rotary motion and operate a quarter-turn valve (such as a ball or butterfly valve).

Applications: Petrochemical and chemical industry, Water and wastewater treatment, Fluid transport and distribution systems.

  • Aluminum casing
  • Stainless Steel Shaft
  • Bronze and PTFE bushings
  • Polyurethane gaskets.

Technical specifications:

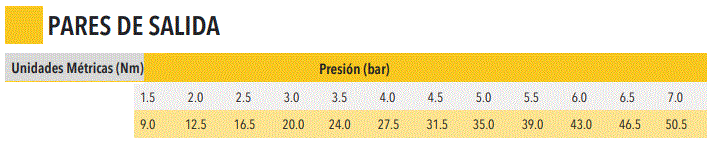

  • Output torque 09 Nm to 50 Nm depending on the pressure.
  • Adjustable turning angle 74º to 100º
  • Temperature -40 / 80ºC
  • ATEX certification.
  • Ex II 1G Ex h IIC 90ºC Ga
  • Ex II 1 D Ex h IIIC T90ºC Da -40ºC ≤ Ta ≤ 80ºC
  • It can be supplied with the ISO adapter (please inquire)

ATEX DECLARATION OF CONFORMITY

€356.95 (tax included)
€295.00 (tax excl.)
Reference:
51255
Description

Kinetrol 054-100 double-acting pneumatic actuator

Product Details
51255
