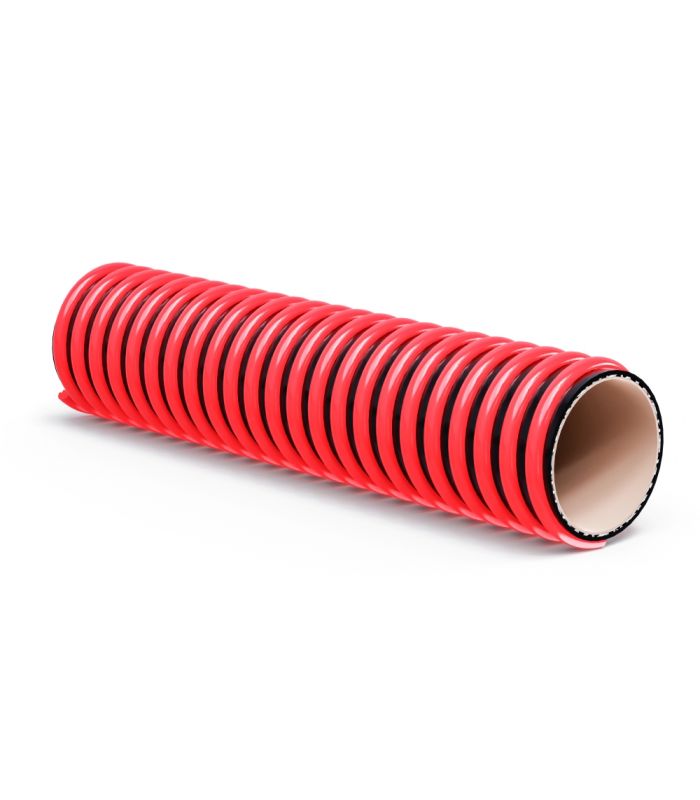

The hose for suction and discharge of food liquids , also compatible with S-370, is widely used in the food industry for the transport of liquids such as milk, wine, juices and alcohols up to 50%.
Main features:
Different full roll lengths depending on the selected hose diameter.
Consult the technical data sheet to see the roll length for each diameter.
The food-grade hose for suction and discharge of food liquids is specially designed for the transport, loading and unloading of food liquids such as milk, juices, wines, beers, oils and alcohols up to 50%.

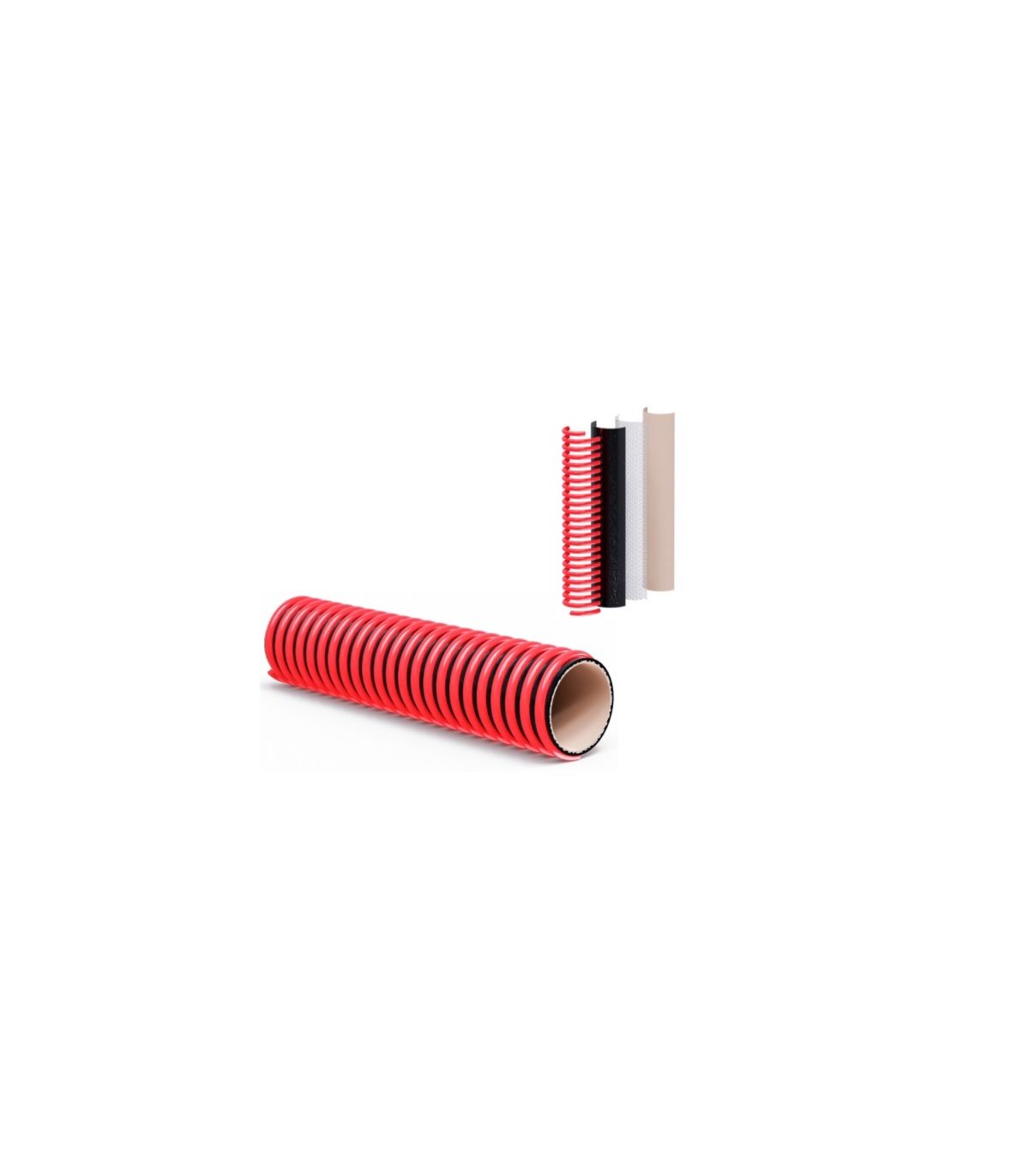

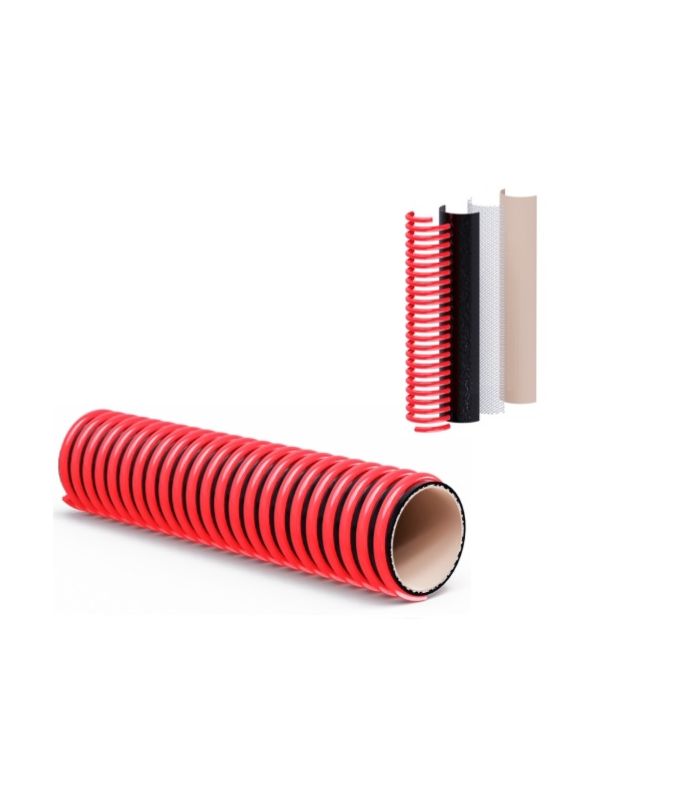

Made with certified food-grade materials, it guarantees safe, hygienic, and contamination-free handling. Its flexible structure with a rigid red PVC reinforcement spiral offers excellent resistance to vacuum, pressure, and intensive handling in industrial environments.
Technical specifications for the hose for suction and discharge of food-grade liquids :
| Code | Inner diameter (mm) | Outer diameter (mm) | Weight (g/m) | Minimum radius of curvature (mm) | Pressure (bar) | Length (m) | Available colors |
| 0850321 | 32 | 43.9 | 728 | 80 | 8 | 40 | Orange |
| 0850402 | 40 | 48.5 | 871 | 80 | 8 | 40 | Orange |
| 0850453 | 45 | 54.5 | 1015 | 80 | 8 | 40 | Green |
| 0850504 | 51 | 63.4 | 1189 | 130 | 8 | 40 | Blue/Orange |
| 0850605 | 60 | 74.4 | 1408 | 150 | 6 | 40 | Green |
| 0850656 | 64 | 78.9 | 1600 | 150 | 6 | 20 | Orange |
| 0850707 | 70 | 83.3 | 1707 | 150 | 6 | 20 | Green |
| 0850758 | 76 | 91.6 | 1843 | 180 | 6 | 20 | Green |
| 0850809 | 80 | 94.9 | 1961 | 180 | 6 | 30 | Orange |
| 08509010 | 90 | 103.4 | 2520 | 300 | 5 | 20 | Green |
| 08510011 | 102 | 119.9 | 2826 | 300 | 5 | 20 | Orange |
