DIN-2353 S SIDE TEE TUBE ADAPTER
DIN-2353 S SIDE TEE TUBE ADAPTER
DIN-2353 S SIDE TEE TUBE ADAPTER
DIN-2353 S SIDE TEE TUBE ADAPTER

DIN-2353 S SIDE TEE TUBE ADAPTER

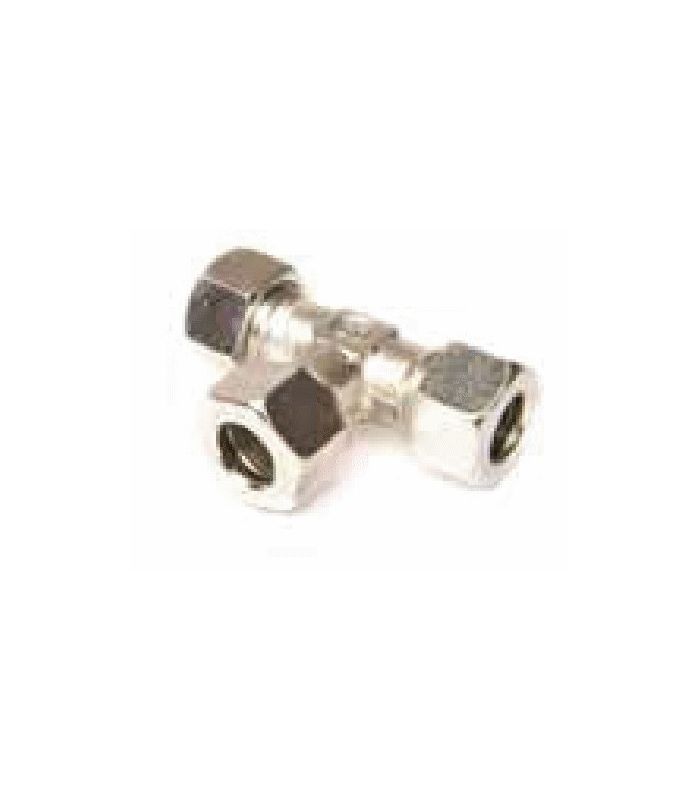

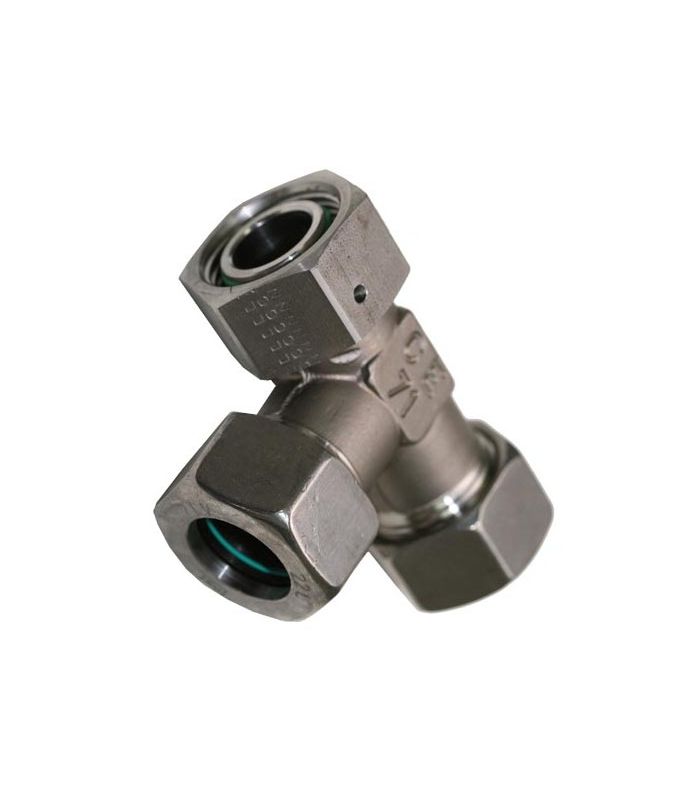

DIN-2353 S side tee adapter

  • Operating temperature -20 / 120°C.
  • Made of drawn steel DIN3859-1.
  • Bichromated coating ISO 4042.
  • Corrosion resistance.
  • Work pressures
    • 6-8-10-12-14 600 bar.
    • 16-20-25-30 400 bar .
    • 38,315 bar.

Assembly instructions

€12.11 (tax included)
€10.01 (tax excl.)

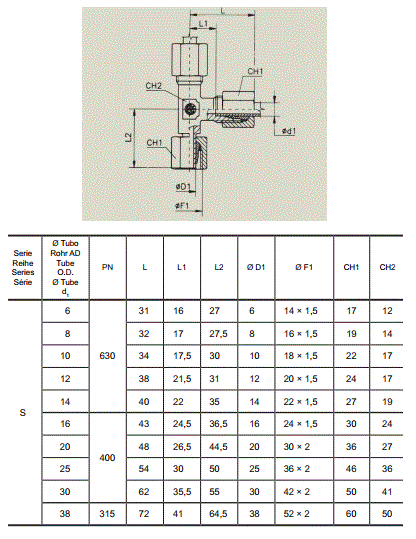

DIAMETERS
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 14
  • Ø 16
  • Ø 20
  • Ø 25
  • Ø 30
  • Ø 38
Reference:
335900051
Description

DIN-2353 S side tee tube adapter

ADAPTADOR TUBO TE LATERAL DIN 2353 S

Product Details
335900051
