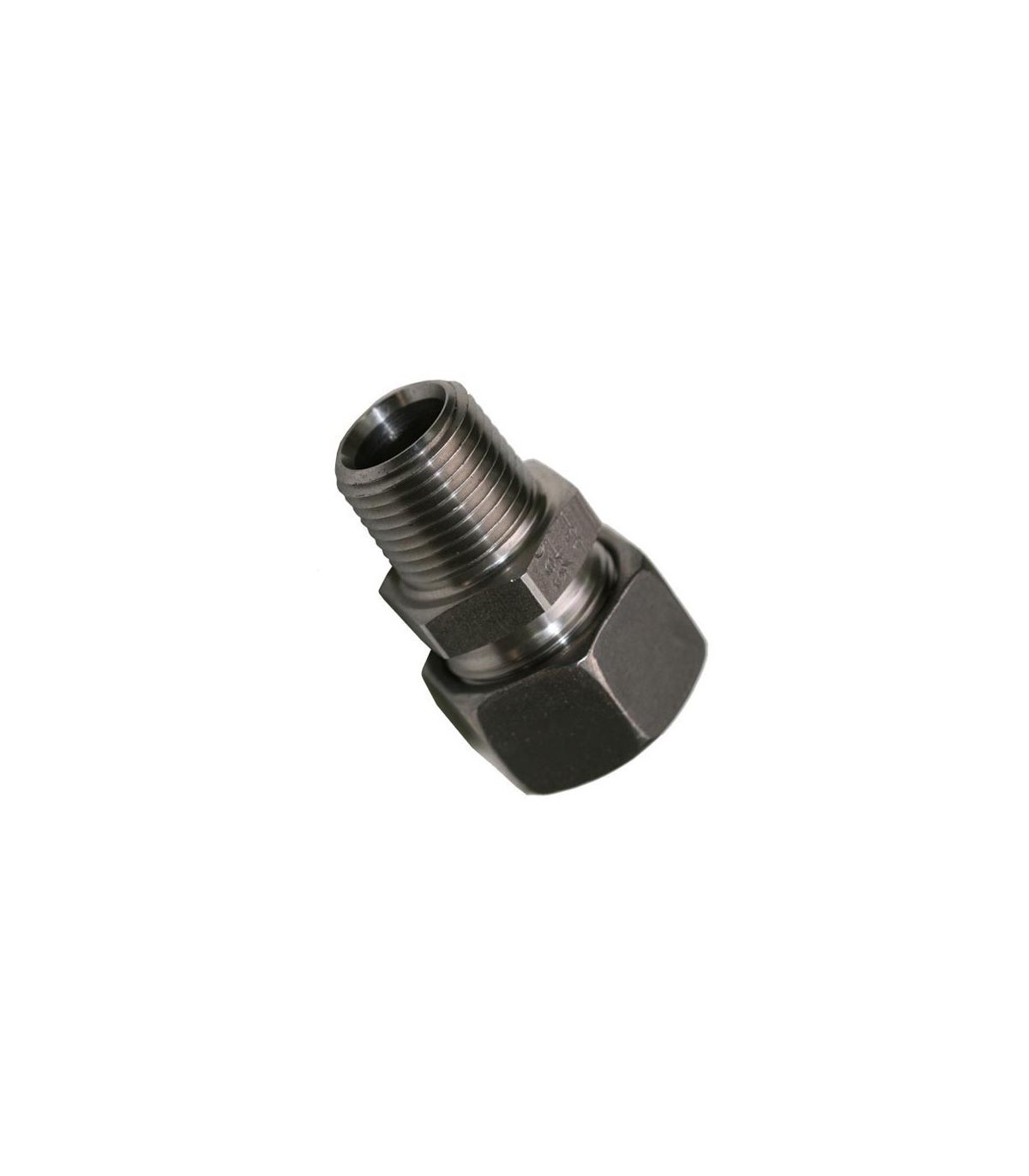

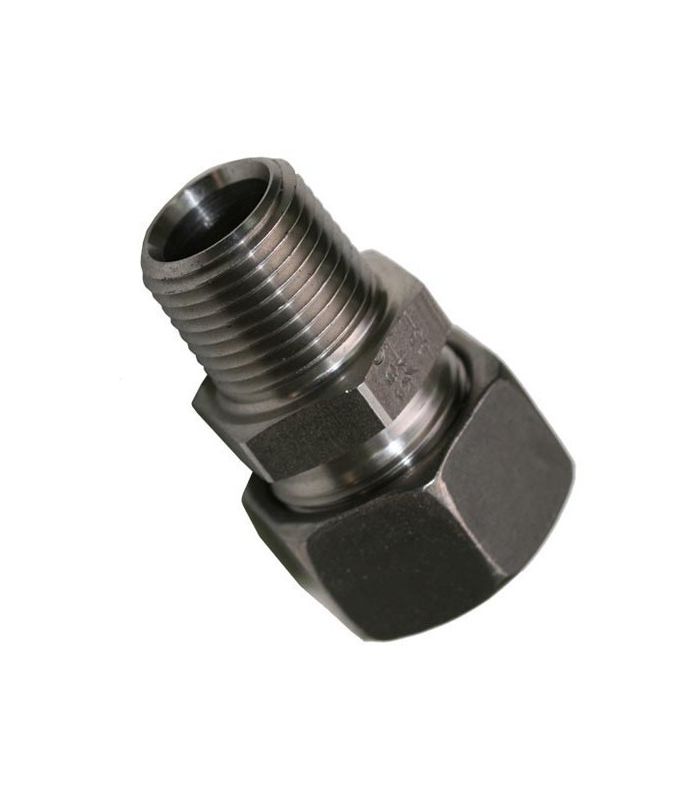

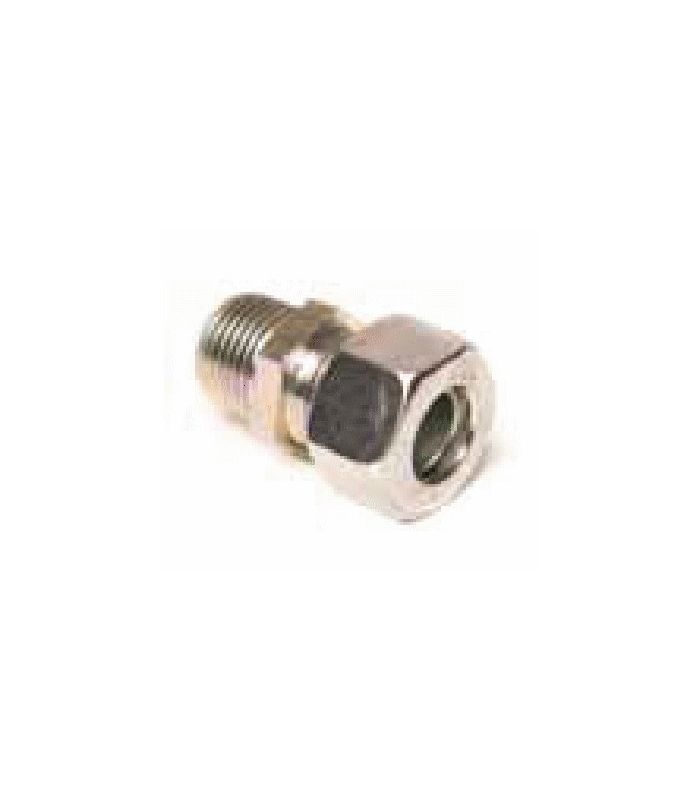

STRAIGHT TUBE CONNECTION TO CONICAL THREAD DIN-2353 S
STRAIGHT TUBE CONNECTION TO CONICAL THREAD DIN-2353 S
STRAIGHT TUBE CONNECTION TO CONICAL THREAD DIN-2353 S
STRAIGHT TUBE CONNECTION TO CONICAL THREAD DIN-2353 S

STRAIGHT TUBE CONNECTION TO CONICAL THREAD DIN-2353 S

Straight tube union with tapered thread DIN-2353 S

  • Operating temperature -20 / 120°C.
  • Made of drawn steel DIN3859-1.
  • Bichromated coating ISO 4042.
  • Corrosion resistance
  • Work pressures
    • Ø 6-8-10-12-14 600 bar.
    • Ø 16-20-25-30 400 bar .
    • Ø 38 315 bar.

Assembly instructions

€5.14 (tax included)
€4.25 (tax excl.)
Tube diameter - Thread
  • Ø 6-1/4
  • Ø 6-1/2
  • Ø 8-1/4
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 12-1/4
  • Ø 12-3/8
  • Ø 12-1/2
  • Ø 14-3/8
  • Ø 14-1/2
  • Ø 16-3/8
  • Ø 16-1/2
  • Ø 20-1/2
  • Ø 20-3/4
  • Ø 25-3/4
  • Ø 25-1
  • Ø 30-1
  • Ø 30-1-1/4
  • Ø 38-1-1/4
  • Ø 38-1-1/2
Reference:
334900191
Description

Straight tube union with tapered thread DIN-2353 S

UNION TUBO RECTO ROSCA CONICA S DIN 2353 S

Product Details
334900191
