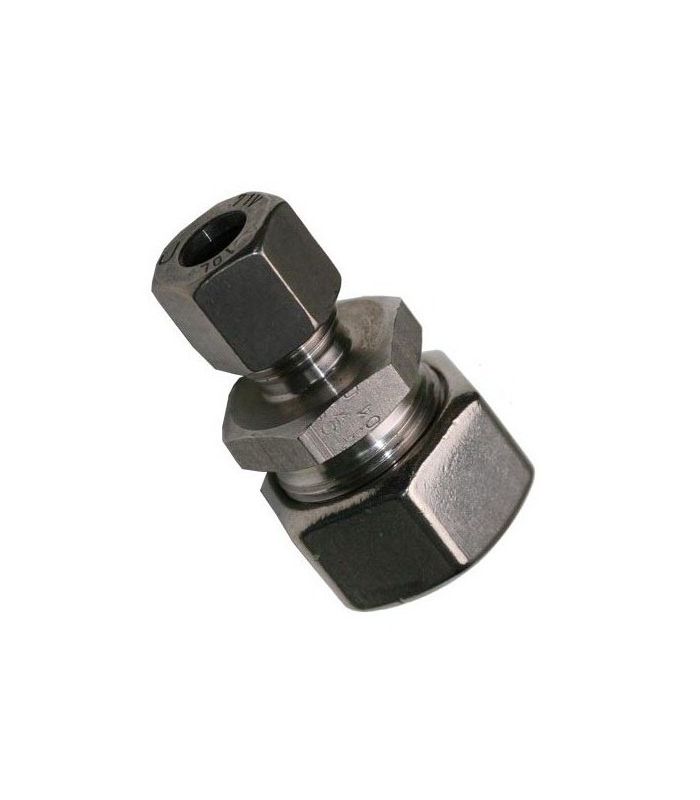

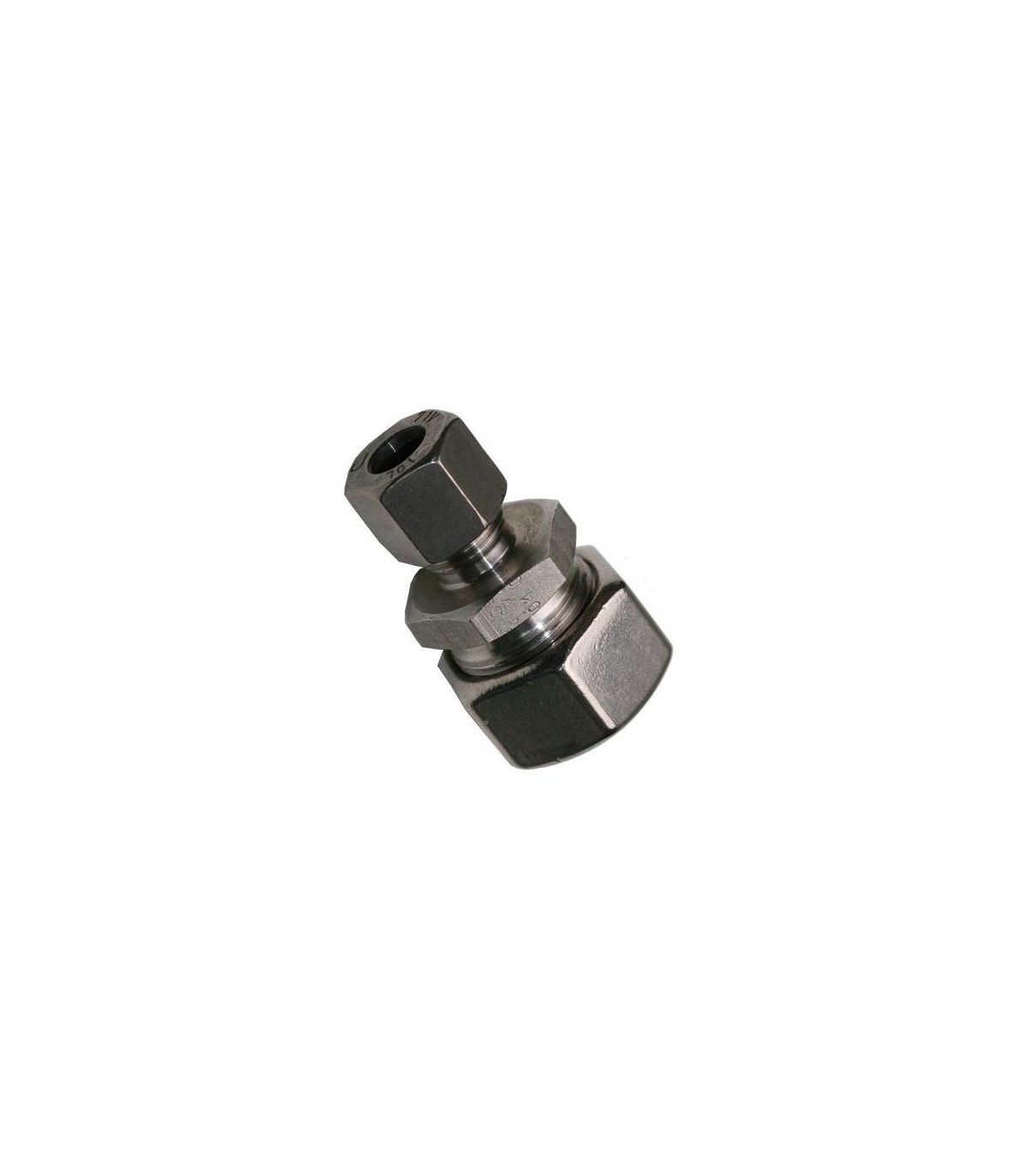

REDUCED STRAIGHT TUBE UNION DIN 2353 S

REDUCED STRAIGHT TUBE UNION DIN 2353 S

Fitting DIN-2393 tube reduction tube S

  • Working temperature -20 / 120?C.
  • Made of DIN3859-1 drawn steel.
  • ISO 4042 bichromate coating.
  • Corrosion resistance
  • Working pressures
    • Ø 6-8-10-12-14 600 bar.
    • Ø 16-20-25-30 400 bar.
    • Ø 38 315 bar.

€8.83 (tax included)
€7.30 (tax excl.)
DIAMETERS
  • Ø6-Ø8
  • Ø6-Ø10
  • Ø8-Ø10
  • Ø8-Ø12
  • Ø10-Ø12
  • Ø12-Ø16
  • Ø25-Ø20
Reference:
33360051
Description

UNION TUBO RECTO REDUCIDO DIN 2353 S

Product Details
33360051
