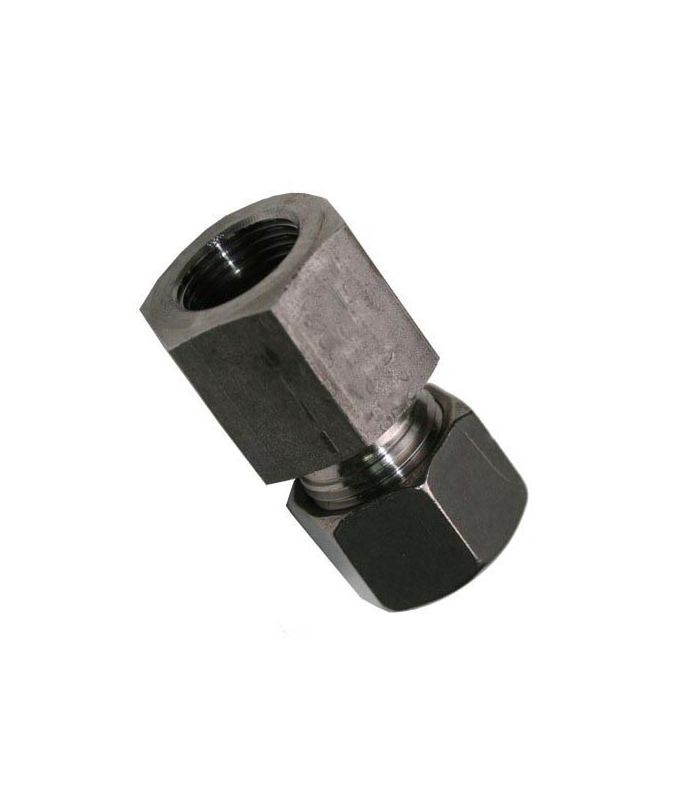

STRAIGHT TUBE UNION FEMALE THREAD DIN 2353 S

STRAIGHT TUBE UNION FEMALE THREAD DIN 2353 S

Fitting DIN-2353 S female thread tube union

  • Working temperature -20 / 120?C.
  • Made of DIN3859-1 drawn steel.
  • ISO 4042 bichromate coating.
  • Corrosion resistance.
  • Working pressures
    • Ø 6-8-10-12-14 600 bar.
    • Ø 16-20-25-30 400 bar.
    • Ø 38 315 bar.

€5.32 (tax included)
€4.40 (tax excl.)

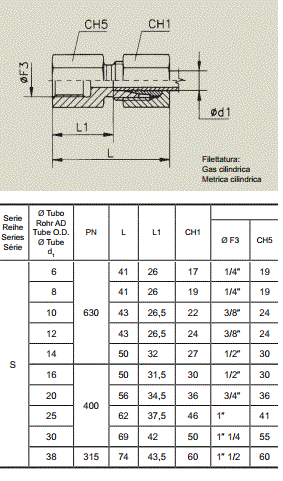

Tube diameter - Thread
  • Ø 6-1/4
  • Ø 8-1/4
  • Ø 10-3/8
  • Ø 12-3/8
  • Ø 14-3/8
  • Ø 16-1/2
  • Ø 20-3/4
  • Ø 25-1
  • Ø 30-1
Reference:
33540021
Description

UNION TUBO RECTO ROSCA CONICA S DIN 2353 S

Product Details
33540021
