DIN-2353 S PIPE ELBOW UNION | Buy online at Disumtec

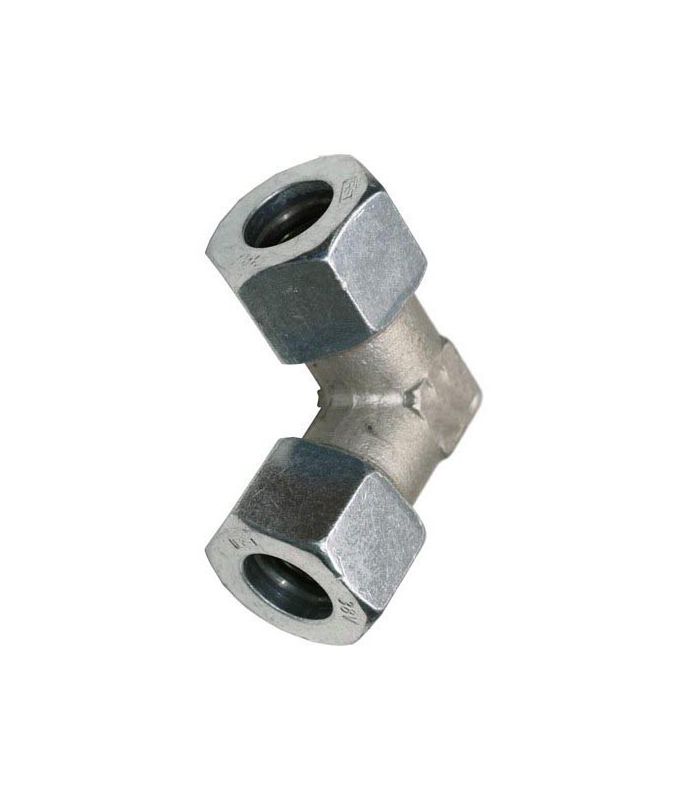

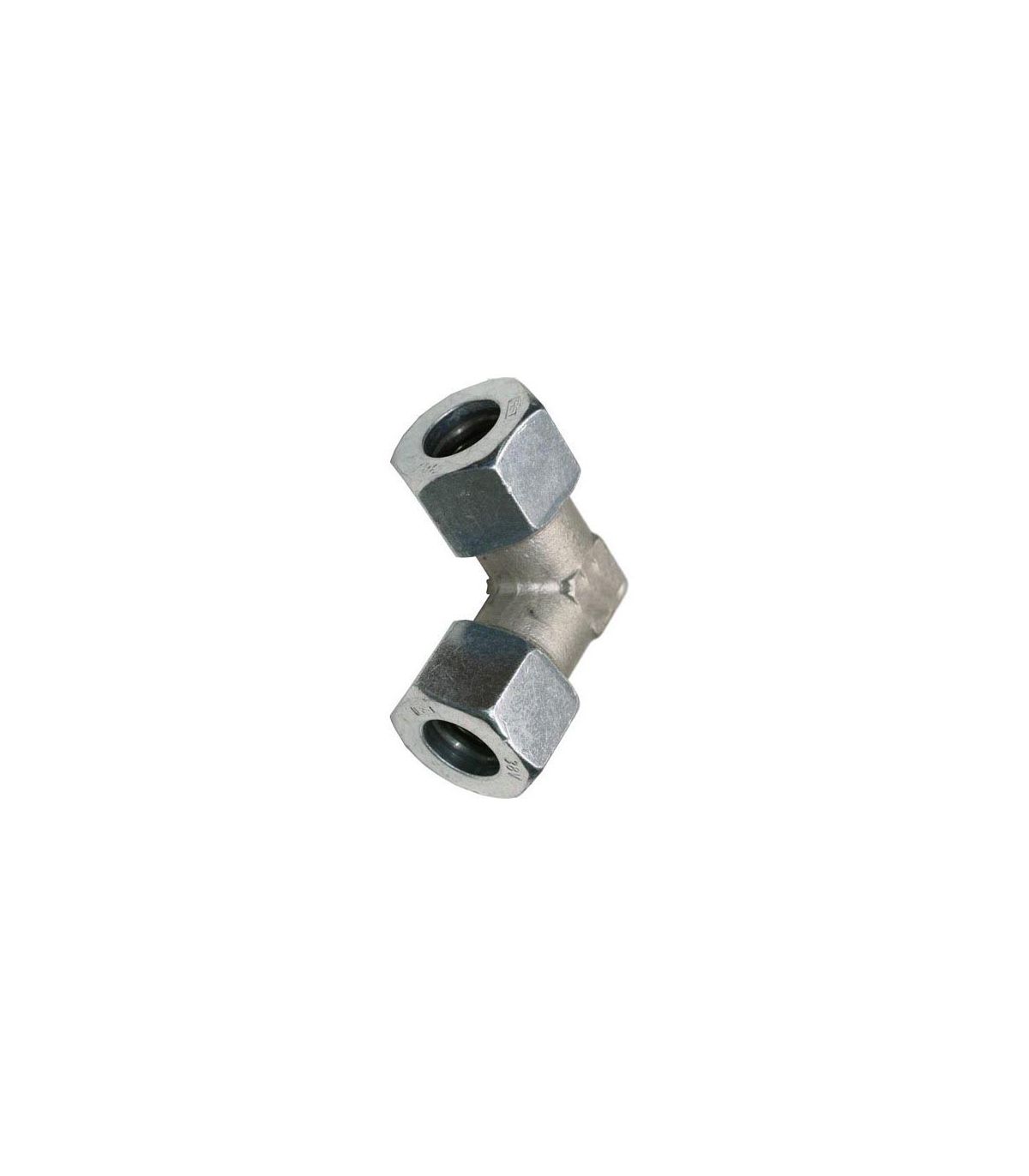

TUBE ELBOW UNION DIN-2353 S

A DIN-2353 S elbow fitting is a type of hydraulic fitting for connecting two hydraulic pipes with the same nominal diameter, forming a 90° angle (elbow).

Applications: Heavy machinery, Industrial machinery, Oil and gas industry, Marine sector, High-demand hydraulic applications

Technical specifications:

  • Operating temperature -20 / 120°C.
  • Made of drawn steel DIN3859-1.
  • Bichromated coating ISO 4042.
  • Corrosion resistance
  • Work pressures
    • 6-8-10-12-14 600 bar.
    • 16-20-25-30 400 bar .
    • 38,315 bar.

Assembly instructions

Read moreShow less
€6.67 (tax incl.)
€5.51 (tax excl.)
DIAMETERS
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 14
  • Ø 16
  • Ø 20
  • Ø 25
  • Ø 30
  • Ø 38
Reference:
33340005
Description

DIN-2353 S elbow pipe union

UNION TUBO CODO S

Read moreShow less
Product Details
33340005
