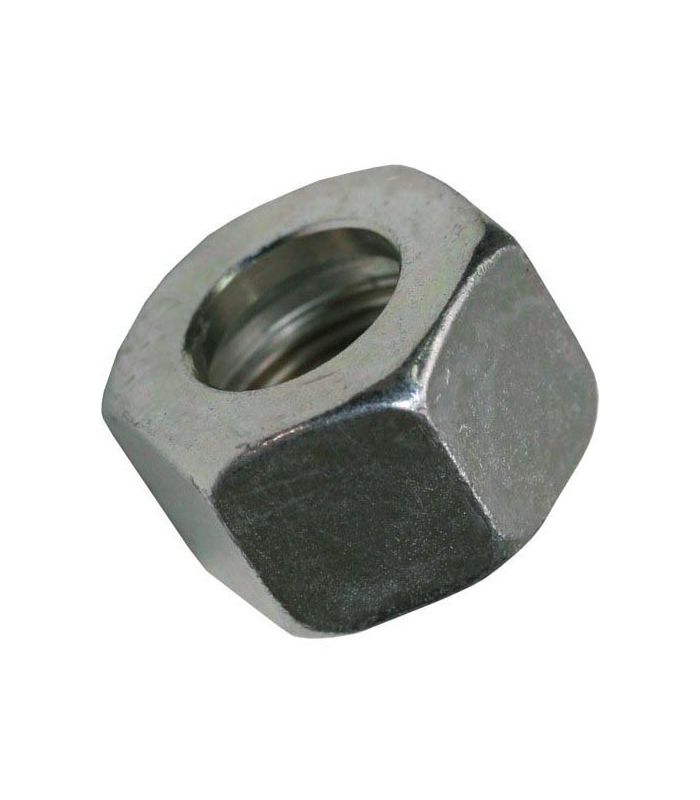

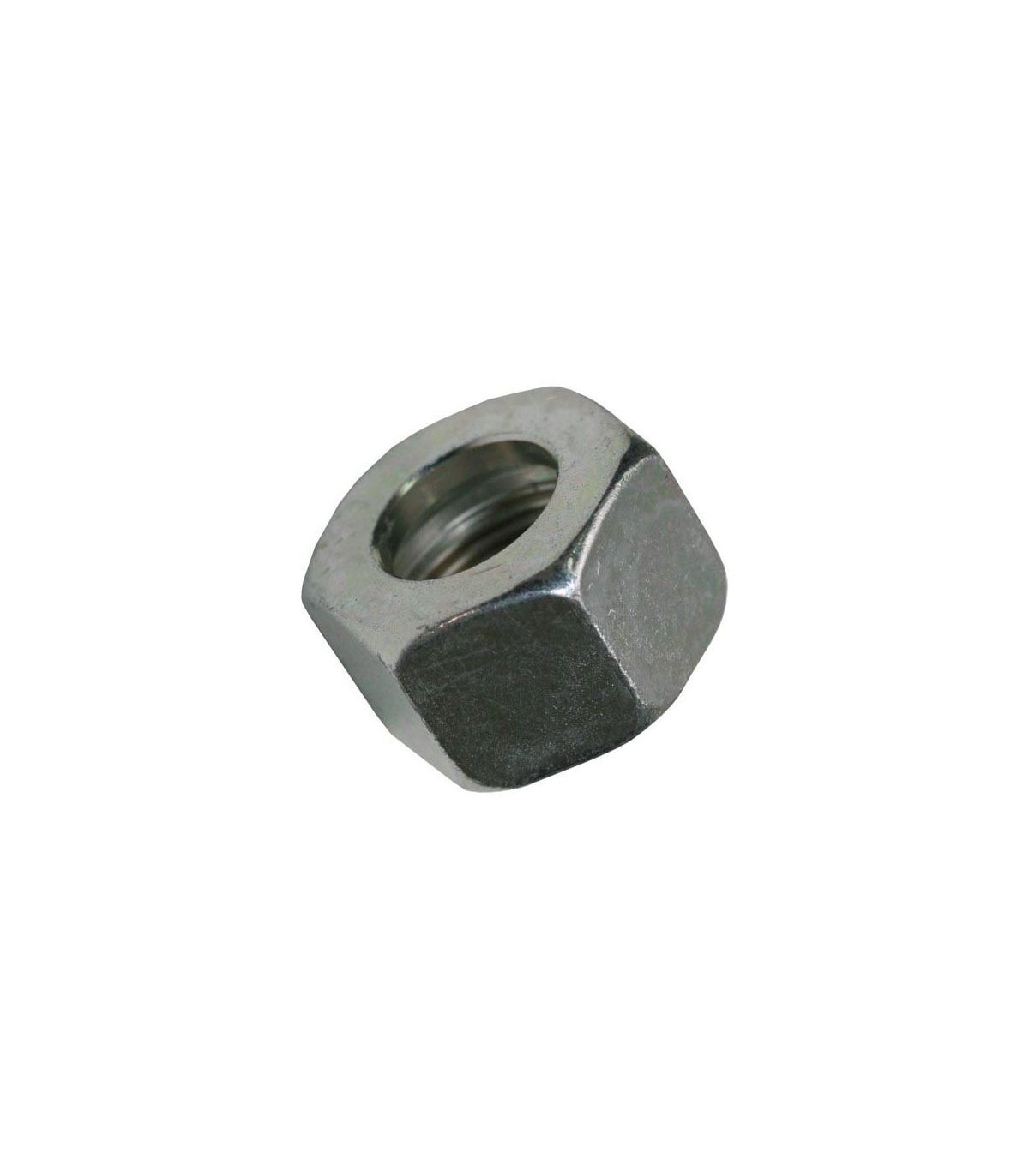

DIN 2353 S LOCK NUT

DIN 2353 S LOCK NUT

A DIN 2353 S lock nut is the main nut which, when tightened onto the body of a DIN 2353 fitting, compresses and activates the shear ring against a tube, creating a mechanical and airtight seal.

Applications: Heavy machinery, Steel industry, Power generation equipment, Industrial process machinery, Shipbuilding

Technical specifications:

  • Operating temperature -20 / 120°C.
  • Made of drawn steel DIN3859-1.
  • Bichromated coating ISO 4042.
  • Corrosion resistance.
  • Work pressures
    • 6-8-10-12-14 600 bar.
    • 16-20-25-30 400 bar .
    • 38,315 bar.

Assembly instructions

€0.44 (tax included)
€0.36 (tax excl.)
DIAMETERS
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 14
  • Ø 16
  • Ø 20
  • Ø 25
  • Ø 30
  • Ø 38
Reference:
33430005
Description

DIN 2353 S locking nut

TUERCA DE CIERRE S M14x150

Product Details
33430005
Comments
