AIRMATIC VOLUMETRIC PNEUMATIC PUMP
AIRMATIC VOLUMETRIC PNEUMATIC PUMP
AIRMATIC VOLUMETRIC PNEUMATIC PUMP
AIRMATIC VOLUMETRIC PNEUMATIC PUMP
AIRMATIC VOLUMETRIC PNEUMATIC PUMP
AIRMATIC VOLUMETRIC PNEUMATIC PUMP

AIRMATIC VOLUMETRIC PNEUMATIC PUMP

The Airmatic pneumatic volumetric pump is a device designed for the supply and dosing of lubricating oil in centralized systems. It operates using compressed air, providing a constant and controlled flow rate.

Main features.

  • Tank capacity 1-4 liters. Made of translucent plastic. 12 liters, metal.
  • Electric level control. Max 240 V.
  • Decompression capacity 0.5 A
  • Maximum air network pressure 9 bar.
  • Pressure ratio 4/1
  • Flow rate of 2 to 10 cm³
  • 120 micron suction filter.
  • Operating frequency of 30 cycles per minute.
  • Temperature of 5ºC / 50ºC
  • Oil type, mineral viscosity from 30 to 1800 Cst
€766.66 (tax included)
€633.60 (tax excl.)
CHOOSE MODEL
  • 1.5 Liters
  • 4 Liters
Reference:
63050062
Description

AIRMATIC VOLUMETRIC PNEUMATIC PUMP

The Airmatic pneumatic volumetric pump is a device designed for transferring, pumping, and dosing fluids, especially oils, lubricants, and other medium- to high-viscosity liquids. It operates using compressed air, which powers an internal mechanism capable of displacing a specific volume of product in each work cycle, ensuring a constant and precise supply.

Operation

The AIRMATIC pump is a single-acting pump that requires a 3/2-way valve for pilot operation. The oil discharge cycle begins after compressed air enters the pump. Oil is drawn into the tank after the air circuit is decompressed using a return spring. When used with volumetric metering pumps, the pump is equipped with a decompression block that allows the pumps to reset after the air circuit is vented to the atmosphere.

Applications

  • Centralized industrial lubrication systems.
  • Production and machining machinery.
  • Equipment with multiple lubrication points.
  • Installations that require precise oil dosing

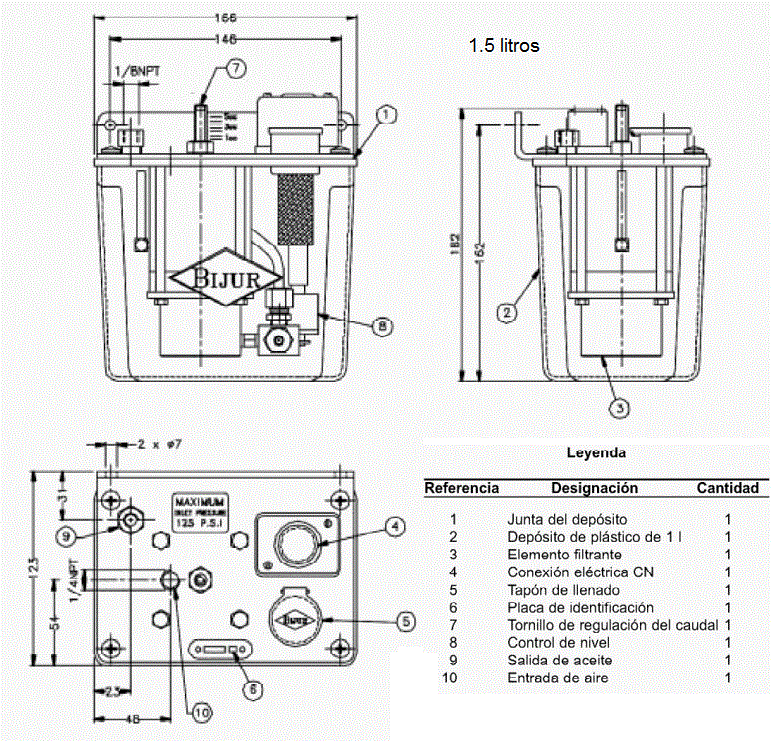

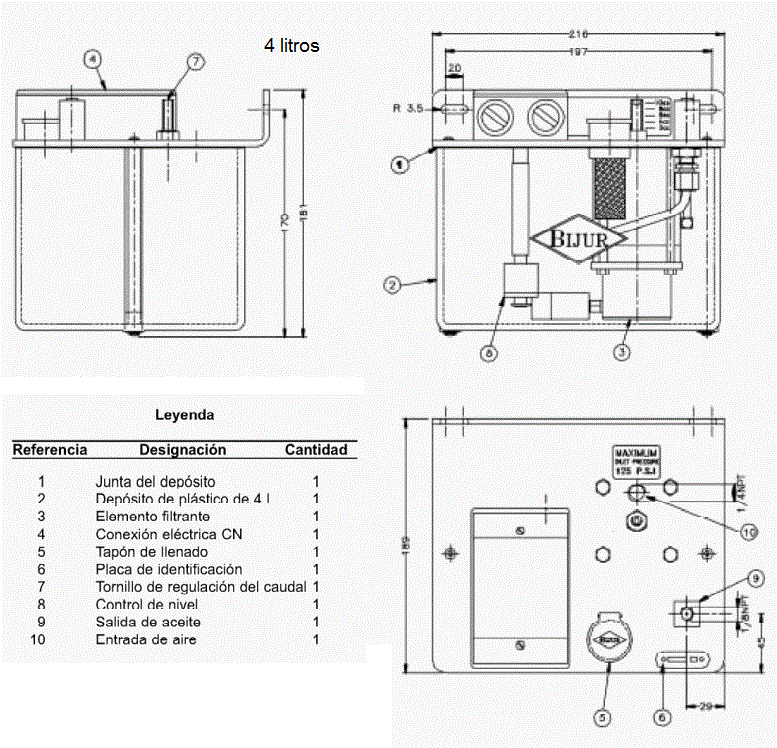

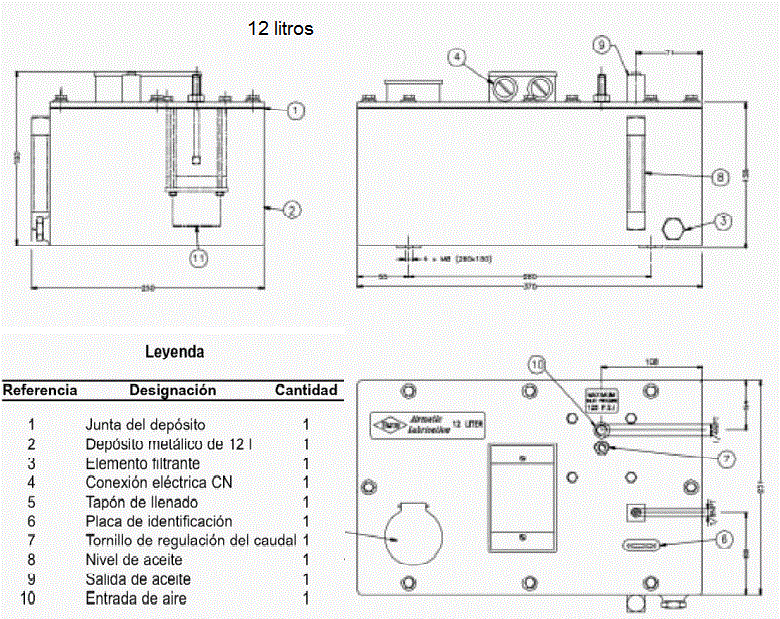

Technical specifications of an Airmatic volumetric pneumatic pump:

BOMBA NEUMATICA AIRMATIC volum.BOMBA NEUMATICA AIRMATIC volum.BOMBA NEUMATICA AIRMATIC volum.BOMBA NEUMATICA AIRMATIC volum.

Product Details
63050062
