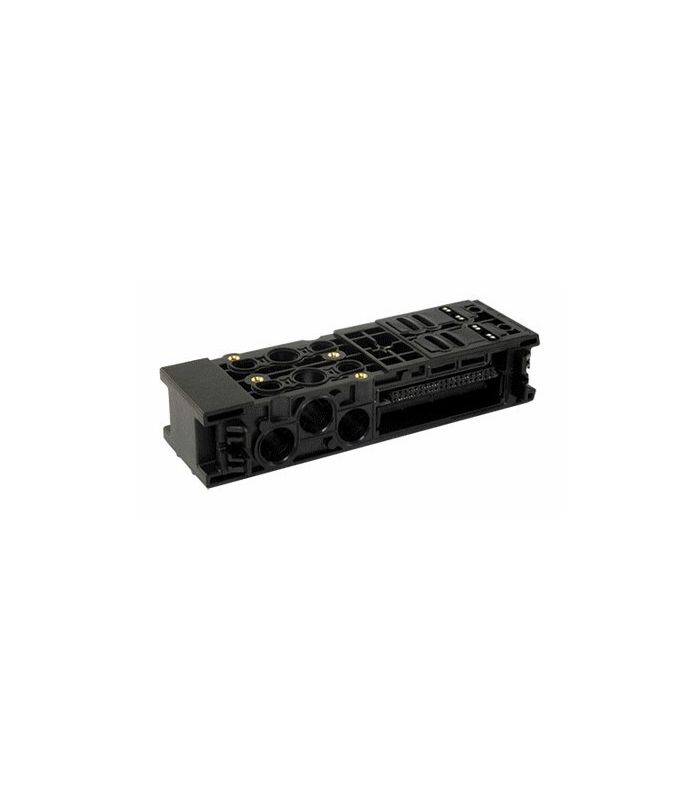

MULTIPOLAR BASE MODULE 2 POSITIONS

A 2-position multipole base module is used to control two 150 series solenoid valves simultaneously. Each position is equipped with two electrical signals, allowing the solenoid valves to be connected and controlled precisely.

Technical sheet:

Sub-D multipolar integrated system
Simplicity and versatility of assembly and wiring.
Double electropilot, housed on the same side, reducing the size of the battery.
Wide range of valves and modules, threads and pitches.
Possibility of mounting up to 20 bistable solenoid valves in the same block (40 signals)
Multipolar 25-pin connector for 2 to 10 valve positions. Or 44-pin connector for 2 to 20 valve positions.
Protection degree IP-40 in 25 pin or IP-65 in 25 and 44 pins
Voltage 24V DC Power 1.3 W
PNP electrical configuration
Working temperature -5ºC / 50ºC
Working pressure Vacuum -1/10 bar.

€42.35 (tax included)

€35.00 (tax excl.)

Reference:

5703

Description
Comments

Description

2 position multipolar base module

Product Details

Reference 5703

Comments
