1/8" SWITCHING PRESSURE SWITCH
1/8" SWITCHING PRESSURE SWITCH
1/8" SWITCHING PRESSURE SWITCH
1/8" SWITCHING PRESSURE SWITCH
1/8" SWITCHING PRESSURE SWITCH
1/8" SWITCHING PRESSURE SWITCH

1/8" SWITCHING PRESSURE SWITCH

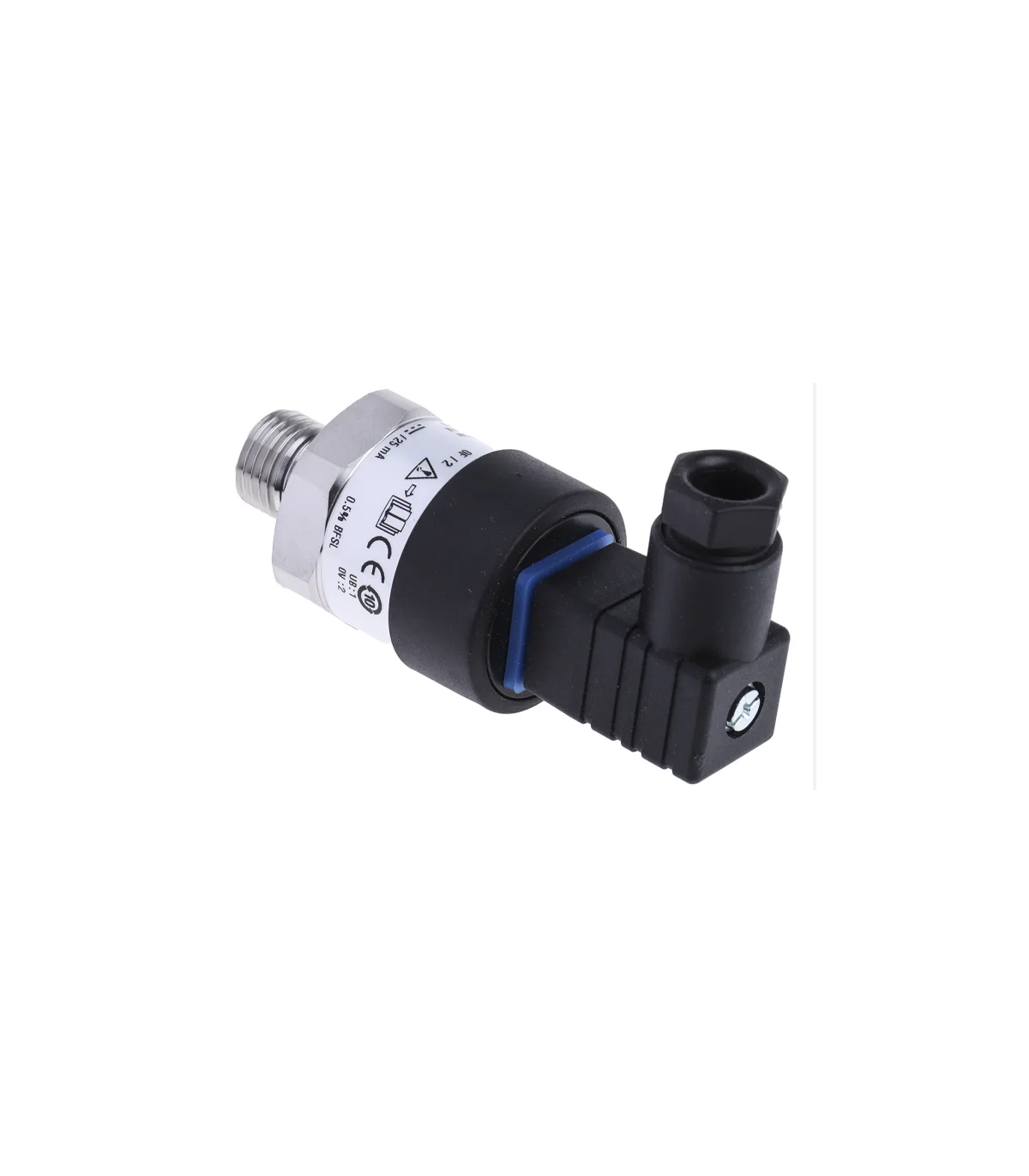

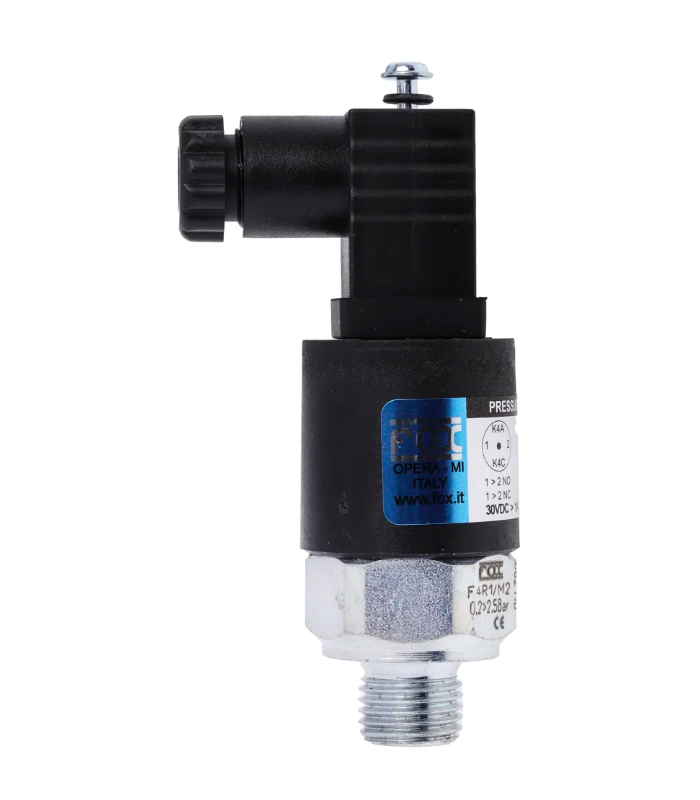

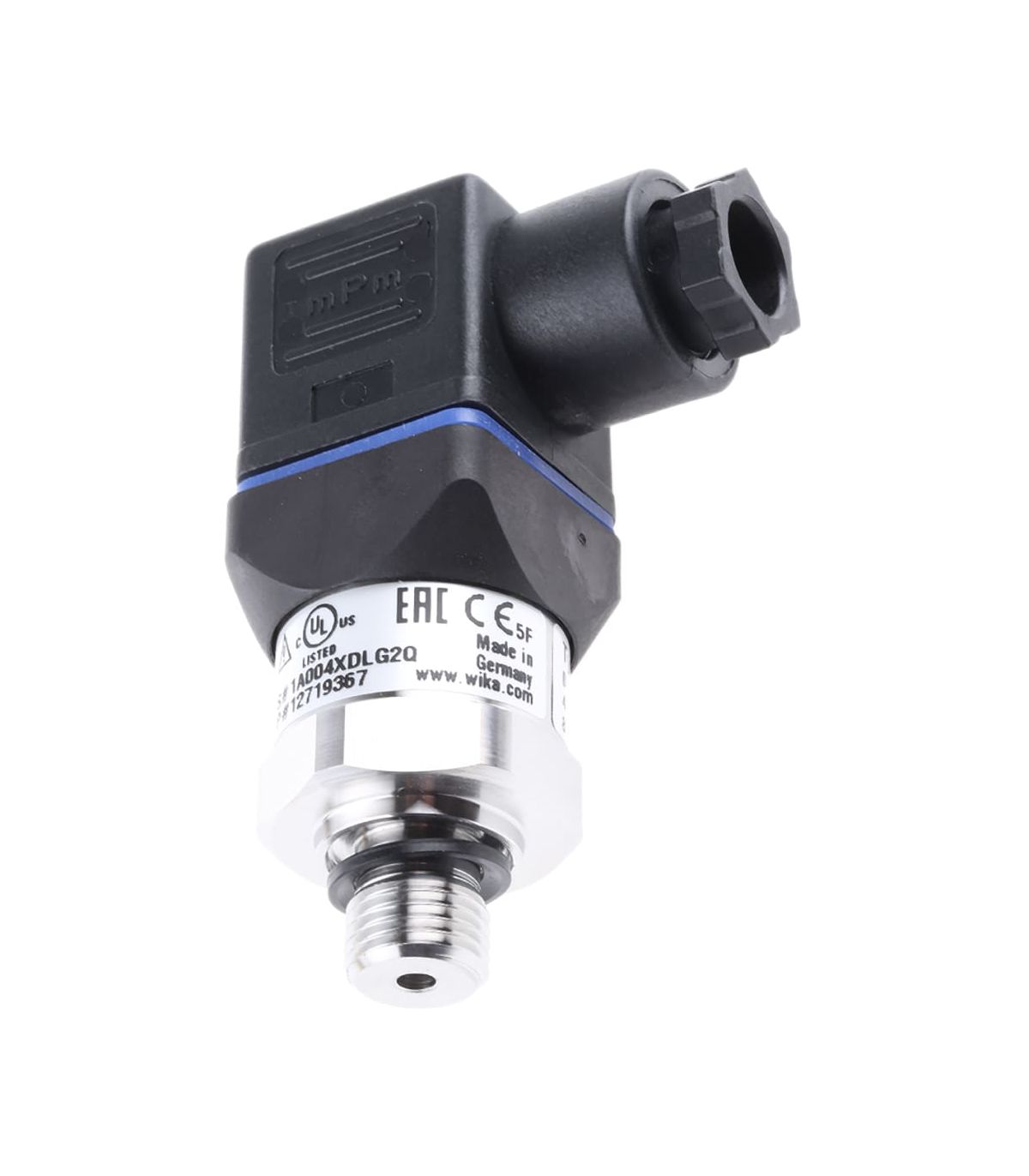

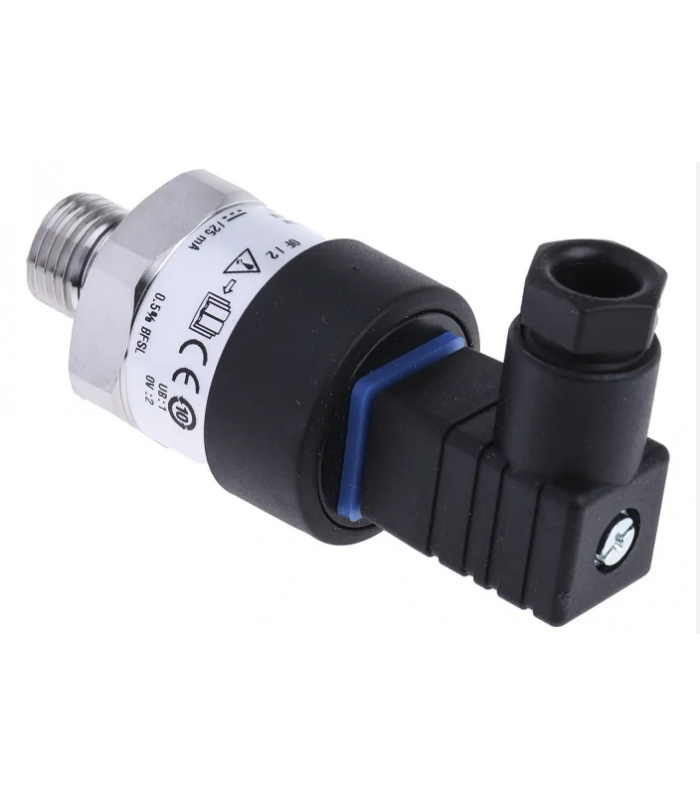

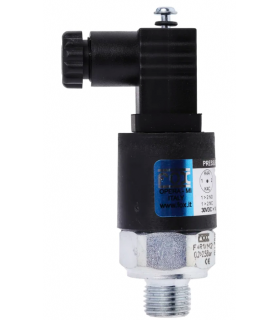

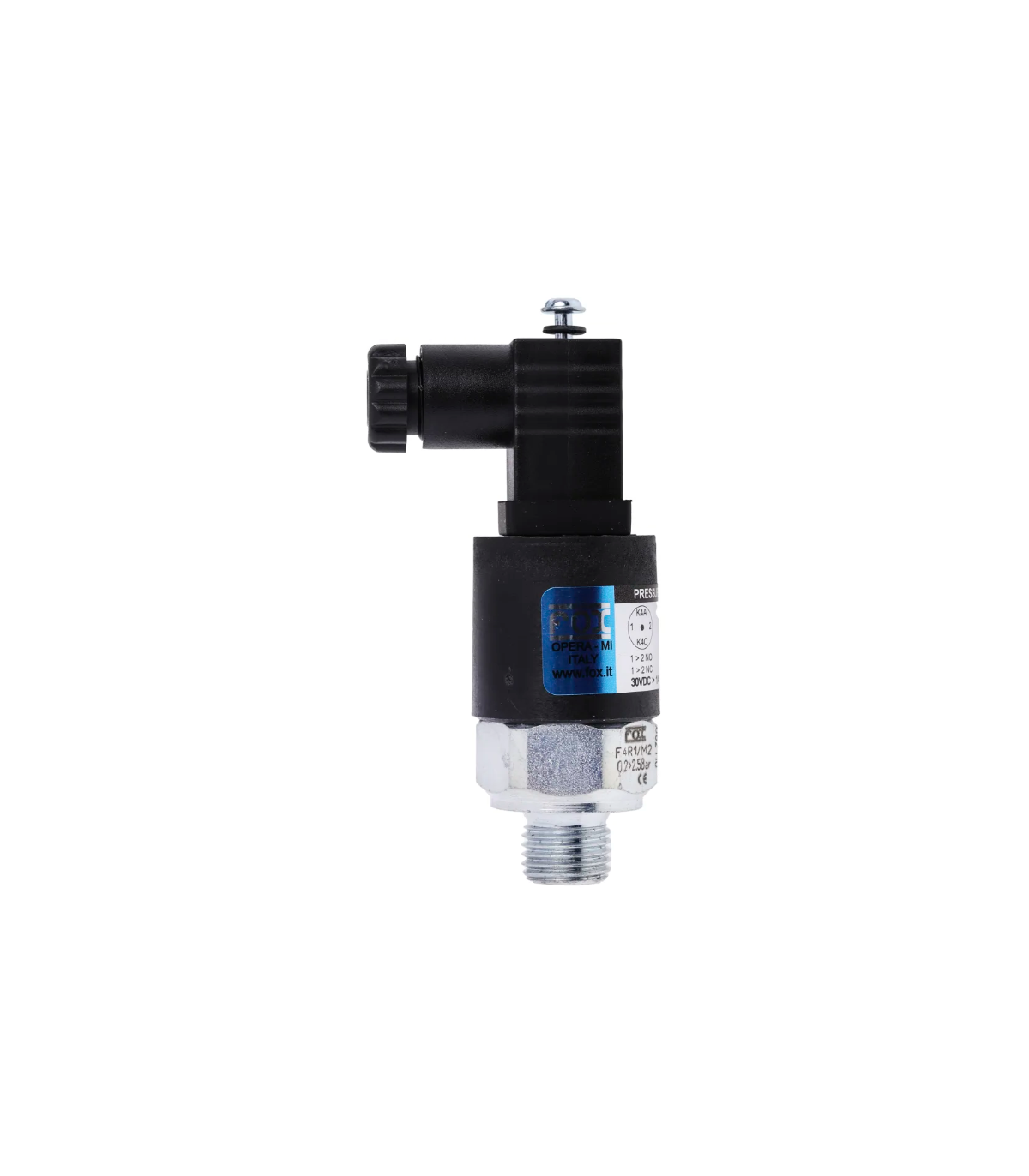

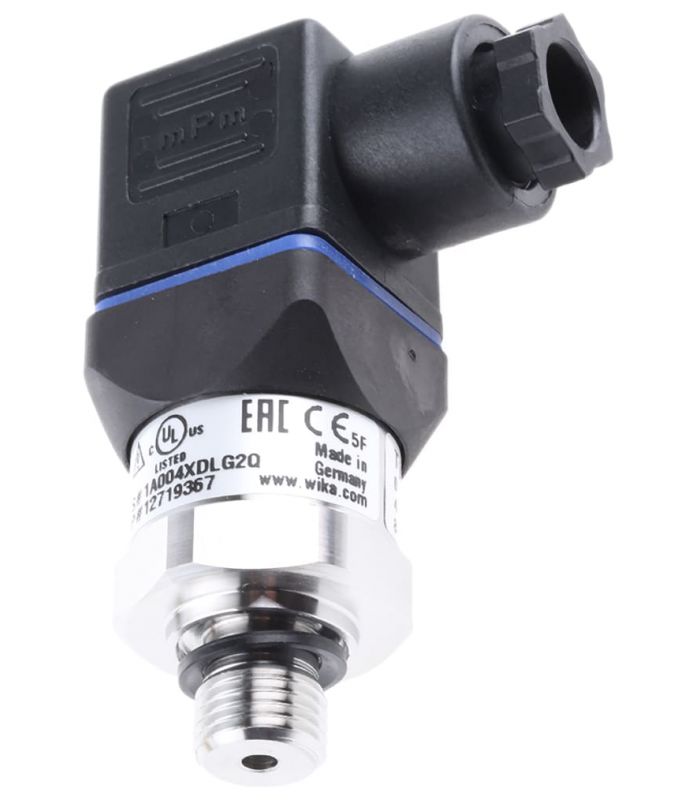

A 1/8" switching pressure switch with a T-15 connector is an electromechanical device used to detect changes in the pressure of a fluid (air or liquid) and activate or deactivate an electrical circuit in response to these changes.

Applications: industrial automation, pneumatics, hydraulics, refrigeration, heating.

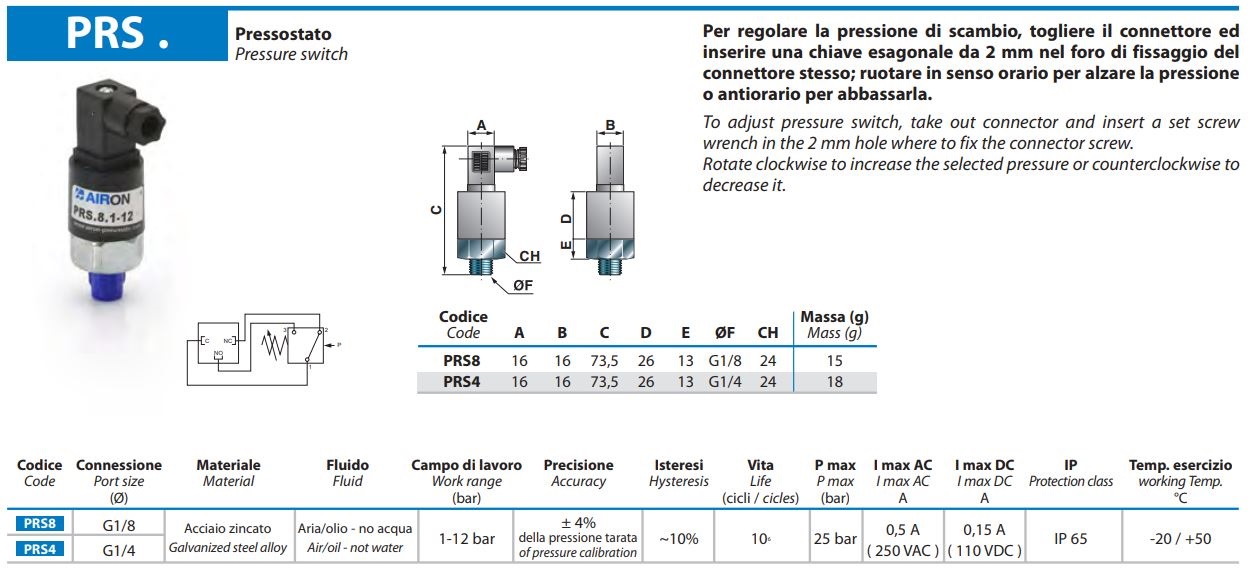

Technical sheet:

  • Adjustable from 1-12 bar.
  • Normally closed or open position depending on the cable connection.
  • Pressure regulation by means of Allen screw.
  • Suitable for water/oil.
  • Accuracy of 4% of pre-set pressure.
  • Hysteresis 10%
  • Maximum inlet pressure 25 bar.
  • Max current AC 0.5 A (250V) DC 0.15 A (110V)
  • IP-54 protection
  • Working temperature -20/50ºC
€43.56 (tax included)
€36.00 (tax excl.)
Reference:
4347
Description

1/8" switching pressure switch

Product Details
4347
