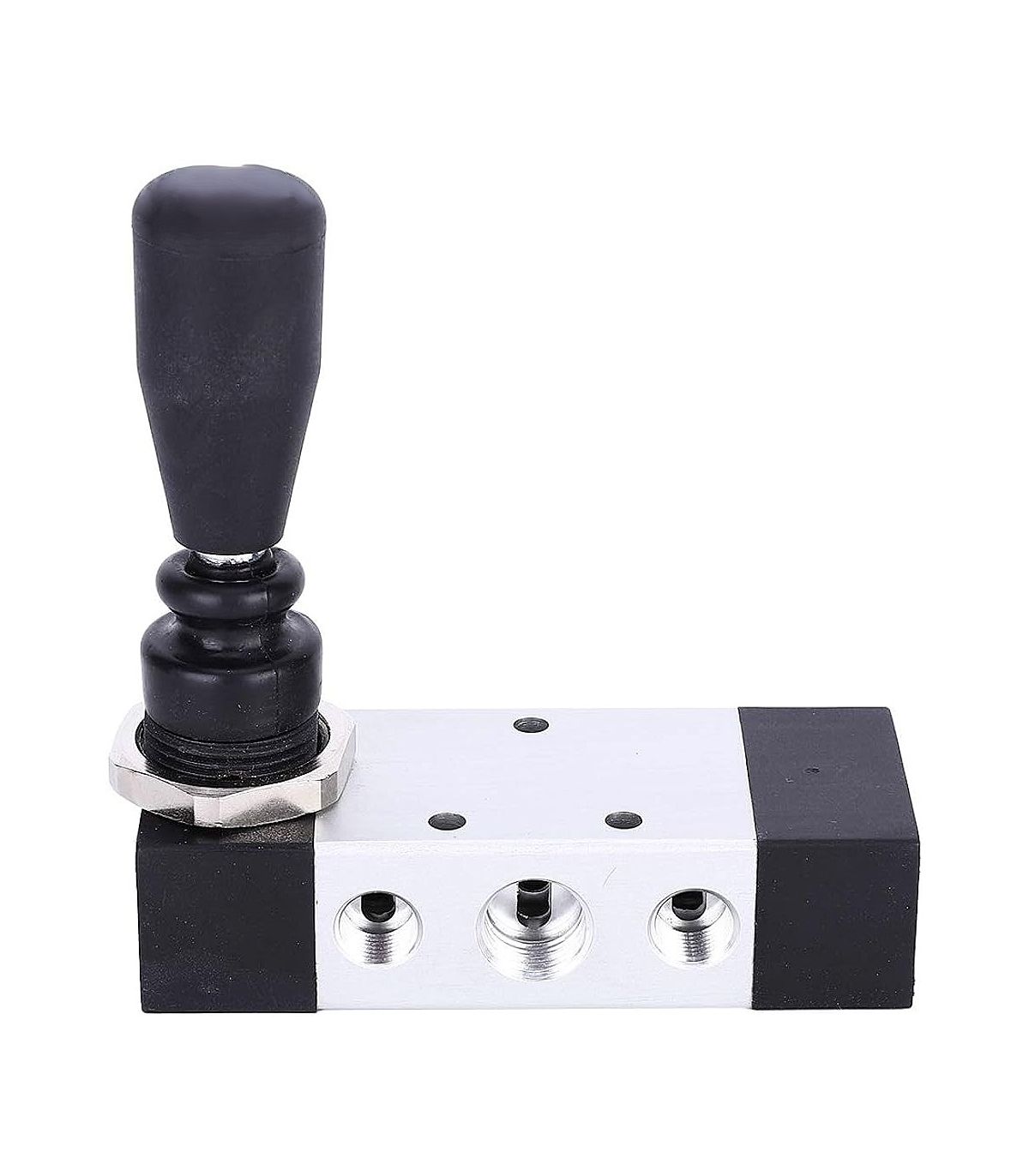

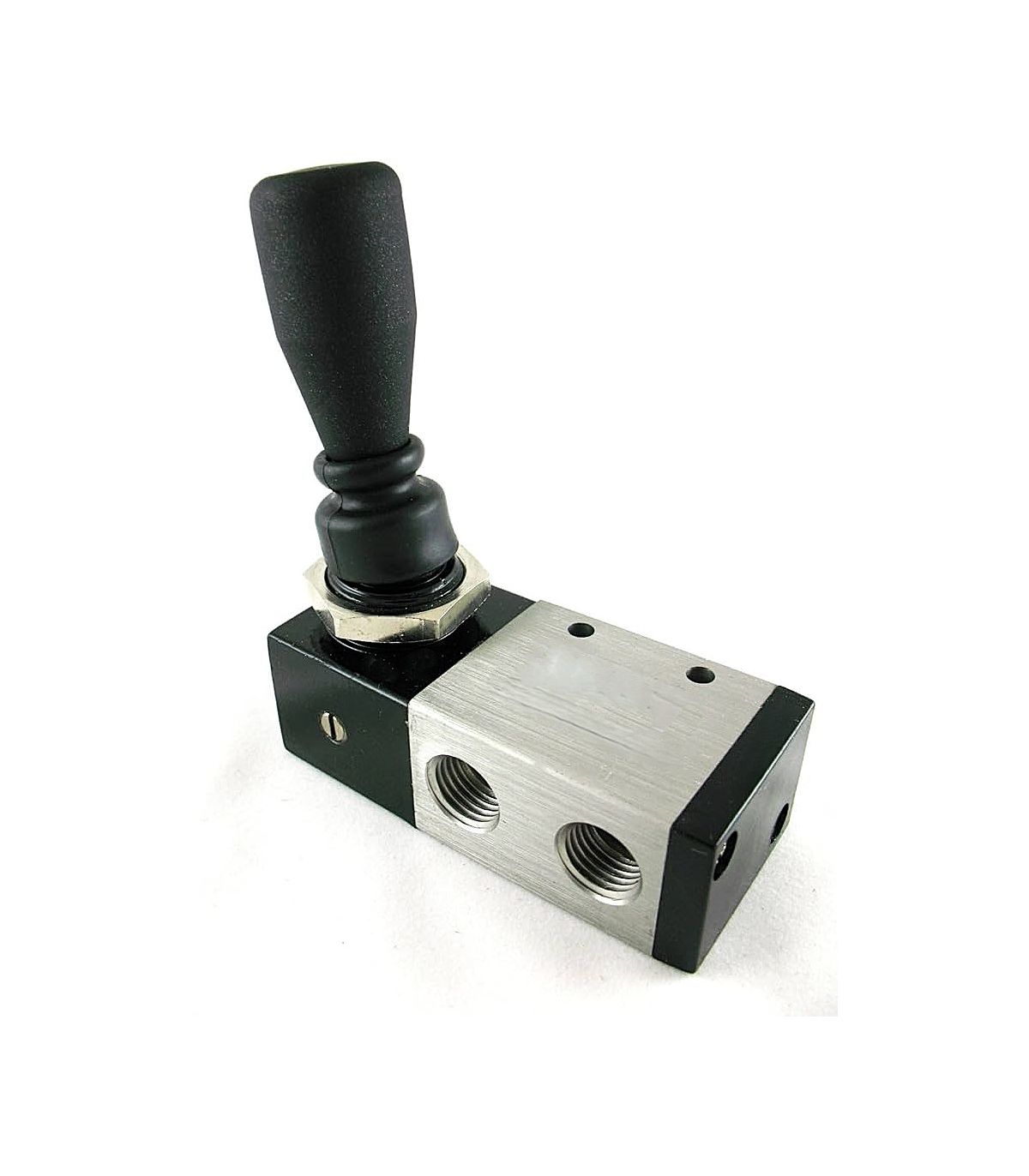

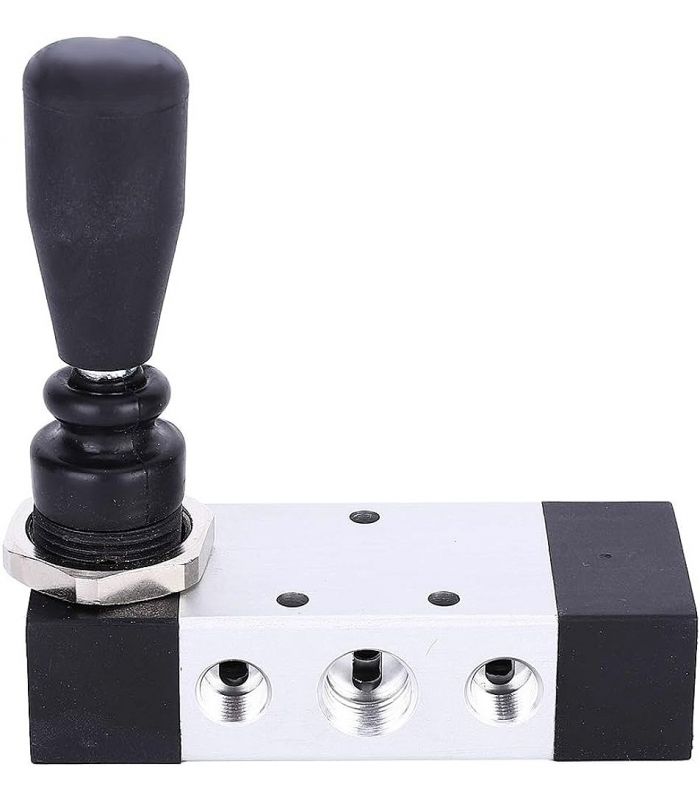

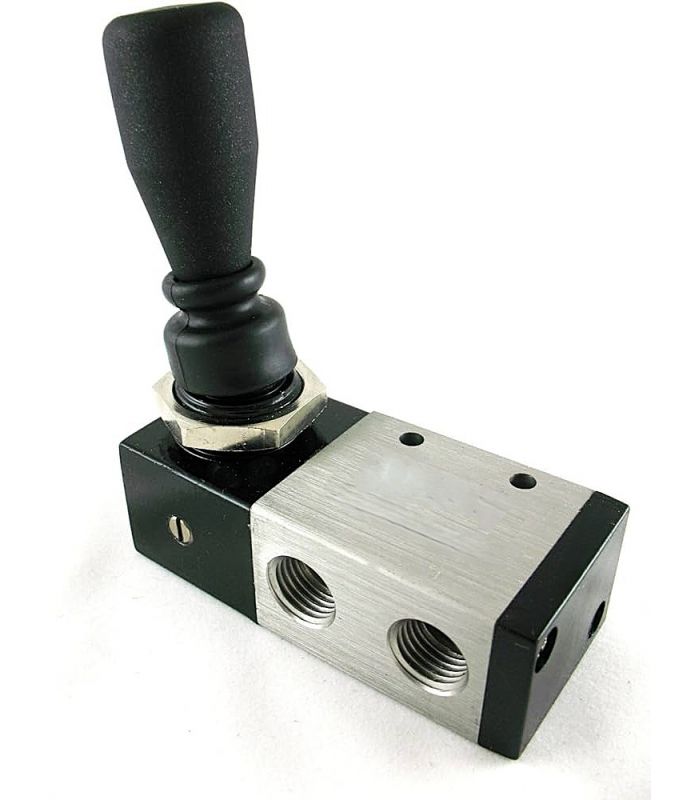

1/4" VALVE 90º LEVER
1/4" VALVE 90º LEVER
1/4" VALVE 90º LEVER
1/4" VALVE 90º LEVER

1/4" VALVE 90º LEVER

A 1/4" 90º lever valve is designed to control the flow of compressed air manually using a 90º turning lever.

Applications: Industrial automation, Medical equipment, Robotics and Instrumentation.

Technical data sheet:

  • 90º metal lever distributor valve.
  • Great performance.
  • Available in 1/4" thread
  • Max. service pressure 8 bar.
  • Admissible temperatures -5ºC / 60ºC
  • Panelable.
  • Lever actuation force:
    • 3/2 way 10N
    • 5/2 ways 15N
    • 5/3 ways 20N
€42.41 (tax included)
€35.05 (tax excl.)
SELECT TYPE
  • 3/2 N..OPEN
  • 3/2 N.. CLOSED
  • 3/2 FLIP-UP
  • 5/2 MONOSTABLE
  • 5/2 BISTABLE
  • 5/3 CENTER TO LOCKABLE EXHAUST
  • 5/3 LOCKING CLOSED CENTER
  • 5/3 LOCKING PRESSURE CENTER
  • 5/3 CLOSED DOCK CENTER
  • 5/3 CENTER TO DOCK EXHAUST
  • 5/3 SPRING PRESSURE CENTER
Reference:
21220001
Description

1/4" valve 90º lever

VALVULA PALANCA 14 90VALVULA PALANCA 14 90VALVULA PALANCA 14 90

Product Details
21220001
