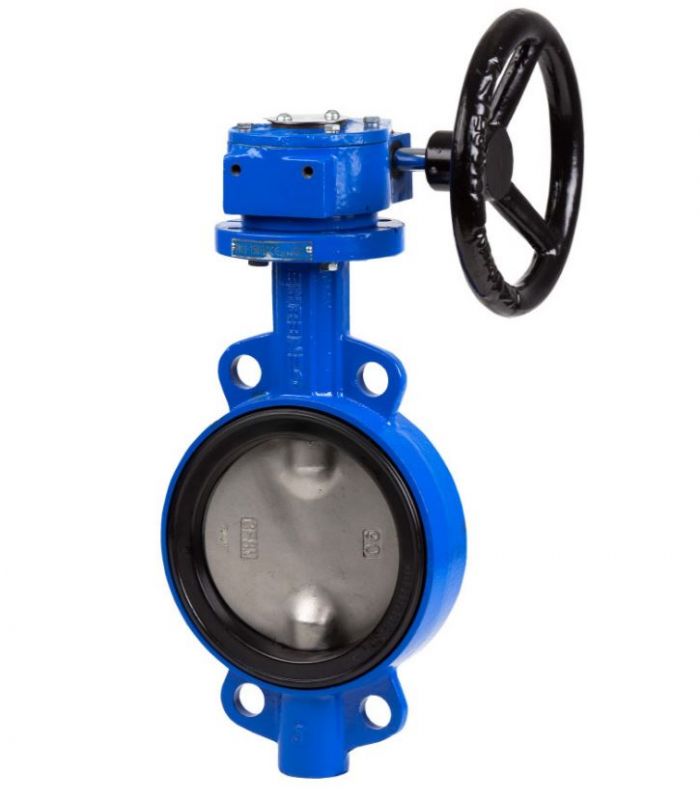

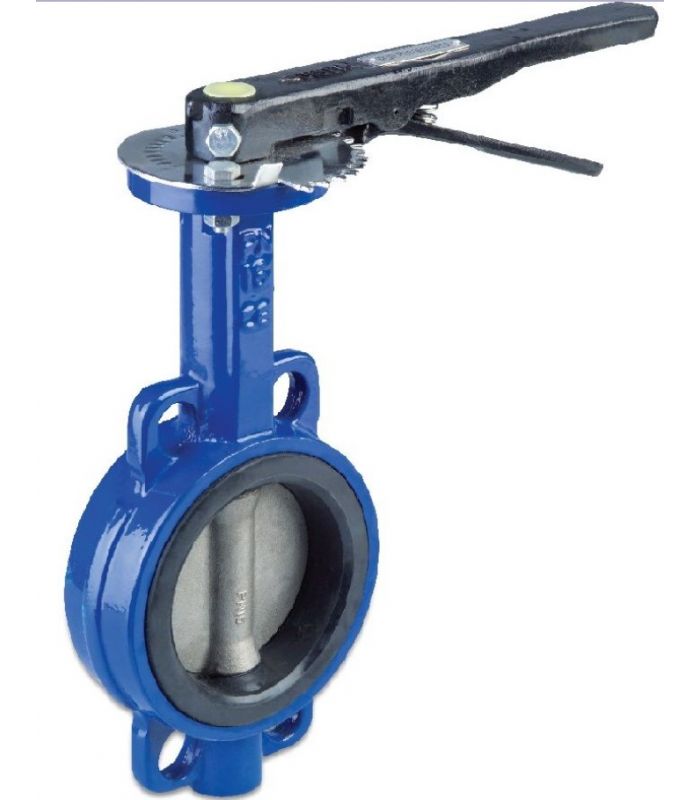

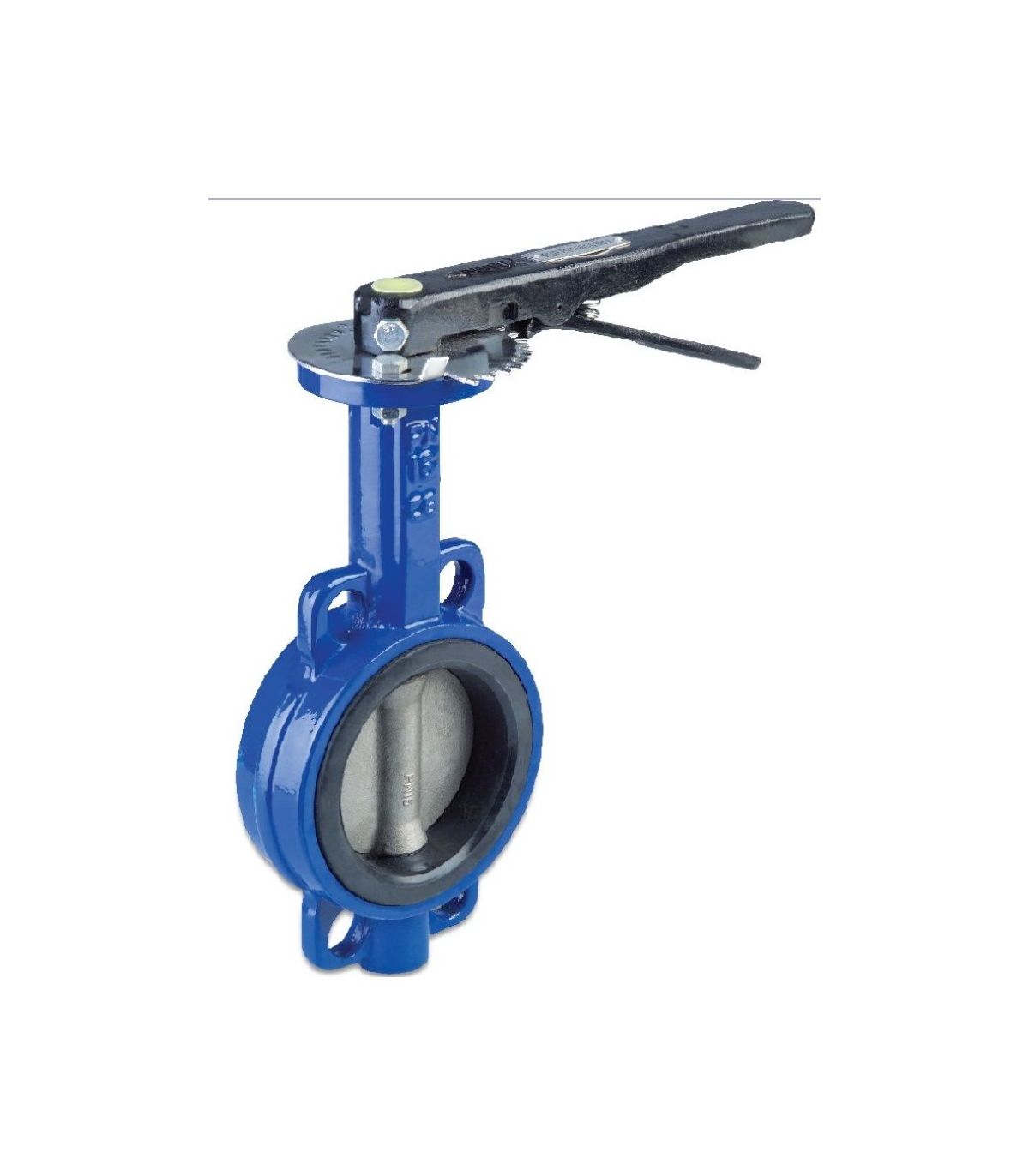

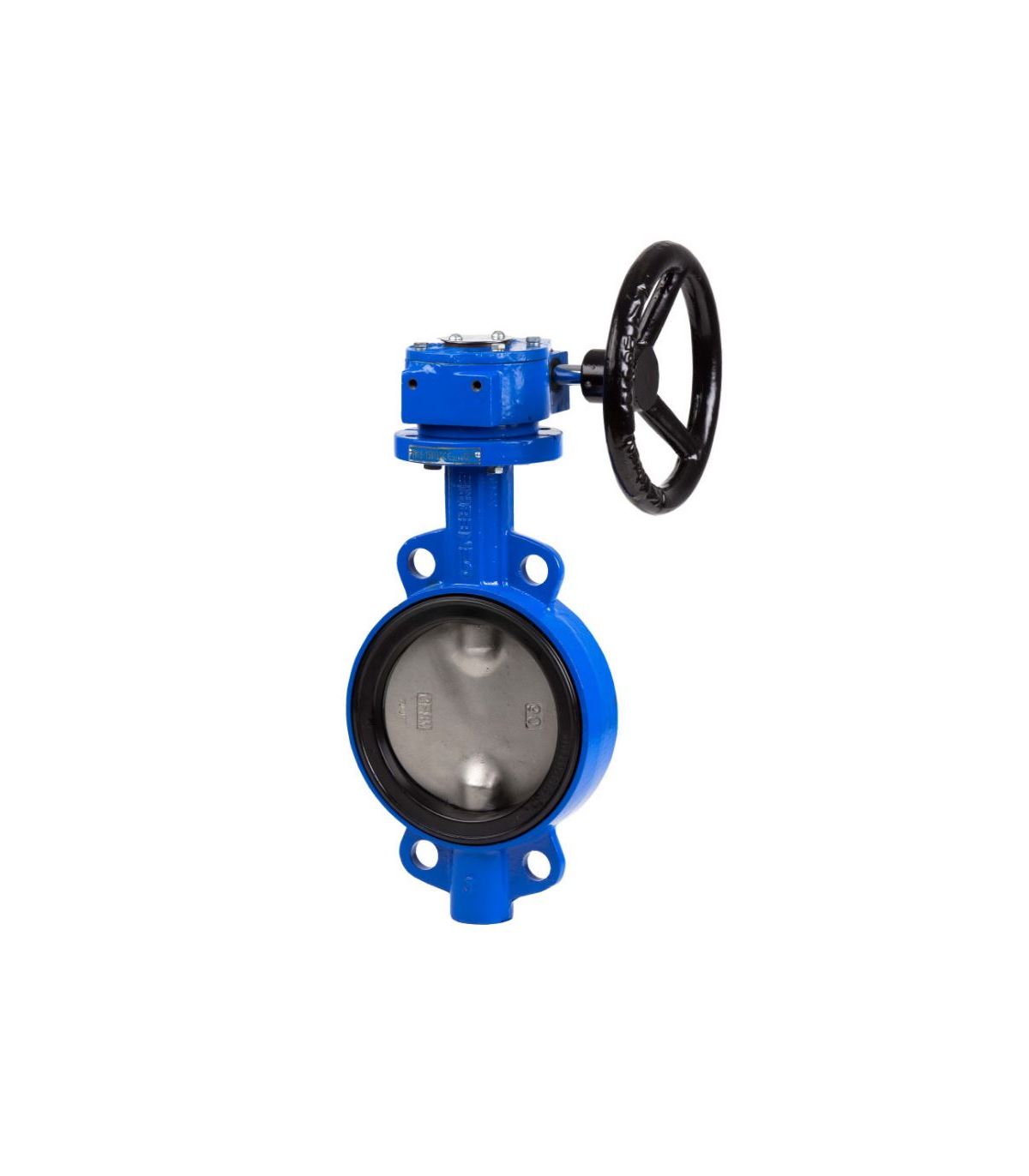

WAFER BUTTERFLY VALVE STAINLESS STEEL DISC
WAFER BUTTERFLY VALVE STAINLESS STEEL DISC
WAFER BUTTERFLY VALVE STAINLESS STEEL DISC
WAFER BUTTERFLY VALVE STAINLESS STEEL DISC

WAFER BUTTERFLY VALVE STAINLESS STEEL DISC

The stainless steel wafer butterfly valve with a disc is available with an optional flange for mounting on an ISO-5011 actuator. It is designed to control the flow of fluids (liquids or gases) through a pipeline. The stainless steel disc provides greater resistance to corrosion and chemical agents.

Applications: food and pharmaceutical industry, chemical and petrochemical industry, water treatment, paper industry, construction.

Technical specifications:

  • Manufactured from GGG-40 nodular cast iron
  • Epoxy paint coating
  • AISI-316 stainless steel disc
  • Board at EPDM
  • PN-16 DIN PN10-16 ANSI 125-150
  • Max. temperature -20ºC / +120ºC
  • Working pressure from 2" to 10": 16 bar, 12": 10 bar
  • Flange for mounting on ISO-5011 actuator
  • Lever up to 10", 12" and 14" manual reducer.
€66.55 (tax included)
€55.00 (tax excl.)
DN
  • DN-50
  • DN-65
  • DN-80
  • DN-100
  • DN-125
  • DN-150
  • DN-250
  • DN-200
  • DN-300
Reference:
251800411
Description

Stainless steel wafer disc butterfly valve

Product Details
251800411
