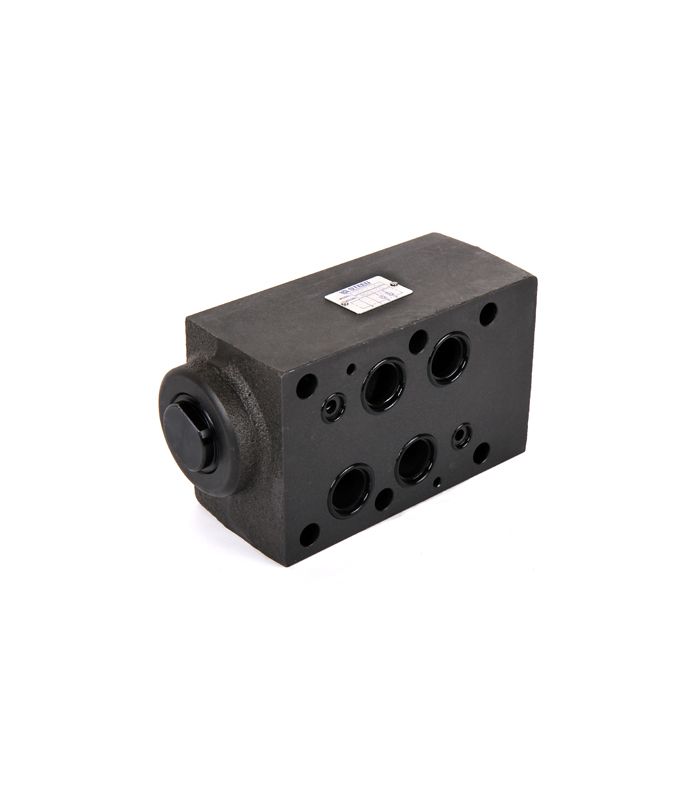

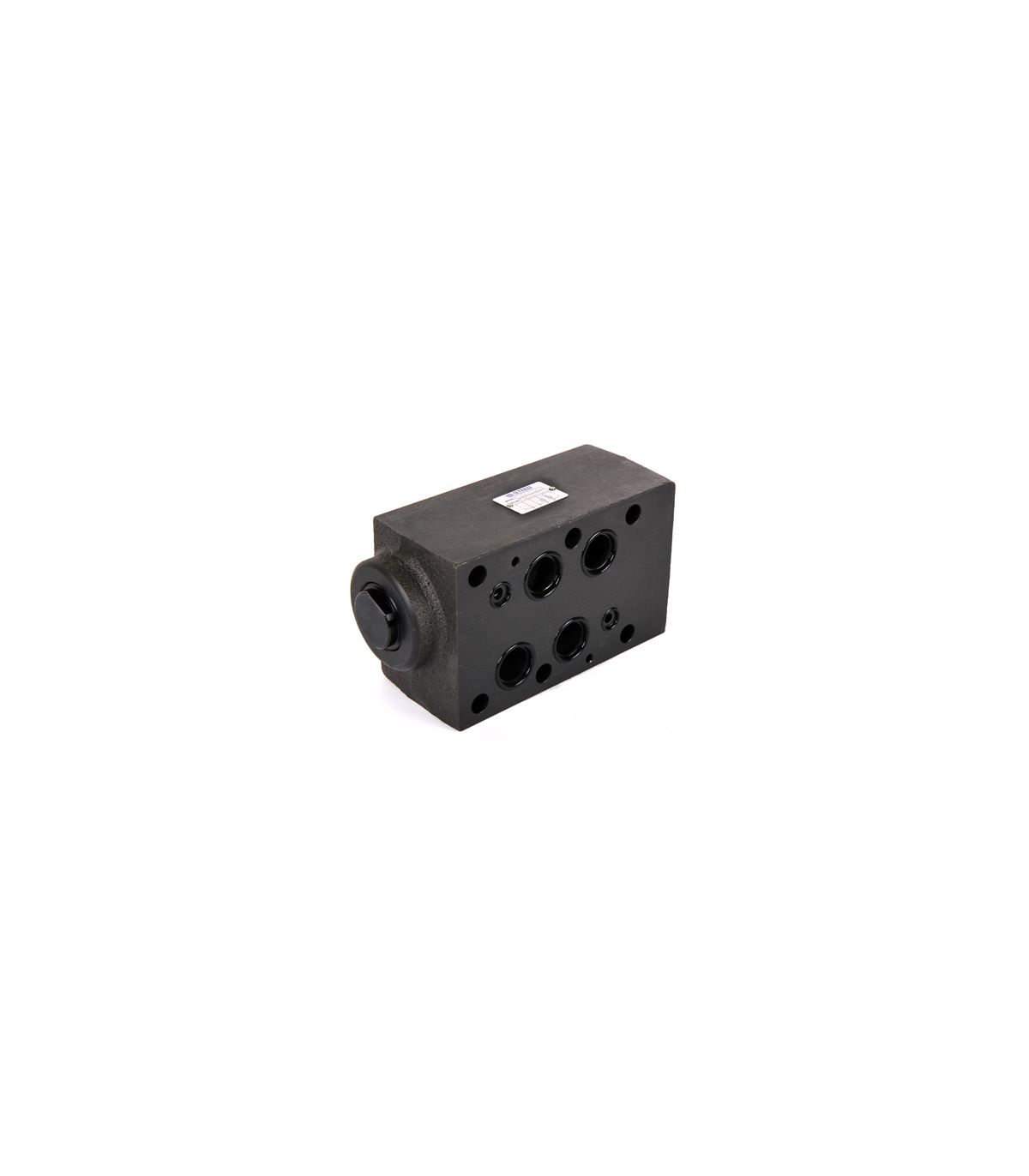

NG-10 MODULAR NON-RETURN VALVE

NG-10 MODULAR NON-RETURN VALVE

A modular NG-10 check valve is a hydraulic component designed to ensure fluid flow moves in one direction only, automatically blocking any attempt to return in the opposite direction.

Applications: Cylinder clamping or locking systems, Pump protection, Bypass circuits, Cylinder regeneration systems, Medium/large hydraulic power units, Mobile and heavy machinery, Presses and machine tools.

Technical sheet:

  • Flow rate 70 l/min.
  • Max pressure 250 bar.
  • Standard temperature -30 / 80ºC
  • Select from the following paths A, B or AB
€96.80 (tax included)
€80.00 (tax excl.)
SELECT TYPE
  • TO
  • b
  • A-B
Reference:
495300321
Description

Modular non-return valve NG-10

Product Details
495300321
Comments
