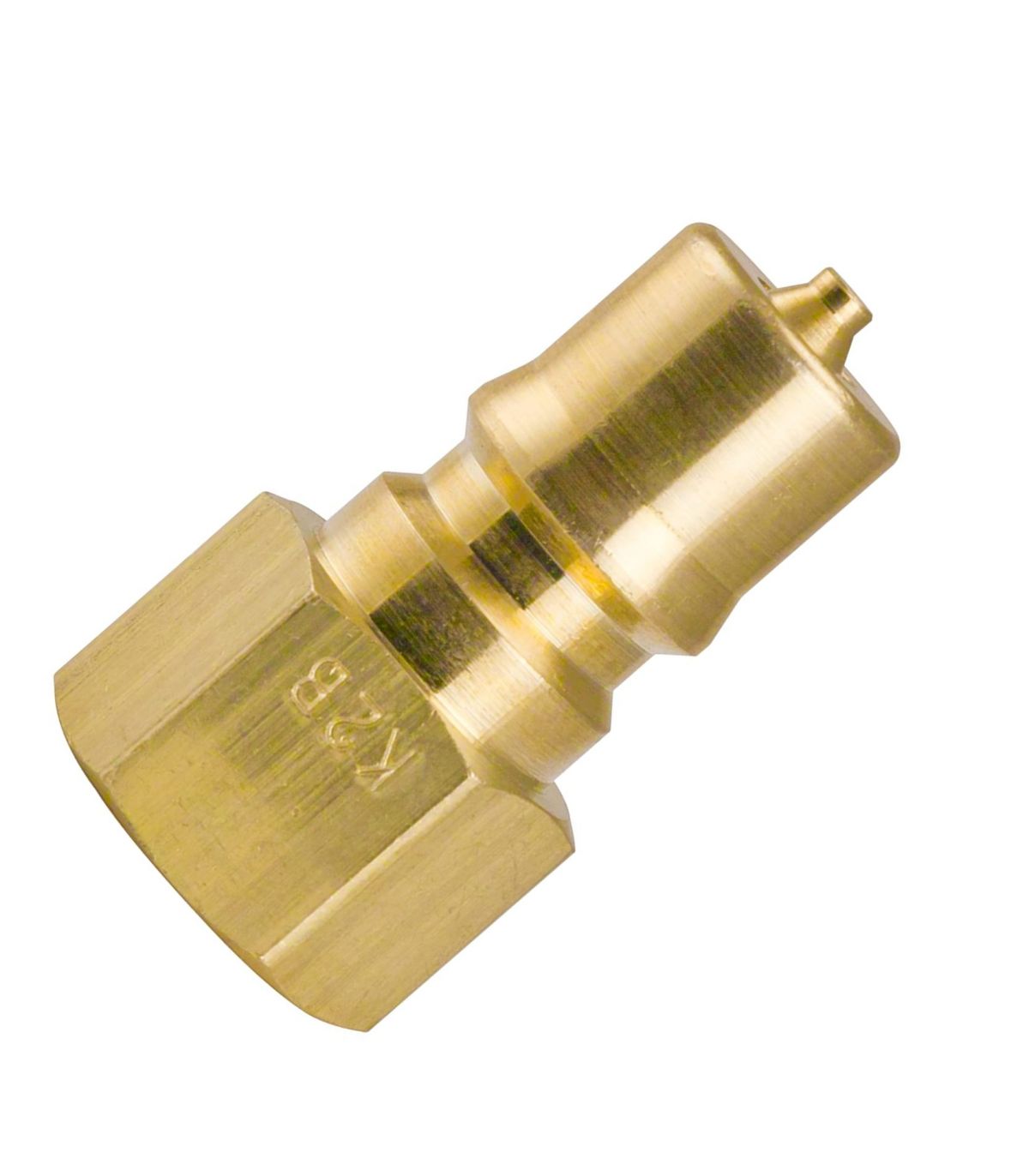

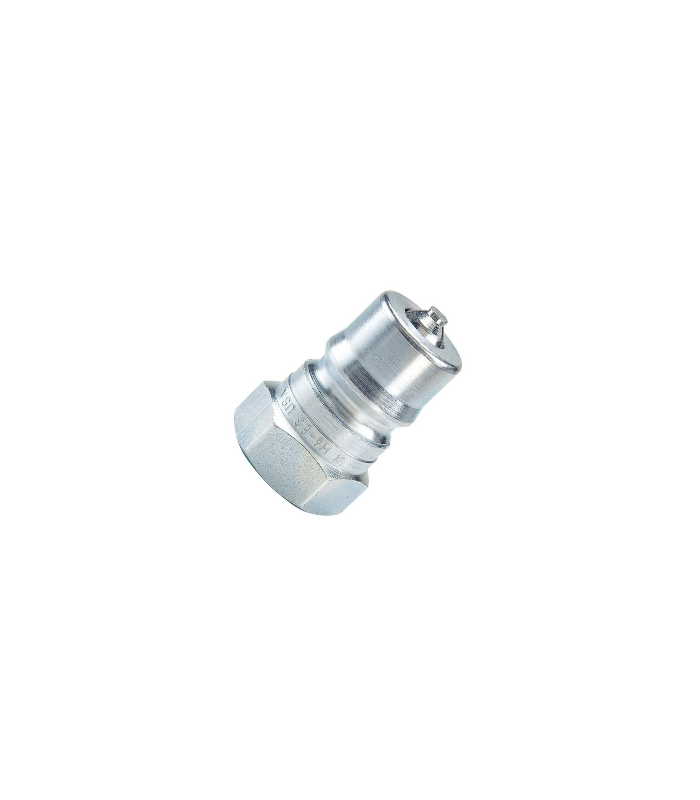

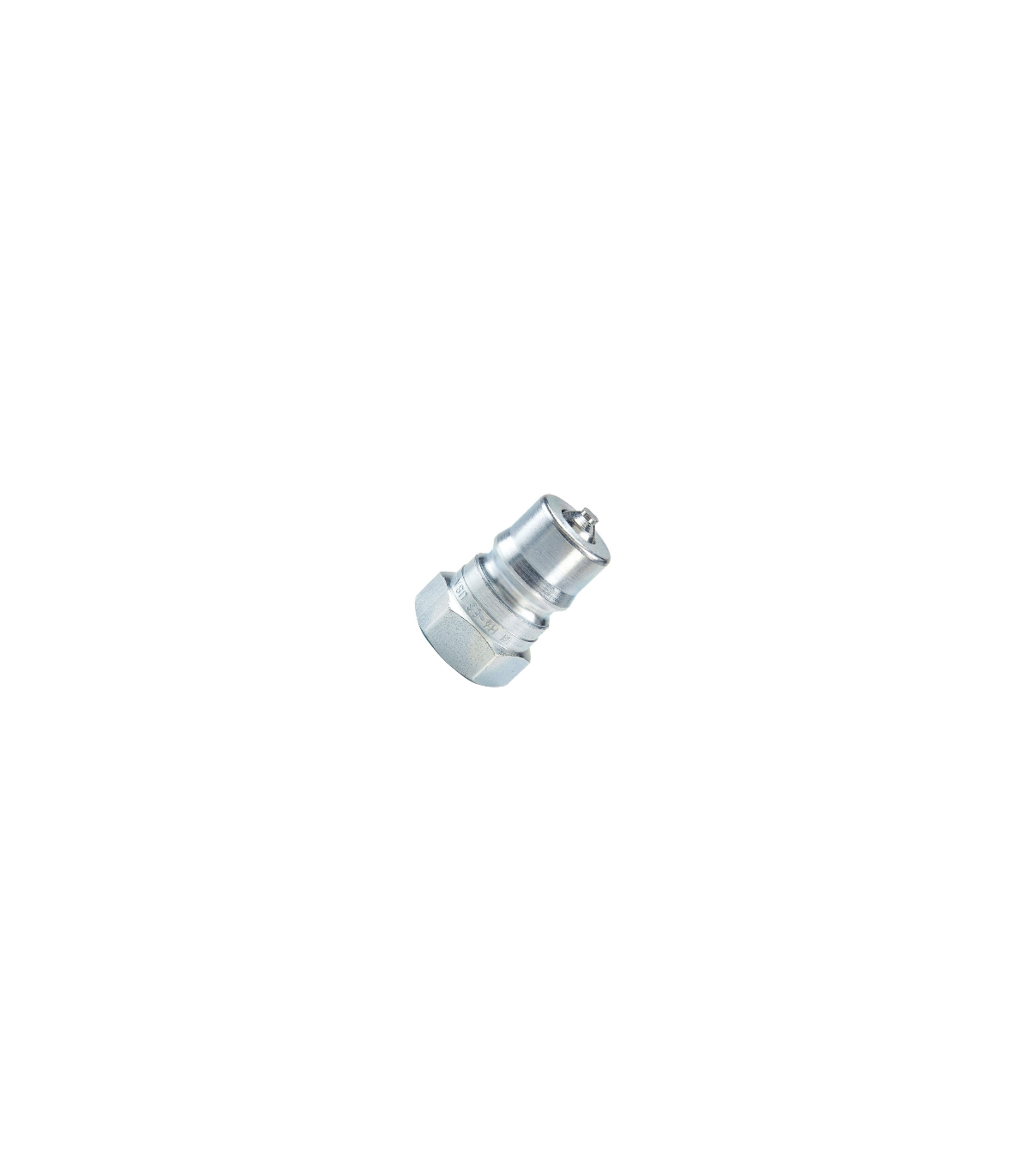

ISO-7241-B PUNCH PLUG ADAPTER
ISO-7241-B PUNCH PLUG ADAPTER
ISO-7241-B PUNCH PLUG ADAPTER
ISO-7241-B PUNCH PLUG ADAPTER

ISO-7241-B PUNCH PLUG ADAPTER

An ISO-7241-B punch plug adapter is primarily used in hydraulic systems to provide a quick, tool-free coupling and uncoupling point between a hose or process line and a fixed component.

Applications: Mobile hydraulic tools, Agricultural and construction machinery, Test circuits

Main features:

  • Made of carbon steel.
  • Service temperature -20º / 100ºC
€8.94 (tax included)
€7.39 (tax excl.)
SELECT THE THREAD
  • 1/8"
  • 1/4"
  • 3/8"
  • 1/2"
  • 3/4"
  • 1"
Reference:
46030005
Description

ISO-7241-B Punch Plug Adapter

The ISO 7241-B punch-type socket adapter is designed to connect hydraulic components compliant with the ISO 7241 Series B standard, ensuring a secure, quick, and reliable connection between different elements of the circuit. This type of adapter facilitates the integration of connections with different thread types or configurations, maintaining the tightness and proper functioning of the hydraulic system.

Applications

This adapter is recommended for:

  • Industrial machinery.
  • Mobile hydraulic equipment.
  • Construction machinery.
  • Hydraulic maintenance systems.
  • Agricultural equipment.
  • Hydraulic installations in workshops and production lines.

Technical data sheet for an ISO-7241-B punch plug adapter:

ADAPTADOR ENCHUFE ISO-7241-B

Product Details
46030005
