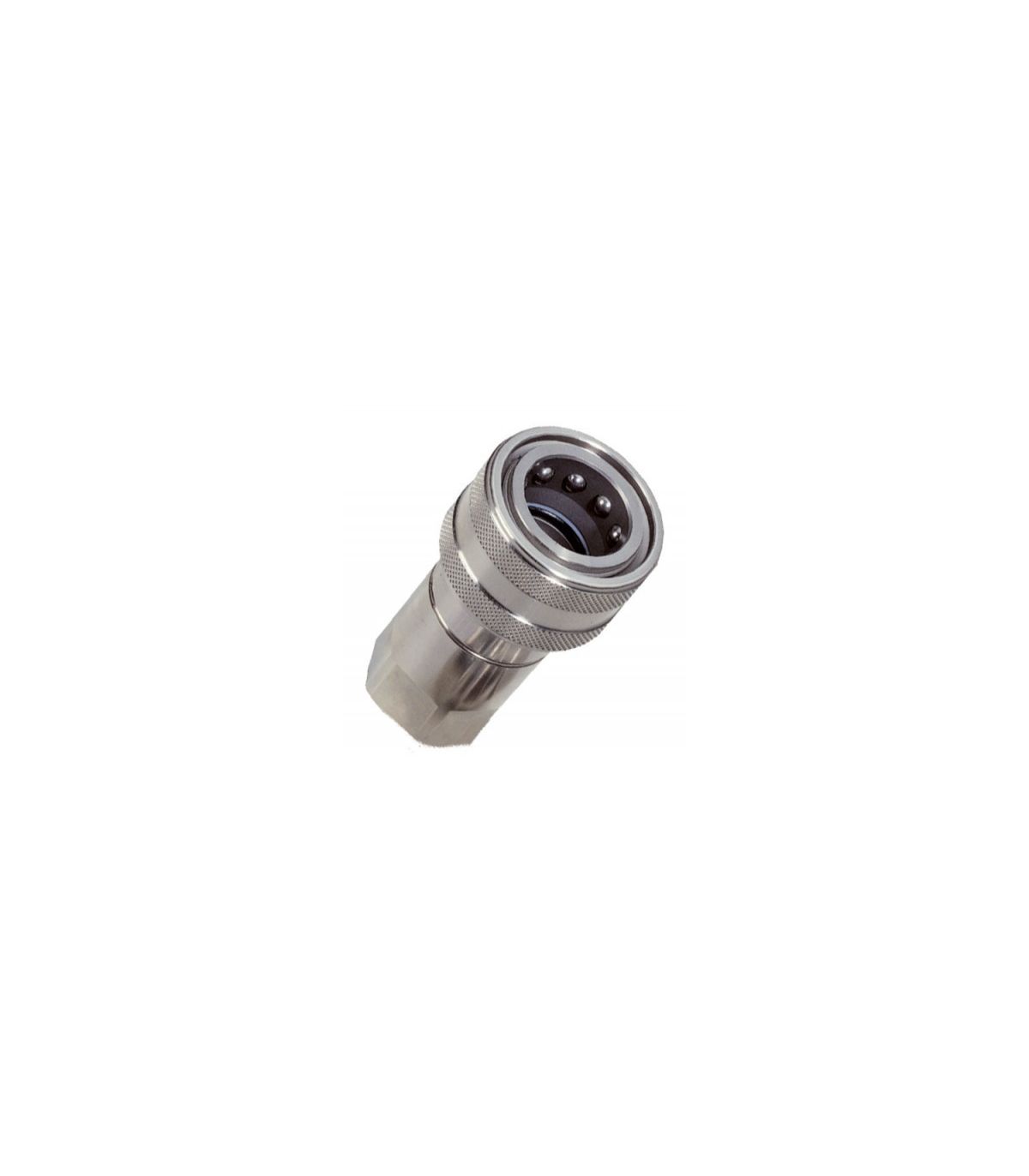

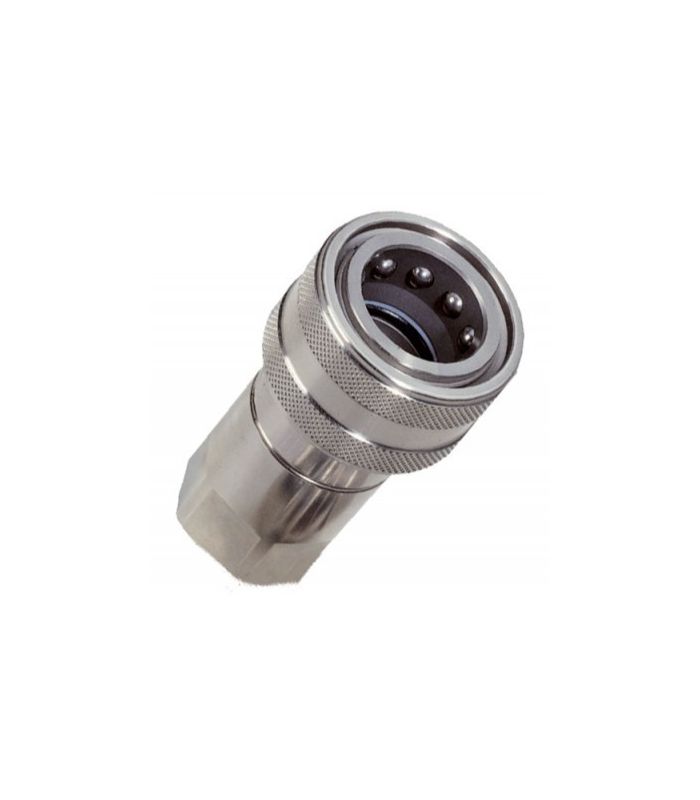

ISO-7241-B STAINLESS STEEL PLUG
ISO-7241-B STAINLESS STEEL PLUG
ISO-7241-B STAINLESS STEEL PLUG
ISO-7241-B STAINLESS STEEL PLUG

ISO-7241-B STAINLESS STEEL PLUG

An ISO-7241-B stainless steel plug is a quick-connect fitting for hydraulic systems, compliant with the international standard ISO 7241 Series B, and made of stainless steel. Its main function is to allow for quick, tool-free, manual connection and disconnection.

Applications: Construction and Agricultural Machinery, Marine and Offshore Applications, Food and Chemical Industry, General Hydraulic Systems.

Technical specifications:

  • ISO-7241-B Standard
  • Made of Inox-316 steel.
  • Viton gasket, Teflon ring.
  • Service temperature -15ºC / 180ºC
€92.79 (tax included)
€76.69 (tax excl.)
SELECT THE THREAD
  • 1/4"
  • 3/8"
  • 1/2"
  • 3/4"
  • 1"
Reference:
46150009
Description

ISO-7241-B stainless steel plug

The ISO-7241-B INOX plug is designed for quick, safe, and leak-proof connections and disconnections in hydraulic systems. Made of high-quality stainless steel, it offers excellent resistance to corrosion, oxidation, and chemicals, making it ideal for applications in harsh environments, as well as the food, chemical, pharmaceutical, and marine industries.

It complies with ISO 7241 Series B , guaranteeing compatibility and interchangeability with other quick couplings manufactured under this standard.

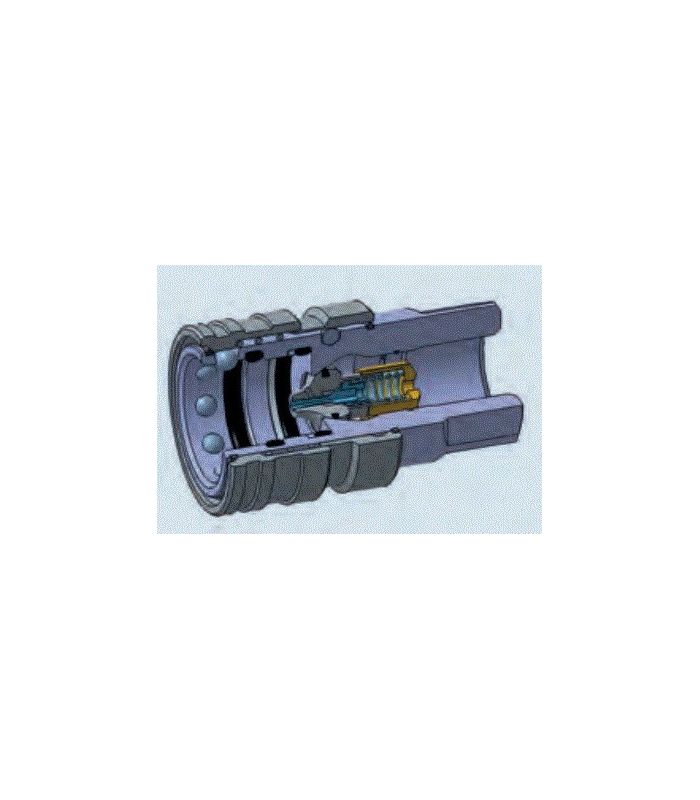

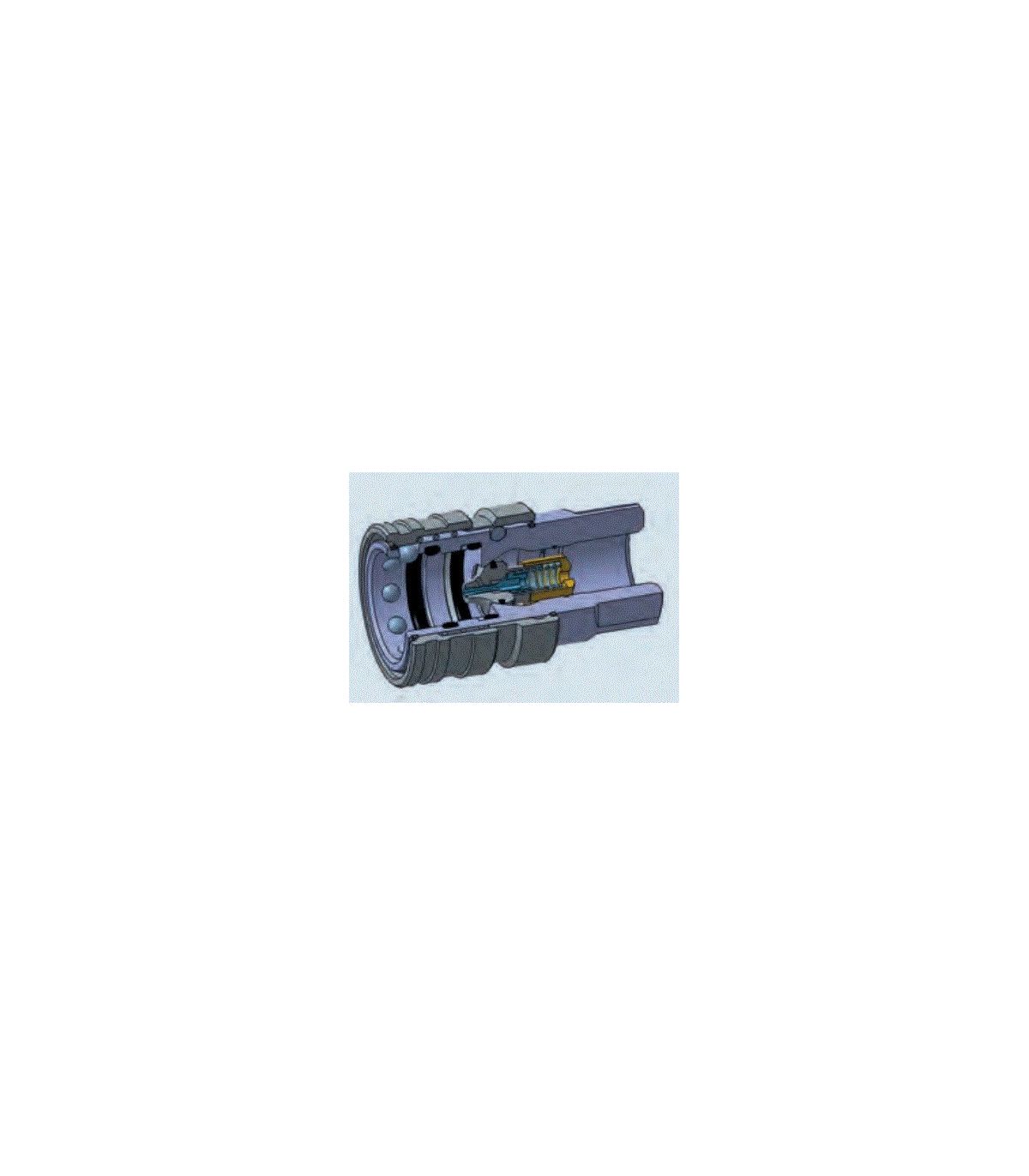

Technical sheet of an ISO-7241-B stainless steel plug:

Product Details
46150009
