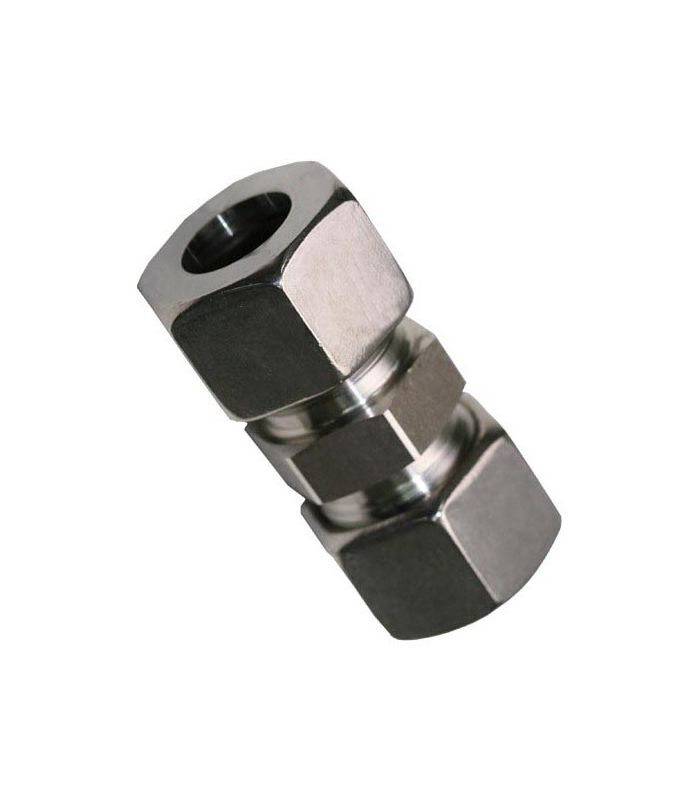

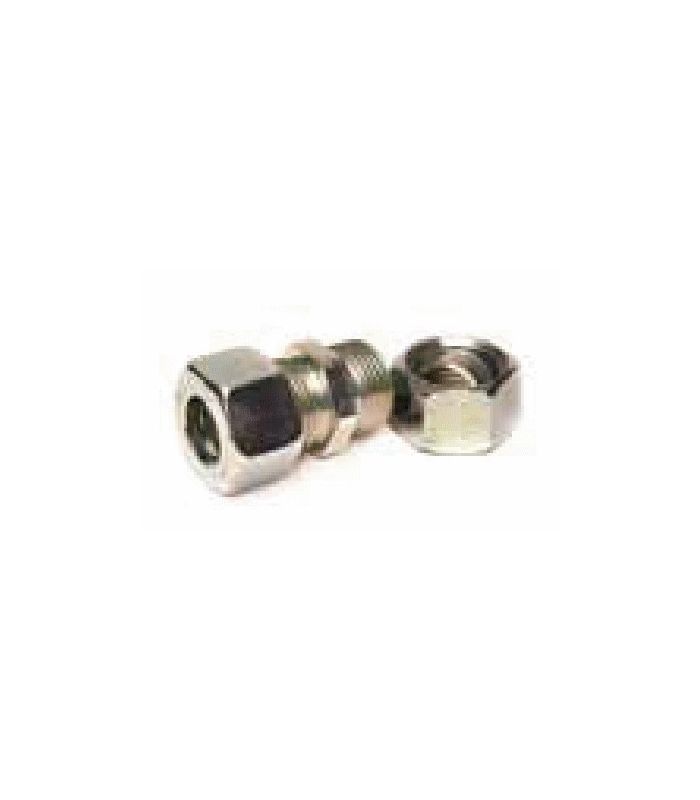

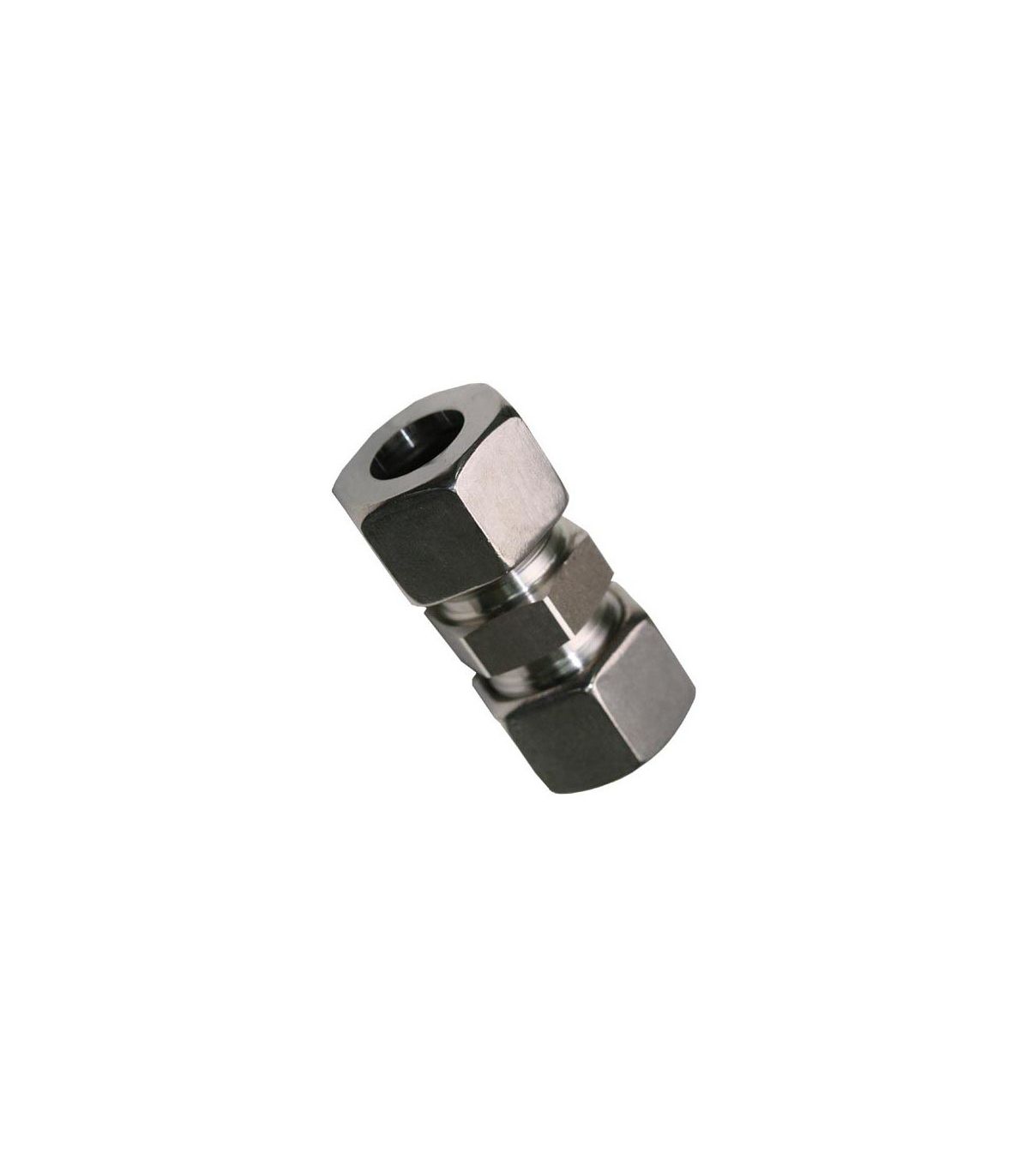

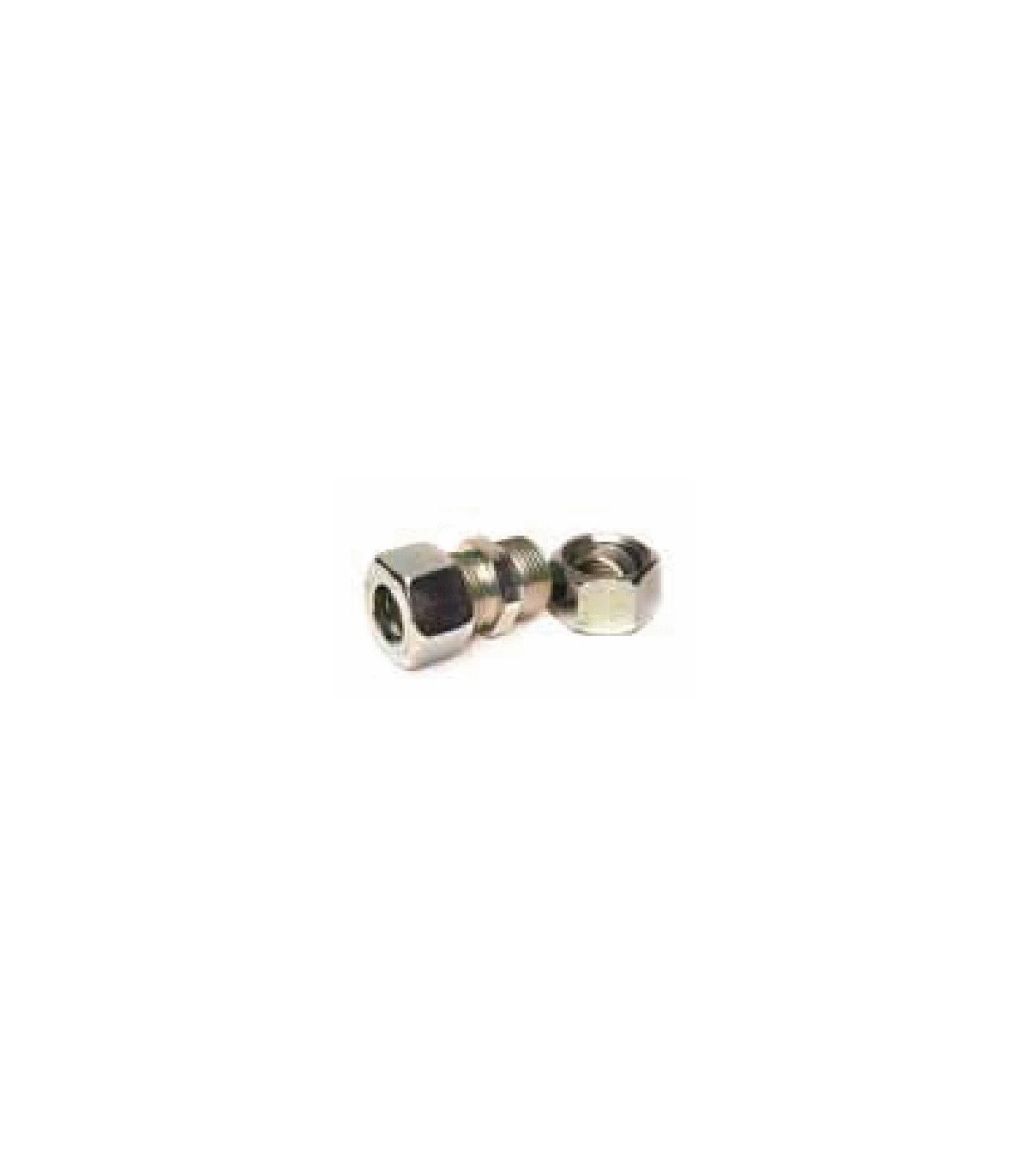

DIN-2353 S PIPE UNION
DIN-2353 S PIPE UNION
DIN-2353 S PIPE UNION
DIN-2353 S PIPE UNION

DIN-2353 S PIPE UNION

A DIN-2353 S pipe union is a connector that uses the cutting ring system according to DIN 2353 to reliably and securely join two hydraulic pipes, offering resistance to pressure and vibrations.

Applications: Industrial machinery, Construction equipment, Mobile hydraulic systems, Lubrication systems, Medium and high pressure compressed air lines.

Technical specifications:

  • Operating temperature -20 / 120°C.
  • Made of drawn steel DIN3859-1.
  • Bichromated coating ISO 4042.
  • Corrosion resistance.
  • Work pressures
    • 6-8-10-12-14 600 bar.
    • 16-20-25-30 400 bar .
    • 38,315 bar.

Assembly instructions

€3.17 (tax included)
€2.62 (tax excl.)
DIAMETERS
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 14
  • Ø 16
  • Ø 20
  • Ø 25
  • Ø 30
  • Ø 38
Reference:
33330005
Description

DIN-2353 S pipe union

UNION TUBO DIN 2353 S

Product Details
33330005
