Nickel-plated brass cross-shaped tube union with nut and bicone fitting | Buy online

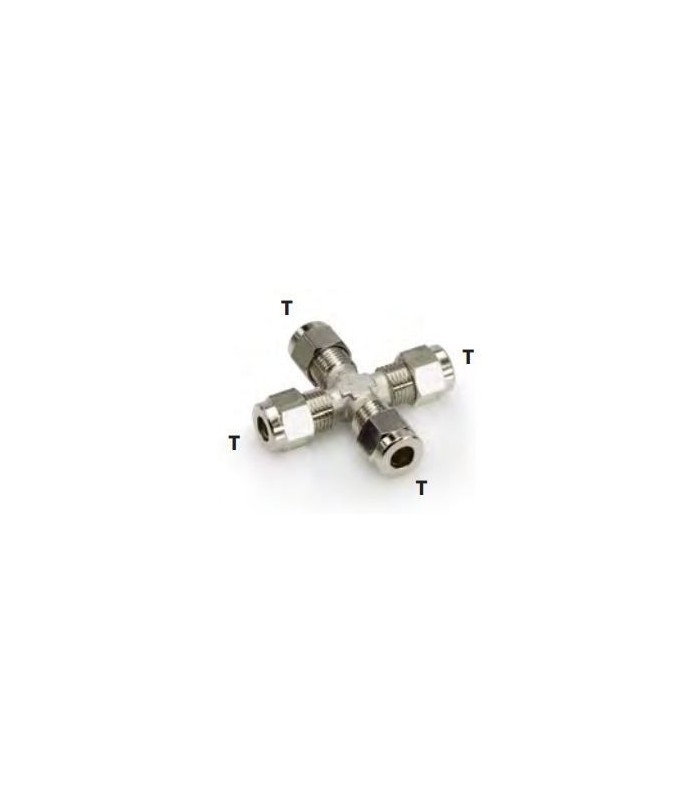

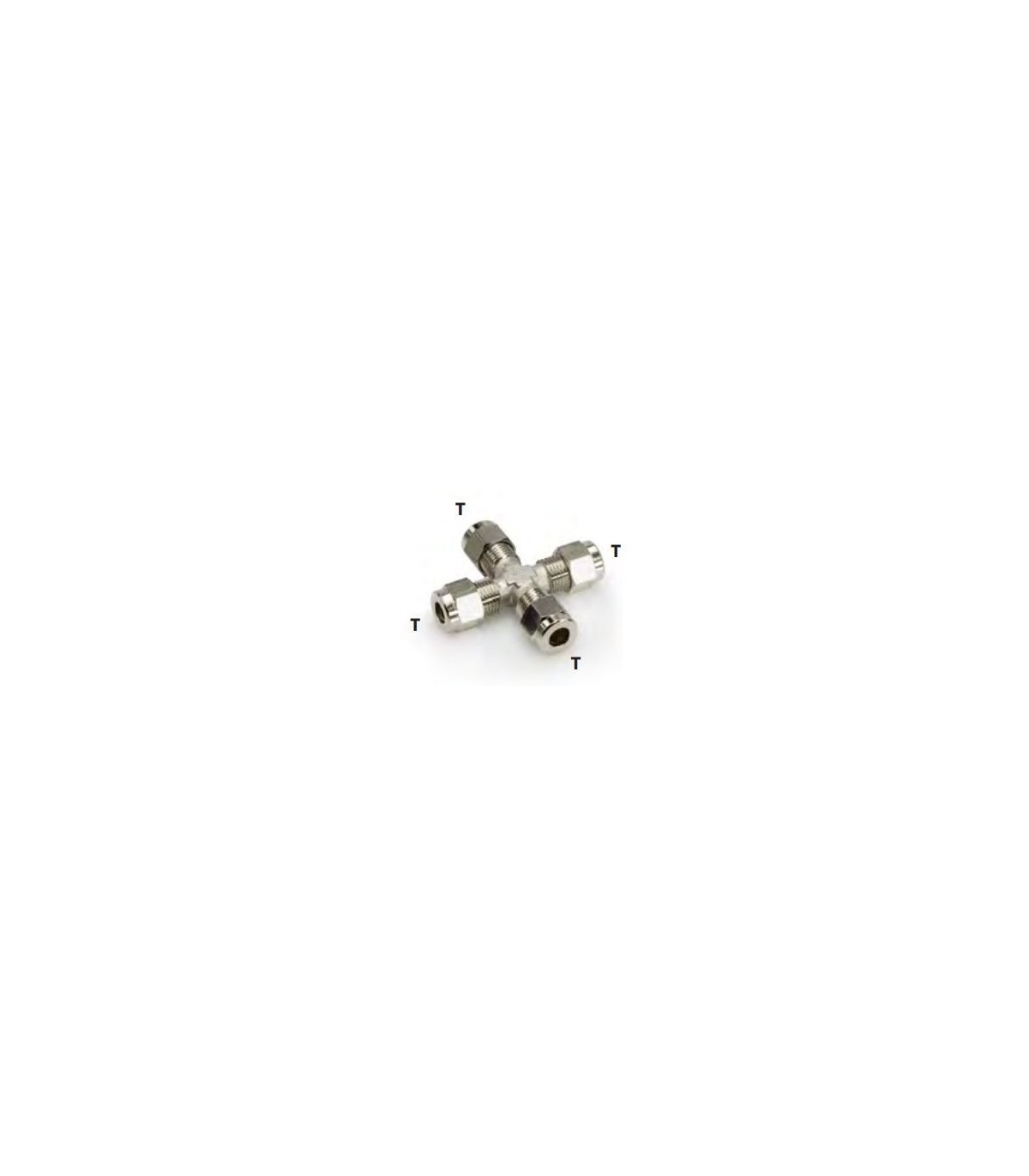

NICKEL-PLATED BRASS CROSS TUBE UNION WITH NUT AND BICONE

Cross joint of cross nut and bicone brass nickel-plated

It is used to join four pipes in a cross configuration. Each arm of the cross has a hole where the pipes are inserted. It uses a nut and bicone system to ensure a watertight seal.

It is made of nickel-plated brass, which gives it corrosion resistance and an aesthetic appearance.

Common applications: irrigation systems, pneumatics, food industry, laboratories, etc.

Technical specifications:

  • Made of nickel-plated brass UNI-EN 12164CWG14N.
  • Good resistance to pressure and working temperature.
  • Tapered thread 1507 - DIN 2999 and cylindrical thread ISO 228.
  • Max. working pressure 110 bar up to Ø 8 mm, 60 bar from Ø 10 to 18 mm.
  • Suitable for copper, iron, aluminum, brass, PA, and PU tubes
Read moreShow less
€8.14 (tax incl.)
€6.73 (tax excl.)
DIAMETERS
  • Ø 4
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
Reference:
11660008
Description

Cross joint of cross nut and bicone brass nickel-plated

Read moreShow less
Product Details
11660008
