STRAIGHT UNION, PIPE, TAPERED THREAD, NUT AND BICONE

STRAIGHT UNION, PIPE, TAPERED THREAD, NUT AND BICONE

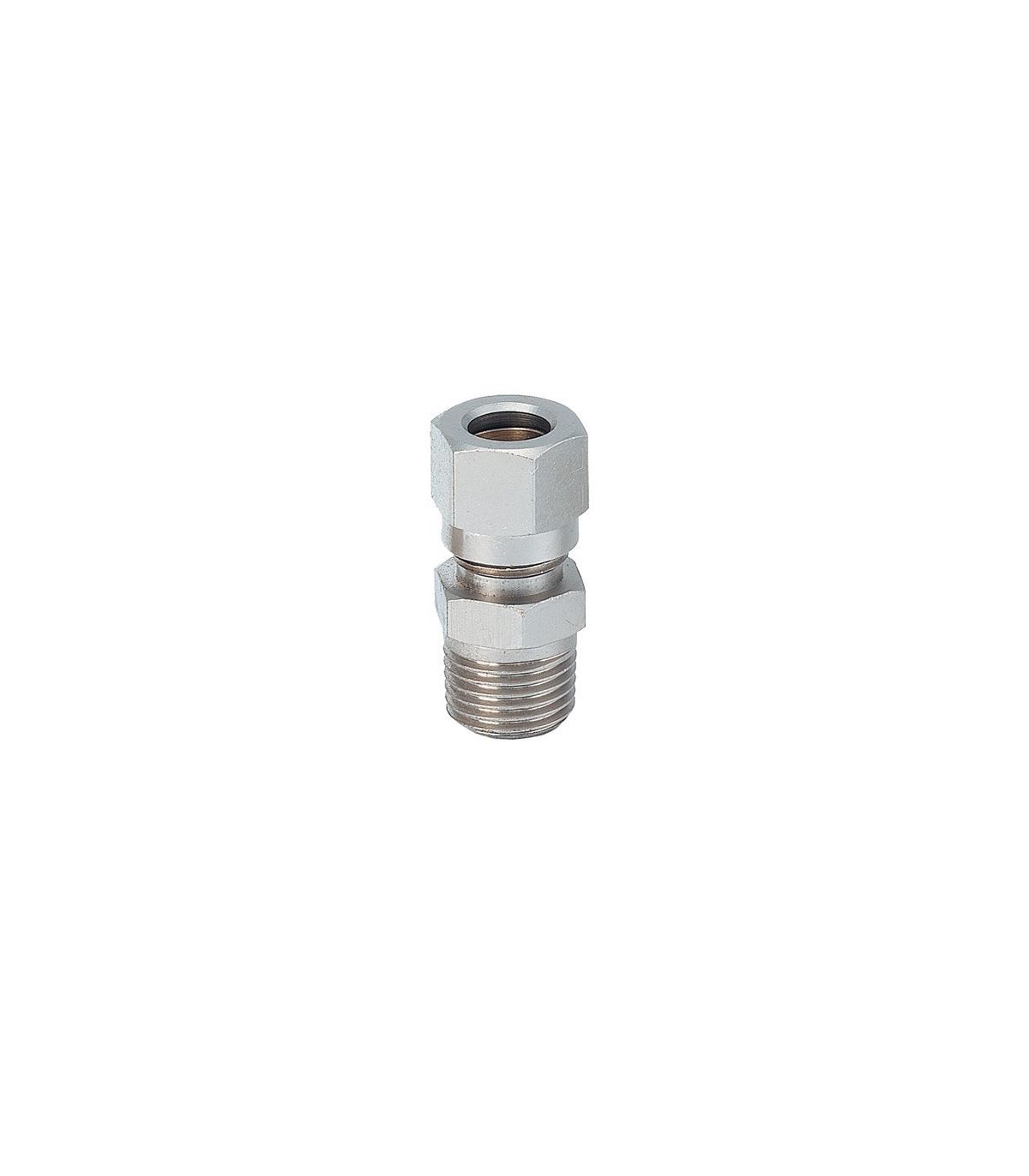

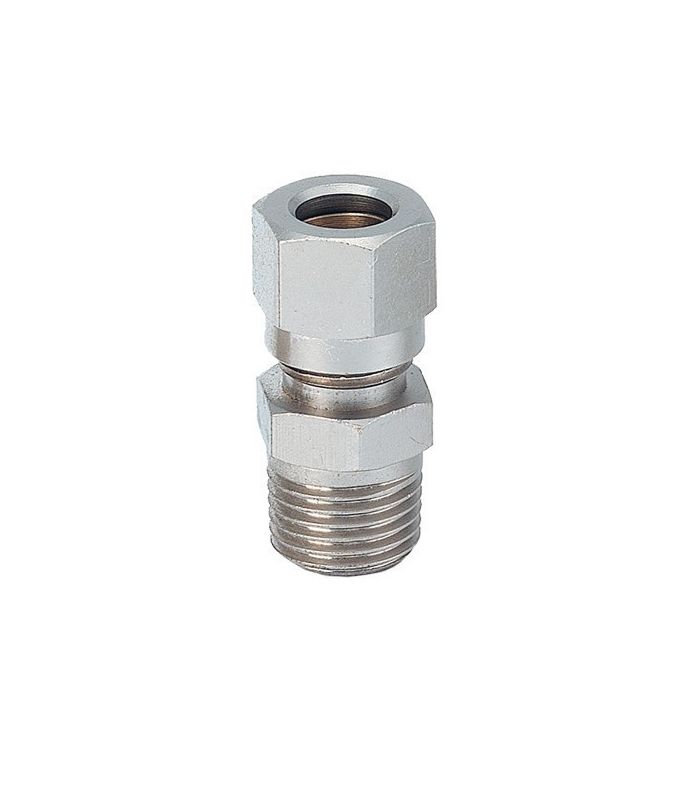

Straight union for pipe, tapered thread, nut and bicone

A straight pipe fitting with a tapered thread, nut, and bicone is a connector used to join a rigid pipe to a threaded component or port, ensuring a tight and leak-proof connection. It consists of the body with a tapered thread, a compression nut, and the bicone fitting.

Applications: lubrication lines, light hydraulics and low/medium pressure pneumatics.

Main features:

  • Made of nickel-plated brass UNI-EN 12164CWG14N.
  • Good resistance to pressure and working temperature.
  • Tapered thread 1507 - DIN 2999 and cylindrical thread ISO 228.
  • Max. working pressure 110 bar up to Ø 8 mm, 60 bar from Ø 10 to 18 mm.
  • Suitable for copper, iron, aluminum, brass, PA, and PU tubes
€1.00 (tax included)
€0.83 (tax excl.)
Tube diameter - Thread
  • Ø 4-1/8
  • Ø 4-1/4
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-3/8
  • Ø 12-1/2
  • Ø 14-1/2
  • Ø 15-1/2
  • Ø 16-1/2
  • Ø 18-1/2
Reference:
11500003
Description

Straight union for pipe, tapered thread, nut and bicone

Advantages

  • Excellent watertightness.
  • High resistance to pressure and vibrations.
  • Easy assembly without complex tools.

Applications

  • Automatic lubrication systems.
  • Lightweight hydraulic circuits.
  • Precision pneumatic installations.
  • Industrial equipment, machinery and automation.
  • Connections where rigid tubing needs to be joined to a sealing tapered thread.
Product Details
11500003
