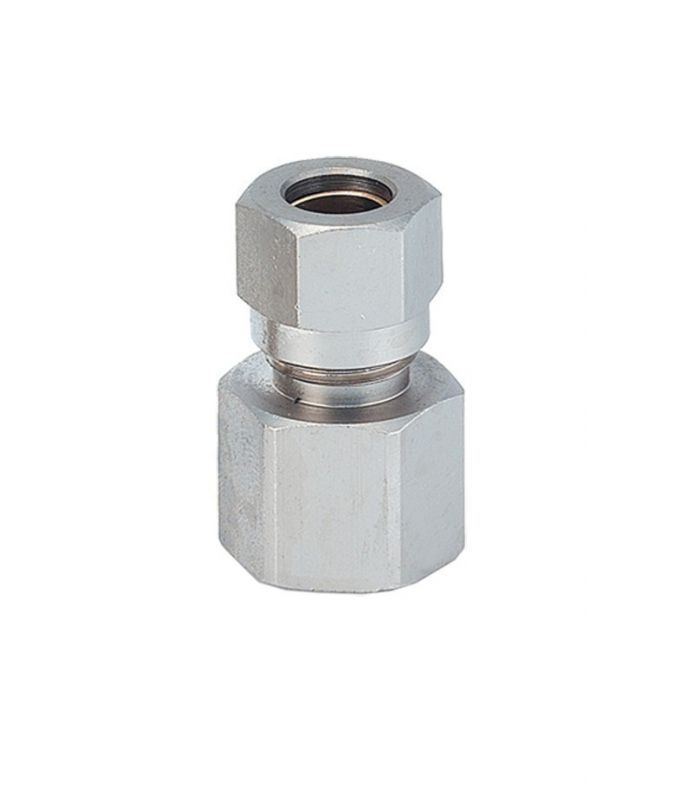

STRAIGHT UNION PIPE FEMALE THREAD NUT AND BICONE

STRAIGHT UNION PIPE FEMALE THREAD NUT AND BICONE

Straight union of tube, female thread, nut and bicone

A straight female threaded pipe union with nut and bicone fitting is designed to connect a rigid or semi-rigid pipe to a female threaded port in a straight line. The nut and bicone system ensures a tight and leak-proof seal through compression, providing a reliable, strong, and leak-free connection without the need for welding.

Applications: light hydraulic circuits, pneumatics, lubrication and industrial applications where a robust and durable connection is required.

Main features:

  • Made of nickel-plated brass UNI-EN 12164CWG14N.
  • Good resistance to pressure and working temperature.
  • Tapered thread 1507 - DIN 2999 and cylindrical thread ISO 228.
  • Max. working pressure 110 bar up to Ø 8 mm, 60 bar from Ø 10 to 18 mm.
  • Suitable for copper, iron, aluminum, brass, PA, and PU tubes
€1.40 (tax included)
€1.16 (tax excl.)
Tube diameter - Thread
  • Ø 4-1/8
  • Ø 4-1/4
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 12-3/8
  • Ø 12-1/2
  • Ø 14-1/2
  • Ø 15-1/2
  • Ø 16-1/2
  • Ø 18-1/2
Reference:
11510003
Description

Straight union of tube, female thread, nut and bicone

The straight union tube female thread nut and bicone is a mechanical fitting designed to connect a rigid or semi-rigid tube to a component with female thread by means of a tightening system composed of a nut and bicone.

Main features

  • Straight configuration for online connection.
  • Excellent sealing and vibration resistance.
  • Easy installation with conventional tools.
  • Suitable for copper, steel, nylon or polyamide tubes depending on the model.

Applications

  • Automatic lubrication systems.
  • Low/medium pressure pneumatics and hydraulics.
  • Industrial machinery and automation.
  • Equipment connections, valves or distributors.
Product Details
11510003
