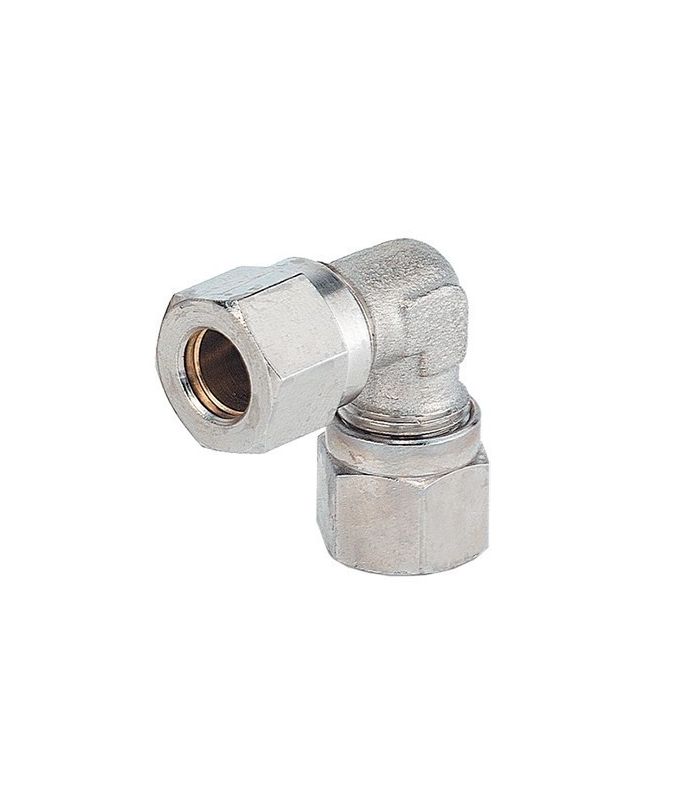

ELBOW PIPE NUT AND BICONE UNION

ELBOW PIPE NUT AND BICONE UNION

elbow, pipe, nut, and bicone union

The elbow, pipe, nut, and bicone fitting is a compression fitting designed to connect a rigid or semi-rigid pipe using a nut and bicone system and to deflect the pipe at a 90° angle. The bicone fits around the pipe when the nut is tightened, creating a secure seal and a connection resistant to vibration and pressure.

Main features:

  • Made of nickel-plated brass UNI-EN 12164CWG14N.
  • Good resistance to pressure and working temperature.
  • Tapered thread 1507 - DIN 2999 and cylindrical thread ISO 228.
  • Max. working pressure 110 bar up to Ø 8 mm, 60 bar from Ø10 to 18mm.
  • Suitable for copper, iron, aluminum, brass, PA, and PU tubes
€2.01 (tax included)
€1.66 (tax excl.)
DIAMETERS
  • Ø 4
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 14
  • Ø 15
  • Ø 16
  • Ø 18
Reference:
11580001
Description

elbow, pipe, nut, and bicone union

The elbow, tube, nut, and bicone fitting is a compression fitting designed to connect a rigid or semi-rigid tube using a nut and bicone system, also allowing the direction of the conduit to be changed by 90°.

The bicone is compressed onto the tube when the nut is tightened, creating a secure seal that is resistant to pressure, vibration, and traction.

Main features

  • Angle: 90° elbow.
  • It provides a firm, watertight and mechanically resistant bond.
  • Suitable for hydraulic fluids, compressed air and lubricants.
  • Usually made of brass.
  • Ideal for small spaces or routes with changes in direction.

Applications

  • Low and medium pressure hydraulic installations.
  • Industrial pneumatics.
  • Automatic lubrication equipment and lines.
  • Machinery, instrumentation and automation.
  • Connections in areas where a 90° turn of the pipe is required.
Product Details
11580001
