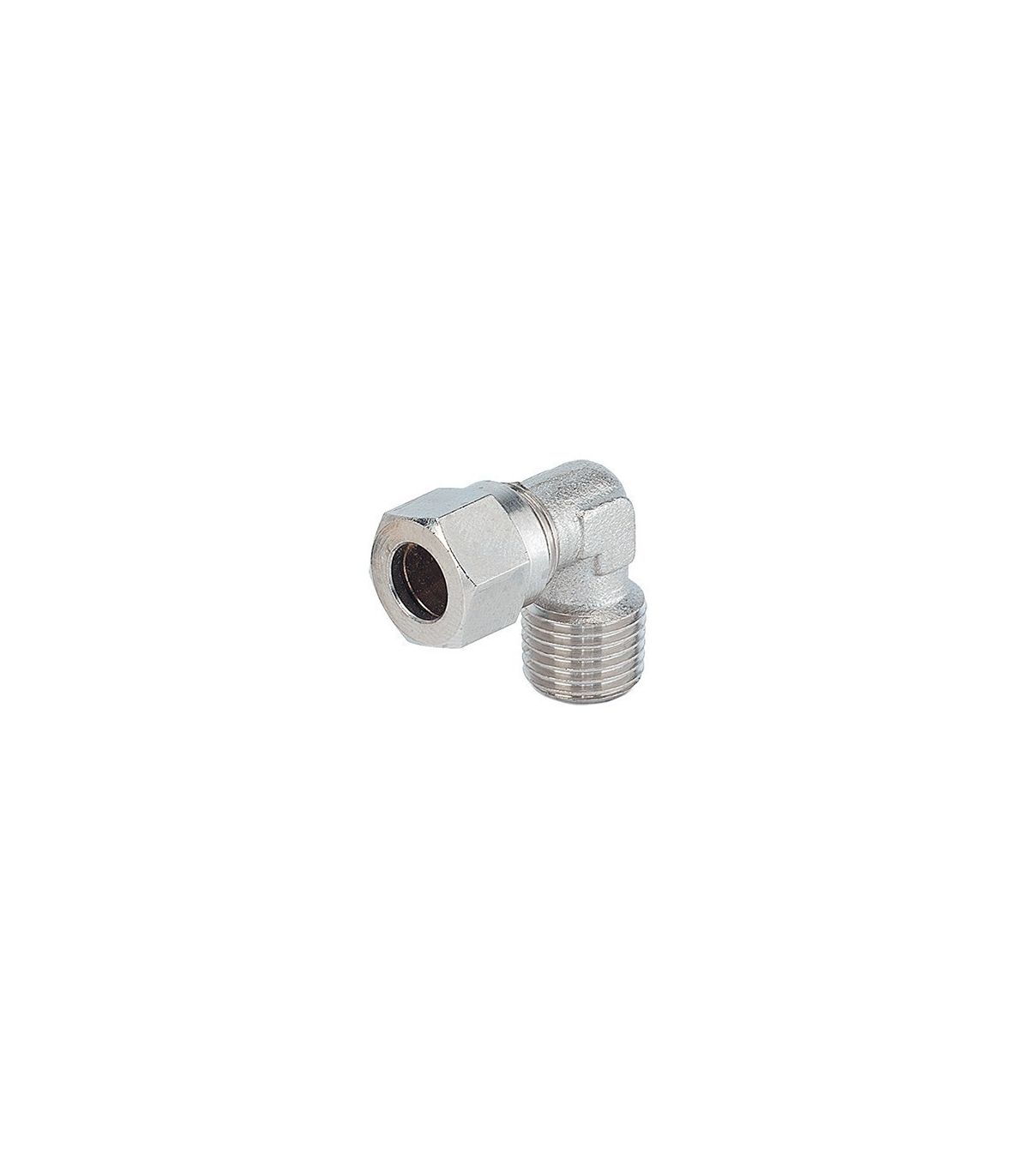

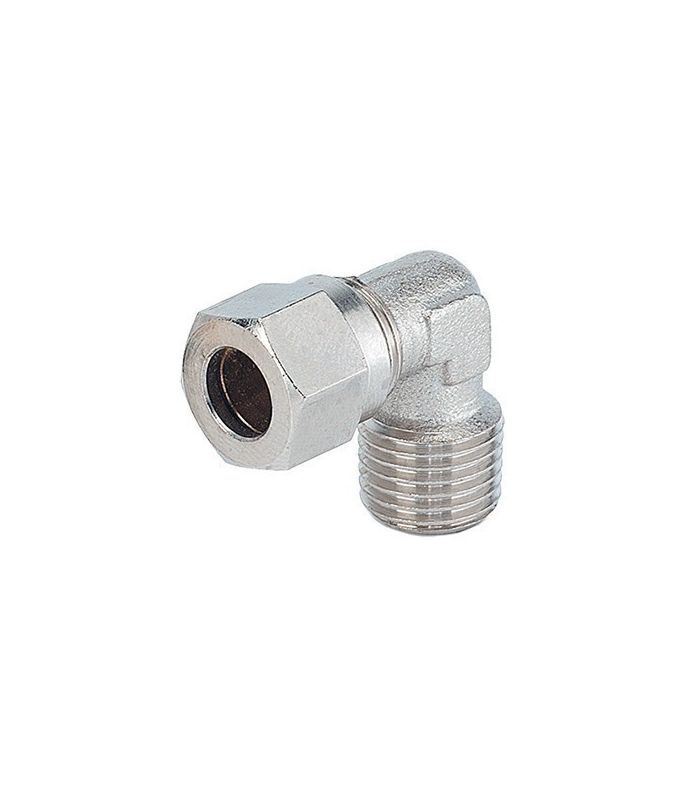

Tapered thread elbow, pipe, nut, and bicone

Tapered thread elbow, pipe, nut, and bicone

Tapered threaded elbow, pipe nut and bicone

A tapered thread elbow with a nut and bicone fitting is a 90° fitting designed to connect a rigid pipe to a male tapered threaded port. It provides a secure, watertight connection suitable for confined spaces.

Main features:

  • Made of nickel-plated brass UNI-EN 12164CWG14N.
  • Good resistance to pressure and working temperature.
  • Tapered thread 1507 - DIN 2999 and cylindrical thread ISO 228.
  • Max. working pressure 110 bar up to Ø 8 mm, 60 bar from Ø 10 to 18 mm.
  • Suitable for copper, iron, aluminum, brass, PA, and PU tubes
€1.51 (tax included)
€1.25 (tax excl.)
Tube diameter - Thread
  • Ø 4-1/8
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-3/8
  • Ø 12-1/2
  • Ø 14-1/2
  • Ø 15-1/2
  • Ø 16-1/2
  • Ø 18-1/2
Reference:
11520003
Description

Tapered threaded elbow, pipe nut and bicone

The connection to the pipe is made using a compression system with a nut and a bicone fitting, which, when tightened, creates a hermetic metal seal . The male tapered thread on the other end ensures a seal through deformation and direct tightening. This type of joint allows the pipe's direction to be changed without bending it, facilitating installations in confined spaces and guaranteeing a strong, leak-free connection even under pressure.

Advantages

  • Excellent watertightness.
  • Resistant to vibration and pressure.
  • Ideal for changing direction without bending the tube.
  • Easy, safe and durable assembly.

Applications

  • Automatic lubrication systems.
  • Light hydraulics and pneumatics.
  • Industrial machinery and automation.
  • Connections where it is necessary to join a rigid tube with a threaded component in a 90° elbow.
Product Details
11520003
