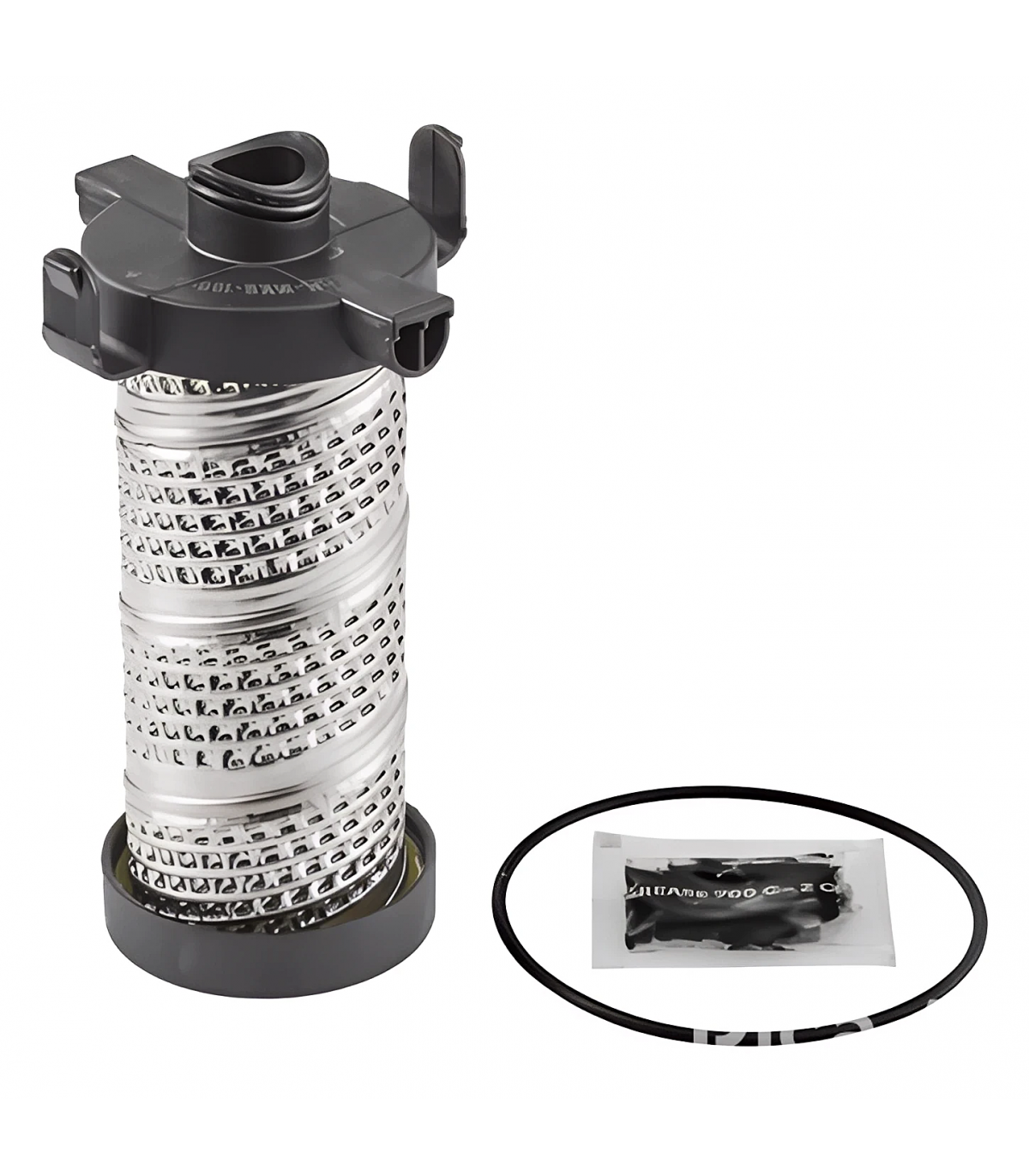

A Prevost MFC activated carbon filter replacement is a replacement part specifically designed to be used inside a Prevost activated carbon filter unit with the designation MFC.
Technical specifications:
The Prevost MFC activated carbon replacement filter is designed for filtering and deodorizing compressed air. The activated carbon retains oil vapors and contaminants, helping to produce cleaner, odor-free compressed air.
Its function is to complete the treatment of compressed air after the micron and submicron filtration stages.
Technical specifications for a Prevost MFC activated carbon replacement filter:
| Reference | Thread | Flow rate at 6 bar (m3/h) | A (mm) | B (mm) | C (mm) |
| 34190003 | 1/2" | 55 | 58.7 | 58.7 | 163.7 |
| 34190004 | 3/4" | 150 | 107 | 107 | 187.2 |
| 34190005 | 1" | 225 | 107 | 107 | 247.2 |
| 34190006 | 1-1/2" | 300 | 110.9 | 110.9 | 303 |
| 34190007 | 2" | 500 | 113.7 | 113.7 | 328.53 |
| 34190008 | 2-1/2" | 1550 | 113.7 | 113.7 | 518.5 |
