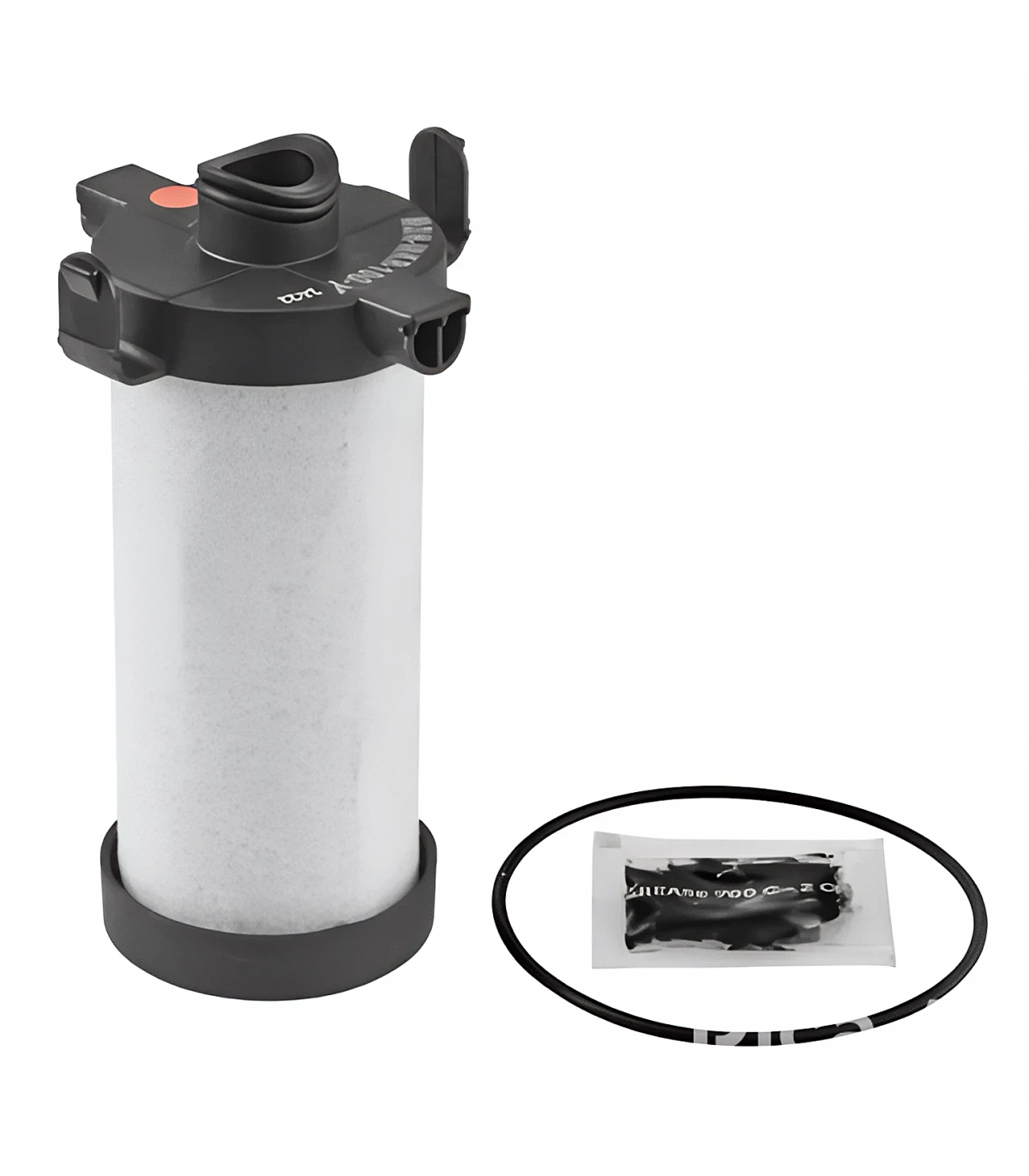

A Prevost 1 micron MFM filter replacement is specifically designed for use within a Prevost submicron filter unit with a filtration capacity of 1 micron (µm). It replaces a saturated or contaminated filter element.
Technical specifications:
A Prevost 1 micron MFM replacement filter is designed to replace the filter used in compressed air treatment systems. Its function is to maintain the equipment's filtration capacity by retaining particles and impurities present in the circuit and helping to ensure a clean and suitable air supply for pneumatic components.
Suitable for the maintenance and replacement of the filter element in PREVOST systems compatible with the MFM series. It is used in pneumatic installations where it is necessary to maintain an adequate level of compressed air cleanliness and protect downstream components.
Technical specifications for a Prevost 1 micron MFM replacement filter:
| Reference | Thread | Flow rate at 6 bar (m3/h) | A (mm9 | B (mm) | C (mm) |
| 34170003 | 1/2" | 55 | 58.7 | 163.7 | 163.7 |
| 34170004 | 3/4" | 55 | 107 | 187.2 | 187.2 |
| 34170005 | 1" | 225 | 107 | 247.2 | 247.2 |
| 34170006 | 1-1/2" | 300 | 110.9 | 303 | 303 |
| 34170007 | 2" | 500 | 113.7 | 328.53 | 328.53 |
| 34170008 | 2-1/2" | 1550 | 113.7 | 518.5 | 518.5 |
