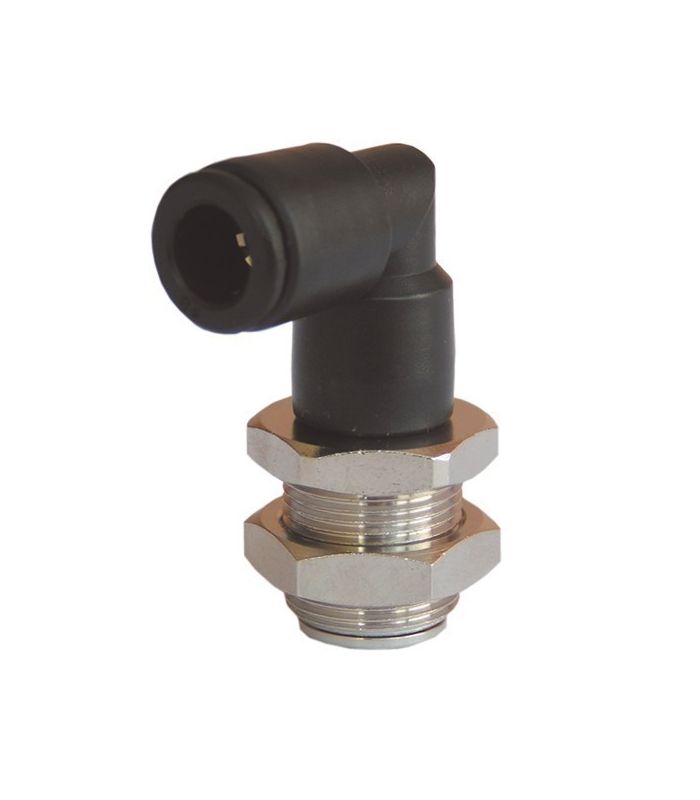

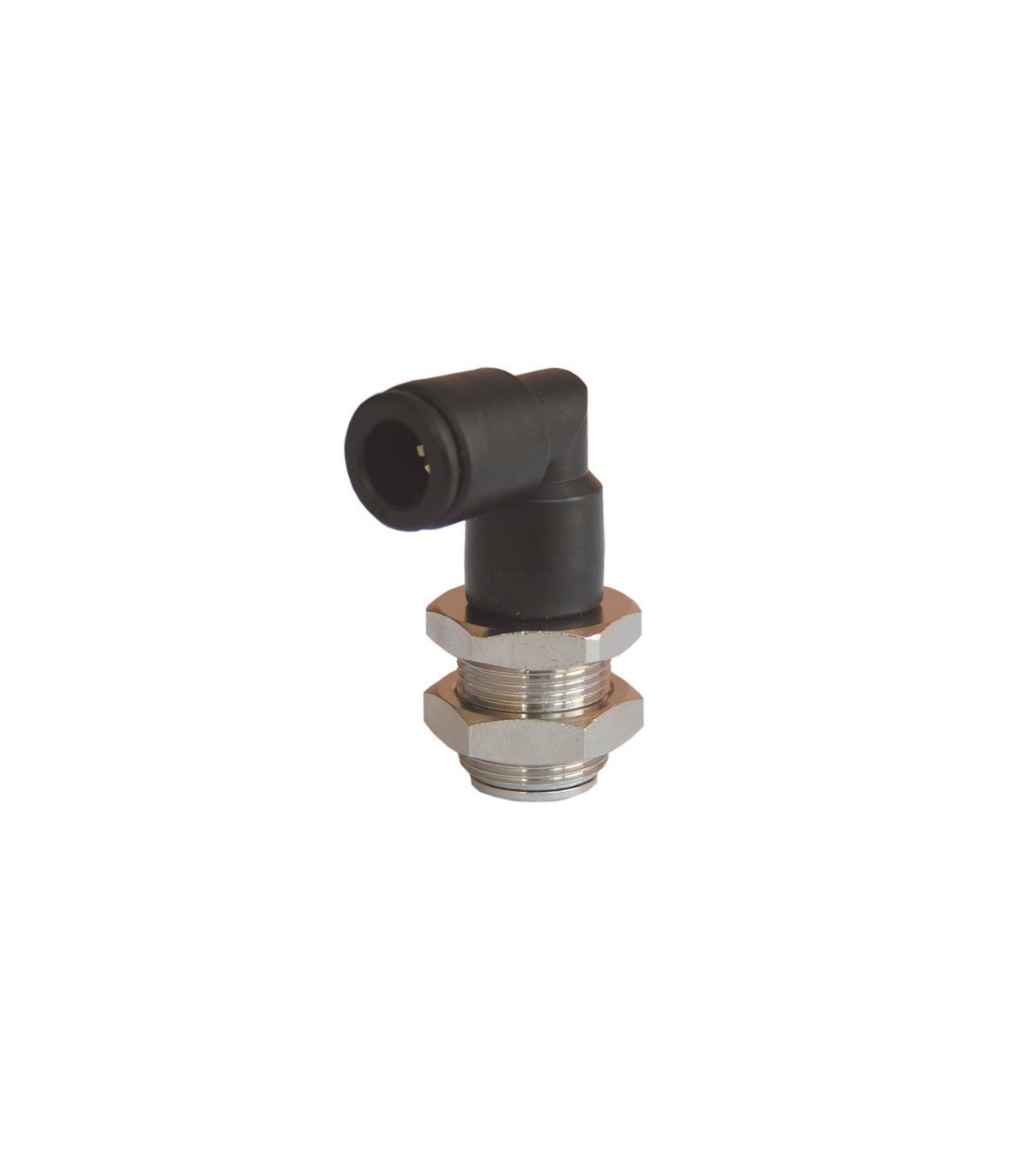

INSTANT FITTING WALL PULL-IN ELBOW

INSTANT FITTING WALL PULL-IN ELBOW

An instant fitting, pipe fitting, or elbow fitting is a connector primarily used in pneumatic or low-pressure fluid systems. The fitting is designed to join two pipes and pass through and be secured to a panel or wall.

Main features:

  • Working pressure -1/10 bar.
  • Temperature 0 /- 60ºC.
  • Wide range of Ø 4-16
  • Ease of connection.
  • Cylindrical or conical thread.
  • Body in nickel-plated brass and PBT.
  • Gripper pliers in 301 steel
  • POM resin push ring
€4.59 (tax included)
€3.79 (tax excl.)
DIAMETERS
  • Ø 4
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
Reference:
30330001
Description

Instant fitting, bulkhead fitting, elbow

An instant fitting, wall-through elbow coupling, is a pneumatic connector designed to join two pipes by means of a quick connection, making a 90° change of direction and also allowing the installation to pass through panels, walls or surfaces.

This type of fitting combines the functions of a splice, elbow, and bulkhead fitting in a single piece, facilitating compact, tidy, and safe pneumatic installations.

Applications

  • Automation panels and control panels
  • Industrial machinery with internal and external connections
  • Pneumatic systems in confined spaces
  • Installations that require changes of direction and passage through surfaces
  • Compressed air distribution circuits

Technical specifications of an instant fitting, wall-to-wall elbow splice:

Product Details
30330001
Comments
12 other products in the same category:
